Cilium Zero-Trust Lab

Posted Updated
By GAGA
21 min read

본 문서는 Cloudbro 오픈 프로젝트 “Cilium 기반 멀티클러스터 Zero-Trust & Observability 아키텍처 설계”에 직접 참여하여 수행한 설계·검증 결과를 바탕으로 재구성한 실습 가이드입니다. 전체 아키텍처, 소스 코드, GKE 멀티클러스터 구축 가이드, 본 랩의 워크로드·매니페스트는 레포지토리에서 확인하실 수 있습니다.

진행 순서 안내

  1. 먼저 상기 레포지토리의 README를 확인하시기 바랍니다.
  2. 안내에 따라 GKE 멀티클러스터를 선 구축하십시오.
  3. 레포지토리를 클론 후 워크로드·매니페스트를 준비하십시오.
  4. 준비가 완료되면 본 가이드의 실습 절차를 순차적으로 진행하십시오.

🧩 Preparation

1. Hubble / Hubble UI

1
2

# Hubble Relay 포트포워딩
cilium hubble port-forward -n kube-system

1
2
3
4
5
6
7
8
9
10

kubectl get svc -n kube-system --context $CLUSTER1 | grep hubble

# 예시 출력
hubble-metrics                                       ClusterIP      None             <none>           9965/TCP                       42h
hubble-peer                                          ClusterIP      34.118.233.33    <none>           443/TCP                        44h
hubble-relay                                         ClusterIP      34.118.231.13    <none>           80/TCP                         43h
hubble-ui                                            LoadBalancer   34.118.233.250   104.198.125.51   80:32346/TCP                   43h

# Hubble UI 접속
# http://104.198.125.51

2. Grafana 연결

1
2
3
4
5
6
7

# Access Grafana
kubectl port-forward -n monitoring svc/prometheus-grafana 3000:80 --context $CLUSTER1

# Grafana 접속
# http://localhost:3000
# Username: admin
# Password: admin123

3. 워크로드 배포 (ns: shop)

1
2

kubectl create ns shop --context $CLUSTER1
kubectl create ns shop --context $CLUSTER2

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31

# backend.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
  name: backend
  namespace: shop
spec:
  replicas: 1
  selector:
    matchLabels: { app: backend }
  template:
    metadata:
      labels: { app: backend }
    spec:
      containers:
      - name: backend
        image: kennethreitz/httpbin
        ports:
        - containerPort: 80
---
apiVersion: v1
kind: Service
metadata:
  name: backend
  namespace: shop
spec:
  selector:
    app: backend
  ports:
  - port: 80
    targetPort: 80

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19

# frontend.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
  name: frontend
  namespace: shop
spec:
  replicas: 1
  selector:
    matchLabels: { app: frontend }
  template:
    metadata:
      labels: { app: frontend }
    spec:
      containers:
      - name: frontend
        image: nicolaka/netshoot
        command: ["tail"]
        args: ["-f", "/dev/null"]

1
2
3
4
5
6
7
8
9
10
11

# 배포
kubectl apply -f backend.yaml  --context $CLUSTER1
kubectl apply -f backend.yaml  --context $CLUSTER2
kubectl apply -f frontend.yaml --context $CLUSTER1
kubectl apply -f frontend.yaml --context $CLUSTER2

# 롤아웃 확인
kubectl rollout status deploy/backend  -n shop --context $CLUSTER1
kubectl rollout status deploy/frontend -n shop --context $CLUSTER1
kubectl rollout status deploy/backend  -n shop --context $CLUSTER2
kubectl rollout status deploy/frontend -n shop --context $CLUSTER2

🟢 Stage 1: Allow-All (베이스라인 가시화)

1. 정책 적용

1
2
3
4
5
6
7
8
9
10
11
12

# allow-all.yaml
apiVersion: cilium.io/v2
kind: CiliumNetworkPolicy
metadata:
  name: allow-all
  namespace: shop
spec:
  endpointSelector: {}
  ingress:
    - fromEntities: [all]
  egress:
    - toEntities: [all]

1
2

kubectl apply -f allow-all.yaml --context $CLUSTER1
kubectl apply -f allow-all.yaml --context $CLUSTER2

2. FE→BE HTTP 확인

1
2
3
4
5
6
7
8
9

kubectl exec -it deploy/frontend -n shop --context $CLUSTER1 -- \
  curl -sS http://backend.shop.svc.cluster.local/get | jq -r .url; echo

kubectl exec -it deploy/frontend -n shop --context $CLUSTER2 -- \
  curl -sS http://backend.shop.svc.cluster.local/get | jq -r .url; echo

# 결과
http://backend.shop.svc.cluster.local/get
http://backend.shop.svc.cluster.local/get
  • FE → BE 기본 통신 허용 상태 확인

3. Hubble로 Allow-All 매칭 확인

(1) 정책 판정 흐름 전체

1

hubble observe -n shop --type policy-verdict --follow

✅ 출력

1
2
3
4
5
6

Oct  2 14:06:19.406: shop/frontend-79f5dbfc6c-d6gb7:60788 (ID:114060) -> kube-system/kube-dns-75df64b86-xrfwz:53 (ID:67025) policy-verdict:all EGRESS ALLOWED (UDP)
Oct  2 14:06:19.464: shop/frontend-79f5dbfc6c-d6gb7:55544 (ID:114060) -> shop/backend-6c4c67dc75-g22jn:80 (ID:69364) policy-verdict:all EGRESS ALLOWED (TCP Flags: SYN)
Oct  2 14:06:19.464: shop/frontend-79f5dbfc6c-d6gb7:55544 (ID:114060) -> shop/backend-6c4c67dc75-g22jn:80 (ID:69364) policy-verdict:all INGRESS ALLOWED (TCP Flags: SYN)
Oct  2 14:06:28.561: shop/frontend-79f5dbfc6c-r56dx:53700 (ID:135917) -> kube-system/kube-dns-55899b7fc-2rdqk:53 (ID:156453) policy-verdict:all EGRESS ALLOWED (UDP)
Oct  2 14:06:28.576: shop/frontend-79f5dbfc6c-r56dx:35010 (ID:135917) -> shop/backend-6c4c67dc75-mqm9j:80 (ID:163287) policy-verdict:all EGRESS ALLOWED (TCP Flags: SYN)
Oct  2 14:06:28.576: shop/frontend-79f5dbfc6c-r56dx:35010 (ID:135917) -> shop/backend-6c4c67dc75-mqm9j:80 (ID:163287) policy-verdict:all INGRESS ALLOWED (TCP Flags: SYN)
  • DNS(53/UDP) 및 FE→BE(80/TCP) 트래픽 허용 관찰

(2) JSON으로 허용 정책명 확인

1
2

hubble observe -n shop --type policy-verdict --from-label app=frontend --to-label app=backend --last 1 -o jsonpb \
  | jq '.flow | {verdict:.verdict,ing:(.ingress_allowed_by//[]|map(.name)),eg:(.egress_allowed_by//[]|map(.name))}'

✅ 출력

1
2
3
4
5
6
7
8
9
10
11
12
13
14

{
  "verdict": "FORWARDED",
  "ing": [
    "allow-all"
  ],
  "eg": []
}
{
  "verdict": "FORWARDED",
  "ing": [
    "allow-all"
  ],
  "eg": []
}
  • allow-all이 수신(ingress) 측에서 실제 허용자로 매칭됨

4. 트래픽 캡처

1
2

kubectl exec -n shop deploy/frontend --context "$CLUSTER1" -- sh -lc \
'for i in $(seq 1 60); do curl -sS --http1.1 -o /dev/null http://backend.shop.svc.cluster.local/anything/ok; sleep 0.1; done'

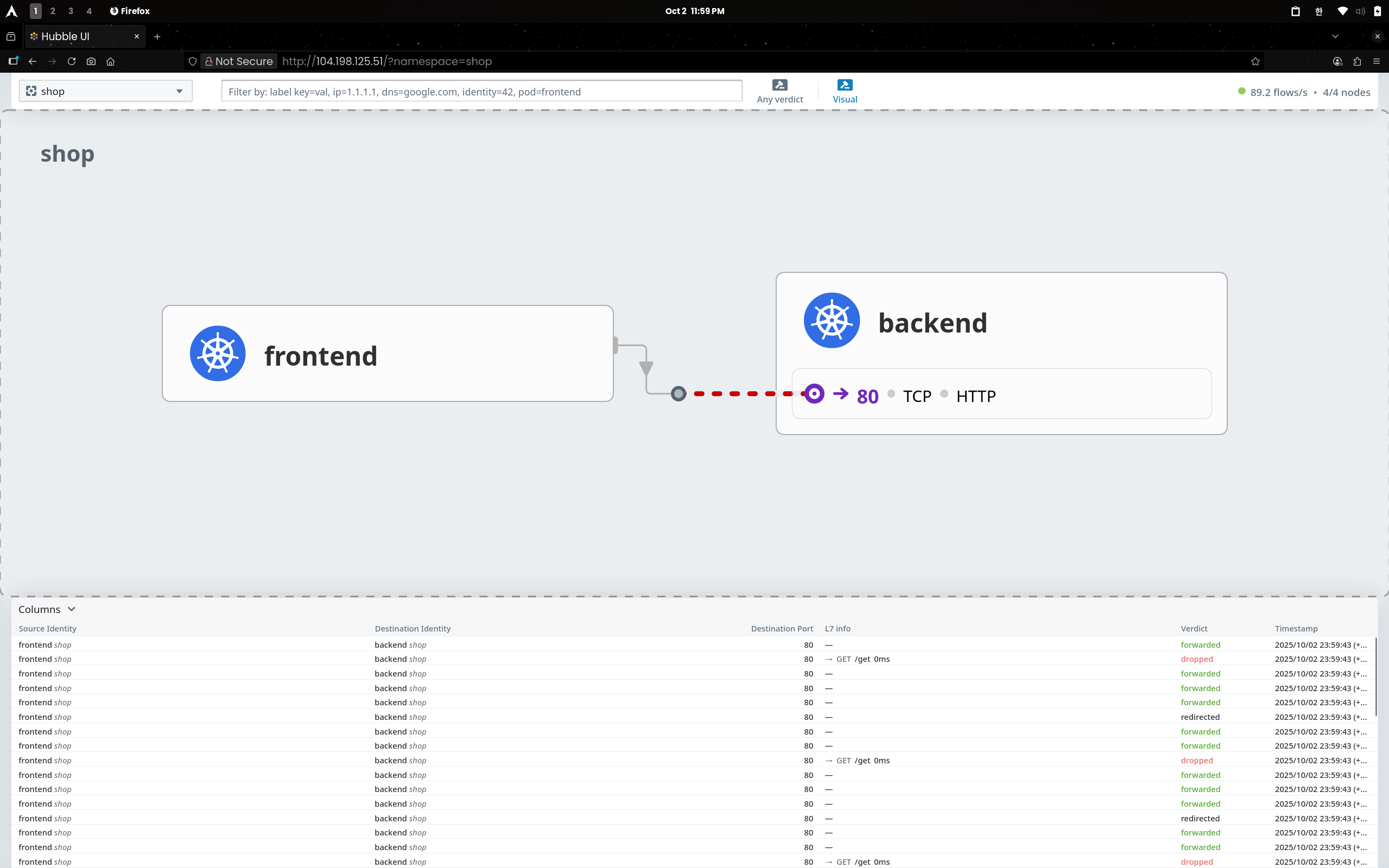

(1) Hubble UI

  • frontend → backend:80/TCP가 연속 ALLOWED/FORWARDED

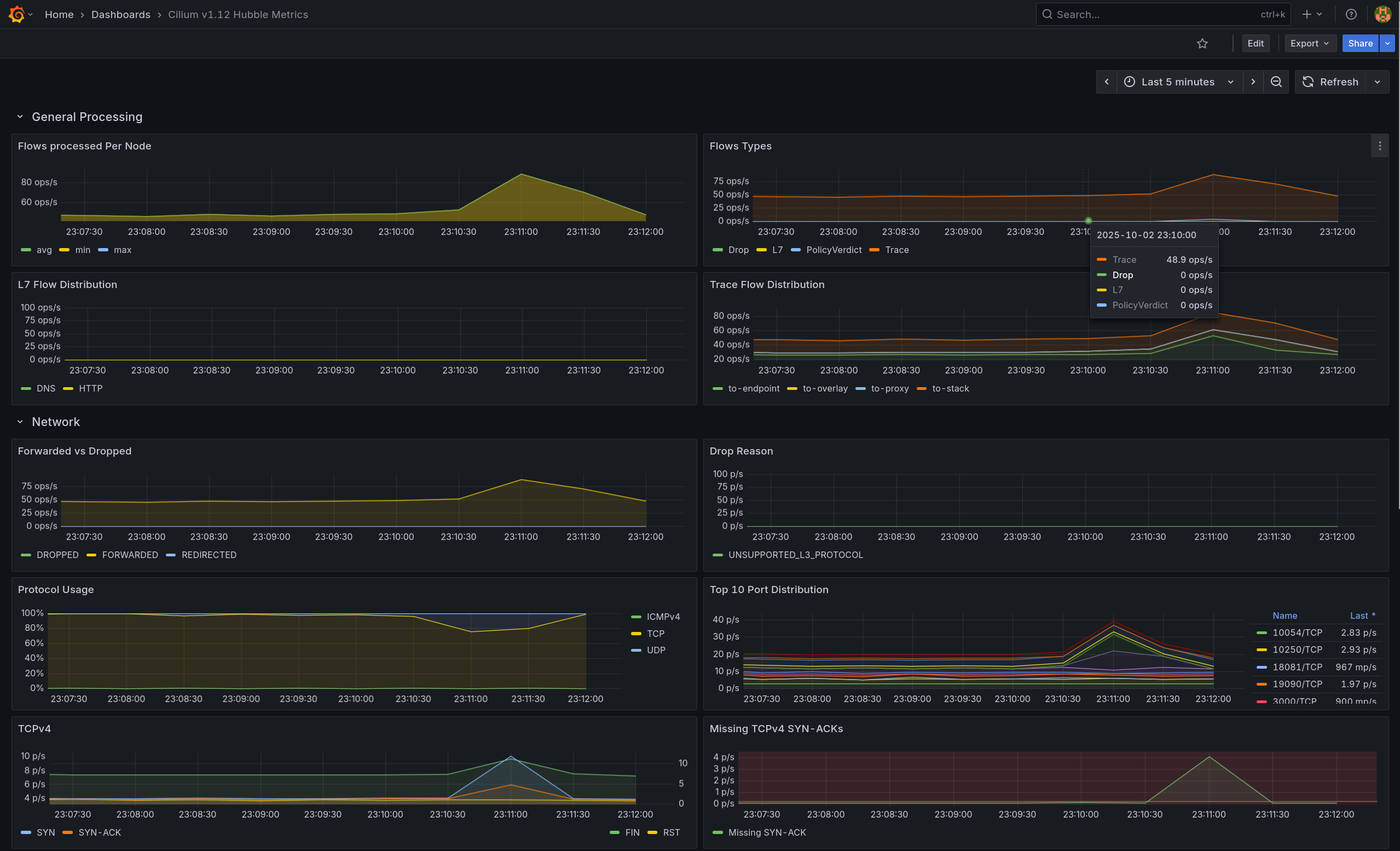

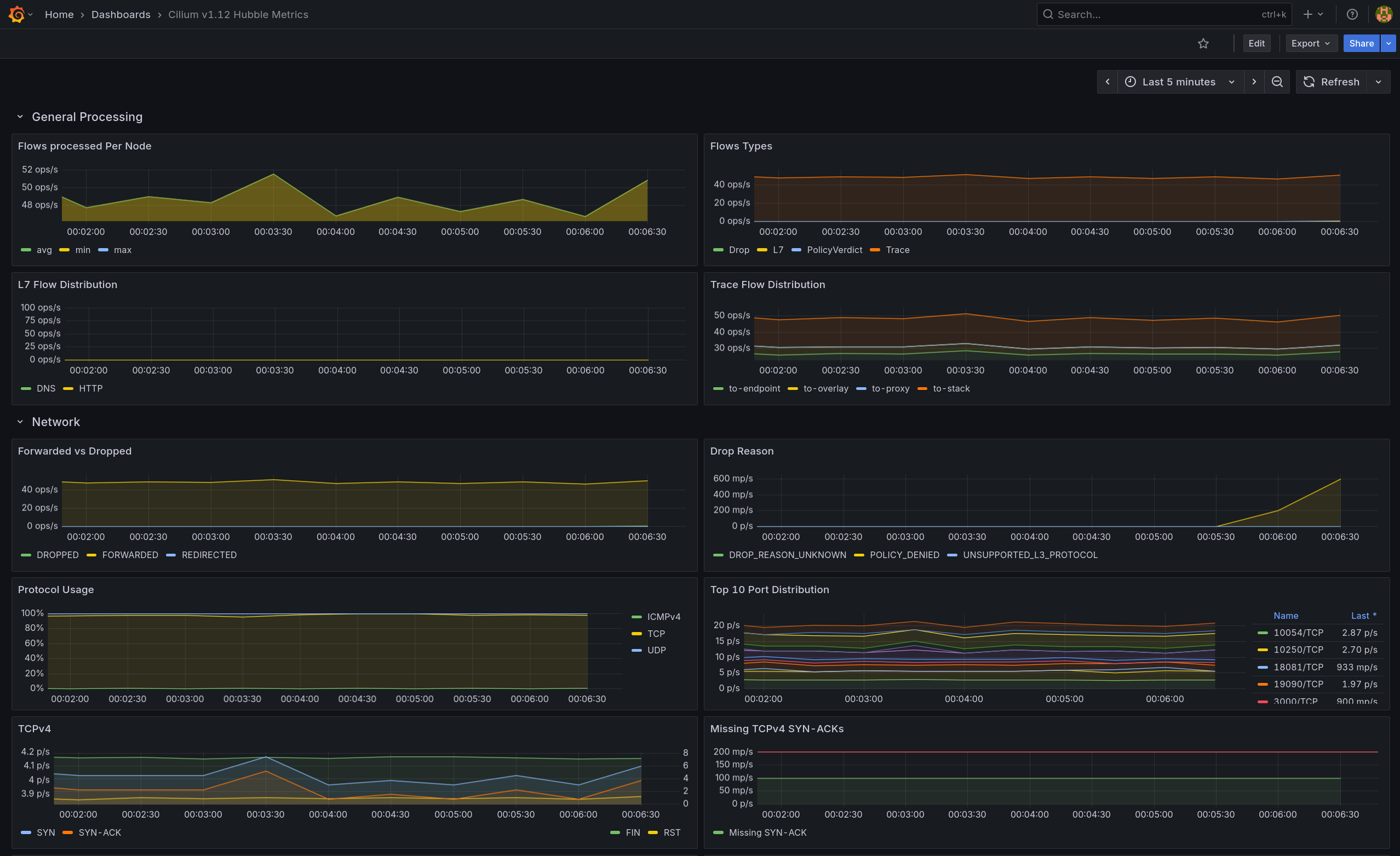

(2) Grafana

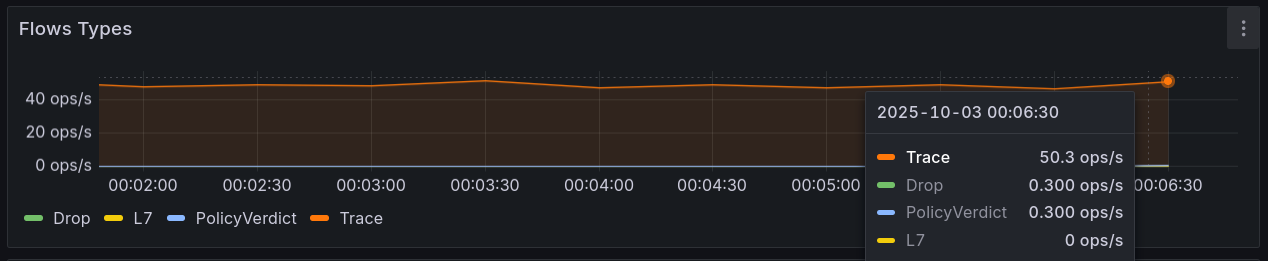

  • Flow Types는 증가, Forwarded vs Dropped는 Forwarded 우세로 나타남
  • TCPv4 패널의 SYN/SYN-ACK 스파이크와 Top 10 Port에서 80/TCP 상위를 통해 전면 허용 베이스라인 트래픽임을 확인

🔵 Stage 2: DNS 정책 분리 (kube-dns:53)

1. 정책 적용

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22

# allow-dns.yaml
apiVersion: cilium.io/v2
kind: CiliumNetworkPolicy
metadata:
  name: allow-dns
  namespace: shop
spec:
  endpointSelector: {}
  egress:
    - toEndpoints:
        - matchLabels:
            io.kubernetes.pod.namespace: kube-system
            k8s-app: kube-dns
      toPorts:
        - ports:
            - port: "53"
              protocol: UDP
            - port: "53"
              protocol: TCP
          rules:
            dns:
              - matchPattern: "*"

1
2

kubectl apply -f allow-dns.yaml --context $CLUSTER1
kubectl apply -f allow-dns.yaml --context $CLUSTER2

2. DNS 정상 조회 확인

1
2
3
4
5

kubectl exec -it deploy/frontend -n shop --context $CLUSTER1 -- \
  nslookup backend.shop.svc.cluster.local

kubectl exec -it deploy/frontend -n shop --context $CLUSTER2 -- \
  nslookup backend.shop.svc.cluster.local

✅ 출력

1
2
3
4
5
6
7

# Cluster1
Name:	backend.shop.svc.cluster.local
Address: 34.118.239.118

# Cluster2
Name:	backend.shop.svc.cluster.local
Address: 34.118.228.223
  • 두 클러스터 모두 DNS 질의 성공

3. Hubble로 DNS 허용 확인 (프로토콜 뷰)

1

hubble observe -n shop --protocol DNS --last 10

✅ 출력

1
2
3
4
5
6
7
8
9
10
11

# Cluster1
Oct  2 14:14:50.446: shop/frontend-79f5dbfc6c-d6gb7:56300 (ID:114060) -> kube-system/kube-dns-75df64b86-wjls9:53 (ID:67025) dns-request proxy FORWARDED (DNS Query backend.shop.svc.cluster.local. A)
Oct  2 14:14:50.453: shop/frontend-79f5dbfc6c-d6gb7:56300 (ID:114060) <- kube-system/kube-dns-75df64b86-wjls9:53 (ID:67025) dns-response proxy FORWARDED (DNS Answer "34.118.239.118" TTL: 30 (Proxy backend.shop.svc.cluster.local. A))
Oct  2 14:14:50.458: shop/frontend-79f5dbfc6c-d6gb7:53175 (ID:114060) -> kube-system/kube-dns-75df64b86-wjls9:53 (ID:67025) dns-request proxy FORWARDED (DNS Query backend.shop.svc.cluster.local. AAAA)
Oct  2 14:14:50.459: shop/frontend-79f5dbfc6c-d6gb7:53175 (ID:114060) <- kube-system/kube-dns-75df64b86-wjls9:53 (ID:67025) dns-response proxy FORWARDED (DNS Answer  TTL: 4294967295 (Proxy backend.shop.svc.cluster.local. AAAA))

# Cluster2
Oct  2 14:15:18.524: shop/frontend-79f5dbfc6c-r56dx:38458 (ID:135917) -> kube-system/kube-dns-55899b7fc-2rdqk:53 (ID:156453) dns-request proxy FORWARDED (DNS Query backend.shop.svc.cluster.local. A)
Oct  2 14:15:18.528: shop/frontend-79f5dbfc6c-r56dx:38458 (ID:135917) <- kube-system/kube-dns-55899b7fc-2rdqk:53 (ID:156453) dns-response proxy FORWARDED (DNS Answer "34.118.228.223" TTL: 30 (Proxy backend.shop.svc.cluster.local. A))
Oct  2 14:15:18.531: shop/frontend-79f5dbfc6c-r56dx:42314 (ID:135917) -> kube-system/kube-dns-55899b7fc-2rdqk:53 (ID:156453) dns-request proxy FORWARDED (DNS Query backend.shop.svc.cluster.local. AAAA)
Oct  2 14:15:18.532: shop/frontend-79f5dbfc6c-r56dx:42314 (ID:135917) <- kube-system/kube-dns-55899b7fc-2rdqk:53 (ID:156453) dns-response proxy FORWARDED (DNS Answer  TTL: 4294967295 (Proxy backend.shop.svc.cluster.local. AAAA))
  • 프록시 경유(FORWARDED)로 DNS L7 룰 동작 확인

4. Hubble policy-verdict (to port 53)

1

hubble observe -n shop --type policy-verdict --to-port 53 --last 5

✅ 출력

1
2
3
4
5

# Cluster1
Oct  2 14:14:50.458: shop/frontend-79f5dbfc6c-d6gb7:53175 (ID:114060) -> kube-system/kube-dns-75df64b86-wjls9:53 (ID:67025) policy-verdict:L3-L4 EGRESS ALLOWED (UDP)

# Cluster2
Oct  2 14:15:18.531: shop/frontend-79f5dbfc6c-r56dx:42314 (ID:135917) -> kube-system/kube-dns-55899b7fc-2rdqk:53 (ID:156453) policy-verdict:L3-L4 EGRESS ALLOWED (UDP)
  • 53/UDP EGRESS 허용이 L3/L4에서 적용됨

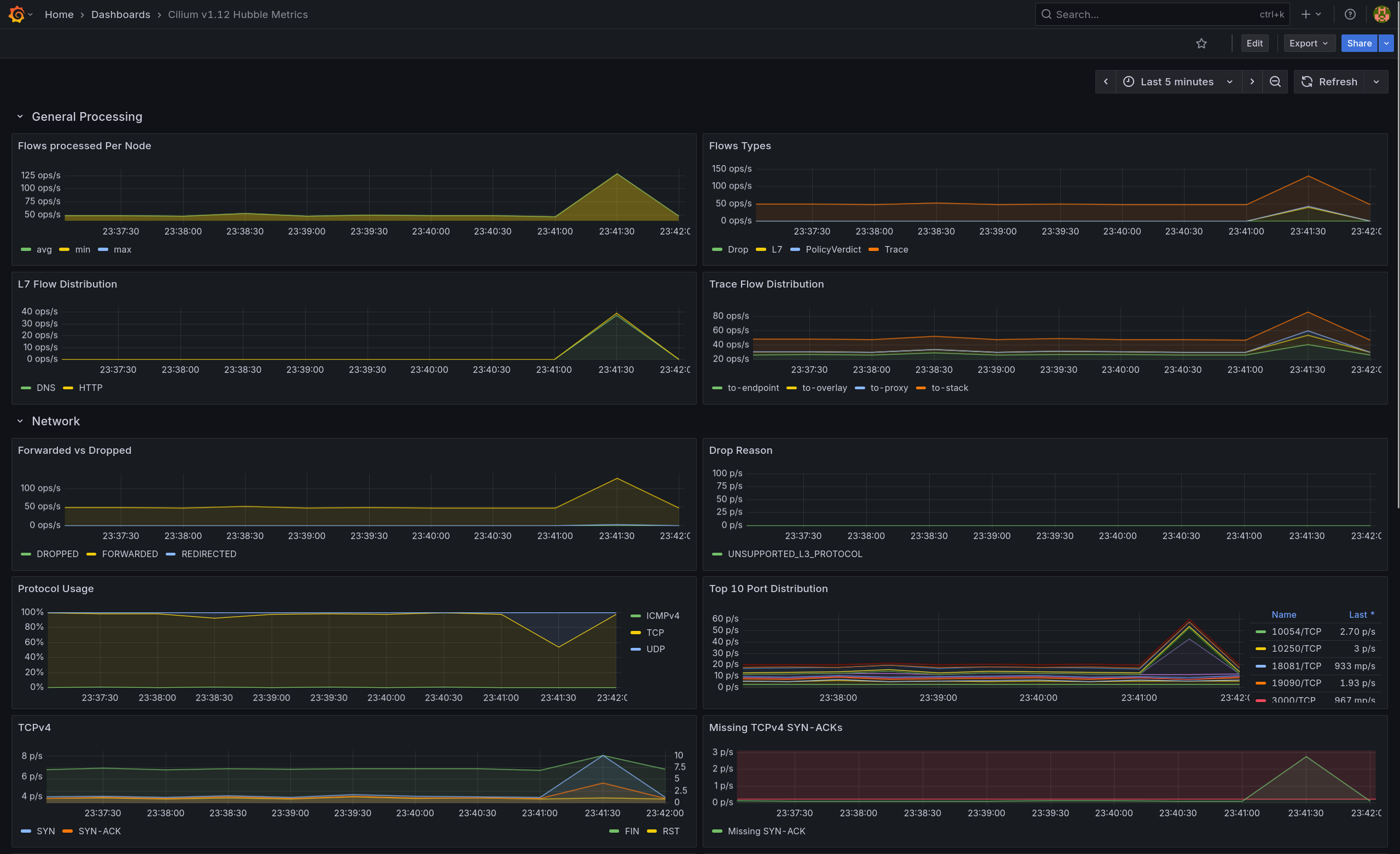

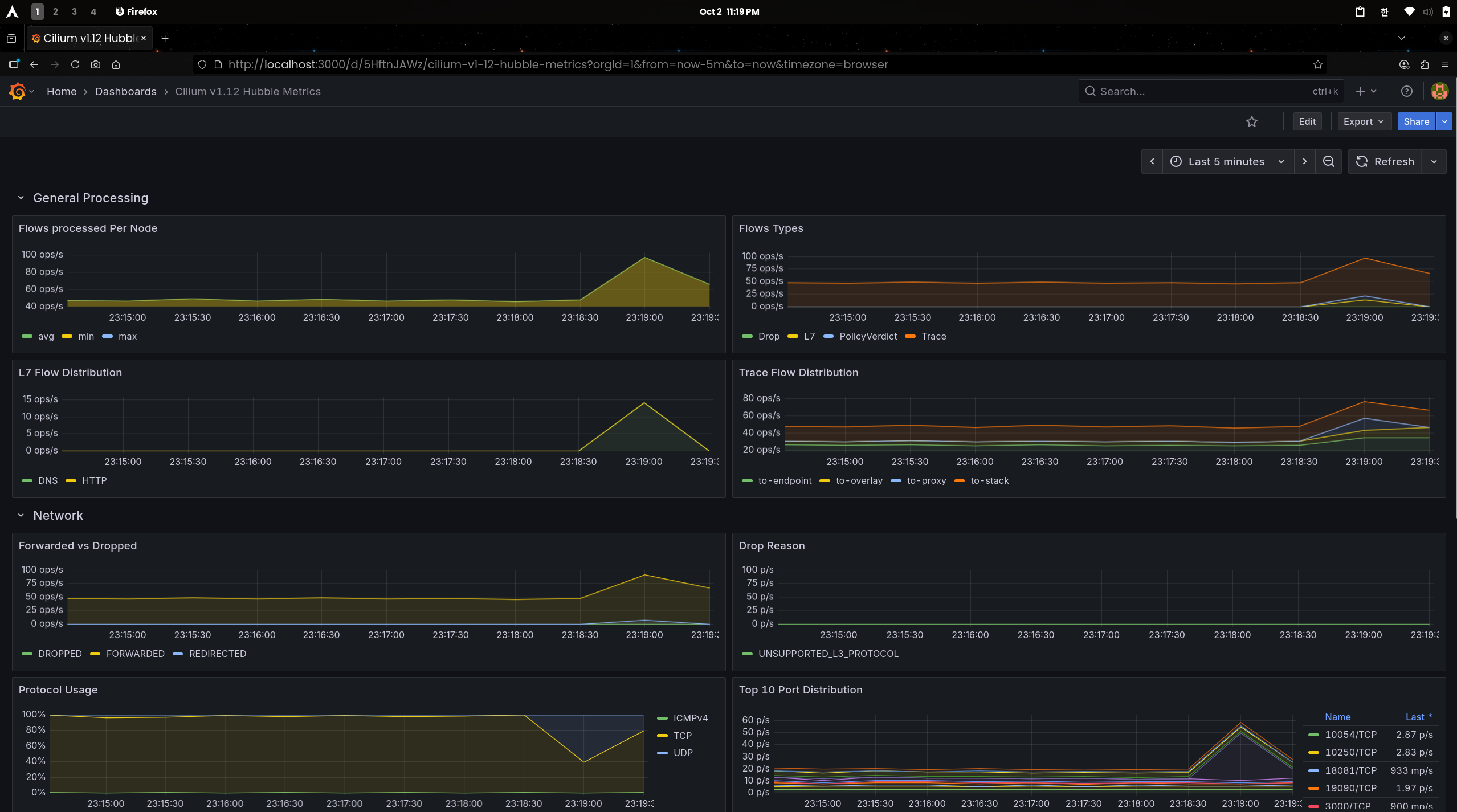

5. 트래픽 캡처 (Grafana)

1
2

kubectl exec -n shop deploy/frontend --context "$CLUSTER1" -- sh -lc \
'for i in $(seq 1 40); do nslookup backend.shop.svc.cluster.local >/dev/null 2>&1; sleep 0.15; done'
  • Flow Types는 증가, Forwarded vs Dropped는 Forwarded 우세로 나타남
  • L7 Flow Distribution에서 DNS가 뚜렷하게 상승하고 HTTP도 동반 증가

🟠 Stage 3: L4 최소 허용 (Ingress + Egress 쌍)

1. 정책 적용

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16

# allow-frontend-to-backend.yaml
apiVersion: cilium.io/v2
kind: CiliumNetworkPolicy
metadata:
  name: allow-frontend-to-backend
  namespace: shop
spec:
  endpointSelector:
    matchLabels: { app: backend }
  ingress:
    - fromEndpoints:
        - matchLabels: { app: frontend }
      toPorts:
        - ports:
            - port: "80"
              protocol: TCP

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16

# allow-frontend-egress.yaml
apiVersion: cilium.io/v2
kind: CiliumNetworkPolicy
metadata:
  name: allow-frontend-egress
  namespace: shop
spec:
  endpointSelector:
    matchLabels: { app: frontend }
  egress:
    - toEndpoints:
        - matchLabels: { app: backend }
      toPorts:
        - ports:
            - port: "80"
              protocol: TCP

1
2
3
4

kubectl apply -f allow-frontend-to-backend.yaml --context $CLUSTER1
kubectl apply -f allow-frontend-egress.yaml --context $CLUSTER1
kubectl apply -f allow-frontend-to-backend.yaml --context $CLUSTER2
kubectl apply -f allow-frontend-egress.yaml --context $CLUSTER2

2. FE→BE HTTP 200 확인

1
2
3
4
5
6
7

# Cluster1
kubectl exec -it deploy/frontend -n shop --context $CLUSTER1 -- \
  curl -sS http://backend.shop.svc.cluster.local/anything/ok -w "\nHTTP %{http_code}\n"

# Cluster2
kubectl exec -it deploy/frontend -n shop --context $CLUSTER2 -- \
  curl -sS http://backend.shop.svc.cluster.local/anything/ok -w "\nHTTP %{http_code}\n"

✅ 출력

1
2
3
4
5
6
7

...
"url": "http://backend.shop.svc.cluster.local/anything/ok"
HTTP 200

...
"url": "http://backend.shop.svc.cluster.local/anything/ok"
HTTP 200
  • 두 클러스터 모두 frontend → backend:80 통신 성공

3. 외부 egress 동작 상태 점검(베이스라인 유지)

1
2
3
4
5
6
7

# Cluster1
kubectl exec -it deploy/frontend -n shop --context $CLUSTER1 -- \
  sh -c 'curl -sS -m 3 https://example.com || echo BLOCKED'

# Cluster1
kubectl exec -it deploy/frontend -n shop --context $CLUSTER2 -- \
  sh -c 'curl -sS -m 3 https://example.com || echo BLOCKED'

✅ 출력(공통)

1
2
3
4
5

<!doctype html>
<html>
<head>
    <title>Example Domain</title>
...
  • 아직 Allow-All이 존재하므로 인터넷 egress는 허용 상태

4. Hubble: L4 허용 흐름 확인

1

hubble observe -n shop --verdict FORWARDED --from-label app=frontend --to-label app=backend --follow

✅ 출력

1
2
3
4
5
6
7
8
9
10
11

# Cluster1
Oct  2 14:23:07.053: shop/frontend-79f5dbfc6c-d6gb7:54130 (ID:114060) -> shop/backend-6c4c67dc75-g22jn:80 (ID:69364) policy-verdict:L3-L4 EGRESS ALLOWED (TCP Flags: SYN)
Oct  2 14:23:07.053: shop/frontend-79f5dbfc6c-d6gb7:54130 (ID:114060) -> shop/backend-6c4c67dc75-g22jn:80 (ID:69364) policy-verdict:L3-L4 INGRESS ALLOWED (TCP Flags: SYN)
Oct  2 14:23:07.053: shop/frontend-79f5dbfc6c-d6gb7:54130 (ID:114060) -> shop/backend-6c4c67dc75-g22jn:80 (ID:69364) to-endpoint FORWARDED (TCP Flags: SYN)
...

# Cluster2
Oct  2 14:23:18.701: shop/frontend-79f5dbfc6c-r56dx:52560 (ID:135917) -> shop/backend-6c4c67dc75-mqm9j:80 (ID:163287) policy-verdict:L3-L4 EGRESS ALLOWED (TCP Flags: SYN)
Oct  2 14:23:18.701: shop/frontend-79f5dbfc6c-r56dx:52560 (ID:135917) -> shop/backend-6c4c67dc75-mqm9j:80 (ID:163287) policy-verdict:L3-L4 INGRESS ALLOWED (TCP Flags: SYN)
Oct  2 14:23:18.701: shop/frontend-79f5dbfc6c-r56dx:52560 (ID:135917) -> shop/backend-6c4c67dc75-mqm9j:80 (ID:163287) to-endpoint FORWARDED (TCP Flags: SYN)
...
  • L3/L4 EGRESS/INGRESS ALLOWED로 연속 관찰 → L4 최소 허용 정책 유효

5. 트래픽 캡처

1
2

kubectl exec -n shop deploy/frontend --context "$CLUSTER1" -- sh -lc \
'for i in $(seq 1 80); do curl -sS --http1.1 -o /dev/null http://backend.shop.svc.cluster.local/anything/ok; sleep 0.1; done'

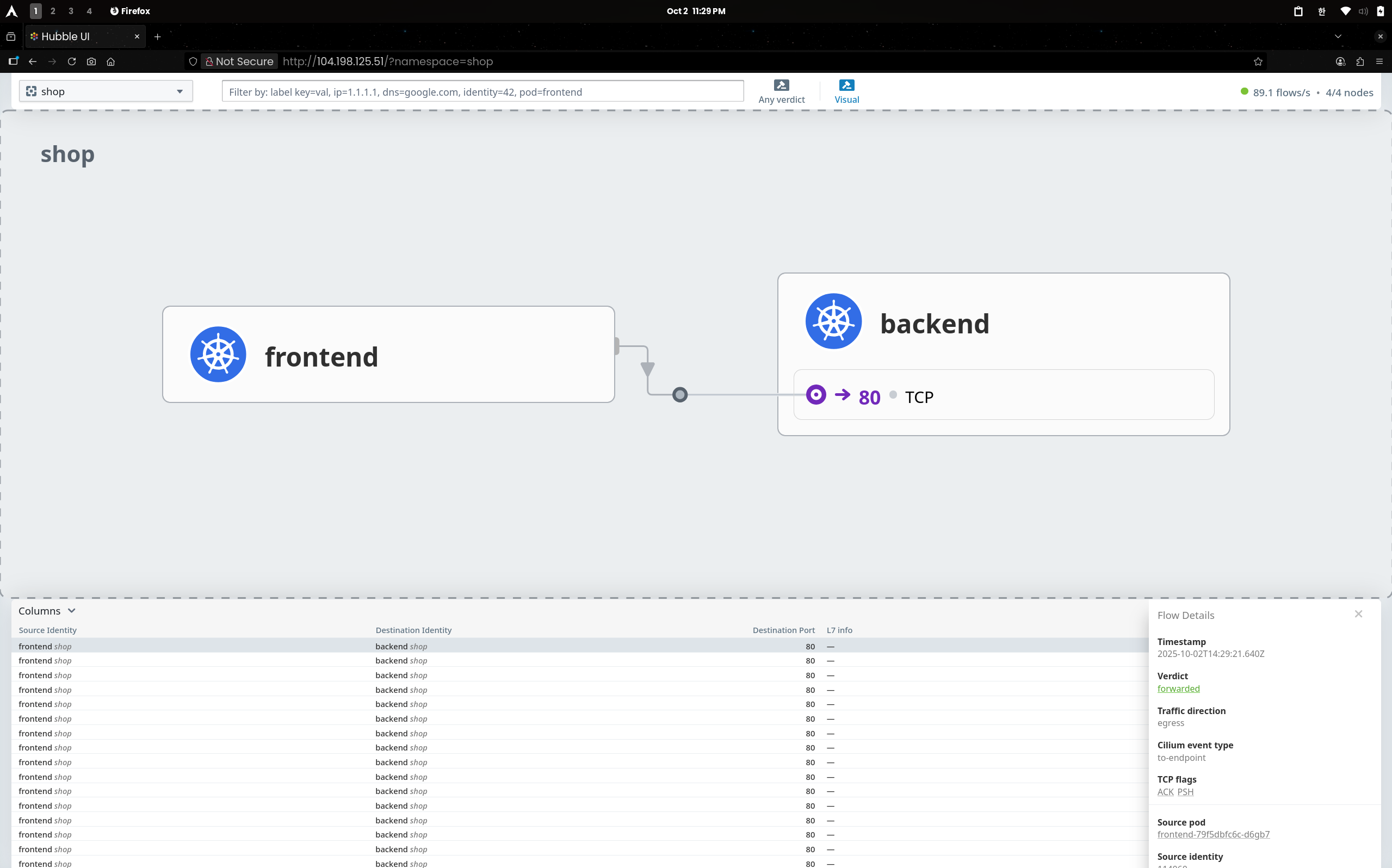

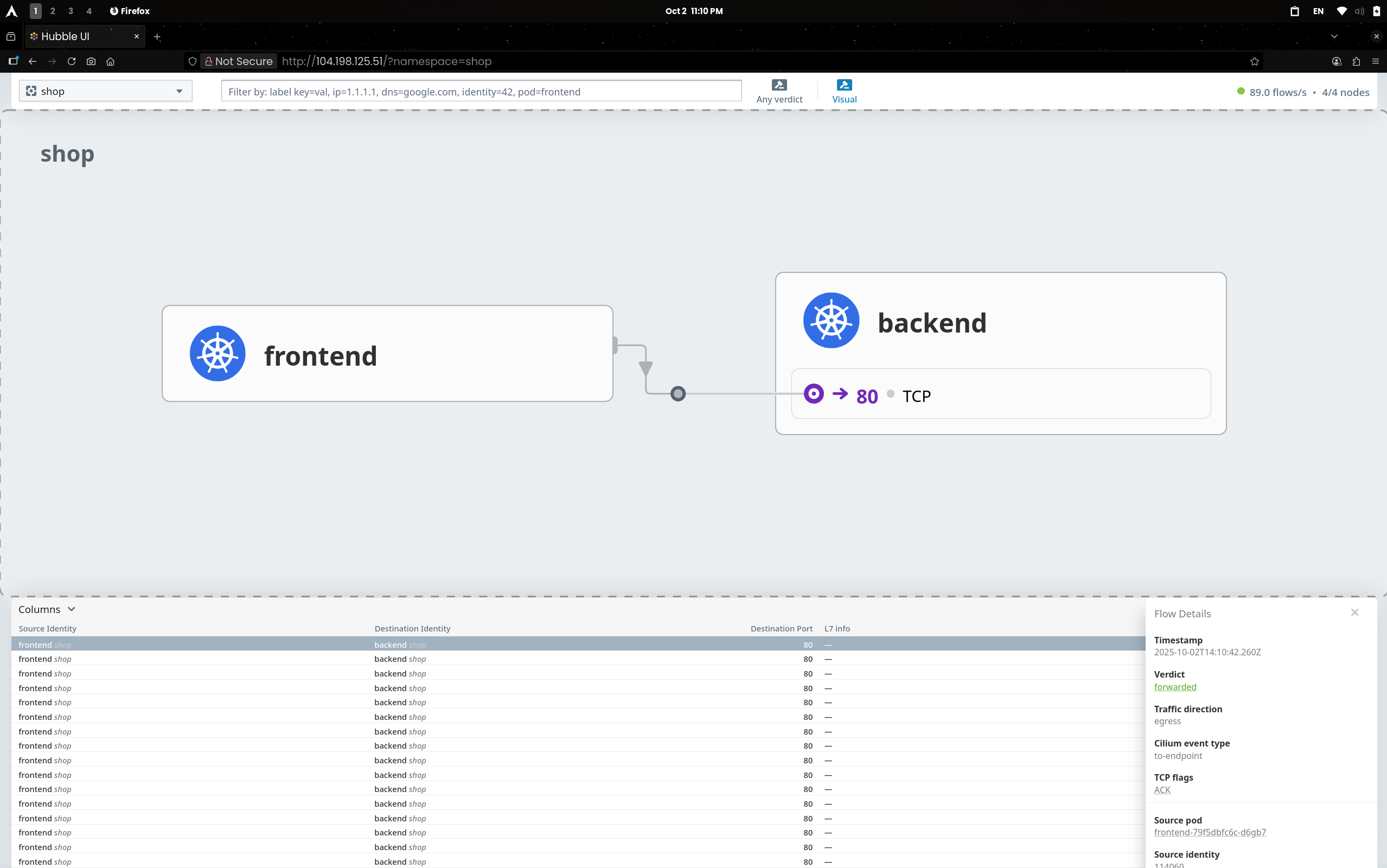

(1) Hubble UI

  • policy-verdict:L3-L4로 FE→BE:80 허용
  • egress/ingress 쌍 모두 확인(L7 정보 없음)

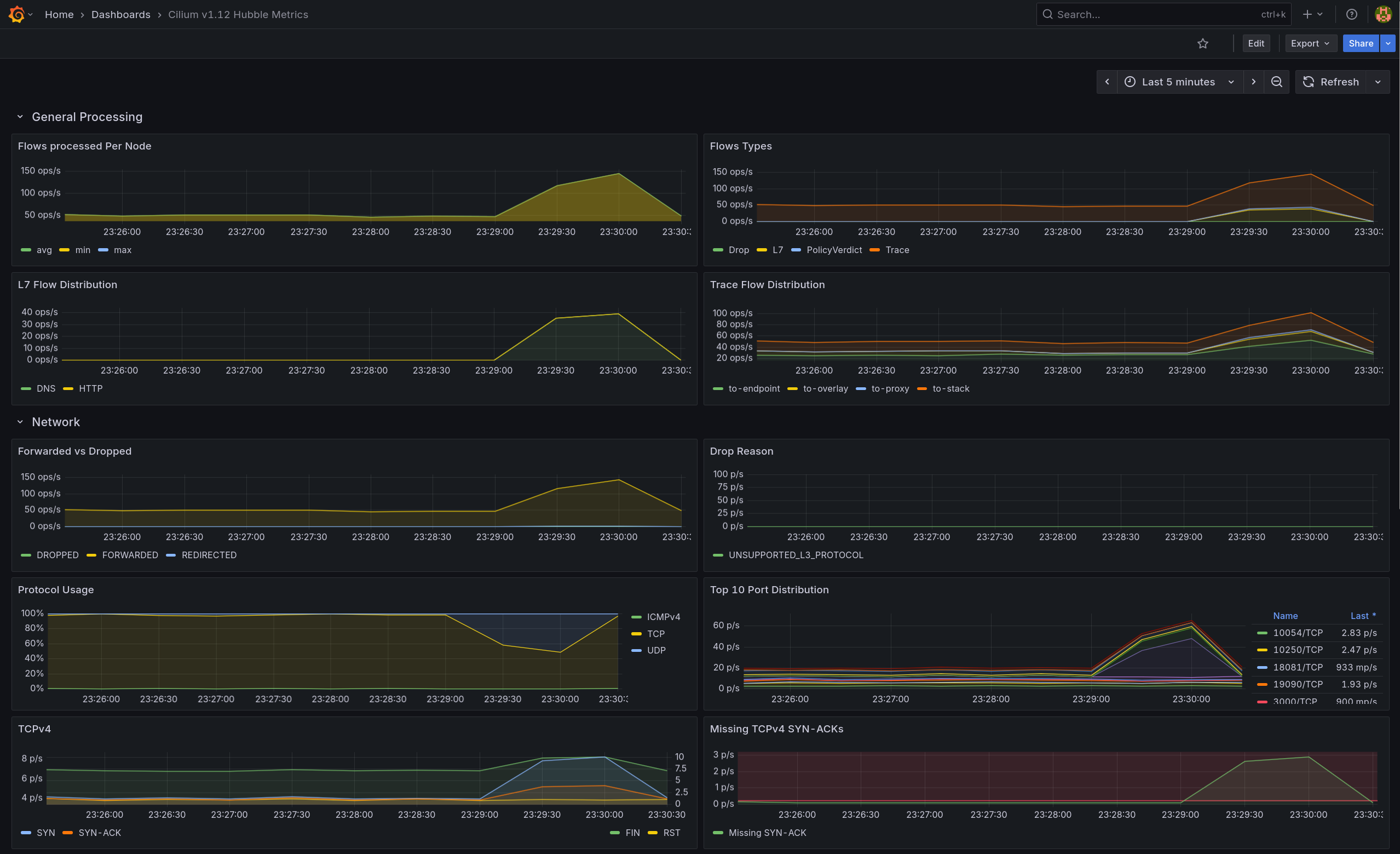

(2) Grafana

  • Forwarded 우세, Flow Types 증가
  • L7은 HTTP 상승

🟣 Stage 4: L7 필터링

1. 정책 적용 (GET /status/200 허용)

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20

# allow-frontend-l7.yaml
apiVersion: cilium.io/v2
kind: CiliumNetworkPolicy
metadata:
  name: allow-frontend-l7
  namespace: shop
spec:
  endpointSelector:
    matchLabels: { app: backend }
  ingress:
    - fromEndpoints:
        - matchLabels: { app: frontend }
      toPorts:
        - ports:
            - port: "80"
              protocol: TCP
          rules:
            http:
              - method: GET
                path: "^/status/200$"

1
2

kubectl apply -f allow-frontend-l7.yaml --context $CLUSTER1
kubectl apply -f allow-frontend-l7.yaml --context $CLUSTER2

2. L4 Ingress 삭제 (우회 방지)

1
2

kubectl delete cnp allow-frontend-to-backend -n shop --context $CLUSTER1 || true
kubectl delete cnp allow-frontend-to-backend -n shop --context $CLUSTER2 || true

3. 허용/비허용 경로 테스트

1
2
3
4
5
6

# 허용 경로
kubectl exec -it deploy/frontend -n shop --context $CLUSTER1 -- \
  curl -sS -o /dev/null -w "HTTP %{http_code}\n" http://backend.shop.svc.cluster.local/status/200

# 결과
HTTP 200
  • GET /status/200 허용 확인
1
2
3
4
5
6

# 비허용 경로
kubectl exec -it deploy/frontend -n shop --context $CLUSTER1 -- \
  curl -sS -o /dev/null -w "HTTP %{http_code}\n" http://backend.shop.svc.cluster.local/status/500

# 결과
HTTP 500   # httpbin 응답 (Allow-All이 살아있어 통과)
  • 현재는 Allow-All이 남아 비허용 경로도 통과(→ Stage 5에서 403 기대)

4. Hubble로 L7 허용자 확인

(1) HTTP 레벨 관찰

1
2

hubble observe -n shop --protocol http \
  --from-label app=frontend --to-label app=backend --last 10

✅ 출력

1
2

Oct  2 14:32:42.874: shop/frontend-79f5dbfc6c-d6gb7:55886 (ID:114060) -> shop/backend-6c4c67dc75-g22jn:80 (ID:69364) http-request FORWARDED (HTTP/1.1 GET http://backend.shop.svc.cluster.local/status/200)
Oct  2 14:32:51.156: shop/frontend-79f5dbfc6c-d6gb7:55894 (ID:114060) -> shop/backend-6c4c67dc75-g22jn:80 (ID:69364) http-request FORWARDED (HTTP/1.1 GET http://backend.shop.svc.cluster.local/status/500)
  • HTTP L7 이벤트가 보이며, /status/200 요청이 프록시 경유로 포워딩됨을 확인

(2) 정책 판정자 확인

1
2
3

hubble observe -n shop --type policy-verdict \
  --from-label app=frontend --to-label app=backend --last 10 -o jsonpb \
| jq -r 'select(.flow) | "verdict=" + .flow.verdict + " ing=" + ((.flow.ingress_allowed_by//[]|map(.name))|join(","))'

✅ 출력

1
2

verdict=REDIRECTED ing=allow-frontend-l7
verdict=FORWARDED ing=
  • L7 프록시 리다이렉트(ing=allow-frontend-l7) → 포워드 흐름 확인

5. 트래픽 캡처

1
2

kubectl exec -n shop deploy/frontend --context "$CLUSTER1" -- sh -lc \
'for i in $(seq 1 40); do curl -sS -o /dev/null http://backend.shop.svc.cluster.local/status/200; sleep 0.15; done'

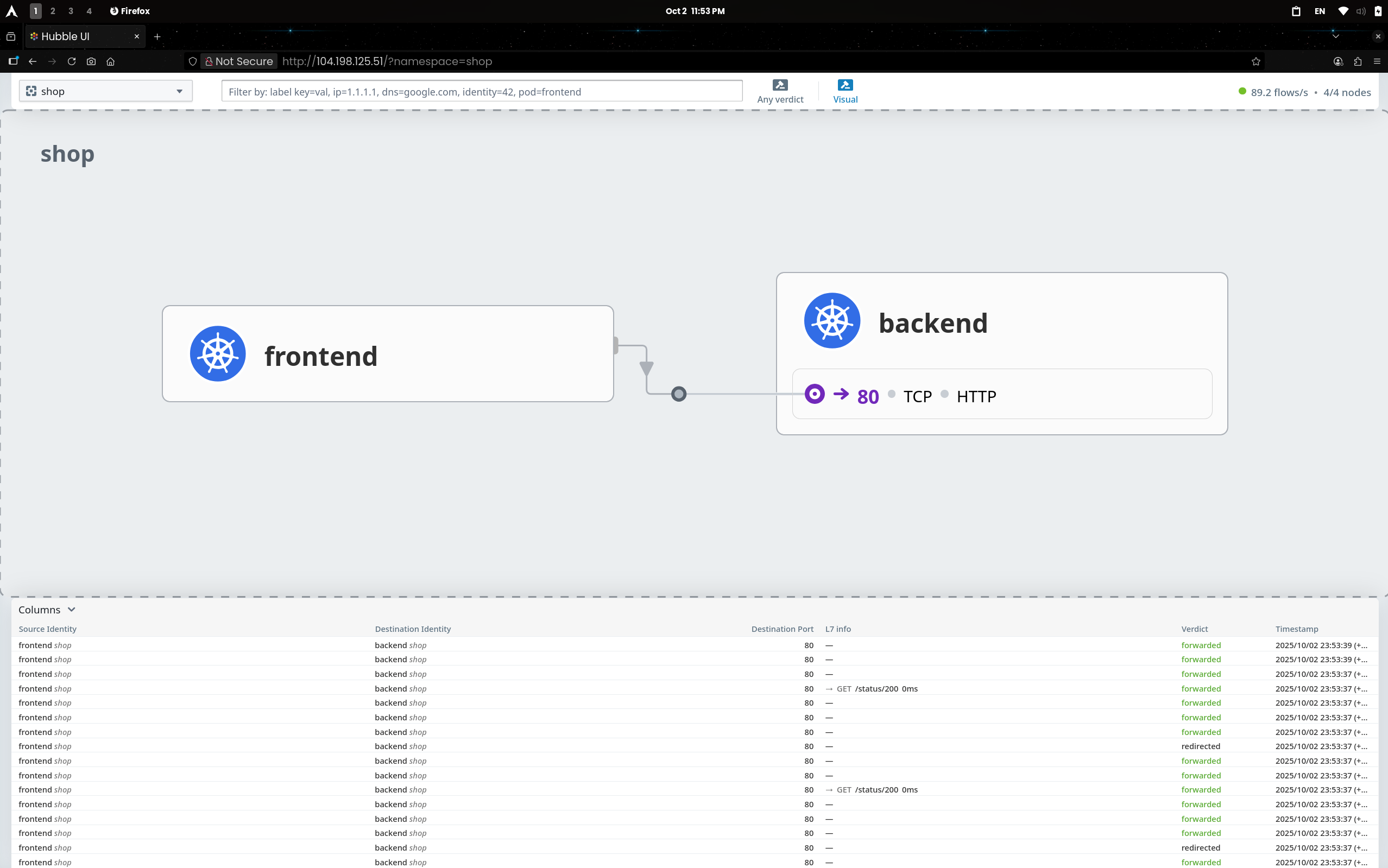

(1) Hubble UI

  • L7 Info: GET /status/200 반복 기록
  • Verdict: redirected → forwarded 순으로 연속 표기 → L7 HTTP 정책 적용 확인

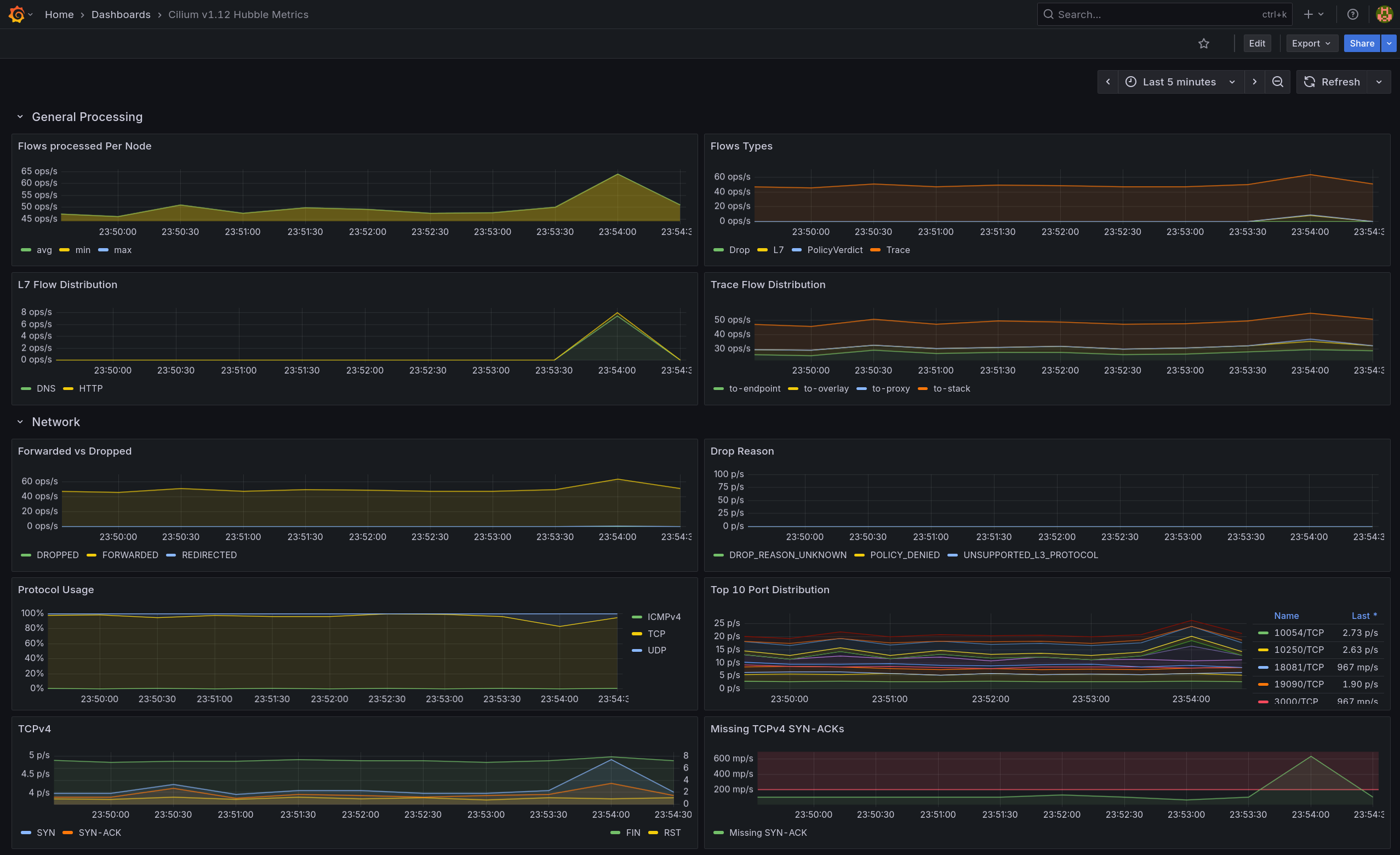

(2) Grafana

  • L7 Flow Distribution에서 HTTP 상승
  • Forwarded vs Redirected에 Redirected 라인 확인 → L7 프록시 경유 허용

⚫ Stage 5: Allow-All 제거 + Default-Deny 명시 (최종 제로트러스트)

1. 정책 적용

1
2
3
4
5
6
7
8
9
10

# default-deny.yaml
apiVersion: cilium.io/v2
kind: CiliumNetworkPolicy
metadata:
  name: default-deny
  namespace: shop
spec:
  endpointSelector: {}
  ingress: []
  egress: []

1
2
3
4

kubectl delete -f allow-all.yaml --context $CLUSTER1
kubectl delete -f allow-all.yaml --context $CLUSTER2
kubectl apply -f default-deny.yaml --context $CLUSTER1
kubectl apply -f default-deny.yaml --context $CLUSTER2
  • shop 네임스페이스 기본 통신 전면 차단
  • 명시 허용(allow-dns, allow-frontend-egress, allow-frontend-l7)만 통과

2. 기능 테스트

(1) DNS 유지

1
2
3
4
5

kubectl exec -it deploy/frontend -n shop --context $CLUSTER1 -- \
  nslookup backend.shop.svc.cluster.local

kubectl exec -it deploy/frontend -n shop --context $CLUSTER2 -- \
  nslookup backend.shop.svc.cluster.local

✅ 출력

1
2
3
4
5
6
7

# Cluster1
Name:	backend.shop.svc.cluster.local
Address: 34.118.239.118

# Cluster2
Name:	backend.shop.svc.cluster.local
Address: 34.118.228.223
  • 두 클러스터 모두 정상 응답 → allow-dns 유효

(2) L7 허용 경로(/status/200) 통과

1
2
3
4
5
6
7

kubectl exec -it deploy/frontend -n shop --context $CLUSTER1 -- \
  curl -sS -o /dev/null -w "HTTP %{http_code}\n" \
  http://backend.shop.svc.cluster.local/status/200

kubectl exec -it deploy/frontend -n shop --context $CLUSTER2 -- \
  curl -sS -o /dev/null -w "HTTP %{http_code}\n" \
  http://backend.shop.svc.cluster.local/status/200

✅ 출력

1

HTTP 200
  • allow-frontend-l7에 의해 GET /status/200 허용

(3) L7 비허용 경로 차단

1
2
3
4
5
6
7

kubectl exec -it deploy/frontend -n shop --context $CLUSTER1 -- \
  curl -sS -o /dev/null -w "HTTP %{http_code}\n" \
  http://backend.shop.svc.cluster.local/get

kubectl exec -it deploy/frontend -n shop --context $CLUSTER2 -- \
  curl -sS -o /dev/null -w "HTTP %{http_code}\n" \
  http://backend.shop.svc.cluster.local/get

✅ 출력

1

HTTP 403
  • 비허용 경로 차단 확인

(4) 외부 egress 차단

1
2
3
4
5

kubectl exec -it deploy/frontend -n shop --context $CLUSTER1 -- \
  sh -c 'curl -sS --max-time 3 https://example.com || echo BLOCKED'

kubectl exec -it deploy/frontend -n shop --context $CLUSTER2 -- \
  sh -c 'curl -sS --max-time 3 https://example.com || echo BLOCKED'

✅ 출력

1
2

curl: (28) Connection timed out after 3002 milliseconds
BLOCKED
  • allow-frontend-egress는 BE:80만 허용

3. Hubble로 최종 검증

(1) 트래픽 생성

1
2
3
4
5
6

kubectl exec deploy/frontend -n shop --context $CLUSTER1 -- \
  sh -lc 'for i in $(seq 1 10); do \
    printf "%02d " "$i"; \
    curl -sS --http1.1 --max-time 3 -o /dev/null -w "HTTP %{http_code}\n" \
      http://backend.shop.svc.cluster.local/status/200 || echo "BLOCKED"; \
    sleep 0.3; done'

✅ 출력

1
2
3
4
5
6
7
8
9
10

01 HTTP 200
02 HTTP 200
03 HTTP 200
04 HTTP 200
05 HTTP 200
06 HTTP 200
07 HTTP 200
08 HTTP 200
09 HTTP 200
10 HTTP 200

(2) 허용자 확인 - EGRESS (FE→BE)

1
2
3

hubble observe -n shop --since 2m --type policy-verdict \
  --traffic-direction egress \
  --from-label app=frontend --to-label app=backend

✅ 출력

1
2
3
4
5
6
7
8
9
10

Oct  2 14:47:43.789: shop/frontend-79f5dbfc6c-d6gb7:41728 (ID:114060) -> shop/backend-6c4c67dc75-g22jn:80 (ID:69364) policy-verdict:L3-L4 EGRESS ALLOWED (TCP Flags: SYN)
Oct  2 14:47:44.132: shop/frontend-79f5dbfc6c-d6gb7:41736 (ID:114060) -> shop/backend-6c4c67dc75-g22jn:80 (ID:69364) policy-verdict:L3-L4 EGRESS ALLOWED (TCP Flags: SYN)
Oct  2 14:47:44.491: shop/frontend-79f5dbfc6c-d6gb7:41748 (ID:114060) -> shop/backend-6c4c67dc75-g22jn:80 (ID:69364) policy-verdict:L3-L4 EGRESS ALLOWED (TCP Flags: SYN)
Oct  2 14:47:44.826: shop/frontend-79f5dbfc6c-d6gb7:41762 (ID:114060) -> shop/backend-6c4c67dc75-g22jn:80 (ID:69364) policy-verdict:L3-L4 EGRESS ALLOWED (TCP Flags: SYN)
Oct  2 14:47:45.160: shop/frontend-79f5dbfc6c-d6gb7:41768 (ID:114060) -> shop/backend-6c4c67dc75-g22jn:80 (ID:69364) policy-verdict:L3-L4 EGRESS ALLOWED (TCP Flags: SYN)
Oct  2 14:47:45.495: shop/frontend-79f5dbfc6c-d6gb7:41782 (ID:114060) -> shop/backend-6c4c67dc75-g22jn:80 (ID:69364) policy-verdict:L3-L4 EGRESS ALLOWED (TCP Flags: SYN)
Oct  2 14:47:45.835: shop/frontend-79f5dbfc6c-d6gb7:41792 (ID:114060) -> shop/backend-6c4c67dc75-g22jn:80 (ID:69364) policy-verdict:L3-L4 EGRESS ALLOWED (TCP Flags: SYN)
Oct  2 14:47:46.175: shop/frontend-79f5dbfc6c-d6gb7:41798 (ID:114060) -> shop/backend-6c4c67dc75-g22jn:80 (ID:69364) policy-verdict:L3-L4 EGRESS ALLOWED (TCP Flags: SYN)
Oct  2 14:47:46.513: shop/frontend-79f5dbfc6c-d6gb7:41806 (ID:114060) -> shop/backend-6c4c67dc75-g22jn:80 (ID:69364) policy-verdict:L3-L4 EGRESS ALLOWED (TCP Flags: SYN)
Oct  2 14:47:46.849: shop/frontend-79f5dbfc6c-d6gb7:41818 (ID:114060) -> shop/backend-6c4c67dc75-g22jn:80 (ID:69364) policy-verdict:L3-L4 EGRESS ALLOWED (TCP Flags: SYN)
  • 연속 L3/L4 EGRESS ALLOWED(SYN) → 허용자: allow-frontend-egress

(3) 허용자 확인 - INGRESS (FE→BE)

1
2
3

hubble observe -n shop --since 2m --type policy-verdict \
  --traffic-direction ingress \
  --from-label app=frontend --to-label app=backend

✅ 출력

1
2
3
4
5
6
7
8
9
10

Oct  2 14:47:43.789: shop/frontend-79f5dbfc6c-d6gb7:41728 (ID:114060) -> shop/backend-6c4c67dc75-g22jn:80 (ID:69364) policy-verdict:L3-L4 INGRESS ALLOWED (TCP Flags: SYN)
Oct  2 14:47:44.132: shop/frontend-79f5dbfc6c-d6gb7:41736 (ID:114060) -> shop/backend-6c4c67dc75-g22jn:80 (ID:69364) policy-verdict:L3-L4 INGRESS ALLOWED (TCP Flags: SYN)
Oct  2 14:47:44.491: shop/frontend-79f5dbfc6c-d6gb7:41748 (ID:114060) -> shop/backend-6c4c67dc75-g22jn:80 (ID:69364) policy-verdict:L3-L4 INGRESS ALLOWED (TCP Flags: SYN)
Oct  2 14:47:44.826: shop/frontend-79f5dbfc6c-d6gb7:41762 (ID:114060) -> shop/backend-6c4c67dc75-g22jn:80 (ID:69364) policy-verdict:L3-L4 INGRESS ALLOWED (TCP Flags: SYN)
Oct  2 14:47:45.160: shop/frontend-79f5dbfc6c-d6gb7:41768 (ID:114060) -> shop/backend-6c4c67dc75-g22jn:80 (ID:69364) policy-verdict:L3-L4 INGRESS ALLOWED (TCP Flags: SYN)
Oct  2 14:47:45.495: shop/frontend-79f5dbfc6c-d6gb7:41782 (ID:114060) -> shop/backend-6c4c67dc75-g22jn:80 (ID:69364) policy-verdict:L3-L4 INGRESS ALLOWED (TCP Flags: SYN)
Oct  2 14:47:45.835: shop/frontend-79f5dbfc6c-d6gb7:41792 (ID:114060) -> shop/backend-6c4c67dc75-g22jn:80 (ID:69364) policy-verdict:L3-L4 INGRESS ALLOWED (TCP Flags: SYN)
Oct  2 14:47:46.175: shop/frontend-79f5dbfc6c-d6gb7:41798 (ID:114060) -> shop/backend-6c4c67dc75-g22jn:80 (ID:69364) policy-verdict:L3-L4 INGRESS ALLOWED (TCP Flags: SYN)
Oct  2 14:47:46.513: shop/frontend-79f5dbfc6c-d6gb7:41806 (ID:114060) -> shop/backend-6c4c67dc75-g22jn:80 (ID:69364) policy-verdict:L3-L4 INGRESS ALLOWED (TCP Flags: SYN)
Oct  2 14:47:46.849: shop/frontend-79f5dbfc6c-d6gb7:41818 (ID:114060) -> shop/backend-6c4c67dc75-g22jn:80 (ID:69364) policy-verdict:L3-L4 INGRESS ALLOWED (TCP Flags: SYN)
  • 연속 L3/L4 INGRESS ALLOWED(SYN) → 허용자: allow-frontend-l7 (L7 리다이렉트 후 포워딩 로그)

4. 최종 요약

  • Default-Deny 적용 → 기본 통신 차단, 명시 정책만 통과
  • 유지 정책: allow-dns, allow-frontend-egress(FE→BE:80), allow-frontend-l7(BE Ingress: GET /status/200)
  • 비허용 L7 경로는 403, 외부 egress는 차단(DROP)
  • Hubble에서 egress=allow-frontend-egress, ingress=allow-frontend-l7로 최종 매칭 확인 (allow-all 제거 확인)

5. 트래픽 캡처

(1) 허용(L7 /status/200)

1
2
3

kubectl exec -n shop deploy/frontend --context "$CLUSTER1" -- sh -lc \
'for i in $(seq 1 8); do curl -sS -o /dev/null http://backend.shop.svc.cluster.local/status/200; sleep 0.2; done'
sleep 2

(1.1) Hubble UI

  • frontend → backend:80 요청이 GET /status/200로 표시되고 redirected → forwarded 흐름 확인(L7 프록시 경유 허용)

(1.2) Grafana

  • L7 Flow Distribution에서 HTTP 피크 상승으로 허용 트래픽 반영

(2) 비허용 트래픽 (GET /get) 검증

1
2
3

kubectl exec -n shop deploy/frontend --context "$CLUSTER1" -- sh -lc \
'for i in $(seq 1 6); do curl -sS -m 2 -o /dev/null http://backend.shop.svc.cluster.local/get || true; sleep 0.25; done'
sleep 2

(2.1) Hubble UI

  • GET /get 요청이 redirected → dropped로 표시
  • FE→BE:80 경로에 빨간 점선과 verdict: dropped 로그 확인

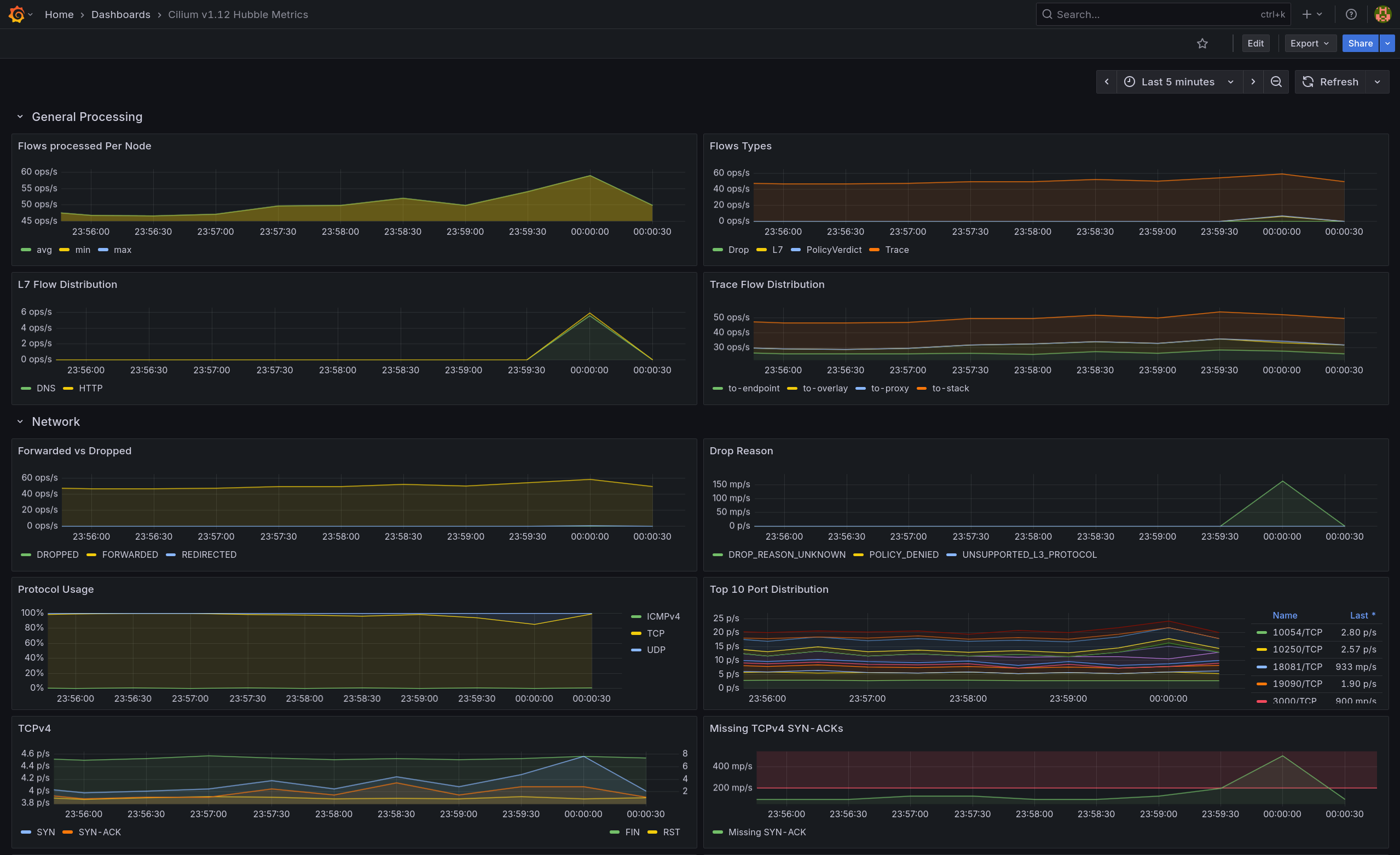

(2.2) Grafana

  • Drop Reason: DROP_REASON_UNKNOWN 스파이크 관찰
  • L7 Flow Distribution: HTTP만 소폭 상승, DNS 변화 없음

(3) 외부 egress(1.1.1.1:80) 차단 확인

1
2

kubectl exec -n shop deploy/frontend --context "$CLUSTER1" -- sh -lc \
'for i in $(seq 1 6); do curl -sS -m 2 http://1.1.1.1:80 >/dev/null || true; sleep 0.25; done'

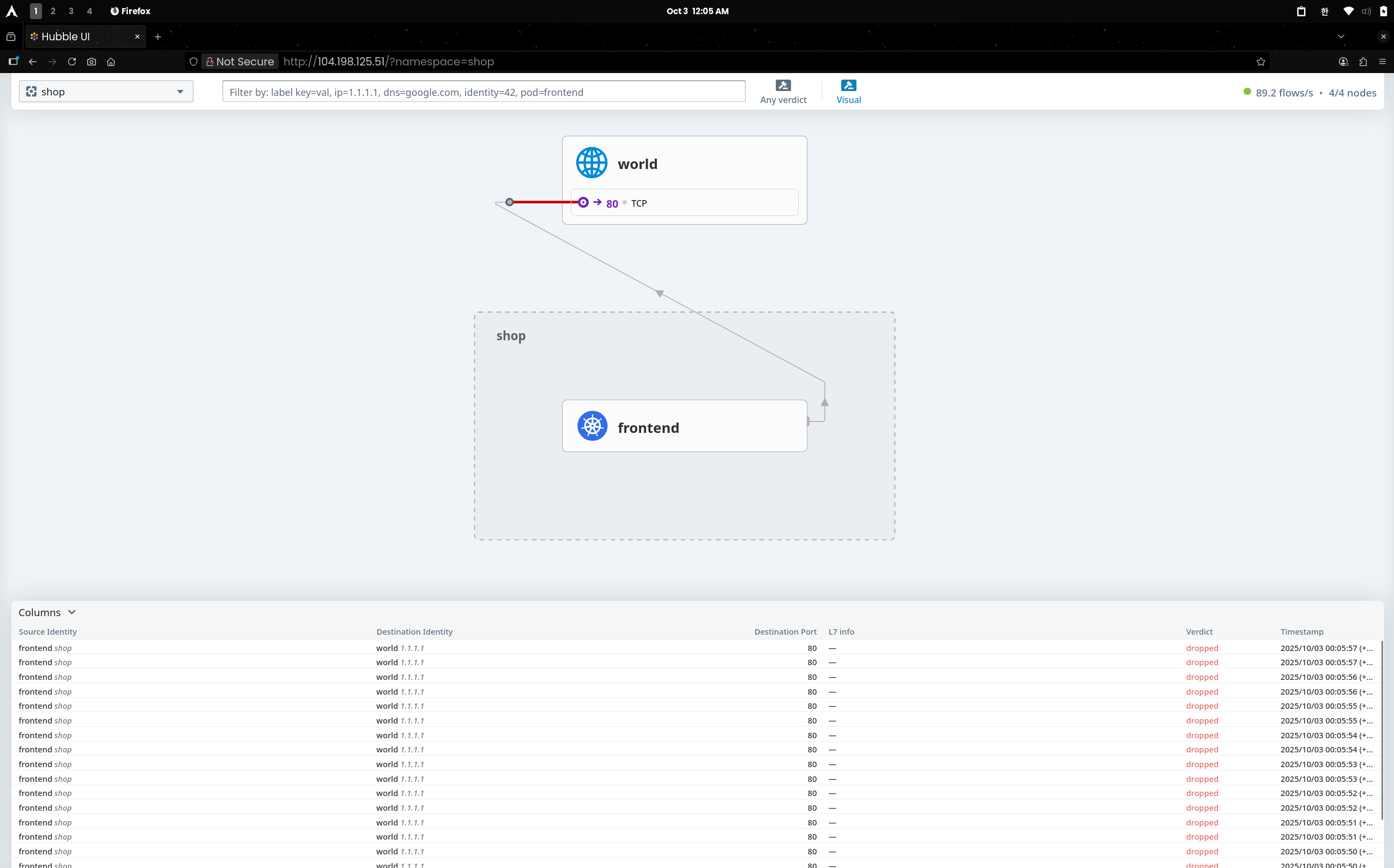

(3.1) Hubble UI

  • frontend → world(1.1.1.1):80/TCP 경로에 빨간 점선, 리스트에 verdict=dropped가 연속 기록

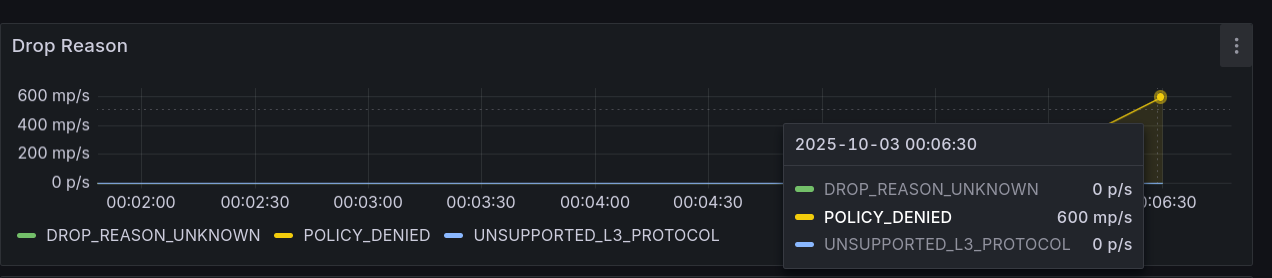

(3.2) Grafana

  • Drop Reason에 POLICY_DENIED 스파이크 → Default-Deny로 외부 egress 차단
  • Flows Types에서는 PolicyVerdict·Drop 라인 발생(L7≈0)으로 L3/L4 정책 차단임을 뒷받침

Cilium
Cilium
This post is licensed under CC BY 4.0 by the author.
