Istio 1주차 정리

Posted Apr 13, 2025

By GAGA

55 min read

🐳 kind : k8s(1.23.17) 배포

1. 깃 레포지토리 클론


git clone https://github.com/AcornPublishing/istio-in-action
cd istio-in-action/book-source-code-master

# 결과
Cloning into 'istio-in-action'...
remote: Enumerating objects: 448, done.
remote: Counting objects: 100% (448/448), done.
remote: Compressing objects: 100% (341/341), done.
remote: Total 448 (delta 76), reused 448 (delta 76), pack-reused 0 (from 0)
Receiving objects: 100% (448/448), 17.29 MiB | 7.19 MiB/s, done.
Resolving deltas: 100% (76/76), done.

2. 현재 작업 경로 확인

pwd

✅ 출력

/home/devshin/workspace/istio/istio-in-action/book-source-code-master

3. 클러스터 생성

pod 및 service 네트워크 대역 지정
추가 포트 매핑과 호스트 경로 마운트 설정


kind create cluster --name myk8s --image kindest/node:v1.23.17 --config - <<EOF
kind: Cluster
apiVersion: kind.x-k8s.io/v1alpha4
nodes:
- role: control-plane
  extraPortMappings:
  - containerPort: 30000 # Sample Application (istio-ingrssgateway)
    hostPort: 30000
  - containerPort: 30001 # Prometheus
    hostPort: 30001
  - containerPort: 30002 # Grafana
    hostPort: 30002
  - containerPort: 30003 # Kiali
    hostPort: 30003
  - containerPort: 30004 # Tracing
    hostPort: 30004
  - containerPort: 30005 # kube-ops-view
    hostPort: 30005
  extraMounts:
  - hostPath: /home/devshin/workspace/istio/istio-in-action/book-source-code-master # 각자 자신의 pwd 경로로 설정
    containerPath: /istiobook
networking:
  podSubnet: 10.10.0.0/16
  serviceSubnet: 10.200.1.0/24
EOF

✅ 출력


Creating cluster "myk8s" ...
 ✓ Ensuring node image (kindest/node:v1.23.17) 🖼
 ✓ Preparing nodes 📦
 ✓ Writing configuration 📜
 ✓ Starting control-plane 🕹️
 ✓ Installing CNI 🔌
 ✓ Installing StorageClass 💾
Set kubectl context to "kind-myk8s"
You can now use your cluster with:

kubectl cluster-info --context kind-myk8s

Thanks for using kind! 😊

4. 클러스터 상태 확인

docker ps

✅ 출력

CONTAINER ID   IMAGE                   COMMAND                  CREATED          STATUS          PORTS                                                             NAMES
54d6019751b2   kindest/node:v1.23.17   "/usr/local/bin/entr…"   52 seconds ago   Up 51 seconds   0.0.0.0:30000-30005->30000-30005/tcp, 127.0.0.1:46707->6443/tcp   myk8s-control-plane

5. 노드에 기본 툴 설치


docker exec -it myk8s-control-plane sh -c 'apt update && apt install tree psmisc lsof wget bridge-utils net-tools dnsutils tcpdump ngrep iputils-ping git vim -y'

✅ 출력


Get:1 http://deb.debian.org/debian bookworm InRelease [151 kB]
Get:2 http://deb.debian.org/debian bookworm-updates InRelease [55.4 kB]
Get:3 http://deb.debian.org/debian-security bookworm-security InRelease [48.0 kB]
Get:4 http://deb.debian.org/debian bookworm/main amd64 Packages [8792 kB]
Get:5 http://deb.debian.org/debian bookworm-updates/main amd64 Packages [512 B]
Get:6 http://deb.debian.org/debian-security bookworm-security/main amd64 Packages [252 kB]
Fetched 9300 kB in 2s (4552 kB/s)
Reading package lists... Done
Building dependency tree... Done
Reading state information... Done
41 packages can be upgraded. Run 'apt list --upgradable' to see them.
....
...
update-alternatives: using /usr/bin/vim.basic to provide /usr/bin/vimdiff (vimdiff) in auto mode
Setting up bind9-libs:amd64 (1:9.18.33-1~deb12u2) ...
Setting up openssh-client (1:9.2p1-2+deb12u5) ...
Setting up libxext6:amd64 (2:1.3.4-1+b1) ...
Setting up dbus-daemon (1.14.10-1~deb12u1) ...
Setting up libnet1:amd64 (1.1.6+dfsg-3.2) ...
Setting up libpcap0.8:amd64 (1.10.3-1) ...
Setting up dbus (1.14.10-1~deb12u1) ...
invoke-rc.d: policy-rc.d denied execution of start.
/usr/sbin/policy-rc.d returned 101, not running 'start dbus.service'
Setting up libgdbm-compat4:amd64 (1.23-3) ...
Setting up xauth (1:1.1.2-1) ...
Setting up bind9-host (1:9.18.33-1~deb12u2) ...
Setting up libperl5.36:amd64 (5.36.0-7+deb12u1) ...
Setting up tcpdump (4.99.3-1) ...
Setting up ngrep (1.47+ds1-5+b1) ...
Setting up perl (5.36.0-7+deb12u1) ...
Setting up bind9-dnsutils (1:9.18.33-1~deb12u2) ...
Setting up dnsutils (1:9.18.33-1~deb12u2) ...
Setting up liberror-perl (0.17029-2) ...
Setting up git (1:2.39.5-0+deb12u2) ...
Processing triggers for libc-bin (2.36-9+deb12u4) ...

6. 편의성 툴 설치 - kube-ops-view

(1) Helm을 사용해 kube-ops-view 설치, 서비스 타입은 NodePort, 포트 번호는 30005로 설정


helm repo add geek-cookbook https://geek-cookbook.github.io/charts/
helm install kube-ops-view geek-cookbook/kube-ops-view --version 1.2.2 --set service.main.type=NodePort,service.main.ports.http.nodePort=30005 --set env.TZ="Asia/Seoul" --namespace kube-system

✅ 출력


"geek-cookbook" already exists with the same configuration, skipping
NAME: kube-ops-view
LAST DEPLOYED: Sat Apr 12 23:12:43 2025
NAMESPACE: kube-system
STATUS: deployed
REVISION: 1
TEST SUITE: None
NOTES:
1. Get the application URL by running these commands:
  export NODE_PORT=$(kubectl get --namespace kube-system -o jsonpath="{.spec.ports[0].nodePort}" services kube-ops-view)
  export NODE_IP=$(kubectl get nodes --namespace kube-system -o jsonpath="{.items[0].status.addresses[0].address}")
  echo http://$NODE_IP:$NODE_PORT

(2) 리소스 상태 확인


kubectl get deploy,pod,svc,ep -n kube-system -l app.kubernetes.io/instance=kube-ops-view

✅ 출력

NAME                            READY   UP-TO-DATE   AVAILABLE   AGE
deployment.apps/kube-ops-view   1/1     1            1           31s

NAME                                 READY   STATUS    RESTARTS   AGE
pod/kube-ops-view-79df45849b-6tlrg   1/1     Running   0          31s

NAME                    TYPE       CLUSTER-IP    EXTERNAL-IP   PORT(S)          AGE
service/kube-ops-view   NodePort   10.200.1.11   <none>        8080:30005/TCP   31s

NAME                      ENDPOINTS        AGE
endpoints/kube-ops-view   10.10.0.5:8080   31s

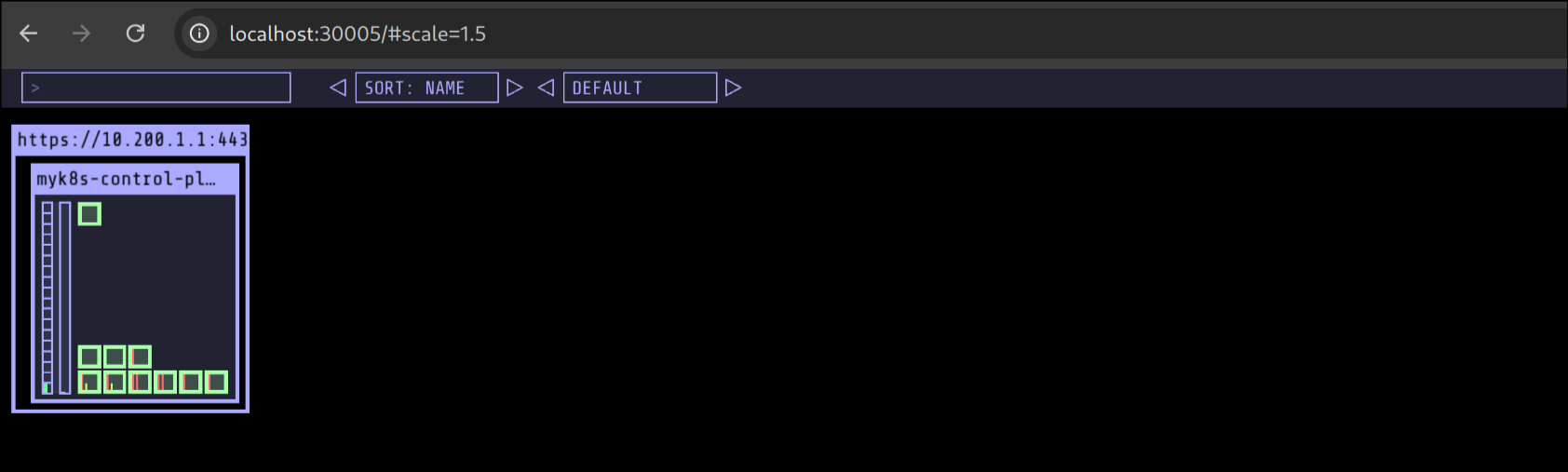

(3) 웹 접속: http://localhost:30005/#scale=1.5

7. 메트릭 서버 설치

(1) Helm을 사용해 메트릭 서버 설치


helm repo add metrics-server https://kubernetes-sigs.github.io/metrics-server/
helm install metrics-server metrics-server/metrics-server --set 'args[0]=--kubelet-insecure-tls' -n kube-system

✅ 출력


"metrics-server" has been added to your repositories
NAME: metrics-server
LAST DEPLOYED: Sat Apr 12 23:15:52 2025
NAMESPACE: kube-system
STATUS: deployed
REVISION: 1
TEST SUITE: None
NOTES:
***********************************************************************
* Metrics Server                                                      *
***********************************************************************
  Chart version: 3.12.2
  App version:   0.7.2
  Image tag:     registry.k8s.io/metrics-server/metrics-server:v0.7.2
***********************************************************************

(2) 리소스 상태 확인


kubectl get all -n kube-system -l app.kubernetes.io/instance=metrics-server

✅ 출력

NAME                                  READY   STATUS    RESTARTS   AGE
pod/metrics-server-65bb6f47b6-x6kvk   1/1     Running   0          34s

NAME                     TYPE        CLUSTER-IP     EXTERNAL-IP   PORT(S)   AGE
service/metrics-server   ClusterIP   10.200.1.106   <none>        443/TCP   34s

NAME                             READY   UP-TO-DATE   AVAILABLE   AGE
deployment.apps/metrics-server   1/1     1            1           34s

NAME                                        DESIRED   CURRENT   READY   AGE
replicaset.apps/metrics-server-65bb6f47b6   1         1         1       34s

🔧 istio(1.17.8) 설치

1. myk8s-control-plane 진입

docker exec -it myk8s-control-plane bash

root@myk8s-control-plane:/#

2. 코드 파일들 마운트 확인

root@myk8s-control-plane:/# tree /istiobook/ -L 1

✅ 출력

/istiobook/
|-- README.md
|-- appendices
|-- bin
|-- ch10
|-- ch11
|-- ch12
|-- ch13
|-- ch14
|-- ch2
|-- ch3
|-- ch4
|-- ch5
|-- ch6
|-- ch7
|-- ch8
|-- ch9
`-- services

17 directories, 1 file

3. istioctl 설치


root@myk8s-control-plane:/# export ISTIOV=1.17.8
echo 'export ISTIOV=1.17.8' >> /root/.bashrc
curl -s -L https://istio.io/downloadIstio | ISTIO_VERSION=$ISTIOV sh -

✅ 출력


Downloading istio-1.17.8 from https://github.com/istio/istio/releases/download/1.17.8/istio-1.17.8-linux-amd64.tar.gz ...

Istio 1.17.8 download complete!

The Istio release archive has been downloaded to the istio-1.17.8 directory.

To configure the istioctl client tool for your workstation,
add the /istio-1.17.8/bin directory to your environment path variable with:
	export PATH="$PATH:/istio-1.17.8/bin"

Begin the Istio pre-installation check by running:
	istioctl x precheck

Try Istio in ambient mode
	https://istio.io/latest/docs/ambient/getting-started/
Try Istio in sidecar mode
	https://istio.io/latest/docs/setup/getting-started/
Install guides for ambient mode
	https://istio.io/latest/docs/ambient/install/
Install guides for sidecar mode
	https://istio.io/latest/docs/setup/install/

Need more information? Visit https://istio.io/latest/docs/

4. 다운로드 파일 구조 확인

root@myk8s-control-plane:/# tree istio-$ISTIOV -L 2

✅ 출력


istio-1.17.8
|-- LICENSE
|-- README.md
|-- bin
|   `-- istioctl
|-- manifest.yaml
|-- manifests
|   |-- charts
|   |-- examples
|   `-- profiles
|-- samples
|   |-- README.md
|   |-- addons
|   |-- bookinfo
|   |-- certs
|   |-- cicd
|   |-- custom-bootstrap
|   |-- extauthz
|   |-- external
|   |-- grpc-echo
|   |-- health-check
|   |-- helloworld
|   |-- httpbin
|   |-- jwt-server
|   |-- kind-lb
|   |-- multicluster
|   |-- open-telemetry
|   |-- operator
|   |-- ratelimit
|   |-- security
|   |-- sleep
|   |-- tcp-echo
|   |-- wasm_modules
|   `-- websockets
`-- tools
    |-- _istioctl
    |-- certs
    `-- istioctl.bash

31 directories, 7 files

5. istioctl 바이너리 복사 및 버전 확인


root@myk8s-control-plane:/# cp istio-$ISTIOV/bin/istioctl /usr/local/bin/istioctl
root@myk8s-control-plane:/# istioctl version --remote=false

✅ 출력

1.17.8

6. Istio 프로파일 확인 및 기본 설치

(1) 사용 가능한 Istio 프로파일 목록 확인

root@myk8s-control-plane:/# istioctl profile list

✅ 출력

Istio configuration profiles:
    ambient
    default
    demo
    empty
    external
    minimal
    openshift
    preview
    remote

(2) 기본 프로파일(default)로 설치


root@myk8s-control-plane:/# istioctl install --set profile=default -y

✅ 출력


✔ Istio core installed
✔ Istiod installed
✔ Ingress gateways installed
✔ Installation complete                                                                                                                           Making this installation the default for injection and validation.

Thank you for installing Istio 1.17.  Please take a few minutes to tell us about your install/upgrade experience!  https://forms.gle/hMHGiwZHPU7UQRWe9

7. 설치 상태 및 구성 확인

(1) istiooperators 상태 확인

root@myk8s-control-plane:/# kubectl get istiooperators -n istio-system

✅ 출력

NAME              REVISION   STATUS   AGE
installed-state                       35

(2) istiooperators 세부 구성 확인

root@myk8s-control-plane:/# kubectl get istiooperators -n istio-system -o yaml

✅ 출력


apiVersion: v1
items:
- apiVersion: install.istio.io/v1alpha1
  kind: IstioOperator
  metadata:
    annotations:
      install.istio.io/ignoreReconcile: "true"
      kubectl.kubernetes.io/last-applied-configuration: |
        {"apiVersion":"install.istio.io/v1alpha1","kind":"IstioOperator","metadata":{"annotations":{"install.istio.io/ignoreReconcile":"true"},"creationTimestamp":null,"name":"installed-state","namespace":"istio-system"},"spec":{"components":{"base":{"enabled":true},"cni":{"enabled":false},"egressGateways":[{"enabled":false,"name":"istio-egressgateway"}],"ingressGateways":[{"enabled":true,"name":"istio-ingressgateway"}],"istiodRemote":{"enabled":false},"pilot":{"enabled":true}},"hub":"docker.io/istio","meshConfig":{"defaultConfig":{"proxyMetadata":{}},"enablePrometheusMerge":true},"profile":"default","tag":"1.17.8","values":{"base":{"enableCRDTemplates":false,"validationURL":""},"defaultRevision":"","gateways":{"istio-egressgateway":{"autoscaleEnabled":true,"env":{},"name":"istio-egressgateway","secretVolumes":[{"mountPath":"/etc/istio/egressgateway-certs","name":"egressgateway-certs","secretName":"istio-egressgateway-certs"},{"mountPath":"/etc/istio/egressgateway-ca-certs","name":"egressgateway-ca-certs","secretName":"istio-egressgateway-ca-certs"}],"type":"ClusterIP"},"istio-ingressgateway":{"autoscaleEnabled":true,"env":{},"name":"istio-ingressgateway","secretVolumes":[{"mountPath":"/etc/istio/ingressgateway-certs","name":"ingressgateway-certs","secretName":"istio-ingressgateway-certs"},{"mountPath":"/etc/istio/ingressgateway-ca-certs","name":"ingressgateway-ca-certs","secretName":"istio-ingressgateway-ca-certs"}],"type":"LoadBalancer"}},"global":{"configValidation":true,"defaultNodeSelector":{},"defaultPodDisruptionBudget":{"enabled":true},"defaultResources":{"requests":{"cpu":"10m"}},"imagePullPolicy":"","imagePullSecrets":[],"istioNamespace":"istio-system","istiod":{"enableAnalysis":false},"jwtPolicy":"third-party-jwt","logAsJson":false,"logging":{"level":"default:info"},"meshNetworks":{},"mountMtlsCerts":false,"multiCluster":{"clusterName":"","enabled":false},"network":"","omitSidecarInjectorConfigMap":false,"oneNamespace":false,"operatorManageWebhooks":false,"pilotCertProvider":"istiod","priorityClassName":"","proxy":{"autoInject":"enabled","clusterDomain":"cluster.local","componentLogLevel":"misc:error","enableCoreDump":false,"excludeIPRanges":"","excludeInboundPorts":"","excludeOutboundPorts":"","image":"proxyv2","includeIPRanges":"*","logLevel":"warning","privileged":false,"readinessFailureThreshold":30,"readinessInitialDelaySeconds":1,"readinessPeriodSeconds":2,"resources":{"limits":{"cpu":"2000m","memory":"1024Mi"},"requests":{"cpu":"100m","memory":"128Mi"}},"statusPort":15020,"tracer":"zipkin"},"proxy_init":{"image":"proxyv2","resources":{"limits":{"cpu":"2000m","memory":"1024Mi"},"requests":{"cpu":"10m","memory":"10Mi"}}},"sds":{"token":{"aud":"istio-ca"}},"sts":{"servicePort":0},"tracer":{"datadog":{},"lightstep":{},"stackdriver":{},"zipkin":{}},"useMCP":false},"istiodRemote":{"injectionURL":""},"pilot":{"autoscaleEnabled":true,"autoscaleMax":5,"autoscaleMin":1,"configMap":true,"cpu":{"targetAverageUtilization":80},"deploymentLabels":null,"enableProtocolSniffingForInbound":true,"enableProtocolSniffingForOutbound":true,"env":{},"image":"pilot","keepaliveMaxServerConnectionAge":"30m","nodeSelector":{},"podLabels":{},"replicaCount":1,"traceSampling":1},"telemetry":{"enabled":true,"v2":{"enabled":true,"metadataExchange":{"wasmEnabled":false},"prometheus":{"enabled":true,"wasmEnabled":false},"stackdriver":{"configOverride":{},"enabled":false,"logging":false,"monitoring":false,"topology":false}}}}}}
    creationTimestamp: "2025-04-12T14:35:15Z"
    generation: 1
    name: installed-state
    namespace: istio-system
    resourceVersion: "2681"
    uid: 7baf9f8e-bd3f-477e-ac38-31466c740879
  spec:
    components:
      base:
        enabled: true
      cni:
        enabled: false
      egressGateways:
      - enabled: false
        name: istio-egressgateway
      ingressGateways:
      - enabled: true
        name: istio-ingressgateway
      istiodRemote:
        enabled: false
      pilot:
        enabled: true
    hub: docker.io/istio
    meshConfig:
      defaultConfig:
        proxyMetadata: {}
      enablePrometheusMerge: true
    profile: default
    tag: 1.17.8
    values:
      base:
        enableCRDTemplates: false
        validationURL: ""
      defaultRevision: ""
      gateways:
        istio-egressgateway:
          autoscaleEnabled: true
          env: {}
          name: istio-egressgateway
          secretVolumes:
          - mountPath: /etc/istio/egressgateway-certs
            name: egressgateway-certs
            secretName: istio-egressgateway-certs
          - mountPath: /etc/istio/egressgateway-ca-certs
            name: egressgateway-ca-certs
            secretName: istio-egressgateway-ca-certs
          type: ClusterIP
        istio-ingressgateway:
          autoscaleEnabled: true
          env: {}
          name: istio-ingressgateway
          secretVolumes:
          - mountPath: /etc/istio/ingressgateway-certs
            name: ingressgateway-certs
            secretName: istio-ingressgateway-certs
          - mountPath: /etc/istio/ingressgateway-ca-certs
            name: ingressgateway-ca-certs
            secretName: istio-ingressgateway-ca-certs
          type: LoadBalancer
      global:
        configValidation: true
        defaultNodeSelector: {}
        defaultPodDisruptionBudget:
          enabled: true
        defaultResources:
          requests:
            cpu: 10m
        imagePullPolicy: ""
        imagePullSecrets: []
        istioNamespace: istio-system
        istiod:
          enableAnalysis: false
        jwtPolicy: third-party-jwt
        logAsJson: false
        logging:
          level: default:info
        meshNetworks: {}
        mountMtlsCerts: false
        multiCluster:
          clusterName: ""
          enabled: false
        network: ""
        omitSidecarInjectorConfigMap: false
        oneNamespace: false
        operatorManageWebhooks: false
        pilotCertProvider: istiod
        priorityClassName: ""
        proxy:
          autoInject: enabled
          clusterDomain: cluster.local
          componentLogLevel: misc:error
          enableCoreDump: false
          excludeIPRanges: ""
          excludeInboundPorts: ""
          excludeOutboundPorts: ""
          image: proxyv2
          includeIPRanges: '*'
          logLevel: warning
          privileged: false
          readinessFailureThreshold: 30
          readinessInitialDelaySeconds: 1
          readinessPeriodSeconds: 2
          resources:
            limits:
              cpu: 2000m
              memory: 1024Mi
            requests:
              cpu: 100m
              memory: 128Mi
          statusPort: 15020
          tracer: zipkin
        proxy_init:
          image: proxyv2
          resources:
            limits:
              cpu: 2000m
              memory: 1024Mi
            requests:
              cpu: 10m
              memory: 10Mi
        sds:
          token:
            aud: istio-ca
        sts:
          servicePort: 0
        tracer:
          datadog: {}
          lightstep: {}
          stackdriver: {}
          zipkin: {}
        useMCP: false
      istiodRemote:
        injectionURL: ""
      pilot:
        autoscaleEnabled: true
        autoscaleMax: 5
        autoscaleMin: 1
        configMap: true
        cpu:
          targetAverageUtilization: 80
        deploymentLabels: null
        enableProtocolSniffingForInbound: true
        enableProtocolSniffingForOutbound: true
        env: {}
        image: pilot
        keepaliveMaxServerConnectionAge: 30m
        nodeSelector: {}
        podLabels: {}
        replicaCount: 1
        traceSampling: 1
      telemetry:
        enabled: true
        v2:
          enabled: true
          metadataExchange:
            wasmEnabled: false
          prometheus:
            enabled: true
            wasmEnabled: false
          stackdriver:
            configOverride: {}
            enabled: false
            logging: false
            monitoring: false
            topology: false
kind: List
metadata:
  resourceVersion: ""
  selfLink: ""

(3) istio 관련 리소스 확인

root@myk8s-control-plane:/# kubectl get all,svc,ep,sa,cm,secret,pdb -n istio-system

✅ 출력

NAME                                       READY   STATUS    RESTARTS   AGE
pod/istio-ingressgateway-996bc6bb6-b24ff   1/1     Running   0          2m4s
pod/istiod-7df6ffc78d-25zjr                1/1     Running   0          2m20s

NAME                           TYPE           CLUSTER-IP     EXTERNAL-IP   PORT(S)                                      AGE
service/istio-ingressgateway   LoadBalancer   10.200.1.191   <pending>     15021:30191/TCP,80:31021/TCP,443:31846/TCP   2m4s
service/istiod                 ClusterIP      10.200.1.144   <none>        15010/TCP,15012/TCP,443/TCP,15014/TCP        2m20s

NAME                                   READY   UP-TO-DATE   AVAILABLE   AGE
deployment.apps/istio-ingressgateway   1/1     1            1           2m4s
deployment.apps/istiod                 1/1     1            1           2m20s

NAME                                             DESIRED   CURRENT   READY   AGE
replicaset.apps/istio-ingressgateway-996bc6bb6   1         1         1       2m4s
replicaset.apps/istiod-7df6ffc78d                1         1         1       2m20s

NAME                                                       REFERENCE                         TARGETS   MINPODS   MAXPODS   REPLICAS   AGE
horizontalpodautoscaler.autoscaling/istio-ingressgateway   Deployment/istio-ingressgateway   6%/80%    1         5         1          2m4s
horizontalpodautoscaler.autoscaling/istiod                 Deployment/istiod                 0%/80%    1         5         1          2m20s

NAME                             ENDPOINTS                                                     AGE
endpoints/istio-ingressgateway   10.10.0.8:15021,10.10.0.8:8080,10.10.0.8:8443                 2m4s
endpoints/istiod                 10.10.0.7:15012,10.10.0.7:15010,10.10.0.7:15017 + 1 more...   2m20s

NAME                                                  SECRETS   AGE
serviceaccount/default                                1         2m22s
serviceaccount/istio-ingressgateway-service-account   1         2m4s
serviceaccount/istio-reader-service-account           1         2m21s
serviceaccount/istiod                                 1         2m21s
serviceaccount/istiod-service-account                 1         2m21s

NAME                                            DATA   AGE
configmap/istio                                 2      2m20s
configmap/istio-ca-root-cert                    1      2m7s
configmap/istio-gateway-deployment-leader       0      2m7s
configmap/istio-gateway-status-leader           0      2m7s
configmap/istio-leader                          0      2m7s
configmap/istio-namespace-controller-election   0      2m7s
configmap/istio-sidecar-injector                2      2m20s
configmap/kube-root-ca.crt                      1      2m22s

NAME                                                      TYPE                                  DATA   AGE
secret/default-token-mt6d9                                kubernetes.io/service-account-token   3      2m22s
secret/istio-ca-secret                                    istio.io/ca-root                      5      2m7s
secret/istio-ingressgateway-service-account-token-vrgzz   kubernetes.io/service-account-token   3      2m4s
secret/istio-reader-service-account-token-57zcm           kubernetes.io/service-account-token   3      2m21s
secret/istiod-service-account-token-5gkrg                 kubernetes.io/service-account-token   3      2m21s
secret/istiod-token-9vsfv                                 kubernetes.io/service-account-token   3      2m21s

NAME                                              MIN AVAILABLE   MAX UNAVAILABLE   ALLOWED DISRUPTIONS   AGE
poddisruptionbudget.policy/istio-ingressgateway   1               N/A               0                     2m4s
poddisruptionbudget.policy/istiod                 1               N/A               0                     2m20s

root@myk8s-control-plane:/# kubectl get crd | grep istio.io | sort

✅ 출력

authorizationpolicies.security.istio.io    2025-04-12T14:34:47Z
destinationrules.networking.istio.io       2025-04-12T14:34:47Z
envoyfilters.networking.istio.io           2025-04-12T14:34:48Z
gateways.networking.istio.io               2025-04-12T14:34:48Z
istiooperators.install.istio.io            2025-04-12T14:34:48Z
peerauthentications.security.istio.io      2025-04-12T14:34:48Z
proxyconfigs.networking.istio.io           2025-04-12T14:34:48Z
requestauthentications.security.istio.io   2025-04-12T14:34:48Z
serviceentries.networking.istio.io         2025-04-12T14:34:48Z
sidecars.networking.istio.io               2025-04-12T14:34:48Z
telemetries.telemetry.istio.io             2025-04-12T14:34:48Z
virtualservices.networking.istio.io        2025-04-12T14:34:48Z
wasmplugins.extensions.istio.io            2025-04-12T14:34:48Z
workloadentries.networking.istio.io        2025-04-12T14:34:48Z
workloadgroups.networking.istio.io         2025-04-12T14:34:48Z

8. 보조 도구(addons) 설치

(1) istio 샘플 애드온 리소스 적용

root@myk8s-control-plane:/# kubectl apply -f istio-$ISTIOV/samples/addons

✅ 출력

serviceaccount/grafana created
configmap/grafana created
service/grafana created
deployment.apps/grafana created
configmap/istio-grafana-dashboards created
configmap/istio-services-grafana-dashboards created
deployment.apps/jaeger created
service/tracing created
service/zipkin created
service/jaeger-collector created
serviceaccount/kiali created
configmap/kiali created
clusterrole.rbac.authorization.k8s.io/kiali-viewer created
clusterrole.rbac.authorization.k8s.io/kiali created
clusterrolebinding.rbac.authorization.k8s.io/kiali created
role.rbac.authorization.k8s.io/kiali-controlplane created
rolebinding.rbac.authorization.k8s.io/kiali-controlplane created
service/kiali created
deployment.apps/kiali created
serviceaccount/prometheus created
configmap/prometheus created
clusterrole.rbac.authorization.k8s.io/prometheus created
clusterrolebinding.rbac.authorization.k8s.io/prometheus created
service/prometheus created
deployment.apps/prometheus created

(2) 설치 후 istio-system 네임스페이스(Pod) 상태 확인

root@myk8s-control-plane:/# kubectl get pod -n istio-system

✅ 출력

NAME                                   READY   STATUS    RESTARTS   AGE
grafana-b854c6c8-j2g5j                 1/1     Running   0          47s
istio-ingressgateway-996bc6bb6-b24ff   1/1     Running   0          5m54s
istiod-7df6ffc78d-25zjr                1/1     Running   0          6m10s
jaeger-5556cd8fcf-8l5ht                1/1     Running   0          47s
kiali-648847c8c4-krnzf                 0/1     Running   0          47s
prometheus-7b8b9dd44c-8hc8g            2/2     Running   0          47s

9. ConfigMap 확인


root@myk8s-control-plane:/# exit
kubectl get cm -n istio-system istio -o yaml | kubectl neat

✅ 출력


apiVersion: v1
data:
  mesh: |-
    defaultConfig:
      discoveryAddress: istiod.istio-system.svc:15012
      proxyMetadata: {}
      tracing:
        zipkin:
          address: zipkin.istio-system:9411
    enablePrometheusMerge: true
    rootNamespace: istio-system
    trustDomain: cluster.local
  meshNetworks: 'networks: {}'
kind: ConfigMap
metadata:
  labels:
    install.operator.istio.io/owning-resource: unknown
    install.operator.istio.io/owning-resource-namespace: istio-system
    istio.io/rev: default
    operator.istio.io/component: Pilot
    operator.istio.io/managed: Reconcile
    operator.istio.io/version: 1.17.8
    release: istio
  name: istio
  namespace: istio-system

✨ 서비스 메시에 첫 애플리케이션 배포

1. 네임스페이스 생성

kubectl create ns istioinaction

# 결과
namespace/istioinaction created

2. 애플리케이션 매니페스트 확인

cat services/catalog/kubernetes/catalog.yaml

✅ 출력


apiVersion: v1
kind: ServiceAccount
metadata:
  name: catalog
---
apiVersion: v1
kind: Service
metadata:
  labels:
    app: catalog
  name: catalog
spec:
  ports:
  - name: http
    port: 80
    protocol: TCP
    targetPort: 3000
  selector:
    app: catalog
---
apiVersion: apps/v1
kind: Deployment
metadata:
  labels:
    app: catalog
    version: v1
  name: catalog
spec:
  replicas: 1
  selector:
    matchLabels:
      app: catalog
      version: v1
  template:
    metadata:
      labels:
        app: catalog
        version: v1
    spec:
      serviceAccountName: catalog
      containers:
      - env:
        - name: KUBERNETES_NAMESPACE
          valueFrom:
            fieldRef:
              fieldPath: metadata.namespace
        image: istioinaction/catalog:latest
        imagePullPolicy: IfNotPresent
        name: catalog
        ports:
        - containerPort: 3000
          name: http
          protocol: TCP
        securityContext:
          privileged: false

3. istio 사이드카 자동 주입 실행


docker exec -it myk8s-control-plane istioctl kube-inject -f /istiobook/services/catalog/kubernetes/catalog.yaml

✅ 출력


apiVersion: v1
kind: ServiceAccount
metadata:
  name: catalog
---
apiVersion: v1
kind: Service
metadata:
  labels:
    app: catalog
  name: catalog
spec:
  ports:
  - name: http
    port: 80
    protocol: TCP
    targetPort: 3000
  selector:
    app: catalog
---
apiVersion: apps/v1
kind: Deployment
metadata:
  creationTimestamp: null
  labels:
    app: catalog
    version: v1
  name: catalog
spec:
  replicas: 1
  selector:
    matchLabels:
      app: catalog
      version: v1
  strategy: {}
  template:
    metadata:
      annotations:
        kubectl.kubernetes.io/default-container: catalog
        kubectl.kubernetes.io/default-logs-container: catalog
        prometheus.io/path: /stats/prometheus
        prometheus.io/port: "15020"
        prometheus.io/scrape: "true"
        sidecar.istio.io/status: '{"initContainers":["istio-init"],"containers":["istio-proxy"],"volumes":["workload-socket","credential-socket","workload-certs","istio-envoy","istio-data","istio-podinfo","istio-token","istiod-ca-cert"],"imagePullSecrets":null,"revision":"default"}'
      creationTimestamp: null
      labels:
        app: catalog
        security.istio.io/tlsMode: istio
        service.istio.io/canonical-name: catalog
        service.istio.io/canonical-revision: v1
        version: v1
    spec:
      containers:
      - env:
        - name: KUBERNETES_NAMESPACE
          valueFrom:
            fieldRef:
              fieldPath: metadata.namespace
        image: istioinaction/catalog:latest
        imagePullPolicy: IfNotPresent
        name: catalog
        ports:
        - containerPort: 3000
          name: http
          protocol: TCP
        resources: {}
        securityContext:
          privileged: false
      - args:
        - proxy
        - sidecar
        - --domain
        - $(POD_NAMESPACE).svc.cluster.local
        - --proxyLogLevel=warning
        - --proxyComponentLogLevel=misc:error
        - --log_output_level=default:info
        - --concurrency
        - "2"
        env:
        - name: JWT_POLICY
          value: third-party-jwt
        - name: PILOT_CERT_PROVIDER
          value: istiod
        - name: CA_ADDR
          value: istiod.istio-system.svc:15012
        - name: POD_NAME
          valueFrom:
            fieldRef:
              fieldPath: metadata.name
        - name: POD_NAMESPACE
          valueFrom:
            fieldRef:
              fieldPath: metadata.namespace
        - name: INSTANCE_IP
          valueFrom:
            fieldRef:
              fieldPath: status.podIP
        - name: SERVICE_ACCOUNT
          valueFrom:
            fieldRef:
              fieldPath: spec.serviceAccountName
        - name: HOST_IP
          valueFrom:
            fieldRef:
              fieldPath: status.hostIP
        - name: PROXY_CONFIG
          value: |
            {}
        - name: ISTIO_META_POD_PORTS
          value: |-
            [
                {"name":"http","containerPort":3000,"protocol":"TCP"}
            ]
        - name: ISTIO_META_APP_CONTAINERS
          value: catalog
        - name: ISTIO_META_CLUSTER_ID
          value: Kubernetes
        - name: ISTIO_META_NODE_NAME
          valueFrom:
            fieldRef:
              fieldPath: spec.nodeName
        - name: ISTIO_META_INTERCEPTION_MODE
          value: REDIRECT
        - name: ISTIO_META_MESH_ID
          value: cluster.local
        - name: TRUST_DOMAIN
          value: cluster.local
        image: docker.io/istio/proxyv2:1.17.8
        name: istio-proxy
        ports:
        - containerPort: 15090
          name: http-envoy-prom
          protocol: TCP
        readinessProbe:
          failureThreshold: 30
          httpGet:
            path: /healthz/ready
            port: 15021
          initialDelaySeconds: 1
          periodSeconds: 2
          timeoutSeconds: 3
        resources:
          limits:
            cpu: "2"
            memory: 1Gi
          requests:
            cpu: 100m
            memory: 128Mi
        securityContext:
          allowPrivilegeEscalation: false
          capabilities:
            drop:
            - ALL
          privileged: false
          readOnlyRootFilesystem: true
          runAsGroup: 1337
          runAsNonRoot: true
          runAsUser: 1337
        volumeMounts:
        - mountPath: /var/run/secrets/workload-spiffe-uds
          name: workload-socket
        - mountPath: /var/run/secrets/credential-uds
          name: credential-socket
        - mountPath: /var/run/secrets/workload-spiffe-credentials
          name: workload-certs
        - mountPath: /var/run/secrets/istio
          name: istiod-ca-cert
        - mountPath: /var/lib/istio/data
          name: istio-data
        - mountPath: /etc/istio/proxy
          name: istio-envoy
        - mountPath: /var/run/secrets/tokens
          name: istio-token
        - mountPath: /etc/istio/pod
          name: istio-podinfo
      initContainers:
      - args:
        - istio-iptables
        - -p
        - "15001"
        - -z
        - "15006"
        - -u
        - "1337"
        - -m
        - REDIRECT
        - -i
        - '*'
        - -x
        - ""
        - -b
        - '*'
        - -d
        - 15090,15021,15020
        - --log_output_level=default:info
        image: docker.io/istio/proxyv2:1.17.8
        name: istio-init
        resources:
          limits:
            cpu: "2"
            memory: 1Gi
          requests:
            cpu: 100m
            memory: 128Mi
        securityContext:
          allowPrivilegeEscalation: false
          capabilities:
            add:
            - NET_ADMIN
            - NET_RAW
            drop:
            - ALL
          privileged: false
          readOnlyRootFilesystem: false
          runAsGroup: 0
          runAsNonRoot: false
          runAsUser: 0
      serviceAccountName: catalog
      volumes:
      - name: workload-socket
      - name: credential-socket
      - name: workload-certs
      - emptyDir:
          medium: Memory
        name: istio-envoy
      - emptyDir: {}
        name: istio-data
      - downwardAPI:
          items:
          - fieldRef:
              fieldPath: metadata.labels
            path: labels
          - fieldRef:
              fieldPath: metadata.annotations
            path: annotations
        name: istio-podinfo
      - name: istio-token
        projected:
          sources:
          - serviceAccountToken:
              audience: istio-ca
              expirationSeconds: 43200
              path: istio-token
      - configMap:
          name: istio-ca-root-cert
        name: istiod-ca-cert
status: {}
---

4. mutatingwebhookconfiguration 조회

kubectl get mutatingwebhookconfiguration

✅ 출력


NAME                         WEBHOOKS   AGE
istio-revision-tag-default   4          13m  # 특정 revision의 사이드카 주입 설정 관리
istio-sidecar-injector       4          14m  # Istio는 각 애플리케이션 Pod에 Envoy 사이드카 프록시를 자동으로 주입
                                             # 네임스페이스나 Pod에 istio-injection=enabled 라벨이 있어야 작동

5. 네임스페이스 레이블 지정

kubectl label namespace istioinaction istio-injection=enabled
kubectl get ns --show-labels

✅ 출력


namespace/istioinaction labeled
NAME                 STATUS   AGE     LABELS
default              Active   42m     kubernetes.io/metadata.name=default
istio-system         Active   16m     kubernetes.io/metadata.name=istio-system
istioinaction        Active   6m55s   istio-injection=enabled,kubernetes.io/metadata.name=istioinaction
kube-node-lease      Active   42m     kubernetes.io/metadata.name=kube-node-lease
kube-public          Active   42m     kubernetes.io/metadata.name=kube-public
kube-system          Active   42m     kubernetes.io/metadata.name=kube-system
local-path-storage   Active   42m     kubernetes.io/metadata.name=local-path-storage

애플리케이션 Pod에 사이드카 자동 주입을 활성화하기 위해 네임스페이스 istioinaction에 라벨 추가
istio-injection=enabled

6. 어플리케이션 배포


cat services/catalog/kubernetes/catalog.yaml
kubectl apply -f services/catalog/kubernetes/catalog.yaml -n istioinaction

cat services/webapp/kubernetes/webapp.yaml
kubectl apply -f services/webapp/kubernetes/webapp.yaml -n istioinaction

✅ 출력


apiVersion: v1
kind: ServiceAccount
metadata:
  name: catalog
---
apiVersion: v1
kind: Service
metadata:
  labels:
    app: catalog
  name: catalog
spec:
  ports:
  - name: http
    port: 80
    protocol: TCP
    targetPort: 3000
  selector:
    app: catalog
---
apiVersion: apps/v1
kind: Deployment
metadata:
  labels:
    app: catalog
    version: v1
  name: catalog
spec:
  replicas: 1
  selector:
    matchLabels:
      app: catalog
      version: v1
  template:
    metadata:
      labels:
        app: catalog
        version: v1
    spec:
      serviceAccountName: catalog
      containers:
      - env:
        - name: KUBERNETES_NAMESPACE
          valueFrom:
            fieldRef:
              fieldPath: metadata.namespace
        image: istioinaction/catalog:latest
        imagePullPolicy: IfNotPresent
        name: catalog
        ports:
        - containerPort: 3000
          name: http
          protocol: TCP
        securityContext:
          privileged: false
serviceaccount/catalog created
service/catalog created
deployment.apps/catalog created
apiVersion: v1
kind: ServiceAccount
metadata:
  name: webapp
---
apiVersion: v1
kind: Service
metadata:
  labels:
    app: webapp
  name: webapp
spec:
  ports:
  - name: http
    port: 80
    protocol: TCP
    targetPort: 8080
  selector:
    app: webapp
---
apiVersion: apps/v1
kind: Deployment
metadata:
  labels:
    app: webapp
  name: webapp
spec:
  replicas: 1
  selector:
    matchLabels:
      app: webapp
  template:
    metadata:
      labels:
        app: webapp
    spec:
      serviceAccountName: webapp
      containers:
      - env:
        - name: KUBERNETES_NAMESPACE
          valueFrom:
            fieldRef:
              fieldPath: metadata.namespace
        - name: CATALOG_SERVICE_HOST
          value: catalog.istioinaction
        - name: CATALOG_SERVICE_PORT
          value: "80"
        - name: FORUM_SERVICE_HOST
          value: forum.istioinaction
        - name: FORUM_SERVICE_PORT
          value: "80"
        image: istioinaction/webapp:latest
        imagePullPolicy: IfNotPresent
        name: webapp
        ports:
        - containerPort: 8080
          name: http
          protocol: TCP
        securityContext:
          privileged: false

serviceaccount/webapp created
service/webapp created
deployment.apps/webapp created

7. 배포 리소스 확인

(1) pod 확인

kubectl get pod -n istioinaction

✅ 출력

NAME                     READY   STATUS    RESTARTS   AGE
catalog-6cf4b97d-kw68k   2/2     Running   0          46s
webapp-7685bcb84-dlnwg   2/2     Running   0          46s

(2) catalog 디플로이먼트 pod spec 확인


kubectl get deploy -n istioinaction catalog -o jsonpath="{.spec.template.spec}" | jq

✅ 출력


{
  "containers": [
    {
      "env": [
        {
          "name": "KUBERNETES_NAMESPACE",
          "valueFrom": {
            "fieldRef": {
              "apiVersion": "v1",
              "fieldPath": "metadata.namespace"
            }
          }
        }
      ],
      "image": "istioinaction/catalog:latest",
      "imagePullPolicy": "IfNotPresent",
      "name": "catalog",
      "ports": [
        {
          "containerPort": 3000,
          "name": "http",
          "protocol": "TCP"
        }
      ],
      "resources": {},
      "securityContext": {
        "privileged": false
      },
      "terminationMessagePath": "/dev/termination-log",
      "terminationMessagePolicy": "File"
    }
  ],
  "dnsPolicy": "ClusterFirst",
  "restartPolicy": "Always",
  "schedulerName": "default-scheduler",
  "securityContext": {},
  "serviceAccount": "catalog",
  "serviceAccountName": "catalog",
  "terminationGracePeriodSeconds": 30
}

(3) 실제 pod 스펙 확인


kubectl get pod -n istioinaction -l app=catalog -o jsonpath="{.items[0].spec}" | jq

✅ 출력


{
  "containers": [
    {
      "env": [
        {
          "name": "KUBERNETES_NAMESPACE",
          "valueFrom": {
            "fieldRef": {
              "apiVersion": "v1",
              "fieldPath": "metadata.namespace"
            }
          }
        }
      ],
      "image": "istioinaction/catalog:latest",
      "imagePullPolicy": "IfNotPresent",
      "name": "catalog",
      "ports": [
        {
          "containerPort": 3000,
          "name": "http",
          "protocol": "TCP"
        }
      ],
      "resources": {},
      "securityContext": {
        "privileged": false
      },
      "terminationMessagePath": "/dev/termination-log",
      "terminationMessagePolicy": "File",
      "volumeMounts": [
        {
          "mountPath": "/var/run/secrets/kubernetes.io/serviceaccount",
          "name": "kube-api-access-rm86r",
          "readOnly": true
        }
      ]
    },
    {
      "args": [
        "proxy",
        "sidecar",
        "--domain",
        "$(POD_NAMESPACE).svc.cluster.local",
        "--proxyLogLevel=warning",
        "--proxyComponentLogLevel=misc:error",
        "--log_output_level=default:info",
        "--concurrency",
        "2"
      ],
      "env": [
        {
          "name": "JWT_POLICY",
          "value": "third-party-jwt"
        },
        {
          "name": "PILOT_CERT_PROVIDER",
          "value": "istiod"
        },
        {
          "name": "CA_ADDR",
          "value": "istiod.istio-system.svc:15012"
        },
        {
          "name": "POD_NAME",
          "valueFrom": {
            "fieldRef": {
              "apiVersion": "v1",
              "fieldPath": "metadata.name"
            }
          }
        },
        {
          "name": "POD_NAMESPACE",
          "valueFrom": {
            "fieldRef": {
              "apiVersion": "v1",
              "fieldPath": "metadata.namespace"
            }
          }
        },
        {
          "name": "INSTANCE_IP",
          "valueFrom": {
            "fieldRef": {
              "apiVersion": "v1",
              "fieldPath": "status.podIP"
            }
          }
        },
        {
          "name": "SERVICE_ACCOUNT",
          "valueFrom": {
            "fieldRef": {
              "apiVersion": "v1",
              "fieldPath": "spec.serviceAccountName"
            }
          }
        },
        {
          "name": "HOST_IP",
          "valueFrom": {
            "fieldRef": {
              "apiVersion": "v1",
              "fieldPath": "status.hostIP"
            }
          }
        },
        {
          "name": "PROXY_CONFIG",
          "value": "{}\n"
        },
        {
          "name": "ISTIO_META_POD_PORTS",
          "value": "[\n    {\"name\":\"http\",\"containerPort\":3000,\"protocol\":\"TCP\"}\n]"
        },
        {
          "name": "ISTIO_META_APP_CONTAINERS",
          "value": "catalog"
        },
        {
          "name": "ISTIO_META_CLUSTER_ID",
          "value": "Kubernetes"
        },
        {
          "name": "ISTIO_META_NODE_NAME",
          "valueFrom": {
            "fieldRef": {
              "apiVersion": "v1",
              "fieldPath": "spec.nodeName"
            }
          }
        },
        {
          "name": "ISTIO_META_INTERCEPTION_MODE",
          "value": "REDIRECT"
        },
        {
          "name": "ISTIO_META_WORKLOAD_NAME",
          "value": "catalog"
        },
        {
          "name": "ISTIO_META_OWNER",
          "value": "kubernetes://apis/apps/v1/namespaces/istioinaction/deployments/catalog"
        },
        {
          "name": "ISTIO_META_MESH_ID",
          "value": "cluster.local"
        },
        {
          "name": "TRUST_DOMAIN",
          "value": "cluster.local"
        }
      ],
      "image": "docker.io/istio/proxyv2:1.17.8",
      "imagePullPolicy": "IfNotPresent",
      "name": "istio-proxy",
      "ports": [
        {
          "containerPort": 15090,
          "name": "http-envoy-prom",
          "protocol": "TCP"
        }
      ],
      "readinessProbe": {
        "failureThreshold": 30,
        "httpGet": {
          "path": "/healthz/ready",
          "port": 15021,
          "scheme": "HTTP"
        },
        "initialDelaySeconds": 1,
        "periodSeconds": 2,
        "successThreshold": 1,
        "timeoutSeconds": 3
      },
      "resources": {
        "limits": {
          "cpu": "2",
          "memory": "1Gi"
        },
        "requests": {
          "cpu": "100m",
          "memory": "128Mi"
        }
      },
      "securityContext": {
        "allowPrivilegeEscalation": false,
        "capabilities": {
          "drop": [
            "ALL"
          ]
        },
        "privileged": false,
        "readOnlyRootFilesystem": true,
        "runAsGroup": 1337,
        "runAsNonRoot": true,
        "runAsUser": 1337
      },
      "terminationMessagePath": "/dev/termination-log",
      "terminationMessagePolicy": "File",
      "volumeMounts": [
        {
          "mountPath": "/var/run/secrets/workload-spiffe-uds",
          "name": "workload-socket"
        },
        {
          "mountPath": "/var/run/secrets/credential-uds",
          "name": "credential-socket"
        },
        {
          "mountPath": "/var/run/secrets/workload-spiffe-credentials",
          "name": "workload-certs"
        },
        {
          "mountPath": "/var/run/secrets/istio",
          "name": "istiod-ca-cert"
        },
        {
          "mountPath": "/var/lib/istio/data",
          "name": "istio-data"
        },
        {
          "mountPath": "/etc/istio/proxy",
          "name": "istio-envoy"
        },
        {
          "mountPath": "/var/run/secrets/tokens",
          "name": "istio-token"
        },
        {
          "mountPath": "/etc/istio/pod",
          "name": "istio-podinfo"
        },
        {
          "mountPath": "/var/run/secrets/kubernetes.io/serviceaccount",
          "name": "kube-api-access-rm86r",
          "readOnly": true
        }
      ]
    }
  ],
  "dnsPolicy": "ClusterFirst",
  "enableServiceLinks": true,
  "initContainers": [
    {
      "args": [
        "istio-iptables",
        "-p",
        "15001",
        "-z",
        "15006",
        "-u",
        "1337",
        "-m",
        "REDIRECT",
        "-i",
        "*",
        "-x",
        "",
        "-b",
        "*",
        "-d",
        "15090,15021,15020",
        "--log_output_level=default:info"
      ],
      "image": "docker.io/istio/proxyv2:1.17.8",
      "imagePullPolicy": "IfNotPresent",
      "name": "istio-init",
      "resources": {
        "limits": {
          "cpu": "2",
          "memory": "1Gi"
        },
        "requests": {
          "cpu": "100m",
          "memory": "128Mi"
        }
      },
      "securityContext": {
        "allowPrivilegeEscalation": false,
        "capabilities": {
          "add": [
            "NET_ADMIN",
            "NET_RAW"
          ],
          "drop": [
            "ALL"
          ]
        },
        "privileged": false,
        "readOnlyRootFilesystem": false,
        "runAsGroup": 0,
        "runAsNonRoot": false,
        "runAsUser": 0
      },
      "terminationMessagePath": "/dev/termination-log",
      "terminationMessagePolicy": "File",
      "volumeMounts": [
        {
          "mountPath": "/var/run/secrets/kubernetes.io/serviceaccount",
          "name": "kube-api-access-rm86r",
          "readOnly": true
        }
      ]
    }
  ],
  "nodeName": "myk8s-control-plane",
  "preemptionPolicy": "PreemptLowerPriority",
  "priority": 0,
  "restartPolicy": "Always",
  "schedulerName": "default-scheduler",
  "securityContext": {},
  "serviceAccount": "catalog",
  "serviceAccountName": "catalog",
  "terminationGracePeriodSeconds": 30,
  "tolerations": [
    {
      "effect": "NoExecute",
      "key": "node.kubernetes.io/not-ready",
      "operator": "Exists",
      "tolerationSeconds": 300
    },
    {
      "effect": "NoExecute",
      "key": "node.kubernetes.io/unreachable",
      "operator": "Exists",
      "tolerationSeconds": 300
    }
  ],
  "volumes": [
    {
      "emptyDir": {},
      "name": "workload-socket"
    },
    {
      "emptyDir": {},
      "name": "credential-socket"
    },
    {
      "emptyDir": {},
      "name": "workload-certs"
    },
    {
      "emptyDir": {
        "medium": "Memory"
      },
      "name": "istio-envoy"
    },
    {
      "emptyDir": {},
      "name": "istio-data"
    },
    {
      "downwardAPI": {
        "defaultMode": 420,
        "items": [
          {
            "fieldRef": {
              "apiVersion": "v1",
              "fieldPath": "metadata.labels"
            },
            "path": "labels"
          },
          {
            "fieldRef": {
              "apiVersion": "v1",
              "fieldPath": "metadata.annotations"
            },
            "path": "annotations"
          }
        ]
      },
      "name": "istio-podinfo"
    },
    {
      "name": "istio-token",
      "projected": {
        "defaultMode": 420,
        "sources": [
          {
            "serviceAccountToken": {
              "audience": "istio-ca",
              "expirationSeconds": 43200,
              "path": "istio-token"
            }
          }
        ]
      }
    },
    {
      "configMap": {
        "defaultMode": 420,
        "name": "istio-ca-root-cert"
      },
      "name": "istiod-ca-cert"
    },
    {
      "name": "kube-api-access-rm86r",
      "projected": {
        "defaultMode": 420,
        "sources": [
          {
            "serviceAccountToken": {
              "expirationSeconds": 3607,
              "path": "token"
            }
          },
          {
            "configMap": {
              "items": [
                {
                  "key": "ca.crt",
                  "path": "ca.crt"
                }
              ],
              "name": "kube-root-ca.crt"
            }
          },
          {
            "downwardAPI": {
              "items": [
                {
                  "fieldRef": {
                    "apiVersion": "v1",
                    "fieldPath": "metadata.namespace"
                  },
                  "path": "namespace"
                }
              ]
            }
          }
        ]
      }
    }
  ]
}

8. 접속 테스트용 netshoot 파드 생성


cat <<EOF | kubectl apply -f -
apiVersion: v1
kind: Pod
metadata:
  name: netshoot
spec:
  containers:
  - name: netshoot
    image: nicolaka/netshoot
    command: ["tail"]
    args: ["-f", "/dev/null"]
  terminationGracePeriodSeconds: 0
EOF

# 결과
pod/netshoot created

9. 서비스 및 엔드포인트 상태 확인

k get svc,ep -n istioinaction

✅ 출력

NAME              TYPE        CLUSTER-IP     EXTERNAL-IP   PORT(S)   AGE
service/catalog   ClusterIP   10.200.1.197   <none>        80/TCP    7m45s
service/webapp    ClusterIP   10.200.1.44    <none>        80/TCP    7m45s

NAME                ENDPOINTS         AGE
endpoints/catalog   10.10.0.13:3000   7m45s
endpoints/webapp    10.10.0.14:8080   7m45s

10. 서비스 접속 테스트

(1) catalog 접속 테스트


kubectl exec -it netshoot -- curl -s http://catalog.istioinaction/items/1 | jq

✅ 출력


{
  "id": 1,
  "color": "amber",
  "department": "Eyewear",
  "name": "Elinor Glasses",
  "price": "282.00"
}

(2) webapp 접속 테스트


kubectl exec -it netshoot -- curl -s http://webapp.istioinaction/api/catalog/items/1 | jq

✅ 출력


{
  "id": 1,
  "color": "amber",
  "department": "Eyewear",
  "name": "Elinor Glasses",
  "price": "282.00"
}

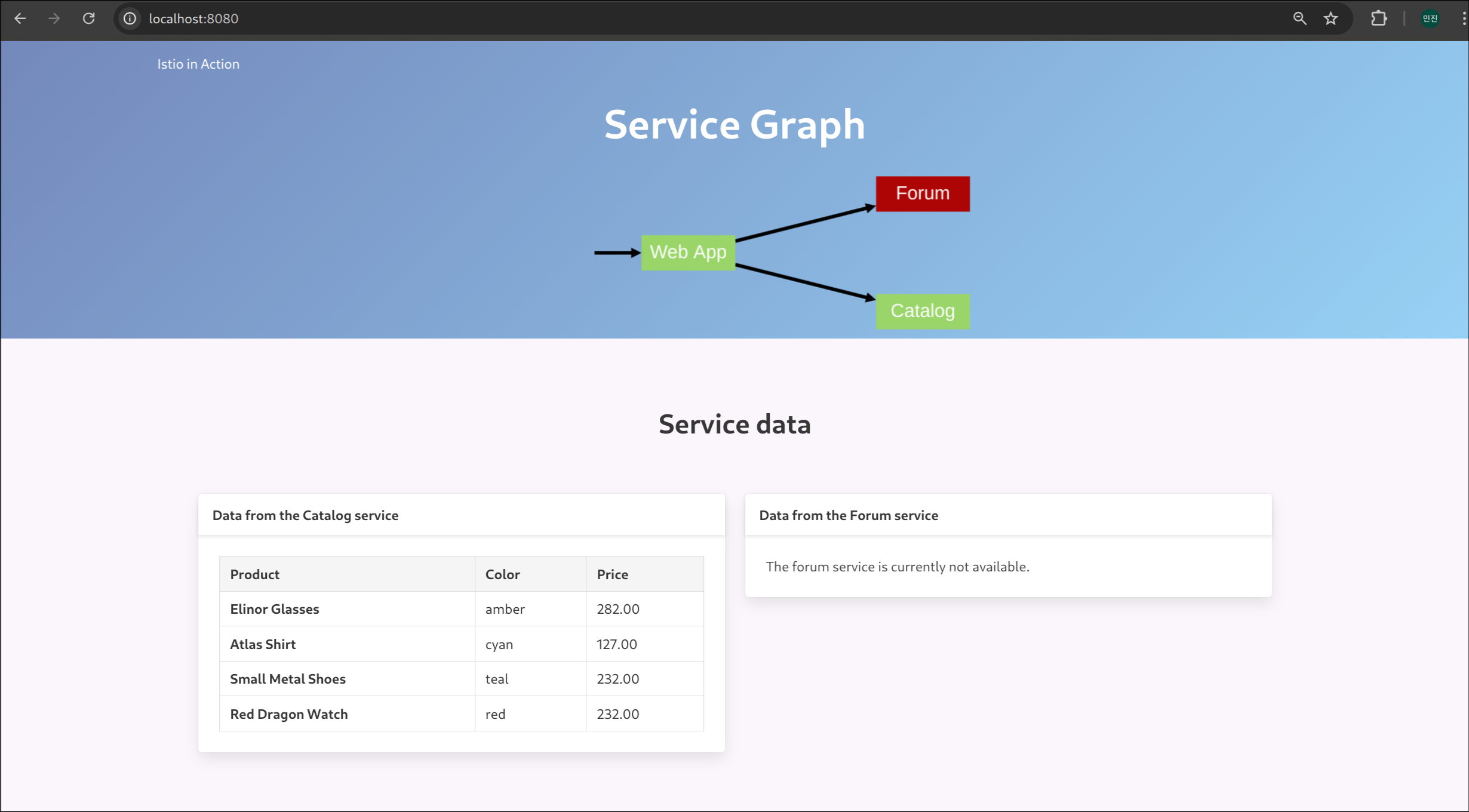

(3) 임시 접속 방법 - 포트포워딩

kubectl port-forward -n istioinaction deploy/webapp 8080:8080

📊 복원력, 관찰가능성, 트래픽 제어

1. proxy 상태 확인

docker exec -it myk8s-control-plane istioctl proxy-status

✅ 출력

NAME                                                  CLUSTER        CDS        LDS        EDS        RDS          ECDS         ISTIOD                      VERSION
catalog-6cf4b97d-kw68k.istioinaction                  Kubernetes     SYNCED     SYNCED     SYNCED     SYNCED       NOT SENT     istiod-7df6ffc78d-25zjr     1.17.8
istio-ingressgateway-996bc6bb6-b24ff.istio-system     Kubernetes     SYNCED     SYNCED     SYNCED     NOT SENT     NOT SENT     istiod-7df6ffc78d-25zjr     1.17.8
webapp-7685bcb84-dlnwg.istioinaction                  Kubernetes     SYNCED     SYNCED     SYNCED     SYNCED       NOT SENT     istiod-7df6ffc78d-25zjr     1.17.8

2. Gateway 및 VirtualService 생성


cat <<EOF | kubectl -n istioinaction apply -f -
apiVersion: networking.istio.io/v1alpha3
kind: Gateway
metadata:
  name: outfitters-gateway
  namespace: istioinaction
spec:
  selector:
    istio: ingressgateway # use istio default controller
  servers:
  - port:
      number: 80
      name: http
      protocol: HTTP
    hosts:
    - "*"
---
apiVersion: networking.istio.io/v1alpha3
kind: VirtualService
metadata:
  name: webapp-virtualservice
  namespace: istioinaction
spec:
  hosts:
  - "*"
  gateways:
  - outfitters-gateway
  http:
  - route:
    - destination:
        host: webapp
        port:
          number: 80
EOF

# 결과
gateway.networking.istio.io/outfitters-gateway created
virtualservice.networking.istio.io/webapp-virtualservice created

3. 리소스 조회

(1) Gateway 및 VirtualService 조회

kubectl get gw,vs -n istioinaction

✅ 출력


NAME                                             AGE
gateway.networking.istio.io/outfitters-gateway   36s

NAME                                                       GATEWAYS                 HOSTS   AGE
virtualservice.networking.istio.io/webapp-virtualservice   ["outfitters-gateway"]   ["*"]   36s

(2) VirtualService API 리소스 확인

k api-resources |grep vs

✅ 출력

virtualservices                   vs           networking.istio.io/v1beta1            true         VirtualService

(3) Gateway API 리소스 확인

k api-resources |grep gw

✅ 출력


mutatingwebhookconfigurations                  admissionregistration.k8s.io/v1        false        MutatingWebhookConfiguration
validatingwebhookconfigurations                admissionregistration.k8s.io/v1        false        ValidatingWebhookConfiguration
gateways                          gw           networking.istio.io/v1beta1            true         Gateway

4. Proxy 상태 확인

(1) istio 사이드카 프록시 동기화 상태 확인

docker exec -it myk8s-control-plane istioctl proxy-status

✅ 출력

NAME                                                  CLUSTER        CDS        LDS        EDS        RDS        ECDS         ISTIOD                      VERSION
catalog-6cf4b97d-kw68k.istioinaction                  Kubernetes     SYNCED     SYNCED     SYNCED     SYNCED     NOT SENT     istiod-7df6ffc78d-25zjr     1.17.8
istio-ingressgateway-996bc6bb6-b24ff.istio-system     Kubernetes     SYNCED     SYNCED     SYNCED     SYNCED     NOT SENT     istiod-7df6ffc78d-25zjr     1.17.8
webapp-7685bcb84-dlnwg.istioinaction                  Kubernetes     SYNCED     SYNCED     SYNCED     SYNCED     NOT SENT     istiod-7df6ffc78d-25zjr     1.17.8

(2) 프록시 이름을 환경 변수에 지정


ISTIOIGW=istio-ingressgateway-996bc6bb6-b24ff.istio-system
WEBAPP=webapp-7685bcb84-dlnwg.istioinaction

2. 라우트 및 리스너 구성 확인

(1) 라우트 정보 확인

docker exec -it myk8s-control-plane istioctl proxy-config routes deploy/istio-ingressgateway.istio-system

✅ 출력


NAME          DOMAINS     MATCH                  VIRTUAL SERVICE
http.8080     *           /*                     webapp-virtualservice.istioinaction
              *           /stats/prometheus*
              *           /healthz/ready*

(2) 리스너 설정 정보 확인


docker exec -it myk8s-control-plane istioctl proxy-config listener $ISTIOIGW

✅ 출력

ADDRESS PORT  MATCH DESTINATION
0.0.0 8080  ALL   Route: http.8080
0.0.0 15021 ALL   Inline Route: /healthz/ready*
0.0.0 15090 ALL   Inline Route: /stats/prometheus*

3. 백엔드 엔드포인트 및 인증서 정보 확인

(1) 엔드포인트 상태 확인


docker exec -it myk8s-control-plane istioctl proxy-config endpoint $ISTIOIGW

✅ 출력

ENDPOINT                                                STATUS      OUTLIER CHECK     CLUSTER
10.0.10:9411                                         HEALTHY     OK                outbound|9411||jaeger-collector.istio-system.svc.cluster.local
10.0.10:9411                                         HEALTHY     OK                outbound|9411||zipkin.istio-system.svc.cluster.local
10.0.10:14250                                        HEALTHY     OK                outbound|14250||jaeger-collector.istio-system.svc.cluster.local
10.0.10:14268                                        HEALTHY     OK                outbound|14268||jaeger-collector.istio-system.svc.cluster.local
10.0.10:16685                                        HEALTHY     OK                outbound|16685||tracing.istio-system.svc.cluster.local
10.0.10:16686                                        HEALTHY     OK                outbound|80||tracing.istio-system.svc.cluster.local
10.0.11:9090                                         HEALTHY     OK                outbound|9090||kiali.istio-system.svc.cluster.local
10.0.11:20001                                        HEALTHY     OK                outbound|20001||kiali.istio-system.svc.cluster.local
10.0.12:9090                                         HEALTHY     OK                outbound|9090||prometheus.istio-system.svc.cluster.local
10.0.13:3000                                         HEALTHY     OK                outbound|80||catalog.istioinaction.svc.cluster.local
10.0.14:8080                                         HEALTHY     OK                outbound|80||webapp.istioinaction.svc.cluster.local
10.0.3:53                                            HEALTHY     OK                outbound|53||kube-dns.kube-system.svc.cluster.local
10.0.3:9153                                          HEALTHY     OK                outbound|9153||kube-dns.kube-system.svc.cluster.local
10.0.4:53                                            HEALTHY     OK                outbound|53||kube-dns.kube-system.svc.cluster.local
10.0.4:9153                                          HEALTHY     OK                outbound|9153||kube-dns.kube-system.svc.cluster.local
10.0.5:8080                                          HEALTHY     OK                outbound|8080||kube-ops-view.kube-system.svc.cluster.local
10.0.6:10250                                         HEALTHY     OK                outbound|443||metrics-server.kube-system.svc.cluster.local
10.0.7:15010                                         HEALTHY     OK                outbound|15010||istiod.istio-system.svc.cluster.local
10.0.7:15012                                         HEALTHY     OK                outbound|15012||istiod.istio-system.svc.cluster.local
10.0.7:15014                                         HEALTHY     OK                outbound|15014||istiod.istio-system.svc.cluster.local
10.0.7:15017                                         HEALTHY     OK                outbound|443||istiod.istio-system.svc.cluster.local
10.0.8:8080                                          HEALTHY     OK                outbound|80||istio-ingressgateway.istio-system.svc.cluster.local
10.0.8:8443                                          HEALTHY     OK                outbound|443||istio-ingressgateway.istio-system.svc.cluster.local
10.0.8:15021                                         HEALTHY     OK                outbound|15021||istio-ingressgateway.istio-system.svc.cluster.local
10.0.9:3000                                          HEALTHY     OK                outbound|3000||grafana.istio-system.svc.cluster.local
200.1.155:9411                                       HEALTHY     OK                zipkin
0.0.1:15000                                         HEALTHY     OK                prometheus_stats
0.0.1:15020                                         HEALTHY     OK                agent
18.0.2:6443                                         HEALTHY     OK                outbound|443||kubernetes.default.svc.cluster.local
unix://./etc/istio/proxy/XDS                            HEALTHY     OK                xds-grpc
unix://./var/run/secrets/workload-spiffe-uds/socket     HEALTHY     OK                sds-grpc

(2) Envoy 인증서 정보 확인


docker exec -it myk8s-control-plane istioctl proxy-config secret $ISTIOIGW

✅ 출력

RESOURCE NAME     TYPE           STATUS     VALID CERT     SERIAL NUMBER                               NOT AFTER                NOT BEFORE
default           Cert Chain     ACTIVE     true           196175599541375521141632695734158995035     2025-04-13T14:35:14Z     2025-04-12T14:33:14Z
ROOTCA            CA             ACTIVE     true           83445744217971306758784358156191133935      2035-04-10T14:35:02Z     2025-04-12T14:35:02Z

4. NodePort 및 외부 트래픽 정책 변경

(1) istio-ingressgateway 서비스 NodePort 변경


kubectl get svc,ep -n istio-system istio-ingressgateway
kubectl patch svc -n istio-system istio-ingressgateway -p '{"spec": {"type": "NodePort", "ports": [{"port": 80, "targetPort": 8080, "nodePort": 30000}]}}'
kubectl get svc -n istio-system istio-ingressgateway

✅ 출력


NAME                           TYPE           CLUSTER-IP     EXTERNAL-IP   PORT(S)                                      AGE
service/istio-ingressgateway   LoadBalancer   10.200.1.191   <pending>     15021:30191/TCP,80:31021/TCP,443:31846/TCP   61m

NAME                             ENDPOINTS                                       AGE
endpoints/istio-ingressgateway   10.10.0.8:15021,10.10.0.8:8080,10.10.0.8:8443   61m
service/istio-ingressgateway patched
NAME                   TYPE       CLUSTER-IP     EXTERNAL-IP   PORT(S)                                      AGE
istio-ingressgateway   NodePort   10.200.1.191   <none>        15021:30191/TCP,80:30000/TCP,443:31846/TCP   61m

LoadBalancer 타입 서비스를 NodePort 타입으로 변경 및 포트 30000 지정

(2) 외부 트래픽 정책 변경


kubectl patch svc -n istio-system istio-ingressgateway -p '{"spec":{"externalTrafficPolicy": "Local"}}'
kubectl describe svc -n istio-system istio-ingressgateway

✅ 출력


service/istio-ingressgateway patched

Name:                     istio-ingressgateway
Namespace:                istio-system
Labels:                   app=istio-ingressgateway
                          install.operator.istio.io/owning-resource=unknown
                          install.operator.istio.io/owning-resource-namespace=istio-system
                          istio=ingressgateway
                          istio.io/rev=default
                          operator.istio.io/component=IngressGateways
                          operator.istio.io/managed=Reconcile
                          operator.istio.io/version=1.17.8
                          release=istio
Annotations:              <none>
Selector:                 app=istio-ingressgateway,istio=ingressgateway
Type:                     NodePort
IP Family Policy:         SingleStack
IP Families:              IPv4
IP:                       10.200.1.191
IPs:                      10.200.1.191
Port:                     status-port  15021/TCP
TargetPort:               15021/TCP
NodePort:                 status-port  30191/TCP
Endpoints:                10.10.0.8:15021
Port:                     http2  80/TCP
TargetPort:               8080/TCP
NodePort:                 http2  30000/TCP
Endpoints:                10.10.0.8:8080
Port:                     https  443/TCP
TargetPort:               8443/TCP
NodePort:                 https  31846/TCP
Endpoints:                10.10.0.8:8443
Session Affinity:         None
External Traffic Policy:  Local
Internal Traffic Policy:  Cluster
Events:
  Type    Reason  Age   From                Message
  ----    ------  ----  ----                -------
  Normal  Type    77s   service-controller  LoadBalancer -> NodePort

외부 요청 시 클라이언트 IP 수집을 위해 externalTrafficPolicy를 “Local”로 설정

5. 최종 서비스 접근 테스트

(1) 전체 catalog 조회

curl -s http://127.0.0.1:30000/api/catalog | jq

✅ 출력


[
  {
    "id": 1,
    "color": "amber",
    "department": "Eyewear",
    "name": "Elinor Glasses",
    "price": "282.00"
  },
  {
    "id": 2,
    "color": "cyan",
    "department": "Clothing",
    "name": "Atlas Shirt",
    "price": "127.00"
  },
  {
    "id": 3,
    "color": "teal",
    "department": "Clothing",
    "name": "Small Metal Shoes",
    "price": "232.00"
  },
  {
    "id": 4,
    "color": "red",
    "department": "Watches",
    "name": "Red Dragon Watch",
    "price": "232.00"
  }
]

(2) 특정 아이템 조회

curl -s http://127.0.0.1:30000/api/catalog/items/1 | jq

✅ 출력


{
  "id": 1,
  "color": "amber",
  "department": "Eyewear",
  "name": "Elinor Glasses",
  "price": "282.00"
}

(3) HTTP 응답 코드 확인


curl -s http://127.0.0.1:30000/api/catalog -I | head -n 1

✅ 출력

HTTP/1.1 200 OK

6. 반복 호출 테스트


while true; do curl -s http://127.0.0.1:30000/api/catalog -I | head -n 1 ; date "+%Y-%m-%d %H:%M:%S" ; sleep 0.5; echo; done

✅ 출력

HTTP/1.1 200 OK
2025-04-13 00:42:39

HTTP/1.1 200 OK
2025-04-13 00:42:39

HTTP/1.1 200 OK
2025-04-13 00:42:40

HTTP/1.1 200 OK
2025-04-13 00:42:40

HTTP/1.1 200 OK
2025-04-13 00:42:41

HTTP/1.1 200 OK
2025-04-13 00:42:41

...

🔍 istio observability

1. observability를 위한 서비스 변경


kubectl patch svc -n istio-system prometheus -p '{"spec": {"type": "NodePort", "ports": [{"port": 9090, "targetPort": 9090, "nodePort": 30001}]}}'
kubectl patch svc -n istio-system grafana -p '{"spec": {"type": "NodePort", "ports": [{"port": 3000, "targetPort": 3000, "nodePort": 30002}]}}'
kubectl patch svc -n istio-system kiali -p '{"spec": {"type": "NodePort", "ports": [{"port": 20001, "targetPort": 20001, "nodePort": 30003}]}}'
kubectl patch svc -n istio-system tracing -p '{"spec": {"type": "NodePort", "ports": [{"port": 80, "targetPort": 16686, "nodePort": 30004}]}}'

✅ 출력

service/prometheus patched
service/grafana patched
service/kiali patched
service/tracing patched

2. 대시보드 접속

(1) Prometheus 접속: http://127.0.0.1:30001

envoy, istio 메트릭 확인

(2) Grafana 접속: http://127.0.0.1:30002

(3) Kiali 접속 1 : http://127.0.0.1:30003 - NodePort

(4) Kiali 접속 2 : http://127.0.0.1:30003 - Port forward

kubectl port-forward deployment/kiali -n istio-system 20001:20001 &

✅ 출력

[1] 340443

✦ ❯ Forwarding from 127.0.0.1:20001 -> 20001
Forwarding from [::1]:20001 -> 20001

(5) 예거 트레이싱 대시보드 접속: http://127.0.0.1:30004

3. 텔레메트리 정보 확인

어플리케이션 개발팀은 별도의 텔레메트리 코드를 작성할 필요가 없음
대상 타겟(webapp, catalog 등)의 envoy 및 istio 관련 매트릭은 별도 설정 없이 수집되고 있음
Namespace: istioincation / Graph: Traffic, Versioned app graph
Display: Traffic Distribution, Traffic Animation, Service nods, Security 활성화 (Last 1m, Evety 10s)

4. 부하 테스트

(1) 0.1초 간격 부하 테스트


while true; do curl -s http://127.0.0.1:30000/api/catalog -I | head -n 1 ; date "+%Y-%m-%d %H:%M:%S" ; sleep 0.1; echo; done

5. Kiali 확인

(1) Graph - 간격이 촘촘해짐

(2) Workloads → Overview

(3) Workloads → Logs

(4) Workloads → Traces

(5) Workloads → Envoy

6. 예거 확인

🔄 Catalog: 500 에러 재현 및 Retry 적용 복원력 강화

1. 환경 설정 변경 및 작업 준비

(1) istio 관리를 위해 myk8s-control-plane 컨테이너 접속

docker exec -it myk8s-control-plane bash

root@myk8s-control-plane:/#

(2) istioinaction로 네임스페이스 변경


root@myk8s-control-plane:/# cat /etc/kubernetes/admin.conf
kubectl config set-context $(kubectl config current-context) --namespace=istioinaction
cat /etc/kubernetes/admin.conf

✅ 출력


apiVersion: v1
clusters:
- cluster:
    certificate-authority-data: LS0tLS1CRUdJTiBDRVJUSUZJQ0FURS0tLS0tCk1JSUMvakNDQWVhZ0F3SUJBZ0lCQURBTkJna3Foa2lHOXcwQkFRc0ZBREFWTVJNd0VRWURWUVFERXdwcmRXSmwKY201bGRHVnpNQjRYRFRJMU1EUXhNakUwTURnMU1sb1hEVE0xTURReE1ERTBNRGcxTWxvd0ZURVRNQkVHQTFVRQpBeE1LYTNWaVpYSnVaWFJsY3pDQ0FTSXdEUVlKS29aSWh2Y05BUUVCQlFBRGdnRVBBRENDQVFvQ2dnRUJBTHJwCnpqOGVSR3kvUDNqM2lWdkhMNFJjWWVaQ2hIQkR0TThXTUIvN2toeHdSdTFteFBQWmRSZ0pZOUluT3VzT20yaUQKQ25XOGsySkhwQng0SDBNZDhMT3NFU0R4c040MlA1WVNVOGZZRGlkMlBBYzBLcHlpR0hYSW5JbjBqdUk1WHpxUApCSVZEelBsTmVhdEkzUjRxa3lya29XQTBBRllzZzM5MDVIbWlTdXU2MGROSTduQjhneEYrT0ZpdGd5T0doZzlnCjRmVSttV0U3UUxNZXhieEFWTlQxMUM1Z29OV2RoY2Q1SUE4M3hPUFlERVJzNy9lUHRHWjkxRWk3RXNBdjhhWW8KQTgxZU9ILzlYczVaQUFZSzNnNzVJSE0zUVpXNGN4Tms3cDhUc0hNcy9aY1Z2WWZIdlZ6TEQwRXdlYktsQURTQgpqay9xWXlzblpHMnVsZ3BxamFVQ0F3RUFBYU5aTUZjd0RnWURWUjBQQVFIL0JBUURBZ0trTUE4R0ExVWRFd0VCCi93UUZNQU1CQWY4d0hRWURWUjBPQkJZRUZEcDFaVUtsendaNmRtMGJaRk85cm4xK3hwWVRNQlVHQTFVZEVRUU8KTUF5Q0NtdDFZbVZ5Ym1WMFpYTXdEUVlKS29aSWh2Y05BUUVMQlFBRGdnRUJBQmxsNXBUUnFhSzlzVENFVXc0RApnUCtENXA3Vm50dUdhWCs4djJlREg5dUovaUZOcTdKVnI1cjZteTVzYmE3WGV5Um5talpHN3hlaGRrYVcweW5mClZVdmJuYWlkaXJXV0xOeUNsaHY5UDVBNHR1UzFaSk1zM0sya3doaDdnQUtoZnZFNU9nRTQxYkFIbWVweEhNS3AKMUtFb3Zpa0lSUHdRNUc2elB1L1MyZ1ZjTWVRVnJoUmZnVFRyOWt3YXVLcURYSmRwSjJ1TENjMEN2U01SVDFGTAoyZ2NKUlA2ekIvZFM2dDdyYitzelFoRHkyYmJVcWlXanBzeTh6UEJMZkV1RjI1MjlNVGprQmZBNjZGR05xUFMzCjdoOUwwYU9BQ0Y3d1VyOFdYWHhOUWttTk94T0J2UUY1aEV0VXIwZ0ZoRkZxQ25vcEVGeGlFSWNZUEJVUmNuWlEKS3dnPQotLS0tLUVORCBDRVJUSUZJQ0FURS0tLS0tCg==
    server: https://myk8s-control-plane:6443
  name: myk8s
contexts:
- context:
    cluster: myk8s
    user: kubernetes-admin
  name: kubernetes-admin@myk8s
current-context: kubernetes-admin@myk8s
kind: Config
preferences: {}
users:
- name: kubernetes-admin
  user:
    client-certificate-data: LS0tLS1CRUdJTiBDRVJUSUZJQ0FURS0tLS0tCk1JSURJVENDQWdtZ0F3SUJBZ0lJZWMzTk5OWW5vcTR3RFFZSktvWklodmNOQVFFTEJRQXdGVEVUTUJFR0ExVUUKQXhNS2EzVmlaWEp1WlhSbGN6QWVGdzB5TlRBME1USXhOREE0TlRKYUZ3MHlOakEwTVRJeE5EQTROVFJhTURReApGekFWQmdOVkJBb1REbk41YzNSbGJUcHRZWE4wWlhKek1Sa3dGd1lEVlFRREV4QnJkV0psY201bGRHVnpMV0ZrCmJXbHVNSUlCSWpBTkJna3Foa2lHOXcwQkFRRUZBQU9DQVE4QU1JSUJDZ0tDQVFFQTJLY294Z01kc1JBZzRibUsKdVRDcTR3L0VaQmlEMCtJRW8xdlM0ZG9mTUlRSXg4d2Q2SHAyZTViZGtYK0tqb2o5SjE3SHIySmxSc2xGMWFxZgpWdjBjcUprWXVmaFNXcTFOM2RGc012VFBOazN2L3RGU3RDYWl4THJTa2taemw3aENvbERsc0hsWnE0Slk1amZMCmh3cDRXVC9wUlh5VXhPeXprcGZkQnRBSkRwUWV1ZlBtVFJVTmpiQ0tSbEpFSnpFZXhzYnM1UU94eHowR1JqU3UKT0lvd0JWcEw1RzFIVGFpa3hkUll6b29QNmlTeDNHRFQwaDI2QU1tcFZJc20vK2xwYUhSWFZybER4RWlLandaOQpjMEowYyszU252QnQxd0E1RCtVc053akdqTFZHMHA0MkVCaWY0cWl6T0YySndCd3lzR3daWFFKMFRUdm9mMzlZCnBFMzQ1UUlEQVFBQm8xWXdWREFPQmdOVkhROEJBZjhFQkFNQ0JhQXdFd1lEVlIwbEJBd3dDZ1lJS3dZQkJRVUgKQXdJd0RBWURWUjBUQVFIL0JBSXdBREFmQmdOVkhTTUVHREFXZ0JRNmRXVkNwYzhHZW5adEcyUlR2YTU5ZnNhVwpFekFOQmdrcWhraUc5dzBCQVFzRkFBT0NBUUVBR3lYbFdmNVNaVEZhelBDVkI3WDhEWm1mbFZkcUc5YitxQ2NKClZIb1BGWUF0bGRUODhyc0sxcjNnUjUybTRWT1YvSjlZM3lObTlOOC90K3QrY2Y4VDFMU0cvQlMzeENzODNxN3gKdUlkUWx2YUtDYUhqWmZUL1NFeVRmTzk5NjE1OFdaZDNrMlB6TjJ4aW0zNWlReXV4K0xqRzZnSm5ucGpaNytEMApjeDNSWmI1Ly9Ta1JKem9IeGZoeE5RaDUwR0MwQm40cG95aTFkTVFpMHFCR0pnK0ZXRmxZcG9YV2gzNWE0Vk5PCkxTZGY4bzBoUEhjNmhYcEpRK0RuWENyRE5nQ0MrNTZrUkhlZTRHWFVHc1BXU01veEU5RVl0WjFhQ29SdTVWYUsKeklrWnlGWEV5eE1XeERGNlRsR0d4TkpoSHJkUzVud2tpZTlESk9qWTJSWVFUd0lsNEE9PQotLS0tLUVORCBDRVJUSUZJQ0FURS0tLS0tCg==
    client-key-data: LS0tLS1CRUdJTiBSU0EgUFJJVkFURSBLRVktLS0tLQpNSUlFb3dJQkFBS0NBUUVBMktjb3hnTWRzUkFnNGJtS3VUQ3E0dy9FWkJpRDArSUVvMXZTNGRvZk1JUUl4OHdkCjZIcDJlNWJka1grS2pvajlKMTdIcjJKbFJzbEYxYXFmVnYwY3FKa1l1ZmhTV3ExTjNkRnNNdlRQTmszdi90RlMKdENhaXhMclNra1p6bDdoQ29sRGxzSGxacTRKWTVqZkxod3A0V1QvcFJYeVV4T3l6a3BmZEJ0QUpEcFFldWZQbQpUUlVOamJDS1JsSkVKekVleHNiczVRT3h4ejBHUmpTdU9Jb3dCVnBMNUcxSFRhaWt4ZFJZem9vUDZpU3gzR0RUCjBoMjZBTW1wVklzbS8rbHBhSFJYVnJsRHhFaUtqd1o5YzBKMGMrM1NudkJ0MXdBNUQrVXNOd2pHakxWRzBwNDIKRUJpZjRxaXpPRjJKd0J3eXNHd1pYUUowVFR2b2YzOVlwRTM0NVFJREFRQUJBb0lCQUZJRGpXclArU2h6QzQrSApkbDArY0NJK2NNRFhpdWZsc28zSWo5OFJmQ2NZaEY1bUJaaGc2NE5EakNLdEhsMXd2Q3h3TTdWUDBUam5ybmtBCit3cXFESFJDYUZyV0J3N3VkZ0NYYTVjcWwxcGVUSkN3MnRiNW5UcE40cktlMnRrL1ZuSXRuNVdiaW5kamc1VzYKMzJBQ2RhYUxqQm5TM0ZwanBHTEUvRlc4NFFEVUhOeVdNdkh2MEhzL0MzSFhubFc2UWhlam5DdlBabnVEUGlIUgpsSFNVeFhKa005Vm9XaVVMYUNZTk1MQ2Joc2RVL20vdnVaVHdhcVhYcjlMUk0yWURPdmJibGRhaEFZOVpCNGhHCkttbHBKUDE3S2U4S1VLejhBT0RXcXNFeVcwL2ZmL1ZxczdCTHM3Y21zUnBNdWptV0xXZks3VzNOZDAzeks4bnMKc25pVkU2MENnWUVBK29OSkJXMUFwVURWNmxENktNRHJJNHVsQUFnQ2hHVmc5a1JGOFRIVUFvb212WUR3Z3JjQQpwQitNa3VDNXh4elVlSm40YkszZjYwTXBUSnp5SkhpUjAydGQ5SktEeXo3RzMwbmJ6djdRKy9nOHgzM2UrU2J4CkhMYnhqd042TjNUa2hHbmVZck4zRWVJYWlJWUk4TVZQc1Nna1RlS0hNZXFuNFhvTXdzVEFkRDhDZ1lFQTNXWUMKZXRjYzMwNkZMWURGaVZVekxBZWlZRVp2d3Q5RWE2dE1jTjhkck9BOG1uOGowdjFRQ3ZRTXlIV0xtOG1jZTNTWQowdWVXVzVjVkJTTFNDalFsS3hXbW9zMk1qS3VvMUlyYVdrSHRRdmFXV3N4K0VJSm14KzVDY2FCWTRxeFl3MjU5CmRzL3VBY0FFWXhiUktVRWd2UjBWdndiQnZ3V2hycFBhVTdJWHVkc0NnWUF1YkgvdXVvVmRXbnVKOWNHMkpiSXQKbnlaUHNDeFBQcjVPUk82MU9PZXlKTW56R2w3M3lsUWJGaUdsNG5GckhjT2VLZUpvdVh3aWpBcXVRUE42b01GZApiYXMydEtRcDJSTmZzNzlCUitXUW5Ec2ZPUXRHSHRwVjJPMUE5SU1FbmV2dlFmTk5WVGErb0trTUhkS3dVOUJsCjR5dC9KM2lvWG5VSUN1Y3NmT3V4WHdLQmdCSVRyU29vZkRRRGJqNUw0RlVaUHNkZWpEUitLOHZtZk9pcG9PRXEKWm5yaUNEQzVKc3lvWUN1MHg0SnFqbzZXeEk4VDh4SnRWRXFBS0hnMTRwNXdxWVErRFZBSHBtMHA2dXdIdGxKZQpSYWdOQ0RPN3RLTldjbHZxcVVRcnluWWZpbFBTcHEzWHhtQWdOSHQrdG04KzRSUnYxb0cxWklaYlNGcy91VGpTCk5ydTNBb0dCQUp3WFp3VEd2UzFESmRFWDQxb04yVGhkR0d1RHFSeE1UeGNwZHRnQkh5cmFuUk5JK0hYNEdnRzMKb3I3bGFOVmh5WDJ3b25KRWpWemUyMlZlU2lRUktFRkxOdUkxWktaTFJrN21HeU4wS2d0VStKWTFZK3IwM25FNwpVWHBkSFRsVHhzTHRJcjVMZ3orQitVMHdMY1o2RS9BdkNPWlRkemt5Vnd0RURCanp4c2VECi0tLS0tRU5EIFJTQSBQUklWQVRFIEtFWS0tLS0tCg==
Context "kubernetes-admin@myk8s" modified.
apiVersion: v1
clusters:
- cluster:
    certificate-authority-data: LS0tLS1CRUdJTiBDRVJUSUZJQ0FURS0tLS0tCk1JSUMvakNDQWVhZ0F3SUJBZ0lCQURBTkJna3Foa2lHOXcwQkFRc0ZBREFWTVJNd0VRWURWUVFERXdwcmRXSmwKY201bGRHVnpNQjRYRFRJMU1EUXhNakUwTURnMU1sb1hEVE0xTURReE1ERTBNRGcxTWxvd0ZURVRNQkVHQTFVRQpBeE1LYTNWaVpYSnVaWFJsY3pDQ0FTSXdEUVlKS29aSWh2Y05BUUVCQlFBRGdnRVBBRENDQVFvQ2dnRUJBTHJwCnpqOGVSR3kvUDNqM2lWdkhMNFJjWWVaQ2hIQkR0TThXTUIvN2toeHdSdTFteFBQWmRSZ0pZOUluT3VzT20yaUQKQ25XOGsySkhwQng0SDBNZDhMT3NFU0R4c040MlA1WVNVOGZZRGlkMlBBYzBLcHlpR0hYSW5JbjBqdUk1WHpxUApCSVZEelBsTmVhdEkzUjRxa3lya29XQTBBRllzZzM5MDVIbWlTdXU2MGROSTduQjhneEYrT0ZpdGd5T0doZzlnCjRmVSttV0U3UUxNZXhieEFWTlQxMUM1Z29OV2RoY2Q1SUE4M3hPUFlERVJzNy9lUHRHWjkxRWk3RXNBdjhhWW8KQTgxZU9ILzlYczVaQUFZSzNnNzVJSE0zUVpXNGN4Tms3cDhUc0hNcy9aY1Z2WWZIdlZ6TEQwRXdlYktsQURTQgpqay9xWXlzblpHMnVsZ3BxamFVQ0F3RUFBYU5aTUZjd0RnWURWUjBQQVFIL0JBUURBZ0trTUE4R0ExVWRFd0VCCi93UUZNQU1CQWY4d0hRWURWUjBPQkJZRUZEcDFaVUtsendaNmRtMGJaRk85cm4xK3hwWVRNQlVHQTFVZEVRUU8KTUF5Q0NtdDFZbVZ5Ym1WMFpYTXdEUVlKS29aSWh2Y05BUUVMQlFBRGdnRUJBQmxsNXBUUnFhSzlzVENFVXc0RApnUCtENXA3Vm50dUdhWCs4djJlREg5dUovaUZOcTdKVnI1cjZteTVzYmE3WGV5Um5talpHN3hlaGRrYVcweW5mClZVdmJuYWlkaXJXV0xOeUNsaHY5UDVBNHR1UzFaSk1zM0sya3doaDdnQUtoZnZFNU9nRTQxYkFIbWVweEhNS3AKMUtFb3Zpa0lSUHdRNUc2elB1L1MyZ1ZjTWVRVnJoUmZnVFRyOWt3YXVLcURYSmRwSjJ1TENjMEN2U01SVDFGTAoyZ2NKUlA2ekIvZFM2dDdyYitzelFoRHkyYmJVcWlXanBzeTh6UEJMZkV1RjI1MjlNVGprQmZBNjZGR05xUFMzCjdoOUwwYU9BQ0Y3d1VyOFdYWHhOUWttTk94T0J2UUY1aEV0VXIwZ0ZoRkZxQ25vcEVGeGlFSWNZUEJVUmNuWlEKS3dnPQotLS0tLUVORCBDRVJUSUZJQ0FURS0tLS0tCg==
    server: https://myk8s-control-plane:6443
  name: myk8s
contexts:
- context:
    cluster: myk8s
    namespace: istioinaction
    user: kubernetes-admin
  name: kubernetes-admin@myk8s
current-context: kubernetes-admin@myk8s
kind: Config
preferences: {}
users:
- name: kubernetes-admin
  user:
    client-certificate-data: LS0tLS1CRUdJTiBDRVJUSUZJQ0FURS0tLS0tCk1JSURJVENDQWdtZ0F3SUJBZ0lJZWMzTk5OWW5vcTR3RFFZSktvWklodmNOQVFFTEJRQXdGVEVUTUJFR0ExVUUKQXhNS2EzVmlaWEp1WlhSbGN6QWVGdzB5TlRBME1USXhOREE0TlRKYUZ3MHlOakEwTVRJeE5EQTROVFJhTURReApGekFWQmdOVkJBb1REbk41YzNSbGJUcHRZWE4wWlhKek1Sa3dGd1lEVlFRREV4QnJkV0psY201bGRHVnpMV0ZrCmJXbHVNSUlCSWpBTkJna3Foa2lHOXcwQkFRRUZBQU9DQVE4QU1JSUJDZ0tDQVFFQTJLY294Z01kc1JBZzRibUsKdVRDcTR3L0VaQmlEMCtJRW8xdlM0ZG9mTUlRSXg4d2Q2SHAyZTViZGtYK0tqb2o5SjE3SHIySmxSc2xGMWFxZgpWdjBjcUprWXVmaFNXcTFOM2RGc012VFBOazN2L3RGU3RDYWl4THJTa2taemw3aENvbERsc0hsWnE0Slk1amZMCmh3cDRXVC9wUlh5VXhPeXprcGZkQnRBSkRwUWV1ZlBtVFJVTmpiQ0tSbEpFSnpFZXhzYnM1UU94eHowR1JqU3UKT0lvd0JWcEw1RzFIVGFpa3hkUll6b29QNmlTeDNHRFQwaDI2QU1tcFZJc20vK2xwYUhSWFZybER4RWlLandaOQpjMEowYyszU252QnQxd0E1RCtVc053akdqTFZHMHA0MkVCaWY0cWl6T0YySndCd3lzR3daWFFKMFRUdm9mMzlZCnBFMzQ1UUlEQVFBQm8xWXdWREFPQmdOVkhROEJBZjhFQkFNQ0JhQXdFd1lEVlIwbEJBd3dDZ1lJS3dZQkJRVUgKQXdJd0RBWURWUjBUQVFIL0JBSXdBREFmQmdOVkhTTUVHREFXZ0JRNmRXVkNwYzhHZW5adEcyUlR2YTU5ZnNhVwpFekFOQmdrcWhraUc5dzBCQVFzRkFBT0NBUUVBR3lYbFdmNVNaVEZhelBDVkI3WDhEWm1mbFZkcUc5YitxQ2NKClZIb1BGWUF0bGRUODhyc0sxcjNnUjUybTRWT1YvSjlZM3lObTlOOC90K3QrY2Y4VDFMU0cvQlMzeENzODNxN3gKdUlkUWx2YUtDYUhqWmZUL1NFeVRmTzk5NjE1OFdaZDNrMlB6TjJ4aW0zNWlReXV4K0xqRzZnSm5ucGpaNytEMApjeDNSWmI1Ly9Ta1JKem9IeGZoeE5RaDUwR0MwQm40cG95aTFkTVFpMHFCR0pnK0ZXRmxZcG9YV2gzNWE0Vk5PCkxTZGY4bzBoUEhjNmhYcEpRK0RuWENyRE5nQ0MrNTZrUkhlZTRHWFVHc1BXU01veEU5RVl0WjFhQ29SdTVWYUsKeklrWnlGWEV5eE1XeERGNlRsR0d4TkpoSHJkUzVud2tpZTlESk9qWTJSWVFUd0lsNEE9PQotLS0tLUVORCBDRVJUSUZJQ0FURS0tLS0tCg==
    client-key-data: LS0tLS1CRUdJTiBSU0EgUFJJVkFURSBLRVktLS0tLQpNSUlFb3dJQkFBS0NBUUVBMktjb3hnTWRzUkFnNGJtS3VUQ3E0dy9FWkJpRDArSUVvMXZTNGRvZk1JUUl4OHdkCjZIcDJlNWJka1grS2pvajlKMTdIcjJKbFJzbEYxYXFmVnYwY3FKa1l1ZmhTV3ExTjNkRnNNdlRQTmszdi90RlMKdENhaXhMclNra1p6bDdoQ29sRGxzSGxacTRKWTVqZkxod3A0V1QvcFJYeVV4T3l6a3BmZEJ0QUpEcFFldWZQbQpUUlVOamJDS1JsSkVKekVleHNiczVRT3h4ejBHUmpTdU9Jb3dCVnBMNUcxSFRhaWt4ZFJZem9vUDZpU3gzR0RUCjBoMjZBTW1wVklzbS8rbHBhSFJYVnJsRHhFaUtqd1o5YzBKMGMrM1NudkJ0MXdBNUQrVXNOd2pHakxWRzBwNDIKRUJpZjRxaXpPRjJKd0J3eXNHd1pYUUowVFR2b2YzOVlwRTM0NVFJREFRQUJBb0lCQUZJRGpXclArU2h6QzQrSApkbDArY0NJK2NNRFhpdWZsc28zSWo5OFJmQ2NZaEY1bUJaaGc2NE5EakNLdEhsMXd2Q3h3TTdWUDBUam5ybmtBCit3cXFESFJDYUZyV0J3N3VkZ0NYYTVjcWwxcGVUSkN3MnRiNW5UcE40cktlMnRrL1ZuSXRuNVdiaW5kamc1VzYKMzJBQ2RhYUxqQm5TM0ZwanBHTEUvRlc4NFFEVUhOeVdNdkh2MEhzL0MzSFhubFc2UWhlam5DdlBabnVEUGlIUgpsSFNVeFhKa005Vm9XaVVMYUNZTk1MQ2Joc2RVL20vdnVaVHdhcVhYcjlMUk0yWURPdmJibGRhaEFZOVpCNGhHCkttbHBKUDE3S2U4S1VLejhBT0RXcXNFeVcwL2ZmL1ZxczdCTHM3Y21zUnBNdWptV0xXZks3VzNOZDAzeks4bnMKc25pVkU2MENnWUVBK29OSkJXMUFwVURWNmxENktNRHJJNHVsQUFnQ2hHVmc5a1JGOFRIVUFvb212WUR3Z3JjQQpwQitNa3VDNXh4elVlSm40YkszZjYwTXBUSnp5SkhpUjAydGQ5SktEeXo3RzMwbmJ6djdRKy9nOHgzM2UrU2J4CkhMYnhqd042TjNUa2hHbmVZck4zRWVJYWlJWUk4TVZQc1Nna1RlS0hNZXFuNFhvTXdzVEFkRDhDZ1lFQTNXWUMKZXRjYzMwNkZMWURGaVZVekxBZWlZRVp2d3Q5RWE2dE1jTjhkck9BOG1uOGowdjFRQ3ZRTXlIV0xtOG1jZTNTWQowdWVXVzVjVkJTTFNDalFsS3hXbW9zMk1qS3VvMUlyYVdrSHRRdmFXV3N4K0VJSm14KzVDY2FCWTRxeFl3MjU5CmRzL3VBY0FFWXhiUktVRWd2UjBWdndiQnZ3V2hycFBhVTdJWHVkc0NnWUF1YkgvdXVvVmRXbnVKOWNHMkpiSXQKbnlaUHNDeFBQcjVPUk82MU9PZXlKTW56R2w3M3lsUWJGaUdsNG5GckhjT2VLZUpvdVh3aWpBcXVRUE42b01GZApiYXMydEtRcDJSTmZzNzlCUitXUW5Ec2ZPUXRHSHRwVjJPMUE5SU1FbmV2dlFmTk5WVGErb0trTUhkS3dVOUJsCjR5dC9KM2lvWG5VSUN1Y3NmT3V4WHdLQmdCSVRyU29vZkRRRGJqNUw0RlVaUHNkZWpEUitLOHZtZk9pcG9PRXEKWm5yaUNEQzVKc3lvWUN1MHg0SnFqbzZXeEk4VDh4SnRWRXFBS0hnMTRwNXdxWVErRFZBSHBtMHA2dXdIdGxKZQpSYWdOQ0RPN3RLTldjbHZxcVVRcnluWWZpbFBTcHEzWHhtQWdOSHQrdG04KzRSUnYxb0cxWklaYlNGcy91VGpTCk5ydTNBb0dCQUp3WFp3VEd2UzFESmRFWDQxb04yVGhkR0d1RHFSeE1UeGNwZHRnQkh5cmFuUk5JK0hYNEdnRzMKb3I3bGFOVmh5WDJ3b25KRWpWemUyMlZlU2lRUktFRkxOdUkxWktaTFJrN21HeU4wS2d0VStKWTFZK3IwM25FNwpVWHBkSFRsVHhzTHRJcjVMZ3orQitVMHdMY1o2RS9BdkNPWlRkemt5Vnd0RURCanp4c2VECi0tLS0tRU5EIFJTQSBQUklWQVRFIEtFWS0tLS0tCg==

2. 500 에러 재현을 위한 Chaos 테스트 실행

(1) 500 에러를 100% 재현


root@myk8s-control-plane:/# cd /istiobook/bin/
root@myk8s-control-plane:/istiobook/bin# chmod +x chaos.sh
root@myk8s-control-plane:/istiobook/bin# ./chaos.sh 500 100

# 결과
catalog-6cf4b97d-kw68k
blowups=[object Object]

500 에러가 발생하여 응답이 HTTP 500 Internal Server Error로 반복 출력됨

HTTP/1.1 500 Internal Server Error
2025-04-13 01:26:29

HTTP/1.1 500 Internal Server Error
2025-04-13 01:26:29

HTTP/1.1 500 Internal Server Error
2025-04-13 01:26:29

HTTP/1.1 500 Internal Server Error
2025-04-13 01:26:29

HTTP/1.1 500 Internal Server Error
2025-04-13 01:26:30

...

(2) 500 에러 재현 비율을 50%로 조정

root@myk8s-control-plane:/istiobook/bin# ./chaos.sh 500 50
catalog-6cf4b97d-kw68k
blowups=[object Object]

HTTP 500과 200 OK가 혼합되어 나타남

HTTP/1.1 500 Internal Server Error
2025-04-13 01:29:22

HTTP/1.1 200 OK
2025-04-13 01:29:23

HTTP/1.1 500 Internal Server Error
2025-04-13 01:29:23

HTTP/1.1 500 Internal Server Error
2025-04-13 01:29:23

HTTP/1.1 500 Internal Server Error
2025-04-13 01:29:23

HTTP/1.1 200 OK
2025-04-13 01:29:23

HTTP/1.1 200 OK
2025-04-13 01:29:23

HTTP/1.1 500 Internal Server Error
2025-04-13 01:29:23

HTTP/1.1 500 Internal Server Error
2025-04-13 01:29:23

HTTP/1.1 200 OK
2025-04-13 01:29:23

HTTP/1.1 200 OK
2025-04-13 01:29:24
...

Tags: error=true로 설정

3. VirtualService Retry 설정 적용

애플리케이션 코드 수정 없이, proxy(envoy)를 통해 endpoint(catalog)에 5xx 에러 발생 시 자동 retry를 적용하여 복원력을 높임


root@myk8s-control-plane:/istiobook/bin# cat <<EOF | kubectl -n istioinaction apply -f -
apiVersion: networking.istio.io/v1alpha3
kind: VirtualService
metadata:
  name: catalog
spec:
  hosts:
  - catalog
  http:
  - route:
    - destination:
        host: catalog
    retries:
      attempts: 3
      retryOn: 5xx
      perTryTimeout: 2s
EOF
virtualservice.networking.istio.io/catalog created

catalog 서비스에 대해 최대 3번까지 요청 재시도
각 요청 재시도 시 2초의 제한 시간 적용

사용자에게 반환되는 성공률이 약 92%까지 상승하며 5xx 에러율이 감소함

성공률은 올라가고, 에러율은 감소

🆕 새 기능 추가 시나리오 대응

1. catalog v2 배포


root@myk8s-control-plane:/istiobook/bin# exit

cat <<EOF | kubectl -n istioinaction apply -f -
apiVersion: apps/v1
kind: Deployment
metadata:
  labels:
    app: catalog
    version: v2
  name: catalog-v2
spec:
  replicas: 1
  selector:
    matchLabels:
      app: catalog
      version: v2
  template:
    metadata:
      labels:
        app: catalog
        version: v2
    spec:
      containers:
      - env:
        - name: KUBERNETES_NAMESPACE
          valueFrom:
            fieldRef:
              fieldPath: metadata.namespace
        - name: SHOW_IMAGE
          value: "true"
        image: istioinaction/catalog:latest
        imagePullPolicy: IfNotPresent
        name: catalog
        ports:
        - containerPort: 3000
          name: http
          protocol: TCP
        securityContext:
          privileged: false
EOF

# 결과
deployment.apps/catalog-v2 created

2. 500 에러 재현 설정 제거


docker exec -it myk8s-control-plane bash
root@myk8s-control-plane:/# cd /istiobook/bin/
root@myk8s-control-plane:/istiobook/bin# ./chaos.sh 500 delete

# 결과
catalog-6cf4b97d-kw68k catalog-v2-6df885b555-bfg8k
Deleting 500 rule from catalog-6cf4b97d-kw68k
blowups=[object Object]Deleting 500 rule from catalog-v2-6df885b555-bfg8k

root@myk8s-control-plane:/istiobook/bin# exit

3. v1만 접속 설정 (DestinationRule 적용)


cat <<EOF | kubectl -n istioinaction apply -f -
apiVersion: networking.istio.io/v1alpha3
kind: DestinationRule
metadata:
  name: catalog
spec:
  host: catalog
  subsets:
  - name: version-v1
    labels:
      version: v1
  - name: version-v2
    labels:
      version: v2
EOF

# 결과
destinationrule.networking.istio.io/catalog created

4. 리소스 상태 조회

kubectl get gw,vs,dr -n istioinaction

✅ 출력


NAME                                             AGE
gateway.networking.istio.io/outfitters-gateway   96m

NAME                                                       GATEWAYS                 HOSTS         AGE
virtualservice.networking.istio.io/catalog                                          ["catalog"]   13m
virtualservice.networking.istio.io/webapp-virtualservice   ["outfitters-gateway"]   ["*"]         96m

NAME                                          HOST      AGE
destinationrule.networking.istio.io/catalog   catalog   37s

5. 분산 접속 및 부하분산 확인

트래픽이 v2로 접근할 경우, 응답 JSON에 imageUrl 속성이 추가되어 반환


while true; do curl -s http://127.0.0.1:30000/api/catalog | jq; date "+%Y-%m-%d %H:%M:%S" ; sleep 1; echo; done

✅ 출력


[
  {
    "id": 1,
    "color": "amber",
    "department": "Eyewear",
    "name": "Elinor Glasses",
    "price": "282.00",
    "imageUrl": "http://lorempixel.com/640/480"
  },
  {
    "id": 2,
    "color": "cyan",
    "department": "Clothing",
    "name": "Atlas Shirt",
    "price": "127.00",
    "imageUrl": "http://lorempixel.com/640/480"
  },
  {
    "id": 3,
    "color": "teal",
    "department": "Clothing",
    "name": "Small Metal Shoes",
    "price": "232.00",
    "imageUrl": "http://lorempixel.com/640/480"
  },
  {
    "id": 4,
    "color": "red",
    "department": "Watches",
    "name": "Red Dragon Watch",
    "price": "232.00",
    "imageUrl": "http://lorempixel.com/640/480"
  }
]
2025-04-13 01:49:04

[
  {
    "id": 1,
    "color": "amber",
    "department": "Eyewear",
    "name": "Elinor Glasses",
    "price": "282.00",
    "imageUrl": "http://lorempixel.com/640/480"
  },
  {
    "id": 2,
    "color": "cyan",
    "department": "Clothing",
    "name": "Atlas Shirt",
    "price": "127.00",
    "imageUrl": "http://lorempixel.com/640/480"
  },
  {
    "id": 3,
    "color": "teal",
    "department": "Clothing",
    "name": "Small Metal Shoes",
    "price": "232.00",
    "imageUrl": "http://lorempixel.com/640/480"
  },
  {
    "id": 4,
    "color": "red",
    "department": "Watches",
    "name": "Red Dragon Watch",
    "price": "232.00",
    "imageUrl": "http://lorempixel.com/640/480"
  }
]
2025-04-13 01:49:05

[
  {
    "id": 1,
    "color": "amber",
    "department": "Eyewear",
    "name": "Elinor Glasses",
    "price": "282.00"
  },
  {
    "id": 2,
    "color": "cyan",
    "department": "Clothing",
    "name": "Atlas Shirt",
    "price": "127.00"
  },
  {
    "id": 3,
    "color": "teal",
    "department": "Clothing",
    "name": "Small Metal Shoes",
    "price": "232.00"
  },
  {
    "id": 4,
    "color": "red",
    "department": "Watches",
    "name": "Red Dragon Watch",
    "price": "232.00"
  }
]
....

6. v1 라우팅 강제 적용


cat <<EOF | kubectl -n istioinaction apply -f -
apiVersion: networking.istio.io/v1alpha3
kind: VirtualService
metadata:
  name: catalog
spec:
  hosts:
  - catalog
  http:
  - route:
    - destination:
        host: catalog
        subset: version-v1
EOF

# 결과
virtualservice.networking.istio.io/catalog configured

7. 분산 접속 및 부하분산 확인

응답 JSON에서 imageUrl 속성이 없이 v1 버전 응답이 출력됨


while true; do curl -s http://127.0.0.1:30000/api/catalog | jq; date "+%Y-%m-%d %H:%M:%S" ; sleep 1; echo; done

✅ 출력


2025-04-13 01:51:47

[
  {
    "id": 1,
    "color": "amber",
    "department": "Eyewear",
    "name": "Elinor Glasses",
    "price": "282.00"
  },
  {
    "id": 2,
    "color": "cyan",
    "department": "Clothing",
    "name": "Atlas Shirt",
    "price": "127.00"
  },
  {
    "id": 3,
    "color": "teal",
    "department": "Clothing",
    "name": "Small Metal Shoes",
    "price": "232.00"
  },
  {
    "id": 4,
    "color": "red",
    "department": "Watches",
    "name": "Red Dragon Watch",
    "price": "232.00"
  }
]
2025-04-13 01:51:48

[
  {
    "id": 1,
    "color": "amber",
    "department": "Eyewear",
    "name": "Elinor Glasses",
    "price": "282.00"
  },
  {
    "id": 2,
    "color": "cyan",
    "department": "Clothing",
    "name": "Atlas Shirt",
    "price": "127.00"
  },
  {
    "id": 3,
    "color": "teal",
    "department": "Clothing",
    "name": "Small Metal Shoes",
    "price": "232.00"
  },
  {
    "id": 4,
    "color": "red",
    "department": "Watches",
    "name": "Red Dragon Watch",
    "price": "232.00"
  }
]
2025-04-13 01:51:49

[
  {
    "id": 1,
    "color": "amber",
    "department": "Eyewear",
    "name": "Elinor Glasses",
    "price": "282.00"
  },
  {
    "id": 2,
    "color": "cyan",
    "department": "Clothing",
    "name": "Atlas Shirt",
    "price": "127.00"
  },
  {
    "id": 3,
    "color": "teal",
    "department": "Clothing",
    "name": "Small Metal Shoes",
    "price": "232.00"
  },
  {
    "id": 4,
    "color": "red",
    "department": "Watches",
    "name": "Red Dragon Watch",
    "price": "232.00"
  }
]
2025-04-13 01:51:50

[
  {
    "id": 1,
    "color": "amber",
    "department": "Eyewear",
    "name": "Elinor Glasses",
    "price": "282.00"
  },
  {
    "id": 2,
    "color": "cyan",
    "department": "Clothing",
    "name": "Atlas Shirt",
    "price": "127.00"
  },
  {
    "id": 3,
    "color": "teal",
    "department": "Clothing",
    "name": "Small Metal Shoes",
    "price": "232.00"
  },
  {
    "id": 4,
    "color": "red",
    "department": "Watches",
    "name": "Red Dragon Watch",
    "price": "232.00"
  }
]
...

7. 헤더 기반 v2 라우팅 적용

특정 헤더(x-dark-launch: v2)를 포함하면 catalog v2로, 그 외에는 v1으로 라우팅하도록 VirtualService 업데이트


cat <<EOF | kubectl -n istioinaction apply -f -
apiVersion: networking.istio.io/v1alpha3
kind: VirtualService
metadata:
  name: catalog
spec:
  hosts:
  - catalog
  http:
  - match:
    - headers:
        x-dark-launch:
          exact: "v2"
    route:
    - destination:
        host: catalog
        subset: version-v2
  - route:
    - destination:
        host: catalog
        subset: version-v1
EOF

# 결과
virtualservice.networking.istio.io/catalog configured

8. 반복 접속 : v1 접속 확인


[
  {
    "id": 1,
    "color": "amber",
    "department": "Eyewear",
    "name": "Elinor Glasses",
    "price": "282.00"
  },
  {
    "id": 2,
    "color": "cyan",
    "department": "Clothing",
    "name": "Atlas Shirt",
    "price": "127.00"
  },
  {
    "id": 3,
    "color": "teal",
    "department": "Clothing",
    "name": "Small Metal Shoes",
    "price": "232.00"
  },
  {
    "id": 4,
    "color": "red",
    "department": "Watches",
    "name": "Red Dragon Watch",
    "price": "232.00"
  }
]
2025-04-13 01:56:11

[
  {
    "id": 1,
    "color": "amber",
    "department": "Eyewear",
    "name": "Elinor Glasses",
    "price": "282.00"
  },
  {
    "id": 2,
    "color": "cyan",
    "department": "Clothing",
    "name": "Atlas Shirt",
    "price": "127.00"
  },
  {
    "id": 3,
    "color": "teal",
    "department": "Clothing",
    "name": "Small Metal Shoes",
    "price": "232.00"
  },
  {
    "id": 4,
    "color": "red",
    "department": "Watches",
    "name": "Red Dragon Watch",
    "price": "232.00"
  }
]
2025-04-13 01:56:12

[
  {
    "id": 1,
    "color": "amber",
    "department": "Eyewear",
    "name": "Elinor Glasses",
    "price": "282.00"
  },
  {
    "id": 2,
    "color": "cyan",
    "department": "Clothing",
    "name": "Atlas Shirt",
    "price": "127.00"
  },
  {
    "id": 3,
    "color": "teal",
    "department": "Clothing",
    "name": "Small Metal Shoes",
    "price": "232.00"
  },
  {
    "id": 4,
    "color": "red",
    "department": "Watches",
    "name": "Red Dragon Watch",
    "price": "232.00"
  }
]
2025-04-13 01:56:13
...

9. 반복 접속 : v2 접속 확인


while true; do curl -s http://127.0.0.1:30000/api/catalog -H "x-dark-launch: v2" | jq; date "+%Y-%m-%d %H:%M:%S" ; sleep 1; echo; done

✅ 출력


[
  {
    "id": 1,
    "color": "amber",
    "department": "Eyewear",
    "name": "Elinor Glasses",
    "price": "282.00",
    "imageUrl": "http://lorempixel.com/640/480"
  },
  {
    "id": 2,
    "color": "cyan",
    "department": "Clothing",
    "name": "Atlas Shirt",
    "price": "127.00",
    "imageUrl": "http://lorempixel.com/640/480"
  },
  {
    "id": 3,
    "color": "teal",
    "department": "Clothing",
    "name": "Small Metal Shoes",
    "price": "232.00",
    "imageUrl": "http://lorempixel.com/640/480"
  },
  {
    "id": 4,
    "color": "red",
    "department": "Watches",
    "name": "Red Dragon Watch",
    "price": "232.00",
    "imageUrl": "http://lorempixel.com/640/480"
  }
]
2025-04-13 01:56:33

[
  {
    "id": 1,
    "color": "amber",
    "department": "Eyewear",
    "name": "Elinor Glasses",
    "price": "282.00",
    "imageUrl": "http://lorempixel.com/640/480"
  },
  {
    "id": 2,
    "color": "cyan",
    "department": "Clothing",
    "name": "Atlas Shirt",
    "price": "127.00",
    "imageUrl": "http://lorempixel.com/640/480"
  },
  {
    "id": 3,
    "color": "teal",
    "department": "Clothing",
    "name": "Small Metal Shoes",
    "price": "232.00",
    "imageUrl": "http://lorempixel.com/640/480"
  },
  {
    "id": 4,
    "color": "red",
    "department": "Watches",
    "name": "Red Dragon Watch",
    "price": "232.00",
    "imageUrl": "http://lorempixel.com/640/480"
  }
]
2025-04-13 01:56:34

[
  {
    "id": 1,
    "color": "amber",
    "department": "Eyewear",
    "name": "Elinor Glasses",
    "price": "282.00",
    "imageUrl": "http://lorempixel.com/640/480"
  },
  {
    "id": 2,
    "color": "cyan",
    "department": "Clothing",
    "name": "Atlas Shirt",
    "price": "127.00",
    "imageUrl": "http://lorempixel.com/640/480"
  },
  {
    "id": 3,
    "color": "teal",
    "department": "Clothing",
    "name": "Small Metal Shoes",
    "price": "232.00",
    "imageUrl": "http://lorempixel.com/640/480"
  },
  {
    "id": 4,
    "color": "red",
    "department": "Watches",
    "name": "Red Dragon Watch",
    "price": "232.00",
    "imageUrl": "http://lorempixel.com/640/480"
  }
]
2025-04-13 01:56:36
...

🗑️ 실습 완료 후 삭제


kubectl delete deploy,svc,gw,vs,dr --all -n istioinaction && kind delete cluster --name myk8s

✅ 출력


deployment.apps "catalog" deleted
deployment.apps "catalog-v2" deleted
deployment.apps "webapp" deleted
service "catalog" deleted
service "webapp" deleted
gateway.networking.istio.io "outfitters-gateway" deleted
virtualservice.networking.istio.io "catalog" deleted
virtualservice.networking.istio.io "webapp-virtualservice" deleted
destinationrule.networking.istio.io "catalog" deleted
Deleting cluster "myk8s" ...
error: lost connection to pod
[1]  + 340443 exit 1     kubectl port-forward deployment/kiali -n istio-system 20001:20001
Deleted nodes: ["myk8s-control-plane"]

Istio

This post is licensed under CC BY 4.0 by the author.

🐳 kind : k8s(1.23.17) 배포

1. 깃 레포지토리 클론

2. 현재 작업 경로 확인

3. 클러스터 생성

4. 클러스터 상태 확인

5. 노드에 기본 툴 설치

6. 편의성 툴 설치 - kube-ops-view

7. 메트릭 서버 설치

🔧 istio(1.17.8) 설치

1. myk8s-control-plane 진입

2. 코드 파일들 마운트 확인

3. istioctl 설치

4. 다운로드 파일 구조 확인

5. istioctl 바이너리 복사 및 버전 확인

6. Istio 프로파일 확인 및 기본 설치

7. 설치 상태 및 구성 확인

8. 보조 도구(addons) 설치

9. ConfigMap 확인

✨ 서비스 메시에 첫 애플리케이션 배포

1. 네임스페이스 생성

2. 애플리케이션 매니페스트 확인

3. istio 사이드카 자동 주입 실행

4. mutatingwebhookconfiguration 조회

5. 네임스페이스 레이블 지정

6. 어플리케이션 배포

7. 배포 리소스 확인

8. 접속 테스트용 netshoot 파드 생성

9. 서비스 및 엔드포인트 상태 확인

10. 서비스 접속 테스트

📊 복원력, 관찰가능성, 트래픽 제어

1. proxy 상태 확인

2. Gateway 및 VirtualService 생성

3. 리소스 조회

4. Proxy 상태 확인

2. 라우트 및 리스너 구성 확인

3. 백엔드 엔드포인트 및 인증서 정보 확인

4. NodePort 및 외부 트래픽 정책 변경

5. 최종 서비스 접근 테스트

6. 반복 호출 테스트

🔍 istio observability

1. observability를 위한 서비스 변경

2. 대시보드 접속

3. 텔레메트리 정보 확인

4. 부하 테스트

5. Kiali 확인

6. 예거 확인

🔄 Catalog: 500 에러 재현 및 Retry 적용 복원력 강화

1. 환경 설정 변경 및 작업 준비

2. 500 에러 재현을 위한 Chaos 테스트 실행

3. VirtualService Retry 설정 적용

🆕 새 기능 추가 시나리오 대응

1. catalog v2 배포

2. 500 에러 재현 설정 제거

3. v1만 접속 설정 (DestinationRule 적용)

4. 리소스 상태 조회

5. 분산 접속 및 부하분산 확인

6. v1 라우팅 강제 적용

7. 분산 접속 및 부하분산 확인

7. 헤더 기반 v2 라우팅 적용

8. 반복 접속 : v1 접속 확인

9. 반복 접속 : v2 접속 확인

🗑️ 실습 완료 후 삭제

Trending Tags
