CI/CD 2주차 정리

Posted Oct 25, 2025

By GAGA

42 min read

🚀 kind 클러스터 생성


kind create cluster --name myk8s --image kindest/node:v1.32.8 --config - <<EOF
kind: Cluster
apiVersion: kind.x-k8s.io/v1alpha4
nodes:
- role: control-plane
  extraPortMappings:
  - containerPort: 30000
    hostPort: 30000
  - containerPort: 30001
    hostPort: 30001
EOF

# 결과
Creating cluster "myk8s" ...
 ✓ Ensuring node image (kindest/node:v1.32.8) 🖼
 ✓ Preparing nodes 📦
 ✓ Writing configuration 📜
 ✓ Starting control-plane 🕹️
 ✓ Installing CNI 🔌
 ✓ Installing StorageClass 💾
Set kubectl context to "kind-myk8s"
You can now use your cluster with:

kubectl cluster-info --context kind-myk8s

Not sure what to do next? 😅  Check out https://kind.sigs.k8s.io/docs/user/quick-start/

🧩 Creating a Helm Project

1. 헬름 차트 디렉터리 레이아웃 생성


mkdir pacman
mkdir pacman/templates
cd pacman

2. 차트 정의 파일(`Chart.yaml`) 작성


cat << EOF > Chart.yaml
apiVersion: v2
name: pacman
description: A Helm chart for Pacman
type: application
version: 0.1.0        # 차트 버전, 차트 정의가 바뀌면 업데이트한다
appVersion: "1.0.0"   # 애플리케이션 버전
EOF

3. 배포 매니페스트 템플릿(`deployment.yaml`) 작성


cat << EOF > templates/deployment.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
  name:             # Chart.yaml 파일에 설정된 이름을 가져와 설정
  labels:
    app.kubernetes.io/name:      # Chart.yaml 파일에 appVersion 여부에 따라 버전을 설정
    app.kubernetes.io/version:      # appVersion 값을 가져와 지정하고 따움표 처리
spec:
  replicas:      # replicaCount 속성을 넣을 자리 placeholder
  selector:
    matchLabels:
      app.kubernetes.io/name:
  template:
    metadata:
      labels:
        app.kubernetes.io/name:
    spec:
      containers:
        - image: ":"   # 이미지 지정 placeholder, 이미지 태그가 있으면 넣고, 없으면 Chart.yaml에 값을 설정
          imagePullPolicy:
          securityContext: # securityContext의 값을 YAML 객체로 지정하며 14칸 들여쓰기
          name:
          ports:
            - containerPort:
              name: http
              protocol: TCP
EOF

4. 서비스 템플릿(`service.yaml`) 작성


cat << EOF > templates/service.yaml
apiVersion: v1
kind: Service
metadata:
  labels:
    app.kubernetes.io/name:
  name:
spec:
  ports:
    - name: http
      port:
      targetPort:
  selector:
    app.kubernetes.io/name:
EOF

5. 기본값(`values.yaml`) 작성


cat << EOF > values.yaml
image:     # image 절 정의
  repository: quay.io/gitops-cookbook/pacman-kikd
  tag: "1.0.0"
  pullPolicy: Always
  containerPort: 8080

replicaCount: 1
securityContext: {}     # securityContext 속성의 값을 비운다
EOF

6. 디렉터리 레이아웃 확인

tree
.
├── Chart.yaml
├── templates
│   ├── deployment.yaml
│   └── service.yaml
└── values.yaml

2 directories, 4 files

7. 로컬 렌더링으로 템플릿 검증


helm template .

# 결과
---
# Source: pacman/templates/service.yaml
apiVersion: v1
kind: Service
metadata:
  labels:
    app.kubernetes.io/name: pacman
  name: pacman
spec:
  ports:
    - name: http
      port: 8080
      targetPort: 8080
  selector:
    app.kubernetes.io/name: pacman
---
# Source: pacman/templates/deployment.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
  name: pacman            # Chart.yaml 파일에 설정된 이름을 가져와 설정
  labels:
    app.kubernetes.io/name: pacman     # Chart.yaml 파일에 appVersion 여부에 따라 버전을 설정
    app.kubernetes.io/version: "1.0.0"     # appVersion 값을 가져와 지정하고 따움표 처리
spec:
  replicas: 1     # replicaCount 속성을 넣을 자리 placeholder
  selector:
    matchLabels:
      app.kubernetes.io/name: pacman
  template:
    metadata:
      labels:
        app.kubernetes.io/name: pacman
    spec:
      containers:
        - image: "quay.io/gitops-cookbook/pacman-kikd:1.0.0"   # 이미지 지정 placeholder, 이미지 태그가 있으면 넣고, 없으면 Chart.yaml에 값을 설정
          imagePullPolicy: Always
          securityContext:
              {} # securityContext의 값을 YAML 객체로 지정하며 14칸 들여쓰기
          name: pacman
          ports:
            - containerPort: 8080
              name: http
              protocol: TCP

Service/Deployment가 기대 값(이름, 라벨, 이미지, 포트, replicas 등)으로 출력
securityContext: {}가 그대로 반영됨(초기 상태)

8. 런타임 오버라이드(–set) 테스트


helm template --set replicaCount=3 .

# 결과
...
spec:
  replicas: 3     # replicaCount 속성을 넣을 자리 placeholder
...

--set replicaCount=3 사용 시 렌더 결과 replicas: 3로 반영

9. 차트 설치


helm install pacman .

# 결과
NAME: pacman
LAST DEPLOYED: Sat Oct 25 12:45:00 2025
NAMESPACE: default
STATUS: deployed
REVISION: 1
TEST SUITE: None

10. 릴리스 리스트 확인

helm list

NAME  	NAMESPACE	REVISION	UPDATED                                	STATUS  	CHART       	APP VERSION
pacman	default  	1       	2025-10-25 12:45:00.039857183 +0900 KST	deployed	pacman-0.1.0	1.0.0

11. 배포된 리소스 조회

kubectl get deploy,pod,svc,ep

✅ 출력

NAME                     READY   UP-TO-DATE   AVAILABLE   AGE
deployment.apps/pacman   1/1     1            1           59s

NAME                          READY   STATUS    RESTARTS   AGE
pod/pacman-576769bb86-dnb4x   1/1     Running   0          59s

NAME                 TYPE        CLUSTER-IP      EXTERNAL-IP   PORT(S)    AGE
service/kubernetes   ClusterIP   10.96.0.1       <none>        443/TCP    12m
service/pacman       ClusterIP   10.96.122.128   <none>        8080/TCP   59s

NAME                   ENDPOINTS         AGE
endpoints/kubernetes   172.18.0.2:6443   12m
endpoints/pacman       10.244.0.5:8080   59s

12. securityContext 적용 상태 점검


kubectl get pod -o json | grep securityContext -A1

✅ 출력


                        "securityContext": {},
                        "terminationMessagePath": "/dev/termination-log",
--
                "securityContext": {},
                "serviceAccount": "default",

현재 파드 컨테이너에 보안 컨텍스트 비어있음을 확인

13. 배포 이력 확인

helm history pacman

REVISION	UPDATED                 	STATUS  	CHART       	APP VERSION	DESCRIPTION
1       	Sat Oct 25 12:45:00 2025	deployed	pacman-0.1.0	1.0.0      	Install complete

14. Helm 릴리스 메타데이터 Secret 확인

kubectl get secret

NAME                           TYPE                 DATA   AGE
sh.helm.release.v1.pacman.v1   helm.sh/release.v1   1      3m16s

Helm이 릴리스 메타정보를 Secret에 저장함을 확인

15. 차트 업그레이드


helm upgrade pacman --reuse-values --set replicaCount=2 .

# 결과
Release "pacman" has been upgraded. Happy Helming!
NAME: pacman
LAST DEPLOYED: Sat Oct 25 12:49:01 2025
NAMESPACE: default
STATUS: deployed
REVISION: 2
TEST SUITE: None

16. 업그레이드 후 릴리스/이력 재확인

helm list

NAME  	NAMESPACE	REVISION	UPDATED                                	STATUS  	CHART       	APP VERSION
pacman	default  	2       	2025-10-25 12:49:01.423753811 +0900 KST	deployed	pacman-0.1.0	1.0.0


helm history pacman

REVISION	UPDATED                 	STATUS    	CHART       	APP VERSION	DESCRIPTION
1       	Sat Oct 25 12:45:00 2025	superseded	pacman-0.1.0	1.0.0      	Install complete
2       	Sat Oct 25 12:49:01 2025	deployed  	pacman-0.1.0	1.0.0      	Upgrade complete

리비전 증가 및 상태 갱신 확인

17. Secret 리비전 누적 확인

kubectl get secret

NAME                           TYPE                 DATA   AGE
sh.helm.release.v1.pacman.v1   helm.sh/release.v1   1      6m28s
sh.helm.release.v1.pacman.v2   helm.sh/release.v1   1      2m27s

18. 스케일 변화 확인

kubectl get pod

NAME                      READY   STATUS    RESTARTS   AGE
pacman-576769bb86-dnb4x   1/1     Running   0          6m51s
pacman-576769bb86-t4g9l   1/1     Running   0          2m50s

19. 배포 상세 확인


helm get all pacman

NAME: pacman
LAST DEPLOYED: Sat Oct 25 12:49:01 2025
NAMESPACE: default
STATUS: deployed
REVISION: 2
CHART: pacman
VERSION: 0.1.0
APP_VERSION: 1.0.0
TEST SUITE: None
USER-SUPPLIED VALUES:
replicaCount: 2

COMPUTED VALUES:
image:
  containerPort: 8080
  pullPolicy: Always
  repository: quay.io/gitops-cookbook/pacman-kikd
  tag: 1.0.0
replicaCount: 2
securityContext: {}

HOOKS:
MANIFEST:
---
# Source: pacman/templates/service.yaml
apiVersion: v1
kind: Service
metadata:
  labels:
    app.kubernetes.io/name: pacman
  name: pacman
spec:
  ports:
    - name: http
      port: 8080
      targetPort: 8080
  selector:
    app.kubernetes.io/name: pacman
---
# Source: pacman/templates/deployment.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
  name: pacman            # Chart.yaml 파일에 설정된 이름을 가져와 설정
  labels:
    app.kubernetes.io/name: pacman     # Chart.yaml 파일에 appVersion 여부에 따라 버전을 설정
    app.kubernetes.io/version: "1.0.0"     # appVersion 값을 가져와 지정하고 따움표 처리
spec:
  replicas: 2     # replicaCount 속성을 넣을 자리 placeholder
  selector:
    matchLabels:
      app.kubernetes.io/name: pacman
  template:
    metadata:
      labels:
        app.kubernetes.io/name: pacman
    spec:
      containers:
        - image: "quay.io/gitops-cookbook/pacman-kikd:1.0.0"   # 이미지 지정 placeholder, 이미지 태그가 있으면 넣고, 없으면 Chart.yaml에 값을 설정
          imagePullPolicy: Always
          securityContext:
              {} # securityContext의 값을 YAML 객체로 지정하며 14칸 들여쓰기
          name: pacman
          ports:
            - containerPort: 8080
              name: http
              protocol: TCP

20. 차트 삭제

helm uninstall pacman
kubectl get secret

No resources found in default namespace.

♻️ Reusing Statements Between Templates

1. `_helpers.tpl` 파일 작성


cat << EOF > templates/_helpers.tpl# stetement 이름을 정의
app.kubernetes.io/name:  # 해당 stetement 가 하는 일을 정의
EOF

여러 템플릿에서 동일 구문 재사용 가능

2. deployment/service에 헬퍼 적용


## deployment.yaml 수정
spec:
  replicas:
  selector:
    matchLabels:   # pacman.selectorLabels를 호출한 결과를 6만큼 들여쓰기하여 주입
  template:
    metadata:
      labels: # pacman.selectorLabels를 호출한 결과를 8만큼 들여쓰기하여 주입

## service.yaml 수정
  selector:

3. 로컬 렌더링으로 적용 확인


helm template .

---
# Source: pacman/templates/service.yaml
apiVersion: v1
kind: Service
metadata:
  labels:
    app.kubernetes.io/name: pacman
  name: pacman
spec:
  ports:
    - name: http
      port: 8080
      targetPort: 8080
  selector:
      # stetement 이름을 정의
      app.kubernetes.io/name: pacman # 해당 stetement 가 하는 일을 정의
---
# Source: pacman/templates/deployment.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
  name: pacman            # Chart.yaml 파일에 설정된 이름을 가져와 설정
  labels:
    app.kubernetes.io/name: pacman     # Chart.yaml 파일에 appVersion 여부에 따라 버전을 설정
    app.kubernetes.io/version: "1.0.0"     # appVersion 값을 가져와 지정하고 따움표 처리
spec:
  replicas: 1     # replicaCount 속성을 넣을 자리 placeholder
  selector:
    matchLabels:
      # stetement 이름을 정의
      app.kubernetes.io/name: pacman # 해당 stetement 가 하는 일을 정의   # pacman.selectorLabels를 호출한 결과를 6만큼 들여쓰기하여 주입
  template:
    metadata:
      labels:
        # stetement 이름을 정의
        app.kubernetes.io/name: pacman # 해당 stetement 가 하는 일을 정의 # pacman.selectorLabels를 호출한 결과를 8만큼 들여쓰기하여 주입
    spec:
      containers:
        - image: "quay.io/gitops-cookbook/pacman-kikd:1.0.0"   # 이미지 지정 placeholder, 이미지 태그가 있으면 넣고, 없으면 Chart.yaml에 값을 설정
          imagePullPolicy: Always
          securityContext:
              {} # securityContext의 값을 YAML 객체로 지정하며 14칸 들여쓰기
          name: pacman
          ports:
            - containerPort: 8080
              name: http
              protocol: TCP

app.kubernetes.io/name: pacman 라벨 반영 확인

4. `_helpers.tpl` 확장


cat << EOF > templates/_helpers.tplapp.kubernetes.io/name:
app.kubernetes.io/version:
EOF

app.kubernetes.io/version: 추가

5. 재렌더링으로 버전 라벨 확인


helm template .

---
# Source: pacman/templates/service.yaml
apiVersion: v1
kind: Service
metadata:
  labels:
    app.kubernetes.io/name: pacman
  name: pacman
spec:
  ports:
    - name: http
      port: 8080
      targetPort: 8080
  selector:
      app.kubernetes.io/name: pacman
      app.kubernetes.io/version: 1.0.0
---
# Source: pacman/templates/deployment.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
  name: pacman            # Chart.yaml 파일에 설정된 이름을 가져와 설정
  labels:
    app.kubernetes.io/name: pacman     # Chart.yaml 파일에 appVersion 여부에 따라 버전을 설정
    app.kubernetes.io/version: "1.0.0"     # appVersion 값을 가져와 지정하고 따움표 처리
spec:
  replicas: 1     # replicaCount 속성을 넣을 자리 placeholder
  selector:
    matchLabels:
      app.kubernetes.io/name: pacman
      app.kubernetes.io/version: 1.0.0   # pacman.selectorLabels를 호출한 결과를 6만큼 들여쓰기하여 주입
  template:
    metadata:
      labels:
        app.kubernetes.io/name: pacman
        app.kubernetes.io/version: 1.0.0 # pacman.selectorLabels를 호출한 결과를 8만큼 들여쓰기하여 주입
    spec:
      containers:
        - image: "quay.io/gitops-cookbook/pacman-kikd:1.0.0"   # 이미지 지정 placeholder, 이미지 태그가 있으면 넣고, 없으면 Chart.yaml에 값을 설정
          imagePullPolicy: Always
          securityContext:
              {} # securityContext의 값을 YAML 객체로 지정하며 14칸 들여쓰기
          name: pacman
          ports:
            - containerPort: 8080
              name: http
              protocol: TCP

이름·버전 라벨 모두 공통 헬퍼에서 관리되어 중복 제거 및 변경 용이성 향상

🔄 Updating a Container Image in Helm

1. `_helpers.tpl` 초기화


cat << EOF > templates/_helpers.tplapp.kubernetes.io/name:
EOF

selector 공통 함수에서 name만 사용하도록 원복

2. 초기 배포(REVISION 1)


helm install pacman .

# 결과
NAME: pacman
LAST DEPLOYED: Sat Oct 25 13:10:58 2025
NAMESPACE: default
STATUS: deployed
REVISION: 1
TEST SUITE: None

helm history pacman
kubectl get deploy -owide

✅ 출력

REVISION	UPDATED                 	STATUS  	CHART       	APP VERSION	DESCRIPTION
1       	Sat Oct 25 13:10:58 2025	deployed	pacman-0.1.0	1.0.0      	Install complete

NAME     READY   UP-TO-DATE   AVAILABLE   AGE   CONTAINERS   IMAGES                                      SELECTOR
pacman   1/1     1            1           30s   pacman       quay.io/gitops-cookbook/pacman-kikd:1.0.0   app.kubernetes.io/name=pacman

3. 이미지 태그 1.1.0으로 갱신


cat << EOF > values.yaml
image:
  repository: quay.io/gitops-cookbook/pacman-kikd
  tag: "1.1.0"
  pullPolicy: Always
  containerPort: 8080

replicaCount: 1
securityContext: {}
EOF


cat << EOF > Chart.yaml
apiVersion: v2
name: pacman
description: A Helm chart for Pacman
type: application
version: 0.1.0
appVersion: "1.1.0"
EOF

values.yaml의 image.tag를 "1.1.0"으로, Chart.yaml의 appVersion을 "1.1.0"으로 업데이트

4. 업그레이드 적용(REVISION 2)


helm upgrade pacman .

# 결과
Release "pacman" has been upgraded. Happy Helming!
NAME: pacman
LAST DEPLOYED: Sat Oct 25 13:13:30 2025
NAMESPACE: default
STATUS: deployed
REVISION: 2
TEST SUITE: None

helm history pacman
kubectl get secret

✅ 출력

REVISION	UPDATED                 	STATUS    	CHART       	APP VERSION	DESCRIPTION
1       	Sat Oct 25 13:10:58 2025	superseded	pacman-0.1.0	1.0.0      	Install complete
2       	Sat Oct 25 13:13:30 2025	deployed  	pacman-0.1.0	1.1.0      	Upgrade complete

NAME                           TYPE                 DATA   AGE
sh.helm.release.v1.pacman.v1   helm.sh/release.v1   1      3m
sh.helm.release.v1.pacman.v2   helm.sh/release.v1   1      28s

REVISION 2 / APP VERSION 1.1.0 / Upgrade complete

5. 리소스 상태 확인

kubectl get deploy,replicaset -owide

✅ 출력


NAME                     READY   UP-TO-DATE   AVAILABLE   AGE     CONTAINERS   IMAGES                                      SELECTOR
deployment.apps/pacman   1/1     1            1           3m34s   pacman       quay.io/gitops-cookbook/pacman-kikd:1.1.0   app.kubernetes.io/name=pacman

NAME                                DESIRED   CURRENT   READY   AGE     CONTAINERS   IMAGES                                      SELECTOR
replicaset.apps/pacman-576769bb86   0         0         0       3m34s   pacman       quay.io/gitops-cookbook/pacman-kikd:1.0.0   app.kubernetes.io/name=pacman,pod-template-hash=576769bb86
replicaset.apps/pacman-64c54b85f9   1         1         1       62s     pacman       quay.io/gitops-cookbook/pacman-kikd:1.1.0   app.kubernetes.io/name=pacman,pod-template-hash=64c54b85f9

배포: deployment.apps/pacman 이미지 :1.1.0 적용
레플리카셋: :1.0.0(이전)과 :1.1.0(현재) 공존, 이전 RS는 파드 0

6. 이전 버전으로 롤백(REVISION 3)


helm history pacman

REVISION	UPDATED                 	STATUS    	CHART       	APP VERSION	DESCRIPTION
1       	Sat Oct 25 13:10:58 2025	superseded	pacman-0.1.0	1.0.0      	Install complete
2       	Sat Oct 25 13:13:30 2025	deployed  	pacman-0.1.0	1.1.0      	Upgrade complete

helm rollback pacman 1 && kubectl get pod -w

Rollback was a success! Happy Helming!
NAME                      READY   STATUS              RESTARTS   AGE
pacman-576769bb86-gvgv4   0/1     ContainerCreating   0          0s
pacman-64c54b85f9-4bgs2   1/1     Running             0          3m52s
pacman-576769bb86-gvgv4   1/1     Running             0          2s
pacman-64c54b85f9-4bgs2   1/1     Terminating         0          3m54s
pacman-64c54b85f9-4bgs2   0/1     Error               0          3m54s
pacman-64c54b85f9-4bgs2   0/1     Error               0          3m55s
pacman-64c54b85f9-4bgs2   0/1     Error               0          3m55s


helm history pacman
kubectl get secret

REVISION	UPDATED                 	STATUS    	CHART       	APP VERSION	DESCRIPTION
1       	Sat Oct 25 13:10:58 2025	superseded	pacman-0.1.0	1.0.0      	Install complete
2       	Sat Oct 25 13:13:30 2025	superseded	pacman-0.1.0	1.1.0      	Upgrade complete
3       	Sat Oct 25 13:17:22 2025	deployed  	pacman-0.1.0	1.0.0      	Rollback to 1

NAME                           TYPE                 DATA   AGE
sh.helm.release.v1.pacman.v1   helm.sh/release.v1   1      7m11s
sh.helm.release.v1.pacman.v2   helm.sh/release.v1   1      4m39s
sh.helm.release.v1.pacman.v3   helm.sh/release.v1   1      47s

helm history에 REVISION 3 / APP VERSION 1.0.0 / Rollback to 1
Secret: sh.helm.release.v1.pacman.v3 추가


kubectl get deploy,replicaset -owide

# 결과
NAME                     READY   UP-TO-DATE   AVAILABLE   AGE     CONTAINERS   IMAGES                                      SELECTOR
deployment.apps/pacman   1/1     1            1           7m45s   pacman       quay.io/gitops-cookbook/pacman-kikd:1.0.0   app.kubernetes.io/name=pacman

NAME                                DESIRED   CURRENT   READY   AGE     CONTAINERS   IMAGES                                      SELECTOR
replicaset.apps/pacman-576769bb86   1         1         1       7m45s   pacman       quay.io/gitops-cookbook/pacman-kikd:1.0.0   app.kubernetes.io/name=pacman,pod-template-hash=576769bb86
replicaset.apps/pacman-64c54b85f9   0         0         0       5m13s   pacman       quay.io/gitops-cookbook/pacman-kikd:1.1.0   app.kubernetes.io/name=pacman,pod-template-hash=64c54b85f9

Deployment 이미지 :1.0.0, 이전 :1.1.0 RS는 파드 0

7. values 오버라이드로 템플릿만 검증


cat << EOF > newvalues.yaml
image:
  tag: "1.2.0"
EOF


helm template pacman -f newvalues.yaml .

# 결과
...
        - image: "quay.io/gitops-cookbook/pacman-kikd:1.2.0"
...

렌더된 매니페스트 이미지가 :1.2.0으로 출력(실제 배포 변경 없음)

📦 Packaging and Distributing a Helm Chart

1. 차트 패키징(.tgz 생성)

helm package .

# 결과
Successfully packaged chart and saved it to: /home/devshin/workspace/cicd/chapters/chapters/pacman/pacman-0.1.0.tgz

2. 리포지토리 인덱스 생성

helm repo index .


cat index.yaml

# 결과
apiVersion: v1
entries:
  pacman:
  - apiVersion: v2
    appVersion: 1.1.0
    created: "2025-10-25T13:24:19.927801229+09:00"
    description: A Helm chart for Pacman
    digest: 055ede949ae3c3d13e1088ae55dffd887bc6f2c7c224dfa5acd911a0e476732d
    name: pacman
    type: application
    urls:
    - pacman-0.1.0.tgz
    version: 0.1.0
generated: "2025-10-25T13:24:19.926665757+09:00"

🔔 Bitnami 공개 카탈로그 삭제

1. BSI nginx 이미지 가져오기


docker pull bitnamisecure/nginx:latest

# 결과
latest: Pulling from bitnamisecure/nginx
1492e1542a25: Pull complete
Digest: sha256:1a6d9b279f8e272e170f9632df0183d22b50372b7465b77d2ba6071b88b8c803
Status: Downloaded newer image for bitnamisecure/nginx:latest
docker.io/bitnamisecure/nginx:latest

2. 이미지 목록 확인

docker images

REPOSITORY                                  TAG                                                           IMAGE ID       CREATED        SIZE
bitnamisecure/nginx                         latest                                                        2aa2aa2b771f   27 hours ago   100MB                                             2574b2ca2237   55 years ago   281MB

3. 컨테이너 실행


docker run -d -p 8080:8080 --name nginx bitnamisecure/nginx:latest

# 결과
c7113c60789a765e6276b91774f4d8fc2ca1070082f564ffd7a2e5f509456869

4. 동작 확인


curl -s 127.0.0.1:8080

# 결과
<!DOCTYPE html>
<html>
<head>
<title>Welcome to nginx!</title>
<style>
html { color-scheme: light dark; }
body { width: 35em; margin: 0 auto;
font-family: Tahoma, Verdana, Arial, sans-serif; }
</style>
</head>
<body>
<h1>Welcome to nginx!</h1>
<p>If you see this page, the nginx web server is successfully installed and
working. Further configuration is required.</p>

<p>For online documentation and support please refer to
<a href="http://nginx.org/">nginx.org</a>.<br/>
Commercial support is available at
<a href="http://nginx.com/">nginx.com</a>.</p>

<p><em>Thank you for using nginx.</em></p>
</body>
</html>

5. 로그 확인


docker logs nginx

# 결과
nginx 04:30:24.11 INFO  ==>
nginx 04:30:24.11 INFO  ==> Welcome to the Bitnami nginx container
nginx 04:30:24.11 INFO  ==> Subscribe to project updates by watching https://github.com/bitnami/containers
nginx 04:30:24.11 INFO  ==> NOTICE: Starting August 28th, 2025, only a limited subset of images/charts will remain available for free. Backup will be available for some time at the 'Bitnami Legacy' repository. More info at https://github.com/bitnami/containers/issues/83267
nginx 04:30:24.12 INFO  ==>
nginx 04:30:24.12 INFO  ==> ** Starting NGINX setup **
nginx 04:30:24.13 INFO  ==> Validating settings in NGINX_* env vars
Certificate request self-signature ok
subject=CN = example.com
nginx 04:30:24.78 INFO  ==> No custom scripts in /docker-entrypoint-initdb.d
nginx 04:30:24.78 INFO  ==> Initializing NGINX
realpath: /bitnami/nginx/conf/vhosts: No such file or directory
nginx 04:30:24.80 INFO  ==> ** NGINX setup finished! **

nginx 04:30:24.81 INFO  ==> ** Starting NGINX **
172.17.0.1 - - [25/Oct/2025:04:30:41 +0000] "GET / HTTP/1.1" 200 615 "-" "curl/8.16.0" "-"

6. 정리(삭제)

docker rm -f nginx

📥 Deploying a Chart from a Repository

1. 레포지토리 추가

helm repo add bitnami https://charts.bitnami.com/bitnami

# 결과
"bitnami" has been added to your repositories

2. 레포지토리 목록 확인

helm repo list

NAME                	URL
bitnami             	https://charts.bitnami.com/bitnami

3. 차트 검색


helm search repo postgresql

NAME                                             	CHART VERSION	APP VERSION	DESCRIPTION
bitnami/postgresql                               	18.1.1       	18.0.0     	PostgreSQL (Postgres) is an open source object-...
bitnami/postgresql-ha                            	16.3.2       	17.6.0     	This PostgreSQL cluster solution includes the P...
bitnami/cloudnative-pg                           	1.0.11       	1.26.1     	CloudNativePG is an open-source tool for managi...
bitnami/supabase                                 	5.3.6        	1.24.7     	DEPRECATED Supabase is an open source Firebase ...
bitnami/minio-operator                           	0.2.9        	7.1.1      	MinIO(R) Operator is a Kubernetes-native tool f...

4. 차트 배포


helm install my-db \
--set postgresql.postgresqlUsername=my-default,postgresql.postgresqlPassword=postgres,postgresql.postgresqlDatabase=mydb,postgresql.persistence.enabled=false \
bitnami/postgresql

# 결과
bitnami/postgresql
NAME: my-db
LAST DEPLOYED: Sat Oct 25 13:42:05 2025
NAMESPACE: default
STATUS: deployed
REVISION: 1
TEST SUITE: None
NOTES:
CHART NAME: postgresql
CHART VERSION: 18.1.1
APP VERSION: 18.0.0
...

5. 릴리스 목록 확인

helm list

# 결과
NAME  	NAMESPACE	REVISION	UPDATED                                	STATUS  	CHART            	APP VERSION
my-db 	default  	1       	2025-10-25 13:42:05.165856775 +0900 KST	deployed	postgresql-18.1.1	18.0.0
pacman	default  	3       	2025-10-25 13:17:22.363146125 +0900 KST	deployed	pacman-0.1.0     	1.0.0

6. 쿠버네티스 리소스 확인


kubectl get sts,pod,svc,ep,secret

# 결과
NAME                                READY   AGE
statefulset.apps/my-db-postgresql   1/1     57s

NAME                          READY   STATUS    RESTARTS   AGE
pod/my-db-postgresql-0        1/1     Running   0          57s
pod/pacman-576769bb86-gvgv4   1/1     Running   0          25m

NAME                          TYPE        CLUSTER-IP     EXTERNAL-IP   PORT(S)    AGE
service/kubernetes            ClusterIP   10.96.0.1      <none>        443/TCP    69m
service/my-db-postgresql      ClusterIP   10.96.175.98   <none>        5432/TCP   57s
service/my-db-postgresql-hl   ClusterIP   None           <none>        5432/TCP   57s
service/pacman                ClusterIP   10.96.36.104   <none>        8080/TCP   32m

NAME                            ENDPOINTS          AGE
endpoints/kubernetes            172.18.0.2:6443    69m
endpoints/my-db-postgresql      10.244.0.11:5432   57s
endpoints/my-db-postgresql-hl   10.244.0.11:5432   57s
endpoints/pacman                10.244.0.9:8080    32m

NAME                                  TYPE                 DATA   AGE
secret/my-db-postgresql               Opaque               1      57s
secret/sh.helm.release.v1.my-db.v1    helm.sh/release.v1   1      57s
secret/sh.helm.release.v1.pacman.v1   helm.sh/release.v1   1      32m
secret/sh.helm.release.v1.pacman.v2   helm.sh/release.v1   1      29m
secret/sh.helm.release.v1.pacman.v3   helm.sh/release.v1   1      25m

7. 서드 파티 차트 값 확인 방법


helm show values bitnami/postgresql

# 결과
# Copyright Broadcom, Inc. All Rights Reserved.
# SPDX-License-Identifier: APACHE-2.0

## @section Global parameters
## Please, note that this will override the parameters, including dependencies, configured to use the global value
##
global:
  ## @param global.imageRegistry Global Docker image registry
  ##
  imageRegistry: ""
  ## @param global.imagePullSecrets Global Docker registry secret names as an array
  ## e.g.
  ## imagePullSecrets:
  ##   - myRegistryKeySecretName
  ##
  imagePullSecrets: []
  ## @param global.defaultStorageClass Global default StorageClass for Persistent Volume(s)
## @param global.storageClass DEPRECATED: use global.defaultStorageClass instead
  ##
  defaultStorageClass: ""
  storageClass: ""
  ## Security parameters
  ##
  security:
    ## @param global.security.allowInsecureImages Allows skipping image verification
    allowInsecureImages: false
  postgresql:
    ## @param global.postgresql.fullnameOverride Full chart name (overrides `fullnameOverride`)
    ## @param global.postgresql.auth.postgresPassword Password for the "postgres" admin user (overrides `auth.postgresPassword`)
    ## @param global.postgresql.auth.username Name for a custom user to create (overrides `auth.username`)
    ## @param global.postgresql.auth.password Password for the custom user to create (overrides `auth.password`)
    ## @param global.postgresql.auth.database Name for a custom database to create (overrides `auth.database`)
    ## @param global.postgresql.auth.existingSecret Name of existing secret to use for PostgreSQL credentials (overrides `auth.existingSecret`).
    ## @param global.postgresql.auth.secretKeys.adminPasswordKey Name of key in existing secret to use for PostgreSQL credentials (overrides `auth.secretKeys.adminPasswordKey`). Only used when `global.postgresql.auth.existingSecret` is set.
    ## @param global.postgresql.auth.secretKeys.userPasswordKey Name of key in existing secret to use for PostgreSQL credentials (overrides `auth.secretKeys.userPasswordKey`). Only used when `global.postgresql.auth.existingSecret` is set.
    ## @param global.postgresql.auth.secretKeys.replicationPasswordKey Name of key in existing secret to use for PostgreSQL credentials (overrides `auth.secretKeys.replicationPasswordKey`). Only used when `global.postgresql.auth.existingSecret` is set.
    ##
    fullnameOverride: ""

    auth:
      postgresPassword: ""
      username: ""
      password: ""
      database: ""
      existingSecret: ""
      secretKeys:
        adminPasswordKey: ""
        userPasswordKey: ""
        replicationPasswordKey: ""
    ## @param global.postgresql.service.ports.postgresql PostgreSQL service port (overrides `service.ports.postgresql`)
    ##
    service:
      ports:
        postgresql: ""
...

기본값과 오버라이드 가능한 파라미터를 직접 파일로 보지 못하므로 helm show values 사용

8. 실습 후 제거

helm uninstall my-db
release "my-db" uninstalled

🔍 Deploying a Chart with a Dependency

1. 차트 스켈레톤 생성


cd ..
mkdir music
mkdir music/templates
cd music

2. 도전과제2. music helm 배포 실패 해결

(1) Deployment 템플릿 작성 (DB 대기 포함)


cat << 'EOF' > templates/deployment.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
  name:
  labels:
    app.kubernetes.io/name:
    app.kubernetes.io/version:
spec:
  replicas:
  selector:
    matchLabels:
      app.kubernetes.io/name:
  template:
    metadata:
      labels:
        app.kubernetes.io/name:
    spec:
      initContainers:
        - name: wait-db
          image: postgres:16
          command: ["sh","-c"]
          args: ["until pg_isready -h -postgresql -p 5432 -t 5; do echo waiting for db; sleep 2; done"]
      containers:
        - image: ":"
          imagePullPolicy:
          name:
          ports:
            - containerPort:
              name: http
              protocol: TCP
          env:
            - name: QUARKUS_DATASOURCE_JDBC_URL
              value:
            - name: QUARKUS_DATASOURCE_USERNAME
              value:
            - name: QUARKUS_DATASOURCE_PASSWORD
              valueFrom:
                secretKeyRef:
                  name:
                  key:
EOF

(2) DB 초기화 Job 템플릿 작성 (Hook)


cat << 'EOF' > templates/db-init-job.yaml
apiVersion: batch/v1
kind: Job
metadata:
  name: -db-init
  labels:
    app.kubernetes.io/name:
  annotations:
    "helm.sh/hook": post-install,post-upgrade
    "helm.sh/hook-delete-policy": before-hook-creation,hook-succeeded
spec:
  backoffLimit: 12
  activeDeadlineSeconds: 600
  template:
    metadata:
      labels:
        app.kubernetes.io/name:
    spec:
      restartPolicy: OnFailure
      containers:
        - name: psql
          image: postgres:16
          env:
            - name: PGPASSWORD
              valueFrom:
                secretKeyRef:
                  name:
                  key:
          command: ["bash","-lc"]
          args:
            - |
              set -euo pipefail
              DBNAME=''
              PGUSER=''
              PGHOST=''
              export PGHOST PGUSER

              echo "Waiting for postgres at ${PGHOST}..."
              until pg_isready -h "${PGHOST}" -p 5432 -U "${PGUSER}" -t 5; do
                echo "postgres not ready yet, retrying..."
                sleep 2
              done

              echo "Ensuring database '${DBNAME}' on ${PGHOST} as ${PGUSER}"
              psql -tc "SELECT 1 FROM pg_database WHERE datname='${DBNAME}';" | grep -q 1 || \
              psql -c "CREATE DATABASE \"${DBNAME}\";"
EOF

(3) Service 템플릿 작성


cat << 'EOF' > templates/service.yaml
apiVersion: v1
kind: Service
metadata:
  labels:
    app.kubernetes.io/name:
  name:
spec:
  ports:
    - name: http
      port:
      targetPort:
  selector:
    app.kubernetes.io/name:
EOF

(4) Chart.yaml에 의존성 선언


cat << 'EOF' > Chart.yaml
apiVersion: v2
name: music
description: A Helm chart for Music service
type: application
version: 0.1.0
appVersion: "1.0.0"
dependencies:
  - name: postgresql
    version: 18.0.17
    repository: "https://charts.bitnami.com/bitnami"
EOF

(5) values.yaml 구성


cat << 'EOF' > values.yaml
image:
  repository: quay.io/gitops-cookbook/music
  tag: "1.0.0"
  pullPolicy: Always
  containerPort: 8080

replicaCount: 1

postgresql:
  server: jdbc:postgresql://music-db-postgresql:5432/mydb
  postgresqlUsername: postgres
  postgresqlDatabase: mydb
  secretName: music-db-postgresql
  secretKey: postgres-password   # Bitnami + postgres 사용자 기본 키
EOF

3. 디렉터리 확인

tree
.
├── Chart.yaml
├── templates
│   ├── db-init-job.yaml
│   ├── deployment.yaml
│   └── service.yaml
└── values.yaml

2 directories, 5 files

4. 의존성 다운로드


helm dependency update

# 결과
Hang tight while we grab the latest from your chart repositories...
...Successfully got an update from the "bitnami" chart repository
Update Complete. ⎈Happy Helming!⎈
Saving 1 charts
Downloading postgresql from repo https://charts.bitnami.com/bitnami
Pulled: registry-1.docker.io/bitnamicharts/postgresql:18.0.17
Digest: sha256:84b63af46f41ac35e3cbcf098e8cf124211c250807cfed43f7983c39c6e30b72
Deleting outdated charts

tree
.
├── Chart.lock
├── charts
│   └── postgresql-18.0.17.tgz
├── Chart.yaml
├── templates
│   ├── db-init-job.yaml
│   ├── deployment.yaml
│   └── service.yaml
└── values.yaml

3 directories, 7 files

charts/postgresql-18.0.17.tgz
Chart.lock 생성 및 다이제스트 고정

5. 렌더 & 문법 사전검증(드라이런)


helm template music-db . | kubectl apply --dry-run=client -f -

# 결과
networkpolicy.networking.k8s.io/music-db-postgresql created (dry run)
poddisruptionbudget.policy/music-db-postgresql created (dry run)
serviceaccount/music-db-postgresql created (dry run)
secret/music-db-postgresql created (dry run)
service/music-db-postgresql-hl created (dry run)
service/music-db-postgresql created (dry run)
service/music created (dry run)
deployment.apps/music created (dry run)
statefulset.apps/music-db-postgresql created (dry run)
job.batch/music-db-db-init created (dry run)

6. 설치(대기/타임아웃 포함)


helm upgrade --install music-db . --wait --timeout 5m

# 결과
Release "music-db" does not exist. Installing it now.
NAME: music-db
LAST DEPLOYED: Sat Oct 25 16:30:24 2025
NAMESPACE: default
STATUS: deployed
REVISION: 1
TEST SUITE: None

7. 리소스 상태 점검


kubectl get sts,pod,svc,ep,secret,pv,pvc

# 결과
NAME                                   READY   AGE
statefulset.apps/music-db-postgresql   1/1     50s

NAME                          READY   STATUS    RESTARTS   AGE
pod/music-6cf5758b57-qn4nl    1/1     Running   0          50s
pod/music-db-postgresql-0     1/1     Running   0          50s
pod/pacman-576769bb86-gvgv4   1/1     Running   0          3h13m

NAME                             TYPE        CLUSTER-IP      EXTERNAL-IP   PORT(S)    AGE
service/kubernetes               ClusterIP   10.96.0.1       <none>        443/TCP    3h57m
service/music                    ClusterIP   10.96.177.103   <none>        8080/TCP   50s
service/music-db-postgresql      ClusterIP   10.96.86.68     <none>        5432/TCP   50s
service/music-db-postgresql-hl   ClusterIP   None            <none>        5432/TCP   50s
service/pacman                   ClusterIP   10.96.36.104    <none>        8080/TCP   3h20m

NAME                               ENDPOINTS          AGE
endpoints/kubernetes               172.18.0.2:6443    3h57m
endpoints/music                    10.244.0.39:8080   50s
endpoints/music-db-postgresql      10.244.0.41:5432   50s
endpoints/music-db-postgresql-hl   10.244.0.41:5432   50s
endpoints/pacman                   10.244.0.9:8080    3h20m

NAME                                    TYPE                 DATA   AGE
secret/music-db-postgresql              Opaque               1      50s
secret/sh.helm.release.v1.music-db.v1   helm.sh/release.v1   1      50s
secret/sh.helm.release.v1.pacman.v1     helm.sh/release.v1   1      3h20m
secret/sh.helm.release.v1.pacman.v2     helm.sh/release.v1   1      3h17m
secret/sh.helm.release.v1.pacman.v3     helm.sh/release.v1   1      3h13m

NAME                                                        CAPACITY   ACCESS MODES   RECLAIM POLICY   STATUS   CLAIM                                STORAGECLASS   VOLUMEATTRIBUTESCLASS   REASON   AGE
persistentvolume/pvc-7346aabd-297e-4ad8-b163-d39e97b0881d   8Gi        RWO            Delete           Bound    default/data-music-db-postgresql-0   standard       <unset>                          47s

NAME                                               STATUS   VOLUME                                     CAPACITY   ACCESS MODES   STORAGECLASS   VOLUMEATTRIBUTESCLASS   AGE
persistentvolumeclaim/data-music-db-postgresql-0   Bound    pvc-7346aabd-297e-4ad8-b163-d39e97b0881d   8Gi        RWO            standard       <unset>                 50s

8. 애플리케이션 확인(포트포워딩)


kubectl port-forward service/music 8080:8080

# 결과
Forwarding from 127.0.0.1:8080 -> 8080
Forwarding from [::1]:8080 -> 8080
Handling connection for 8080


curl -s http://localhost:8080/song

# 결과
[{"id":1,"artist":"DT","name":"Quiero Munchies"},{"id":2,"artist":"Lin-Manuel Miranda","name":"We Don't Talk About Bruno"},{"id":3,"artist":"Imagination","name":"Just An Illusion"},{"id":4,"artist":"Txarango","name":"Tanca Els Ulls"},{"id":5,"artist":"Halsey","name":"Could Have Been Me"}]

9. 정리(언인스톨 & 스토리지 해제)

helm uninstall music-db
release "music-db" uninstalled

kubectl delete pvc --all
persistentvolumeclaim "data-music-db-postgresql-0" deleted from default namespace

🔧 Install Tekton

1. Tekton Pipeline 설치

kubectl apply -f https://storage.googleapis.com/tekton-releases/pipeline/latest/release.yaml

2. Tekton Pipeline 설치 확인

kubectl get crd

# 결과
NAME                                       CREATED AT
customruns.tekton.dev                      2025-10-25T07:49:14Z
pipelineruns.tekton.dev                    2025-10-25T07:49:14Z
pipelines.tekton.dev                       2025-10-25T07:49:14Z
resolutionrequests.resolution.tekton.dev   2025-10-25T07:49:14Z
stepactions.tekton.dev                     2025-10-25T07:49:14Z
taskruns.tekton.dev                        2025-10-25T07:49:15Z
tasks.tekton.dev                           2025-10-25T07:49:14Z
verificationpolicies.tekton.dev            2025-10-25T07:49:15Z

kubectl get ns | grep tekton

# 결과
tekton-pipelines             Active   86s
tekton-pipelines-resolvers   Active   85s


kubectl get all -n tekton-pipelines

# 결과
NAME                                               READY   STATUS    RESTARTS   AGE
pod/tekton-events-controller-99665746c-6qhvv       1/1     Running   0          2m27s
pod/tekton-pipelines-controller-7595d6585d-hg2lh   1/1     Running   0          2m27s
pod/tekton-pipelines-webhook-5967d74cc4-w2vpv      1/1     Running   0          2m27s

NAME                                  TYPE        CLUSTER-IP      EXTERNAL-IP   PORT(S)                              AGE
service/tekton-events-controller      ClusterIP   10.96.175.34    <none>        9090/TCP,8008/TCP,8080/TCP           2m27s
service/tekton-pipelines-controller   ClusterIP   10.96.150.58    <none>        9090/TCP,8008/TCP,8080/TCP           2m27s
service/tekton-pipelines-webhook      ClusterIP   10.96.125.255   <none>        9090/TCP,8008/TCP,443/TCP,8080/TCP   2m27s

NAME                                          READY   UP-TO-DATE   AVAILABLE   AGE
deployment.apps/tekton-events-controller      1/1     1            1           2m27s
deployment.apps/tekton-pipelines-controller   1/1     1            1           2m27s
deployment.apps/tekton-pipelines-webhook      1/1     1            1           2m27s

NAME                                                     DESIRED   CURRENT   READY   AGE
replicaset.apps/tekton-events-controller-99665746c       1         1         1       2m27s
replicaset.apps/tekton-pipelines-controller-7595d6585d   1         1         1       2m27s
replicaset.apps/tekton-pipelines-webhook-5967d74cc4      1         1         1       2m27s

NAME                                                           REFERENCE                             TARGETS               MINPODS   MAXPODS   REPLICAS   AGE
horizontalpodautoscaler.autoscaling/tekton-pipelines-webhook   Deployment/tekton-pipelines-webhook   cpu: <unknown>/100%   1         5         1          2m27s


kubectl get all -n tekton-pipelines-resolvers

# 결과
NAME                                                     READY   STATUS    RESTARTS   AGE
pod/tekton-pipelines-remote-resolvers-86f56b6664-frrqj   1/1     Running   0          3m11s

NAME                                        TYPE        CLUSTER-IP      EXTERNAL-IP   PORT(S)                      AGE
service/tekton-pipelines-remote-resolvers   ClusterIP   10.96.172.248   <none>        9090/TCP,8008/TCP,8080/TCP   3m11s

NAME                                                READY   UP-TO-DATE   AVAILABLE   AGE
deployment.apps/tekton-pipelines-remote-resolvers   1/1     1            1           3m11s

NAME                                                           DESIRED   CURRENT   READY   AGE
replicaset.apps/tekton-pipelines-remote-resolvers-86f56b6664   1         1         1       3m11s

kubectl get pod -n tekton-pipelines

# 결과
NAME                                           READY   STATUS    RESTARTS   AGE
tekton-events-controller-99665746c-6qhvv       1/1     Running   0          3m30s
tekton-pipelines-controller-7595d6585d-hg2lh   1/1     Running   0          3m30s
tekton-pipelines-webhook-5967d74cc4-w2vpv      1/1     Running   0          3m30s

3. Tekton Triggers 설치

kubectl apply -f https://storage.googleapis.com/tekton-releases/triggers/latest/release.yaml
kubectl apply -f https://storage.googleapis.com/tekton-releases/triggers/latest/interceptors.yaml

4. Tekton Trigger 설치 확인

kubectl get crd | grep triggers

# 결과
clusterinterceptors.triggers.tekton.dev      2025-10-25T07:53:44Z
clustertriggerbindings.triggers.tekton.dev   2025-10-25T07:53:44Z
eventlisteners.triggers.tekton.dev           2025-10-25T07:53:44Z
interceptors.triggers.tekton.dev             2025-10-25T07:53:44Z
triggerbindings.triggers.tekton.dev          2025-10-25T07:53:44Z
triggers.triggers.tekton.dev                 2025-10-25T07:53:44Z
triggertemplates.triggers.tekton.dev         2025-10-25T07:53:44Z


kubectl get deploy -n tekton-pipelines | grep triggers

# 결과
tekton-triggers-controller          1/1     1            1           89s
tekton-triggers-core-interceptors   1/1     1            1           88s
tekton-triggers-webhook             1/1     1            1           89s

5. Tekton Dashboard 설치

kubectl apply -f https://storage.googleapis.com/tekton-releases/dashboard/latest/release.yaml

# 결과
customresourcedefinition.apiextensions.k8s.io/extensions.dashboard.tekton.dev created
serviceaccount/tekton-dashboard created
role.rbac.authorization.k8s.io/tekton-dashboard-info created
clusterrole.rbac.authorization.k8s.io/tekton-dashboard-backend-edit created
clusterrole.rbac.authorization.k8s.io/tekton-dashboard-backend-view created
clusterrole.rbac.authorization.k8s.io/tekton-dashboard-tenant-view created
rolebinding.rbac.authorization.k8s.io/tekton-dashboard-info created
clusterrolebinding.rbac.authorization.k8s.io/tekton-dashboard-backend-view created
configmap/dashboard-info created
service/tekton-dashboard created
deployment.apps/tekton-dashboard created
clusterrolebinding.rbac.authorization.k8s.io/tekton-dashboard-tenant-view created
clusterrolebinding.rbac.authorization.k8s.io/tekton-dashboard-pipelines-view created
clusterrolebinding.rbac.authorization.k8s.io/tekton-dashboard-triggers-view created

6. Tekton Dashboard 상태 확인

kubectl get crd | grep dashboard

extensions.dashboard.tekton.dev              2025-10-25T07:56:57Z

kubectl get deploy -n tekton-pipelines

NAME                                READY   UP-TO-DATE   AVAILABLE   AGE
tekton-dashboard                    1/1     1            1           80s
...


kubectl get svc,ep -n tekton-pipelines tekton-dashboard
NAME                       TYPE        CLUSTER-IP     EXTERNAL-IP   PORT(S)    AGE
service/tekton-dashboard   ClusterIP   10.96.31.229   <none>        9097/TCP   2m5s

NAME                         ENDPOINTS          AGE
endpoints/tekton-dashboard   10.244.0.51:9097   2m5s


kubectl get svc -n tekton-pipelines tekton-dashboard -o yaml | kubectl neat | yq
{
  "apiVersion": "v1",
  "kind": "Service",
  "metadata": {
    "labels": {
      "app": "tekton-dashboard",
      "app.kubernetes.io/component": "dashboard",
      "app.kubernetes.io/instance": "default",
      "app.kubernetes.io/name": "dashboard",
      "app.kubernetes.io/part-of": "tekton-dashboard",
      "app.kubernetes.io/version": "v0.62.0",
      "dashboard.tekton.dev/release": "v0.62.0",
      "version": "v0.62.0"
    },
    "name": "tekton-dashboard",
    "namespace": "tekton-pipelines"
  },
  "spec": {
    "clusterIP": "10.96.31.229",
    "clusterIPs": [
      "10.96.31.229"
    ],
    "ipFamilies": [
      "IPv4"
    ],
    "ipFamilyPolicy": "SingleStack",
    "ports": [
      {
        "name": "http",
        "port": 9097
      }
    ],
    "selector": {
      "app.kubernetes.io/component": "dashboard",
      "app.kubernetes.io/instance": "default",
      "app.kubernetes.io/name": "dashboard",
      "app.kubernetes.io/part-of": "tekton-dashboard"
    }
  }
}

7. Tekton Dashboard NodePort 노출


kubectl patch svc -n tekton-pipelines tekton-dashboard -p '{"spec":{"type":"NodePort","ports":[{"port":9097,"targetPort":9097,"nodePort":30000}]}}'

# 결과
service/tekton-dashboard patched


kubectl get svc,ep -n tekton-pipelines tekton-dashboard

# 결과
NAME                       TYPE       CLUSTER-IP     EXTERNAL-IP   PORT(S)          AGE
service/tekton-dashboard   NodePort   10.96.31.229   <none>        9097:30000/TCP   7m10s

NAME                         ENDPOINTS          AGE
endpoints/tekton-dashboard   10.244.0.51:9097   7m10s

9097:30000/TCP

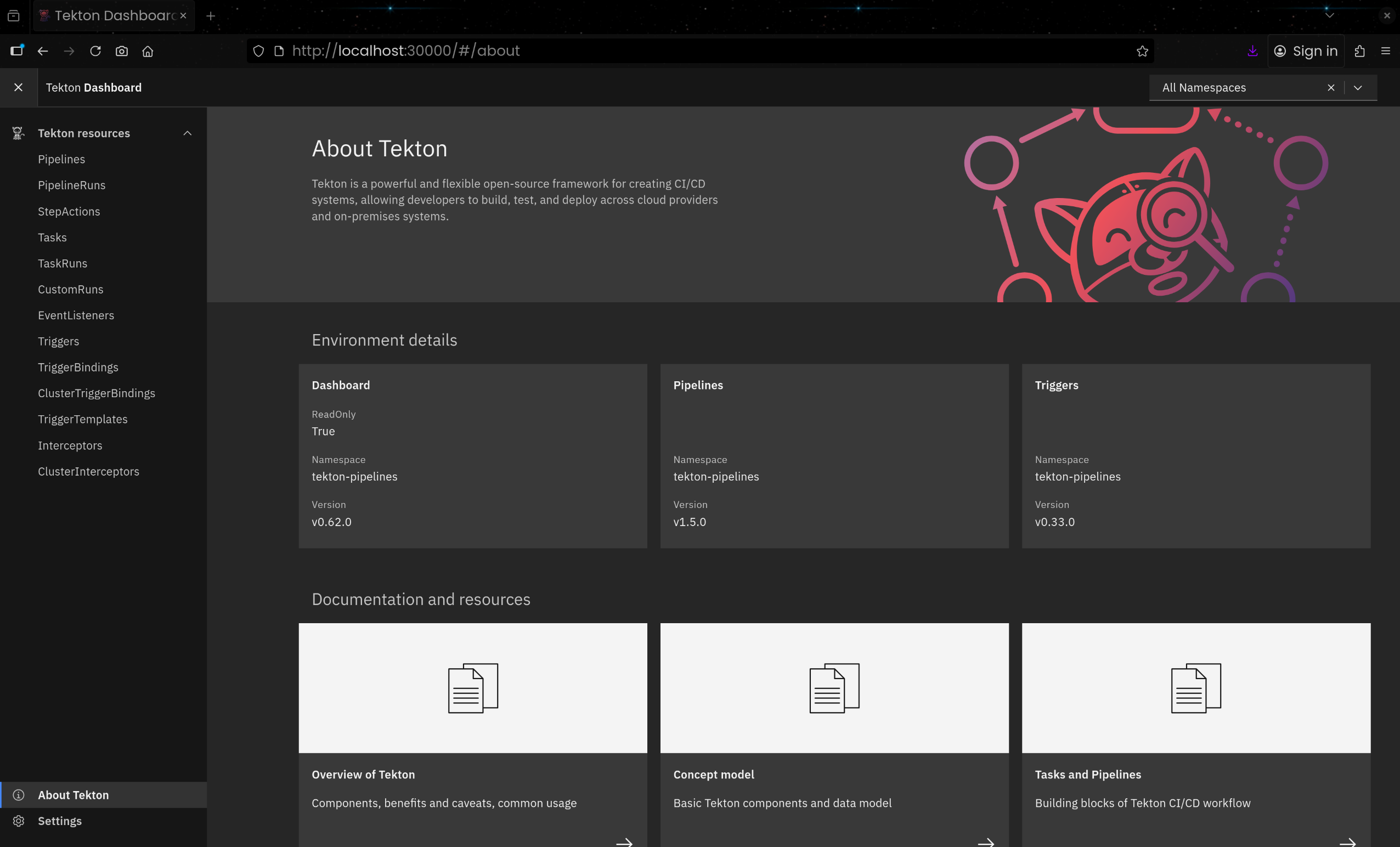

http://localhost:30000로 대시보드 접근

8. Tekton CLI 설치(Arch Linux)


sudo pacman -Syu tekton-cli
tkn version

# 결과
Client version: 0.33.0
Pipeline version: v1.5.0
Triggers version: v0.33.0
Dashboard version: v0.62.0

👋 Create a Hello World Task

1. Task 리소스 스펙 확인

kubectl explain tasks.tekton.dev

# 결과
GROUP:      tekton.dev
KIND:       Task
VERSION:    v1
...

2. Task 생성


cat << EOF | kubectl apply -f -
apiVersion: tekton.dev/v1
kind: Task
metadata:
  name: hello
spec:
  steps:
    - name: echo    # step 이름
      image: alpine # step 수행 컨테이너 이미지
      script: |
        #!/bin/sh
        echo "Hello World"
EOF

# 결과
task.tekton.dev/hello created

3. Task 목록 확인

tkn task list

# 결과
NAME    DESCRIPTION   AGE
hello                 35 seconds ago

4. 생성 리소스 확인(JSON/YAML)


kubectl get tasks -o yaml | kubectl neat | yq

{
  "apiVersion": "v1",
  "items": [
    {
      "apiVersion": "tekton.dev/v1",
      "kind": "Task",
      "metadata": {
        "name": "hello",
        "namespace": "default"
      },
      "spec": {
        "steps": [
          {
            "image": "alpine",
            "name": "echo",
            "script": "#!/bin/sh\necho \"Hello World\"\n"
          }
        ]
      }
    }
  ],
  "kind": "List",
  "metadata": {}
}

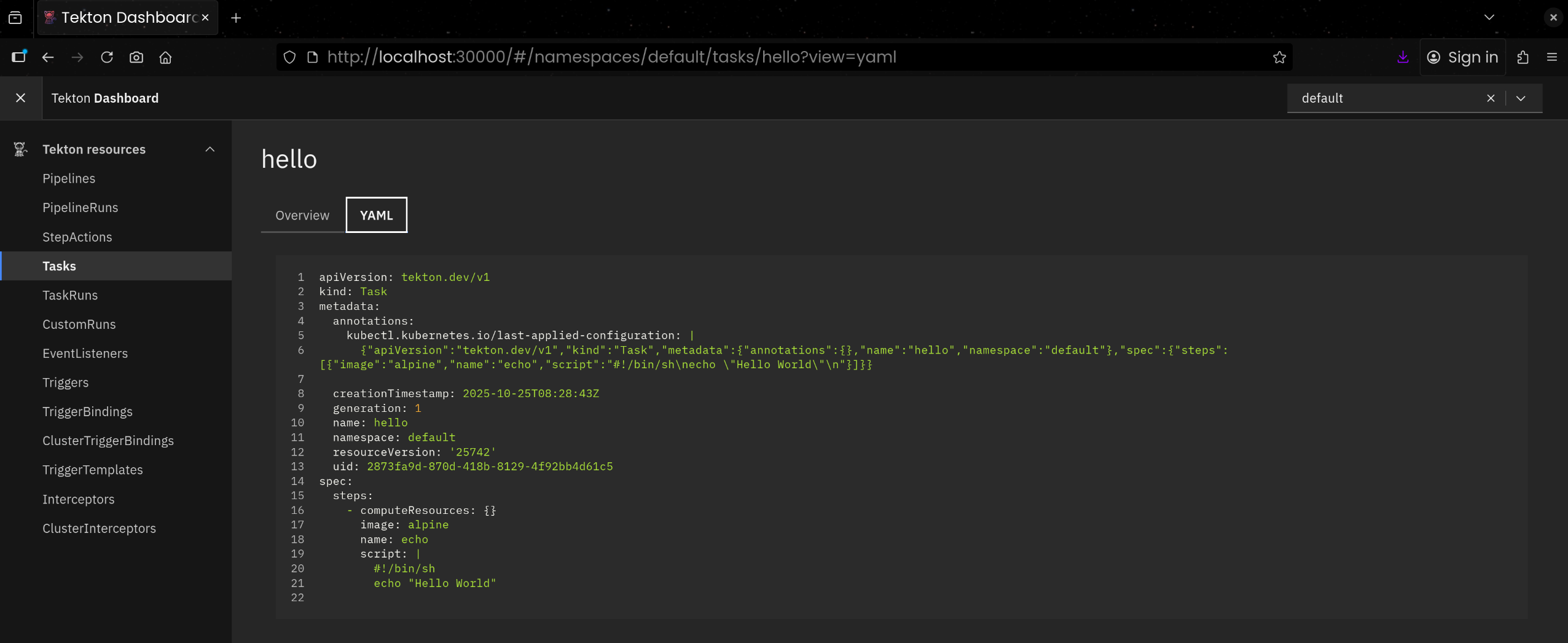

5. 대시보드에서 Task 확인

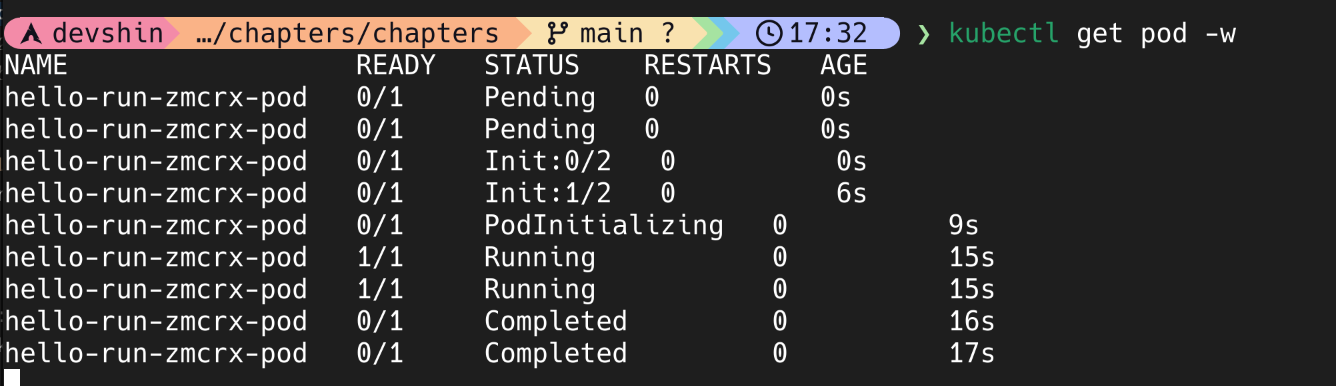

6. 파드 상태 모니터링

kubectl get pod -w

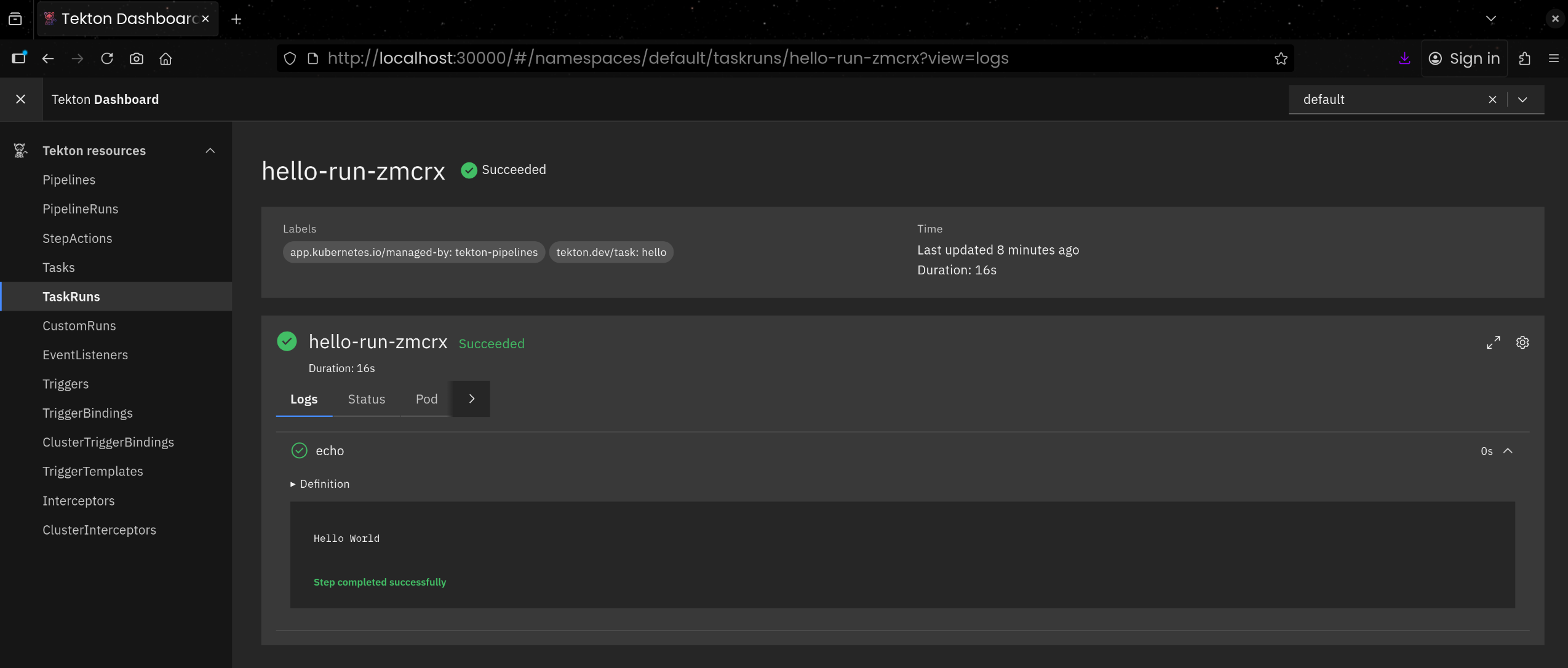

7. Task 실행 (tkn)

tkn task start --showlog hello

✅ 출력


TaskRun started: hello-run-zmcrx
Waiting for logs to be available...
[echo] Hello World

8. 파드 상세(Init 컨테이너 포함)

kubectl describe pod -l tekton.dev/task=hello

✅ 출력

Init Containers:
  prepare:
    Container ID:  containerd://d1808b262006d24f4087ea30b11f89749d4e1c88d5bae6277fe4ef615c93a359
    Image:         ghcr.io/tektoncd/pipeline/entrypoint-bff0a22da108bc2f16c818c97641a296:v1.5.0@sha256:ff5ee925ff7b08853cc4caa93e5e3e0ee761a2db6ae0a1ae6a0f6f120f170b56
    ...
  place-scripts:
    Container ID:  containerd://fea7fa128981845f6446c722a799d549473ed41bce1407d9c5fbfd8b16d298bd
    Image:         cgr.dev/chainguard/busybox@sha256:19f02276bf8dbdd62f069b922f10c65262cc34b710eea26ff928129a736be791
    ...
Containers:
  step-echo:
    Container ID:  containerd://141ca7131e149fc96b3b6aea900d519ae2517b0e7a14652f653d041cf1abec11
    Image:         alpine
    Image ID:      docker.io/library/alpine@sha256:4b7ce07002c69e8f3d704a9c5d6fd3053be500b7f1c69fc0d80990c2ad8dd412

9. 컨테이너별 로그 점검


kubectl logs -l tekton.dev/task=hello -c prepare
2025/10/25 08:32:54 Entrypoint initialization

kubectl logs -l tekton.dev/task=hello -c place-scripts
2025/10/25 08:32:57 Decoded script /tekton/scripts/script-0-h8svq

kubectl logs -l tekton.dev/task=hello -c step-echo
Hello World

10. tkn 로그/설명 명령 활용

tkn task logs hello

# 결과
Hello World

tkn task describe hello

# 결과
Name:        hello
Namespace:   default

🦶 Steps

 ∙ echo

🗂  Taskruns

NAME              STARTED         DURATION   STATUS
hello-run-zmcrx   6 minutes ago   16s        Succeeded

🗂️ Create a Task to Compile and Package an App from Git

https://tekton.dev/docs/how-to-guides/clone-repository/

1. 파이프라인 파일 작성


cat << EOF | kubectl apply -f -
apiVersion: tekton.dev/v1
kind: Pipeline
metadata:
  name: clone-read
spec:
  description: |
    This pipeline clones a git repo, then echoes the README file to the stout.
  params:     # 매개변수 repo-url
  - name: repo-url
    type: string
    description: The git repo URL to clone from.
  workspaces: # 다운로드할 코드를 저장할 공유 볼륨인 작업 공간을 추가
  - name: shared-data
    description: |
      This workspace contains the cloned repo files, so they can be read by the
      next task.
  tasks:      # task 정의
  - name: fetch-source
    taskRef:
      name: git-clone
    workspaces:
    - name: output
      workspace: shared-data
    params:
    - name: url
      value: \$(params.repo-url)
EOF

# 결과
pipeline.tekton.dev/clone-read created

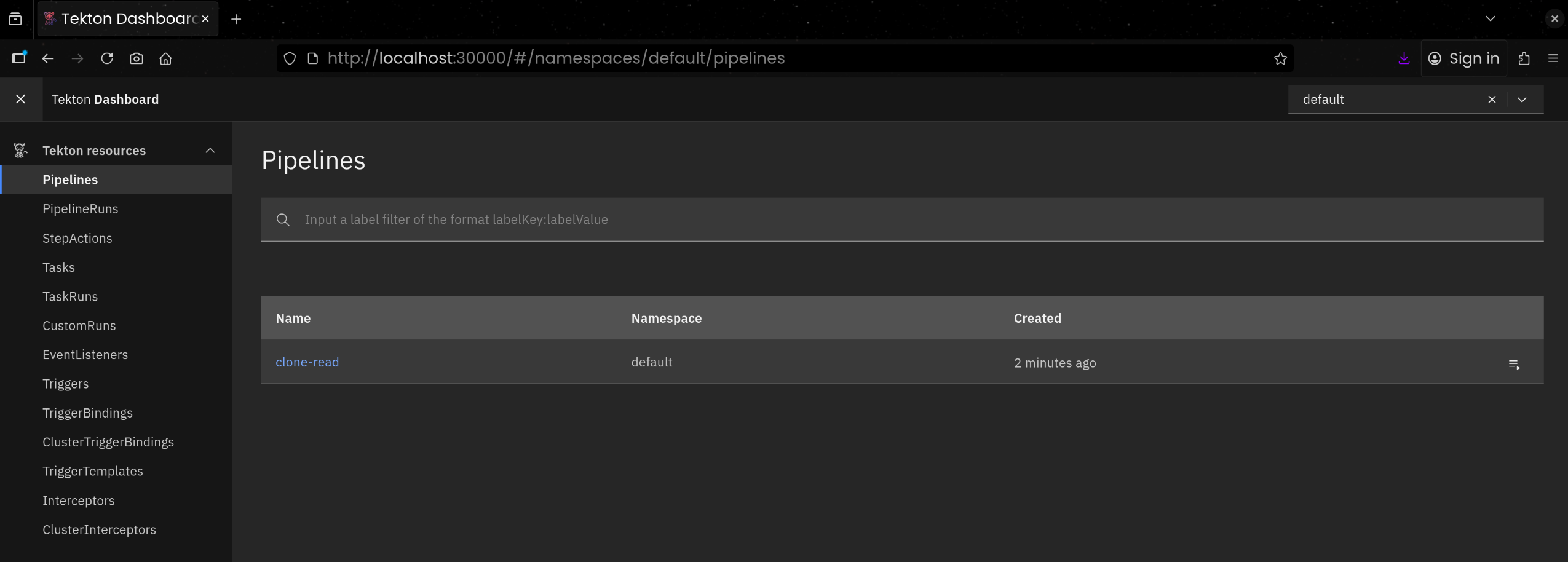

2. 파이프라인 생성 확인


tkn pipeline list

# 결과
NAME         AGE              LAST RUN   STARTED   DURATION   STATUS
clone-read   32 seconds ago   ---        ---       ---        ---


tkn pipeline describe

# 결과
Name:          clone-read
Namespace:     default
Description:   This pipeline clones a git repo, then echoes the README file to the stout.

⚓ Params

 NAME         TYPE     DESCRIPTION              DEFAULT VALUE
 ∙ repo-url   string   The git repo URL to...   ---

📂 Workspaces

 NAME            DESCRIPTION              OPTIONAL
 ∙ shared-data   This workspace cont...   false

🗒  Tasks

 NAME             TASKREF     RUNAFTER   TIMEOUT   PARAMS
 ∙ fetch-source   git-clone              ---       url: string

3. PipelineRun 생성(실행 인스턴스화)


cat << EOF | kubectl create -f -
apiVersion: tekton.dev/v1
kind: PipelineRun
metadata:
  generateName: clone-read-run-
spec:
  pipelineRef:
    name: clone-read
  taskRunTemplate:
    podTemplate:
      securityContext:
        fsGroup: 65532
  workspaces: # 작업 공간 인스턴스화, PVC 생성
  - name: shared-data
    volumeClaimTemplate:
      spec:
        accessModes:
        - ReadWriteOnce
        resources:
          requests:
            storage: 1Gi
  params:    # 저장소 URL 매개변수 값 설정
  - name: repo-url
    value: https://github.com/tektoncd/website
EOF

# 결과
pipelinerun.tekton.dev/clone-read-run-g89cg created

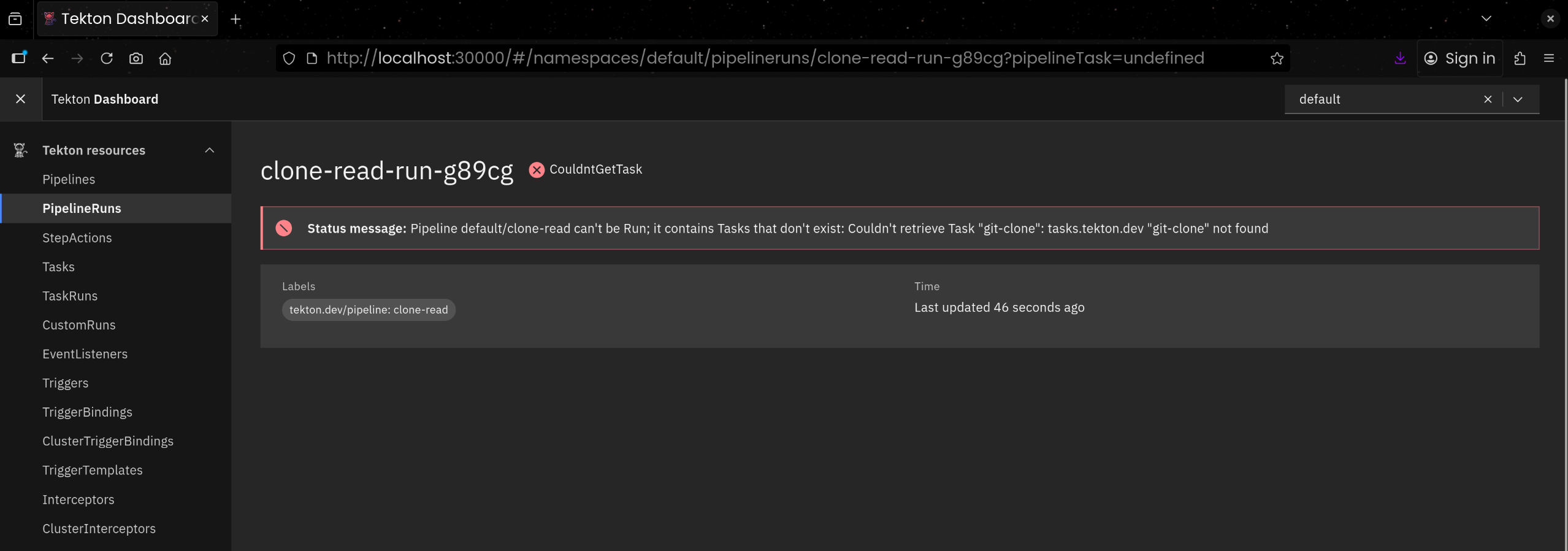

4. 초기 실패 진단

kubectl get pipelineruns
NAME                   SUCCEEDED   REASON           STARTTIME   COMPLETIONTIME
clone-read-run-g89cg   False       CouldntGetTask   2m10s       2m10s

tkn pipelinerun list
NAME                   STARTED         DURATION   STATUS
clone-read-run-g89cg   2 minutes ago   0s         Failed(CouldntGetTask)


tkn pipelinerun logs clone-read-run-g89cg

# 결과
Pipeline default/clone-read can't be Run; it contains Tasks that don't exist: Couldn't retrieve Task "git-clone": tasks.tekton.dev "git-clone" not found

파이프라인이 참조하는 git-clone Task가 클러스터에 미설치

5. 누락 Task 설치(테크톤 허브)


tkn hub install task git-clone

# 결과
WARN: This version has been deprecated
Task git-clone(0.9) installed in default namespace

kubectl get tasks

# 결과
NAME        AGE
git-clone   27s
hello       28m

6. PipelineRun 재실행


cat << EOF | kubectl create -f -
apiVersion: tekton.dev/v1
kind: PipelineRun
metadata:
  generateName: clone-read-run-
spec:
  pipelineRef:
    name: clone-read
  taskRunTemplate:
    podTemplate:
      securityContext:
        fsGroup: 65532
  workspaces:
  - name: shared-data
    volumeClaimTemplate:
      spec:
        accessModes:
        - ReadWriteOnce
        resources:
          requests:
            storage: 1Gi
  params:
  - name: repo-url
    value: https://github.com/tektoncd/website
EOF

# 결과
pipelinerun.tekton.dev/clone-read-run-6zd5t created

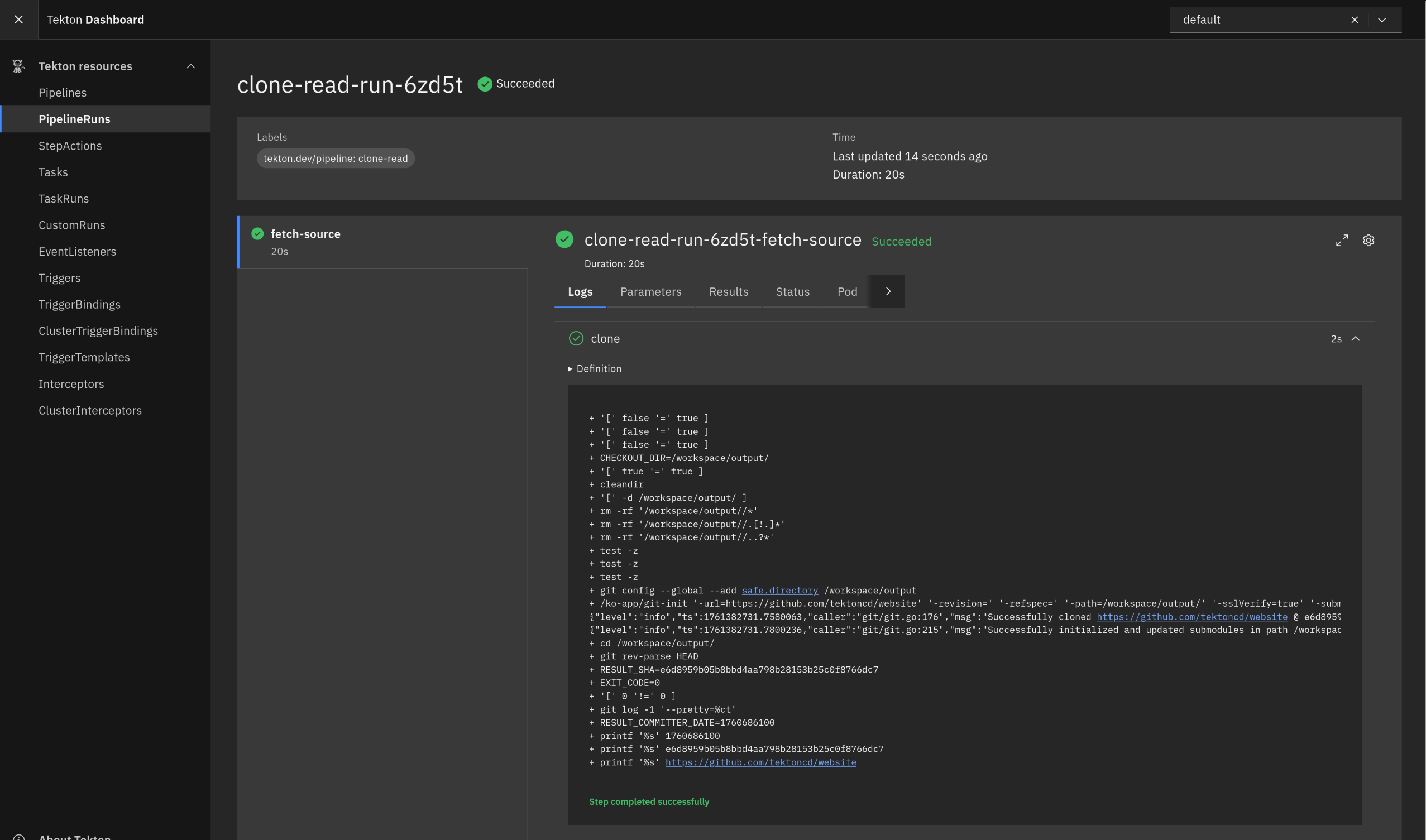

7. 실행 산출물/스토리지 확인


kubectl get pod,pv,pvc

# 결과
NAME                                        READY   STATUS      RESTARTS   AGE
pod/clone-read-run-6zd5t-fetch-source-pod   0/1     Completed   0          115s
pod/hello-run-zmcrx-pod                     0/1     Completed   0          27m

NAME                                                        CAPACITY   ACCESS MODES   RECLAIM POLICY   STATUS   CLAIM                    STORAGECLASS   VOLUMEATTRIBUTESCLASS   REASON   AGE
persistentvolume/pvc-bc02a33b-e54e-458e-a411-db06ca17bed0   1Gi        RWO            Delete           Bound    default/pvc-55505f842f   standard       <unset>                          112s

NAME                                   STATUS   VOLUME                                     CAPACITY   ACCESS MODES   STORAGECLASS   VOLUMEATTRIBUTESCLASS   AGE
persistentvolumeclaim/pvc-55505f842f   Bound    pvc-bc02a33b-e54e-458e-a411-db06ca17bed0   1Gi        RWO            standard       <unset>                 115s

CI/CD

This post is licensed under CC BY 4.0 by the author.

🚀 kind 클러스터 생성

🧩 Creating a Helm Project

1. 헬름 차트 디렉터리 레이아웃 생성

2. 차트 정의 파일(Chart.yaml) 작성

3. 배포 매니페스트 템플릿(deployment.yaml) 작성

4. 서비스 템플릿(service.yaml) 작성

5. 기본값(values.yaml) 작성

6. 디렉터리 레이아웃 확인

7. 로컬 렌더링으로 템플릿 검증

8. 런타임 오버라이드(–set) 테스트

9. 차트 설치

10. 릴리스 리스트 확인

11. 배포된 리소스 조회

12. securityContext 적용 상태 점검

13. 배포 이력 확인

14. Helm 릴리스 메타데이터 Secret 확인

15. 차트 업그레이드

16. 업그레이드 후 릴리스/이력 재확인

17. Secret 리비전 누적 확인

18. 스케일 변화 확인

19. 배포 상세 확인

20. 차트 삭제

♻️ Reusing Statements Between Templates

1. _helpers.tpl 파일 작성

2. deployment/service에 헬퍼 적용

3. 로컬 렌더링으로 적용 확인

4. _helpers.tpl 확장

5. 재렌더링으로 버전 라벨 확인

🔄 Updating a Container Image in Helm

1. _helpers.tpl 초기화

2. 초기 배포(REVISION 1)

3. 이미지 태그 1.1.0으로 갱신

4. 업그레이드 적용(REVISION 2)

5. 리소스 상태 확인

6. 이전 버전으로 롤백(REVISION 3)

7. values 오버라이드로 템플릿만 검증

📦 Packaging and Distributing a Helm Chart

1. 차트 패키징(.tgz 생성)

2. 리포지토리 인덱스 생성

🔔 Bitnami 공개 카탈로그 삭제

1. BSI nginx 이미지 가져오기

2. 이미지 목록 확인

3. 컨테이너 실행

4. 동작 확인

5. 로그 확인

6. 정리(삭제)

📥 Deploying a Chart from a Repository

1. 레포지토리 추가

2. 레포지토리 목록 확인

3. 차트 검색

4. 차트 배포

5. 릴리스 목록 확인

6. 쿠버네티스 리소스 확인

7. 서드 파티 차트 값 확인 방법

8. 실습 후 제거

🔍 Deploying a Chart with a Dependency

1. 차트 스켈레톤 생성

2. 도전과제2. music helm 배포 실패 해결

3. 디렉터리 확인

4. 의존성 다운로드

5. 렌더 & 문법 사전검증(드라이런)

6. 설치(대기/타임아웃 포함)

7. 리소스 상태 점검

8. 애플리케이션 확인(포트포워딩)

9. 정리(언인스톨 & 스토리지 해제)

🔧 Install Tekton

1. Tekton Pipeline 설치

2. Tekton Pipeline 설치 확인

3. Tekton Triggers 설치

4. Tekton Trigger 설치 확인

5. Tekton Dashboard 설치

6. Tekton Dashboard 상태 확인

7. Tekton Dashboard NodePort 노출

8. Tekton CLI 설치(Arch Linux)

👋 Create a Hello World Task

1. Task 리소스 스펙 확인

2. Task 생성

3. Task 목록 확인

4. 생성 리소스 확인(JSON/YAML)

5. 대시보드에서 Task 확인

2. 차트 정의 파일(`Chart.yaml`) 작성

3. 배포 매니페스트 템플릿(`deployment.yaml`) 작성

4. 서비스 템플릿(`service.yaml`) 작성

5. 기본값(`values.yaml`) 작성

1. `_helpers.tpl` 파일 작성

4. `_helpers.tpl` 확장

1. `_helpers.tpl` 초기화
