AEWS 12์ฃผ์ฐจ ์ •๋ฆฌ

Posted
By GAGA
29 min read

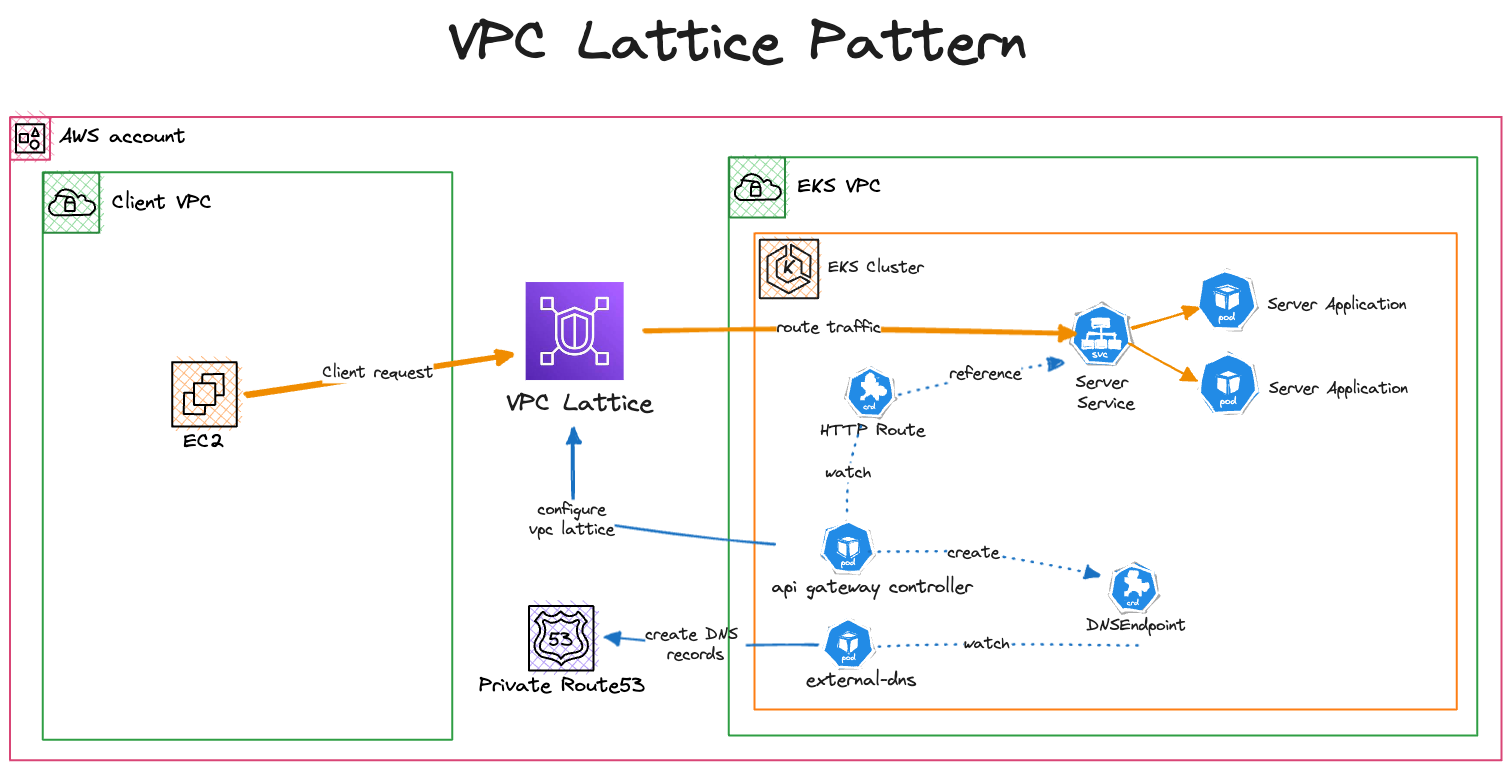

๐Ÿ–ฅ๏ธ๐Ÿ”—๐Ÿ–ฅ๏ธ [์‹ค์Šต 1] Simple Client to Server communication

https://aws-ia.github.io/terraform-aws-eks-blueprints/patterns/network/client-server-communication/

1. Terraform ์ฝ”๋“œ ์ค€๋น„ ๋ฐ ํ”„๋กœ๋น„์ €๋‹

1
2

git clone https://github.com/aws-ia/terraform-aws-eks-blueprints.git
cd terraform-aws-eks-blueprints/patterns/vpc-lattice/client-server-communication

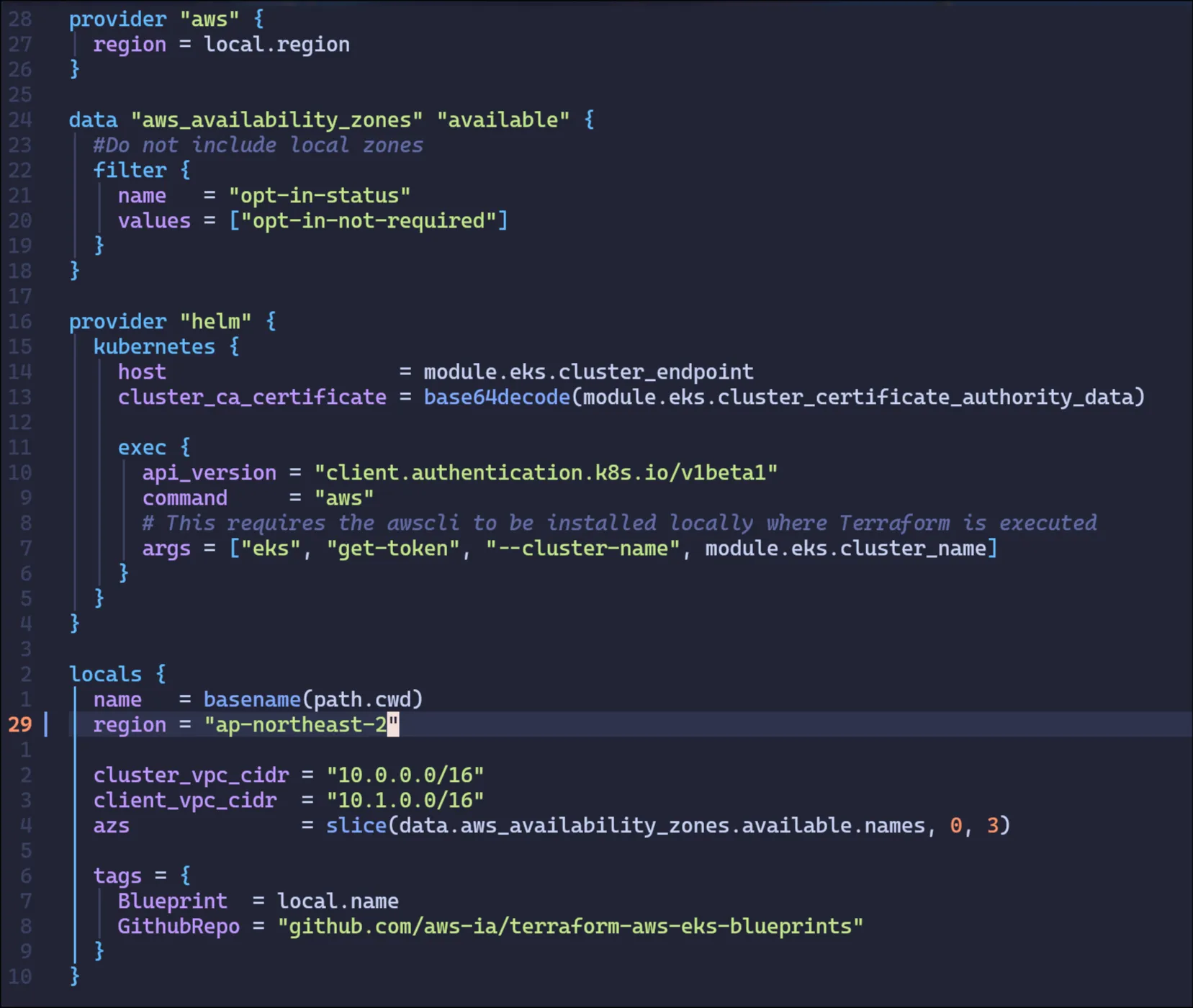

2. main.tf ์ˆ˜์ •

ํŒŒ์ผ ๋‚ด์˜ 29๋ฒˆ์งธ ๋ผ์ธ์—์„œ region ๊ฐ’์„ ap-northeast-2๋กœ ์ˆ˜์ •

3. Terrafrom init ์ˆ˜ํ–‰

1

terraform init

โœ…ย ์ถœ๋ ฅ

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126

Initializing the backend...
Initializing modules...
Downloading registry.terraform.io/aws-ia/eks-blueprints-addons/aws 1.21.0 for addons...
- addons in .terraform/modules/addons
Downloading registry.terraform.io/aws-ia/eks-blueprints-addon/aws 1.1.1 for addons.argo_events...
- addons.argo_events in .terraform/modules/addons.argo_events
Downloading registry.terraform.io/aws-ia/eks-blueprints-addon/aws 1.1.1 for addons.argo_rollouts...
- addons.argo_rollouts in .terraform/modules/addons.argo_rollouts
Downloading registry.terraform.io/aws-ia/eks-blueprints-addon/aws 1.1.1 for addons.argo_workflows...
- addons.argo_workflows in .terraform/modules/addons.argo_workflows
Downloading registry.terraform.io/aws-ia/eks-blueprints-addon/aws 1.1.1 for addons.argocd...
- addons.argocd in .terraform/modules/addons.argocd
Downloading registry.terraform.io/aws-ia/eks-blueprints-addon/aws 1.1.1 for addons.aws_cloudwatch_metrics...
- addons.aws_cloudwatch_metrics in .terraform/modules/addons.aws_cloudwatch_metrics
Downloading registry.terraform.io/aws-ia/eks-blueprints-addon/aws 1.1.1 for addons.aws_efs_csi_driver...
- addons.aws_efs_csi_driver in .terraform/modules/addons.aws_efs_csi_driver
Downloading registry.terraform.io/aws-ia/eks-blueprints-addon/aws 1.1.1 for addons.aws_for_fluentbit...
- addons.aws_for_fluentbit in .terraform/modules/addons.aws_for_fluentbit
Downloading registry.terraform.io/aws-ia/eks-blueprints-addon/aws 1.1.1 for addons.aws_fsx_csi_driver...
- addons.aws_fsx_csi_driver in .terraform/modules/addons.aws_fsx_csi_driver
Downloading registry.terraform.io/aws-ia/eks-blueprints-addon/aws 1.1.1 for addons.aws_gateway_api_controller...
- addons.aws_gateway_api_controller in .terraform/modules/addons.aws_gateway_api_controller
Downloading registry.terraform.io/aws-ia/eks-blueprints-addon/aws 1.1.1 for addons.aws_load_balancer_controller...
- addons.aws_load_balancer_controller in .terraform/modules/addons.aws_load_balancer_controller
Downloading registry.terraform.io/aws-ia/eks-blueprints-addon/aws 1.1.1 for addons.aws_node_termination_handler...
- addons.aws_node_termination_handler in .terraform/modules/addons.aws_node_termination_handler
Downloading registry.terraform.io/terraform-aws-modules/sqs/aws 4.0.1 for addons.aws_node_termination_handler_sqs...
- addons.aws_node_termination_handler_sqs in .terraform/modules/addons.aws_node_termination_handler_sqs
Downloading registry.terraform.io/aws-ia/eks-blueprints-addon/aws 1.1.1 for addons.aws_privateca_issuer...
- addons.aws_privateca_issuer in .terraform/modules/addons.aws_privateca_issuer
Downloading registry.terraform.io/aws-ia/eks-blueprints-addon/aws 1.1.1 for addons.bottlerocket_shadow...
- addons.bottlerocket_shadow in .terraform/modules/addons.bottlerocket_shadow
Downloading registry.terraform.io/aws-ia/eks-blueprints-addon/aws 1.1.1 for addons.bottlerocket_update_operator...
- addons.bottlerocket_update_operator in .terraform/modules/addons.bottlerocket_update_operator
Downloading registry.terraform.io/aws-ia/eks-blueprints-addon/aws 1.1.1 for addons.cert_manager...
- addons.cert_manager in .terraform/modules/addons.cert_manager
Downloading registry.terraform.io/aws-ia/eks-blueprints-addon/aws 1.1.1 for addons.cluster_autoscaler...
- addons.cluster_autoscaler in .terraform/modules/addons.cluster_autoscaler
Downloading registry.terraform.io/aws-ia/eks-blueprints-addon/aws 1.1.1 for addons.cluster_proportional_autoscaler...
- addons.cluster_proportional_autoscaler in .terraform/modules/addons.cluster_proportional_autoscaler
Downloading registry.terraform.io/aws-ia/eks-blueprints-addon/aws 1.1.1 for addons.external_dns...
- addons.external_dns in .terraform/modules/addons.external_dns
Downloading registry.terraform.io/aws-ia/eks-blueprints-addon/aws 1.1.1 for addons.external_secrets...
- addons.external_secrets in .terraform/modules/addons.external_secrets
Downloading registry.terraform.io/aws-ia/eks-blueprints-addon/aws 1.1.1 for addons.gatekeeper...
- addons.gatekeeper in .terraform/modules/addons.gatekeeper
Downloading registry.terraform.io/aws-ia/eks-blueprints-addon/aws 1.1.1 for addons.ingress_nginx...
- addons.ingress_nginx in .terraform/modules/addons.ingress_nginx
Downloading registry.terraform.io/aws-ia/eks-blueprints-addon/aws 1.1.1 for addons.karpenter...
- addons.karpenter in .terraform/modules/addons.karpenter
Downloading registry.terraform.io/terraform-aws-modules/sqs/aws 4.0.1 for addons.karpenter_sqs...
- addons.karpenter_sqs in .terraform/modules/addons.karpenter_sqs
Downloading registry.terraform.io/aws-ia/eks-blueprints-addon/aws 1.1.1 for addons.kube_prometheus_stack...
- addons.kube_prometheus_stack in .terraform/modules/addons.kube_prometheus_stack
Downloading registry.terraform.io/aws-ia/eks-blueprints-addon/aws 1.1.1 for addons.metrics_server...
- addons.metrics_server in .terraform/modules/addons.metrics_server
Downloading registry.terraform.io/aws-ia/eks-blueprints-addon/aws 1.1.1 for addons.secrets_store_csi_driver...
- addons.secrets_store_csi_driver in .terraform/modules/addons.secrets_store_csi_driver
Downloading registry.terraform.io/aws-ia/eks-blueprints-addon/aws 1.1.1 for addons.secrets_store_csi_driver_provider_aws...
- addons.secrets_store_csi_driver_provider_aws in .terraform/modules/addons.secrets_store_csi_driver_provider_aws
Downloading registry.terraform.io/aws-ia/eks-blueprints-addon/aws 1.1.1 for addons.velero...
- addons.velero in .terraform/modules/addons.velero
Downloading registry.terraform.io/aws-ia/eks-blueprints-addon/aws 1.1.1 for addons.vpa...
- addons.vpa in .terraform/modules/addons.vpa
Downloading registry.terraform.io/terraform-aws-modules/ec2-instance/aws 5.8.0 for client...
- client in .terraform/modules/client
Downloading registry.terraform.io/terraform-aws-modules/security-group/aws 5.3.0 for client_sg...
- client_sg in .terraform/modules/client_sg
Downloading registry.terraform.io/terraform-aws-modules/vpc/aws 5.21.0 for client_vpc...
- client_vpc in .terraform/modules/client_vpc
Downloading registry.terraform.io/terraform-aws-modules/vpc/aws 5.21.0 for cluster_vpc...
- cluster_vpc in .terraform/modules/cluster_vpc
Downloading registry.terraform.io/terraform-aws-modules/eks/aws 20.36.0 for eks...
- eks in .terraform/modules/eks
- eks.eks_managed_node_group in .terraform/modules/eks/modules/eks-managed-node-group
- eks.eks_managed_node_group.user_data in .terraform/modules/eks/modules/_user_data
- eks.fargate_profile in .terraform/modules/eks/modules/fargate-profile
Downloading registry.terraform.io/terraform-aws-modules/kms/aws 2.1.0 for eks.kms...
- eks.kms in .terraform/modules/eks.kms
- eks.self_managed_node_group in .terraform/modules/eks/modules/self-managed-node-group
- eks.self_managed_node_group.user_data in .terraform/modules/eks/modules/_user_data
Downloading registry.terraform.io/terraform-aws-modules/security-group/aws 5.3.0 for endpoint_sg...
- endpoint_sg in .terraform/modules/endpoint_sg
Downloading registry.terraform.io/terraform-aws-modules/vpc/aws 5.21.0 for vpc_endpoints...
- vpc_endpoints in .terraform/modules/vpc_endpoints/modules/vpc-endpoints

Initializing provider plugins...
- Finding hashicorp/aws versions matching ">= 3.29.0, >= 4.33.0, >= 4.36.0, >= 4.47.0, >= 4.66.0, >= 5.0.0, >= 5.34.0, >= 5.79.0, >= 5.83.0, >= 5.95.0"...
- Finding hashicorp/helm versions matching ">= 2.9.0"...
- Finding hashicorp/time versions matching ">= 0.9.0, >= 0.10.0"...
- Finding hashicorp/kubernetes versions matching ">= 2.20.0"...
- Finding hashicorp/random versions matching ">= 3.6.0"...
- Finding hashicorp/tls versions matching ">= 3.0.0"...
- Finding hashicorp/null versions matching ">= 3.0.0"...
- Finding hashicorp/cloudinit versions matching ">= 2.0.0"...
- Installing hashicorp/aws v5.96.0...
- Installed hashicorp/aws v5.96.0 (signed by HashiCorp)
- Installing hashicorp/helm v2.17.0...
- Installed hashicorp/helm v2.17.0 (signed by HashiCorp)
- Installing hashicorp/time v0.13.0...
- Installed hashicorp/time v0.13.0 (signed by HashiCorp)
- Installing hashicorp/kubernetes v2.36.0...
- Installed hashicorp/kubernetes v2.36.0 (signed by HashiCorp)
- Installing hashicorp/random v3.7.2...
- Installed hashicorp/random v3.7.2 (signed by HashiCorp)
- Installing hashicorp/tls v4.1.0...
- Installed hashicorp/tls v4.1.0 (signed by HashiCorp)
- Installing hashicorp/null v3.2.4...
- Installed hashicorp/null v3.2.4 (signed by HashiCorp)
- Installing hashicorp/cloudinit v2.3.7...
- Installed hashicorp/cloudinit v2.3.7 (signed by HashiCorp)

Terraform has created a lock file .terraform.lock.hcl to record the provider
selections it made above. Include this file in your version control repository
so that Terraform can guarantee to make the same selections by default when
you run "terraform init" in the future.

Terraform has been successfully initialized!

You may now begin working with Terraform. Try running "terraform plan" to see
any changes that are required for your infrastructure. All Terraform commands
should now work.

If you ever set or change modules or backend configuration for Terraform,
rerun this command to reinitialize your working directory. If you forget, other
commands will detect it and remind you to do so if necessary.

4. Terraform ๋ชจ๋“ˆ ํ”„๋กœ๋น„์ €๋‹

1
2
3
4
5
6
7
8
9
10
11
12

terraform apply -target="module.client_vpc" -auto-approve
terraform apply -target="module.cluster_vpc" -auto-approve
terraform apply -target=aws_route53_zone.primary -auto-approve

terraform apply -target="module.client_sg" -auto-approve
terraform apply -target="module.endpoint_sg" -auto-approve

terraform apply -target="module.client" -auto-approve
terraform apply -target="module.vpc_endpoints" -auto-approve

terraform apply -target="module.eks" -auto-approve
terraform apply -target="module.addons" -auto-approve

โœ…ย ์ถœ๋ ฅ

1
2
3
4
5

...

Outputs:

configure_kubectl = "aws eks update-kubeconfig --name client-server-communication --alias client-server-communication --region ap-northeast-2"

5. Terraform ๋‚˜๋จธ์ง€ ๋ฆฌ์†Œ์Šค ํ”„๋กœ๋น„์ €๋‹

1

terraform apply -auto-approve

โœ…ย ์ถœ๋ ฅ

1
2
3
4
5
6
7
8
9
10
11
12

...
time_sleep.wait_for_lattice_resources: Still creating... [1m20s elapsed]
time_sleep.wait_for_lattice_resources: Still creating... [1m30s elapsed]
time_sleep.wait_for_lattice_resources: Still creating... [1m40s elapsed]
time_sleep.wait_for_lattice_resources: Still creating... [1m50s elapsed]
time_sleep.wait_for_lattice_resources: Creation complete after 2m0s [id=2025-04-26T16:03:57Z]

Apply complete! Resources: 6 added, 0 changed, 0 destroyed.

Outputs:

configure_kubectl = "aws eks update-kubeconfig --name client-server-communication --alias client-server-communication --region ap-northeast-2"

6. kubectl config ์„ค์ •

1
2
3
4

aws eks update-kubeconfig --name client-server-communication --alias client-server-communication --region ap-northeast-2

# ๊ฒฐ๊ณผ
Added new context client-server-communication to /home/devshin/.kube/config

7. Amazon EKS ์—”๋“œํฌ์ธํŠธ ์š”์ฒญ์ด ์ •์ƒ์ ์œผ๋กœ ์ˆ˜์‹ ๋˜๋Š”์ง€ ํ™•์ธ

1

kubectl get po -A

โœ…ย ์ถœ๋ ฅ

1
2
3
4
5
6
7
8
9
10
11
12
13
14

NAMESPACE                           NAME                                                              READY   STATUS    RESTARTS   AGE
apps                                server-6d44dd47-h5n8b                                             1/1     Running   0          3m42s
apps                                server-6d44dd47-rv8lk                                             1/1     Running   0          3m42s
aws-application-networking-system   aws-gateway-api-controller-aws-gateway-controller-chart-686b6cw   1/1     Running   0          5m36s
aws-application-networking-system   aws-gateway-api-controller-aws-gateway-controller-chart-68qgktp   1/1     Running   0          5m36s
external-dns                        external-dns-555c676b8-b8ssx                                      1/1     Running   0          5m37s
kube-system                         aws-node-cvv9l                                                    2/2     Running   0          6m48s
kube-system                         aws-node-fpt56                                                    2/2     Running   0          6m49s
kube-system                         aws-node-qcgms                                                    2/2     Running   0          6m49s
kube-system                         coredns-5b9dfbf96-kb5nc                                           1/1     Running   0          10m
kube-system                         coredns-5b9dfbf96-s5qtw                                           1/1     Running   0          10m
kube-system                         kube-proxy-885cd                                                  1/1     Running   0          6m48s
kube-system                         kube-proxy-h4fdj                                                  1/1     Running   0          6m49s
kube-system                         kube-proxy-wrv47                                                  1/1     Running   0          6m49s

๐Ÿ” ํ”„๋กœ๋น„์ €๋‹ ๋œ ์ธํ”„๋ผ ํ™•์ธ

1. VPC

VPC ์ƒ์„ฑ ์—ฌ๋ถ€ ํ™•์ธ

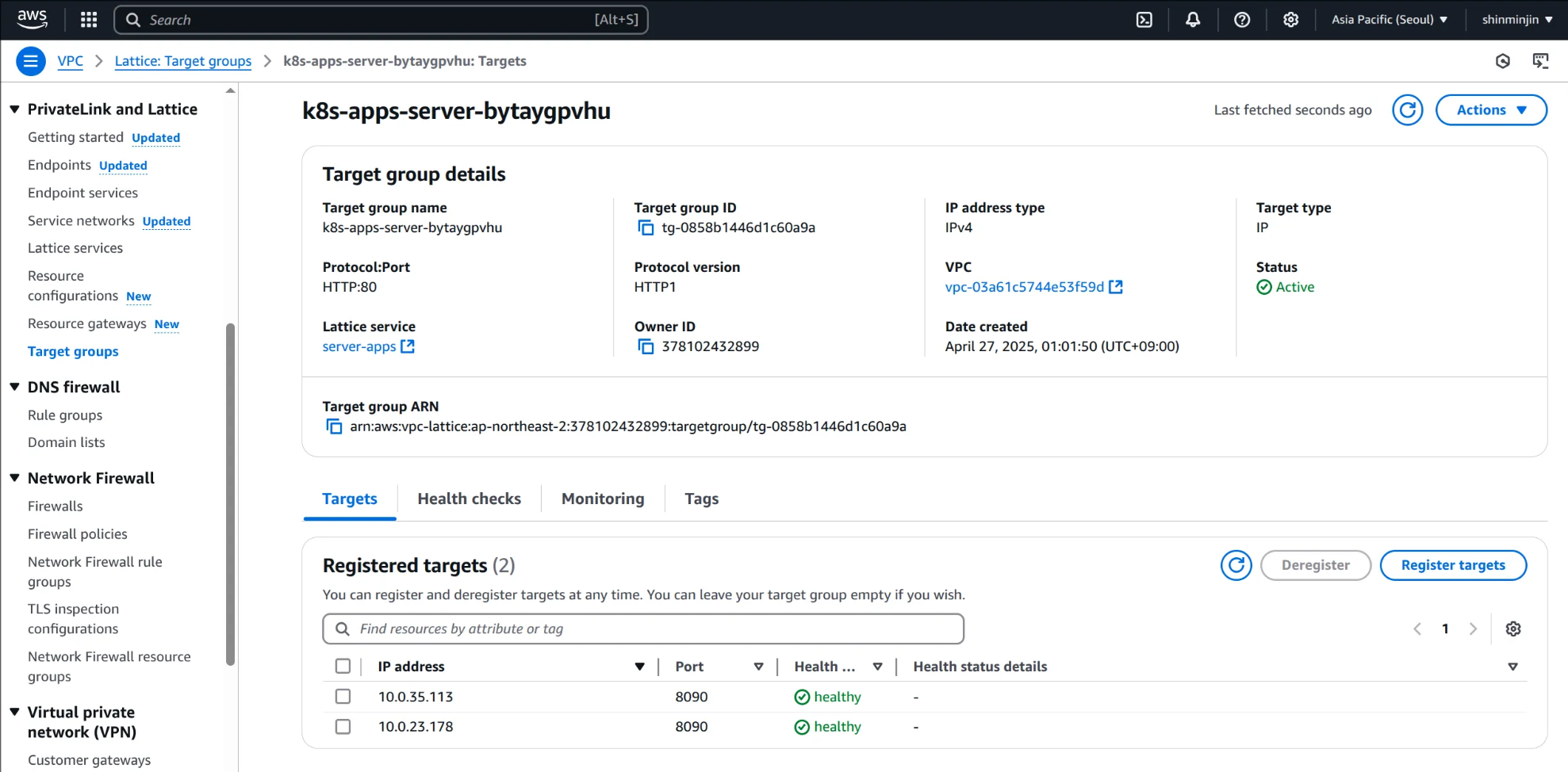

2. Amazon VPC Lattice Target Group ํ™•์ธ

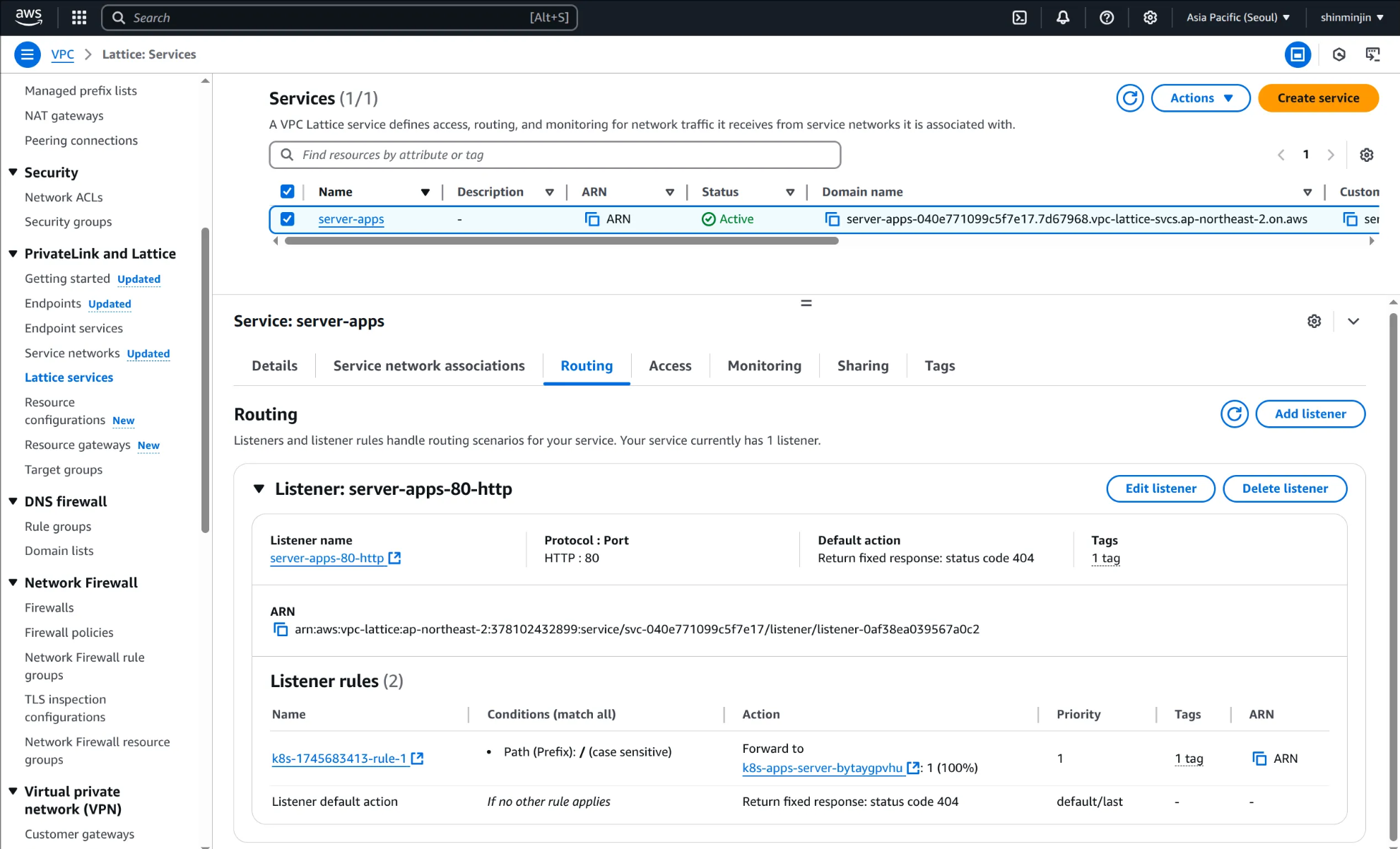

(1) VPC Lattice Service์˜ ์„ธ๋ถ€ ํ•ญ๋ชฉ ์ค‘ Routing ์„น์…˜ ํด๋ฆญ ํ›„ Listener ๊ทœ์น™ ๋ฐ ๋Œ€์ƒ ๊ทธ๋ฃน ํ™•์ธ

(2) Registered targets ์„น์…˜์—์„œ IP address์™€ Port ๋ฒˆํ˜ธ๋กœ ๋ผ์šฐํŒ… ๋Œ€์ƒ ํ™•์ธ

(3) ๋Œ€์ƒ server ํŒŒ๋“œ IP ์ฃผ์†Œ ์กฐํšŒ

1

kubectl get po -n apps -o wide

โœ…ย ์ถœ๋ ฅ

1
2
3

NAME                    READY   STATUS    RESTARTS   AGE   IP            NODE                                             NOMINATED NODE   READINESS GATES
server-6d44dd47-h5n8b   1/1     Running   0          11m   10.0.23.178   ip-10-0-24-149.ap-northeast-2.compute.internal   <none>           <none>
server-6d44dd47-rv8lk   1/1     Running   0          11m   10.0.35.113   ip-10-0-35-253.ap-northeast-2.compute.internal   <none>           <none>

(3) server ํŒŒ๋“œ์˜ ์„œ๋น„์Šค ์ •๋ณด ๋ฐ ํฌํŠธ ๋ฒˆํ˜ธ ์กฐํšŒ

1

kubectl get svc -n apps

โœ…ย ์ถœ๋ ฅ

1
2

NAME     TYPE        CLUSTER-IP       EXTERNAL-IP   PORT(S)    AGE
server   ClusterIP   172.20.120.176   <none>        8090/TCP   13m

3. AWS Gateway API Controller ๋™์ž‘ ์ฒดํฌ

(1) AWS Gateway API Controller ๋กœ๊ทธ lattice.log ํŒŒ์ผ๋กœ ์ €์žฅ

1
2
3
4

kubectl logs deployment/aws-gateway-api-controller-aws-gateway-controller-chart -n aws-application-networking-system --all-containers=true > lattice.log

# ๊ฒฐ๊ณผ
Found 2 pods, using pod/aws-gateway-api-controller-aws-gateway-controller-chart-686b6cw

(2) AWS Gateway API Controller ๋™์ž‘ ํ™•์ธ

1

vi lattice.log

โœ…ย ์ถœ๋ ฅ

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191

{"level":"info","ts":"2025-04-26T16:00:00.213Z","logger":"setup","caller":"workspace/main.go:112","msg":"init config","VpcId":"vpc-03a61c5744e53f59d","Region":"ap-northeast-2","AccountId":"378102432899","DefaultServiceNetwork":"","ClusterName":"client-server-communication","LogLevel":"debug"}
{"level":"debug","ts":"2025-04-26T16:00:00.321Z","logger":"controller.iam-auth-policy","caller":"policyhelper/policy.go:252","msg":"add watchers for types: [{gateway.networking.k8s.io Gateway} {gateway.networking.k8s.io HTTPRoute} {gateway.networking.k8s.io GRPCRoute}]"}
{"level":"debug","ts":"2025-04-26T16:00:00.322Z","logger":"controller.target-group-policy","caller":"policyhelper/policy.go:252","msg":"add watchers for types: [{ Service}]"}
{"level":"debug","ts":"2025-04-26T16:00:00.322Z","logger":"controller.vpc-association-policy","caller":"policyhelper/policy.go:252","msg":"add watchers for types: [{gateway.networking.k8s.io Gateway}]"}
{"level":"info","ts":"2025-04-26T16:00:00.322Z","logger":"setup","caller":"workspace/main.go:217","msg":"starting manager"}
{"level":"info","ts":"2025-04-26T16:00:00.322Z","logger":"runtime.controller-runtime.metrics","caller":"server/server.go:185","msg":"Starting metrics server"}
I0426 16:00:00.322585       1 leaderelection.go:250] attempting to acquire leader lease aws-application-networking-system/amazon-vpc-lattice.io...
{"level":"info","ts":"2025-04-26T16:00:00.322Z","logger":"runtime.controller-runtime.metrics","caller":"server/server.go:224","msg":"Serving metrics server","bindAddress":":8080","secure":false}
{"level":"info","ts":"2025-04-26T16:00:00.322Z","logger":"runtime","caller":"manager/server.go:50","msg":"starting server","kind":"health probe","addr":"[::]:8081"}
{"level":"debug","ts":"2025-04-26T16:00:30.580Z","logger":"cloud","caller":"aws/cloud.go:65","msg":"response","serviceName":"VPC Lattice","operation":"ListTargetGroups","params":"{\n\n}"}
{"level":"debug","ts":"2025-04-26T16:00:30.580Z","logger":"controller.route.tg-gc","caller":"deploy/stack_deployer.go:178","msg":"gc stats","delete_attempts":0,"delete_success":0,"duration":0.27270546}
{"level":"debug","ts":"2025-04-26T16:01:00.361Z","logger":"cloud","caller":"aws/cloud.go:65","msg":"response","serviceName":"VPC Lattice","operation":"ListTargetGroups","params":"{\n\n}"}
{"level":"debug","ts":"2025-04-26T16:01:00.362Z","logger":"controller.route.tg-gc","caller":"deploy/stack_deployer.go:178","msg":"gc stats","delete_attempts":0,"delete_success":0,"duration":0.054292284}
{"level":"debug","ts":"2025-04-26T16:01:30.352Z","logger":"cloud","caller":"aws/cloud.go:65","msg":"response","serviceName":"VPC Lattice","operation":"ListTargetGroups","params":"{\n\n}"}
{"level":"debug","ts":"2025-04-26T16:01:30.352Z","logger":"controller.route.tg-gc","caller":"deploy/stack_deployer.go:178","msg":"gc stats","delete_attempts":0,"delete_success":0,"duration":0.045031302}
{"level":"debug","ts":"2025-04-26T16:02:00.352Z","logger":"cloud","caller":"aws/cloud.go:65","msg":"response","serviceName":"VPC Lattice","operation":"ListTargetGroups","params":"{\n\n}"}
{"level":"debug","ts":"2025-04-26T16:02:00.386Z","logger":"cloud","caller":"aws/cloud.go:65","msg":"response","serviceName":"tagging","operation":"GetResources","params":"{\n  ResourceARNList: [\"arn:aws:vpc-lattice:ap-northeast-2:378102432899:targetgroup/tg-0858b1446d1c60a9a\"]\n}"}
{"level":"info","ts":"2025-04-26T16:02:00.489Z","logger":"controller.route","caller":"gateway/model_build_lattice_service.go:122","msg":"Setting customer-domain-name: server.example.com for route server-apps"}
{"level":"debug","ts":"2025-04-26T16:02:00.590Z","logger":"controller.route","caller":"gateway/model_build_lattice_service.go:141","msg":"Added service server-apps to the stack (ID server-apps)"}
{"level":"debug","ts":"2025-04-26T16:02:00.590Z","logger":"controller.route","caller":"gateway/model_build_listener.go:23","msg":"Listener parentRef SectionName is http"}
{"level":"debug","ts":"2025-04-26T16:02:00.590Z","logger":"controller.route","caller":"gateway/model_build_listener.go:26","msg":"Building Listener for Route server-apps"}
{"level":"debug","ts":"2025-04-26T16:02:00.590Z","logger":"controller.route","caller":"gateway/model_build_listener.go:113","msg":"Added listener server-apps to the stack (ID id-30e2286f178f6d12b81339b408a83399dfca872e50a93aa718b1bdc94a4891ae)"}
{"level":"debug","ts":"2025-04-26T16:02:00.590Z","logger":"controller.route","caller":"gateway/model_build_lattice_service.go:84","msg":"Building rules for 1 listeners"}
{"level":"debug","ts":"2025-04-26T16:02:00.590Z","logger":"controller.route","caller":"gateway/model_build_rule.go:35","msg":"Processing 1 rules"}
{"level":"debug","ts":"2025-04-26T16:02:00.590Z","logger":"controller.route","caller":"gateway/model_build_rule.go:47","msg":"Processing rule match"}
{"level":"debug","ts":"2025-04-26T16:02:00.590Z","logger":"controller.route","caller":"gateway/model_build_rule.go:109","msg":"Examining pathmatch type PathPrefix value / for for httproute server-apps "}
{"level":"debug","ts":"2025-04-26T16:02:00.590Z","logger":"controller.route","caller":"gateway/model_build_rule.go:119","msg":"Using PathMatchPathPrefix for httproute server-apps "}
{"level":"debug","ts":"2025-04-26T16:02:00.590Z","logger":"controller.route","caller":"gateway/model_build_rule.go:226","msg":"Processing Service backendRef server-apps"}
{"level":"debug","ts":"2025-04-26T16:02:00.590Z","logger":"controller.route","caller":"gateway/model_build_targetgroup.go:298","msg":"buildTargetGroupSpec, kind Service"}
{"level":"debug","ts":"2025-04-26T16:02:00.796Z","logger":"controller.route","caller":"gateway/model_build_targetgroup.go:264","msg":"Added target group for backendRef server to the stack id-918a728616f181548471cee5147610ef76a7cb6cf2c607bca3dbb8d9126774d9"}
{"level":"debug","ts":"2025-04-26T16:02:00.796Z","logger":"controller.route","caller":"gateway/model_build_targets.go:87","msg":"Processing targets for service server-apps"}
{"level":"debug","ts":"2025-04-26T16:02:00.896Z","logger":"controller.route","caller":"gateway/model_build_rule.go:91","msg":"Added rule 1 to the stack (ID id-a78db65f9775cb7dc8fa73808642d463fa33af400de07c072eee55884268cac5)"}
{"level":"debug","ts":"2025-04-26T16:02:00.896Z","logger":"controller.route","caller":"lattice/target_group_synthesizer.go:321","msg":"Route TargetGroup arn:aws:vpc-lattice:ap-northeast-2:378102432899:targetgroup/tg-0858b1446d1c60a9a (k8s-apps-server-bytaygpvhu) is up to date"}
{"level":"debug","ts":"2025-04-26T16:02:00.896Z","logger":"controller.route.tg-gc","caller":"deploy/stack_deployer.go:178","msg":"gc stats","delete_attempts":0,"delete_success":0,"duration":0.588905628}
{"level":"debug","ts":"2025-04-26T16:02:30.364Z","logger":"cloud","caller":"aws/cloud.go:65","msg":"response","serviceName":"VPC Lattice","operation":"ListTargetGroups","params":"{\n\n}"}
{"level":"debug","ts":"2025-04-26T16:02:30.386Z","logger":"cloud","caller":"aws/cloud.go:65","msg":"response","serviceName":"tagging","operation":"GetResources","params":"{\n  ResourceARNList: [\"arn:aws:vpc-lattice:ap-northeast-2:378102432899:targetgroup/tg-0858b1446d1c60a9a\"]\n}"}
{"level":"info","ts":"2025-04-26T16:02:30.386Z","logger":"controller.route","caller":"gateway/model_build_lattice_service.go:122","msg":"Setting customer-domain-name: server.example.com for route server-apps"}
{"level":"debug","ts":"2025-04-26T16:02:30.386Z","logger":"controller.route","caller":"gateway/model_build_lattice_service.go:141","msg":"Added service server-apps to the stack (ID server-apps)"}
{"level":"debug","ts":"2025-04-26T16:02:30.386Z","logger":"controller.route","caller":"gateway/model_build_listener.go:23","msg":"Listener parentRef SectionName is http"}
{"level":"debug","ts":"2025-04-26T16:02:30.386Z","logger":"controller.route","caller":"gateway/model_build_listener.go:26","msg":"Building Listener for Route server-apps"}
{"level":"debug","ts":"2025-04-26T16:02:30.386Z","logger":"controller.route","caller":"gateway/model_build_listener.go:113","msg":"Added listener server-apps to the stack (ID id-30e2286f178f6d12b81339b408a83399dfca872e50a93aa718b1bdc94a4891ae)"}
{"level":"debug","ts":"2025-04-26T16:02:30.386Z","logger":"controller.route","caller":"gateway/model_build_lattice_service.go:84","msg":"Building rules for 1 listeners"}
{"level":"debug","ts":"2025-04-26T16:02:30.386Z","logger":"controller.route","caller":"gateway/model_build_rule.go:35","msg":"Processing 1 rules"}
{"level":"debug","ts":"2025-04-26T16:02:30.386Z","logger":"controller.route","caller":"gateway/model_build_rule.go:47","msg":"Processing rule match"}
{"level":"debug","ts":"2025-04-26T16:02:30.386Z","logger":"controller.route","caller":"gateway/model_build_rule.go:109","msg":"Examining pathmatch type PathPrefix value / for for httproute server-apps "}
{"level":"debug","ts":"2025-04-26T16:02:30.386Z","logger":"controller.route","caller":"gateway/model_build_rule.go:119","msg":"Using PathMatchPathPrefix for httproute server-apps "}
{"level":"debug","ts":"2025-04-26T16:02:30.386Z","logger":"controller.route","caller":"gateway/model_build_rule.go:226","msg":"Processing Service backendRef server-apps"}
{"level":"debug","ts":"2025-04-26T16:02:30.386Z","logger":"controller.route","caller":"gateway/model_build_targetgroup.go:298","msg":"buildTargetGroupSpec, kind Service"}
{"level":"debug","ts":"2025-04-26T16:02:30.386Z","logger":"controller.route","caller":"gateway/model_build_targetgroup.go:264","msg":"Added target group for backendRef server to the stack id-918a728616f181548471cee5147610ef76a7cb6cf2c607bca3dbb8d9126774d9"}
{"level":"debug","ts":"2025-04-26T16:02:30.386Z","logger":"controller.route","caller":"gateway/model_build_targets.go:87","msg":"Processing targets for service server-apps"}
{"level":"debug","ts":"2025-04-26T16:02:30.386Z","logger":"controller.route","caller":"gateway/model_build_rule.go:91","msg":"Added rule 1 to the stack (ID id-a78db65f9775cb7dc8fa73808642d463fa33af400de07c072eee55884268cac5)"}
{"level":"debug","ts":"2025-04-26T16:02:30.386Z","logger":"controller.route","caller":"lattice/target_group_synthesizer.go:321","msg":"Route TargetGroup arn:aws:vpc-lattice:ap-northeast-2:378102432899:targetgroup/tg-0858b1446d1c60a9a (k8s-apps-server-bytaygpvhu) is up to date"}
{"level":"debug","ts":"2025-04-26T16:02:30.386Z","logger":"controller.route.tg-gc","caller":"deploy/stack_deployer.go:178","msg":"gc stats","delete_attempts":0,"delete_success":0,"duration":0.079111387}
{"level":"debug","ts":"2025-04-26T16:03:00.350Z","logger":"cloud","caller":"aws/cloud.go:65","msg":"response","serviceName":"VPC Lattice","operation":"ListTargetGroups","params":"{\n\n}"}
{"level":"debug","ts":"2025-04-26T16:03:00.374Z","logger":"cloud","caller":"aws/cloud.go:65","msg":"response","serviceName":"tagging","operation":"GetResources","params":"{\n  ResourceARNList: [\"arn:aws:vpc-lattice:ap-northeast-2:378102432899:targetgroup/tg-0858b1446d1c60a9a\"]\n}"}
{"level":"info","ts":"2025-04-26T16:03:00.375Z","logger":"controller.route","caller":"gateway/model_build_lattice_service.go:122","msg":"Setting customer-domain-name: server.example.com for route server-apps"}
{"level":"debug","ts":"2025-04-26T16:03:00.375Z","logger":"controller.route","caller":"gateway/model_build_lattice_service.go:141","msg":"Added service server-apps to the stack (ID server-apps)"}
{"level":"debug","ts":"2025-04-26T16:03:00.375Z","logger":"controller.route","caller":"gateway/model_build_listener.go:23","msg":"Listener parentRef SectionName is http"}
{"level":"debug","ts":"2025-04-26T16:03:00.375Z","logger":"controller.route","caller":"gateway/model_build_listener.go:26","msg":"Building Listener for Route server-apps"}
{"level":"debug","ts":"2025-04-26T16:03:00.375Z","logger":"controller.route","caller":"gateway/model_build_listener.go:113","msg":"Added listener server-apps to the stack (ID id-30e2286f178f6d12b81339b408a83399dfca872e50a93aa718b1bdc94a4891ae)"}
{"level":"debug","ts":"2025-04-26T16:03:00.375Z","logger":"controller.route","caller":"gateway/model_build_lattice_service.go:84","msg":"Building rules for 1 listeners"}
{"level":"debug","ts":"2025-04-26T16:03:00.375Z","logger":"controller.route","caller":"gateway/model_build_rule.go:35","msg":"Processing 1 rules"}
{"level":"debug","ts":"2025-04-26T16:03:00.375Z","logger":"controller.route","caller":"gateway/model_build_rule.go:47","msg":"Processing rule match"}
{"level":"debug","ts":"2025-04-26T16:03:00.375Z","logger":"controller.route","caller":"gateway/model_build_rule.go:109","msg":"Examining pathmatch type PathPrefix value / for for httproute server-apps "}
{"level":"debug","ts":"2025-04-26T16:03:00.375Z","logger":"controller.route","caller":"gateway/model_build_rule.go:119","msg":"Using PathMatchPathPrefix for httproute server-apps "}
{"level":"debug","ts":"2025-04-26T16:03:00.375Z","logger":"controller.route","caller":"gateway/model_build_rule.go:226","msg":"Processing Service backendRef server-apps"}
{"level":"debug","ts":"2025-04-26T16:03:00.375Z","logger":"controller.route","caller":"gateway/model_build_targetgroup.go:298","msg":"buildTargetGroupSpec, kind Service"}
{"level":"debug","ts":"2025-04-26T16:03:00.375Z","logger":"controller.route","caller":"gateway/model_build_targetgroup.go:264","msg":"Added target group for backendRef server to the stack id-918a728616f181548471cee5147610ef76a7cb6cf2c607bca3dbb8d9126774d9"}
{"level":"debug","ts":"2025-04-26T16:03:00.375Z","logger":"controller.route","caller":"gateway/model_build_targets.go:87","msg":"Processing targets for service server-apps"}
{"level":"debug","ts":"2025-04-26T16:03:00.375Z","logger":"controller.route","caller":"gateway/model_build_rule.go:91","msg":"Added rule 1 to the stack (ID id-a78db65f9775cb7dc8fa73808642d463fa33af400de07c072eee55884268cac5)"}
{"level":"debug","ts":"2025-04-26T16:03:00.375Z","logger":"controller.route","caller":"lattice/target_group_synthesizer.go:321","msg":"Route TargetGroup arn:aws:vpc-lattice:ap-northeast-2:378102432899:targetgroup/tg-0858b1446d1c60a9a (k8s-apps-server-bytaygpvhu) is up to date"}
{"level":"debug","ts":"2025-04-26T16:03:00.375Z","logger":"controller.route.tg-gc","caller":"deploy/stack_deployer.go:178","msg":"gc stats","delete_attempts":0,"delete_success":0,"duration":0.066947268}
{"level":"debug","ts":"2025-04-26T16:03:30.359Z","logger":"cloud","caller":"aws/cloud.go:65","msg":"response","serviceName":"VPC Lattice","operation":"ListTargetGroups","params":"{\n\n}"}
{"level":"debug","ts":"2025-04-26T16:03:30.381Z","logger":"cloud","caller":"aws/cloud.go:65","msg":"response","serviceName":"tagging","operation":"GetResources","params":"{\n  ResourceARNList: [\"arn:aws:vpc-lattice:ap-northeast-2:378102432899:targetgroup/tg-0858b1446d1c60a9a\"]\n}"}
{"level":"info","ts":"2025-04-26T16:03:30.381Z","logger":"controller.route","caller":"gateway/model_build_lattice_service.go:122","msg":"Setting customer-domain-name: server.example.com for route server-apps"}
{"level":"debug","ts":"2025-04-26T16:03:30.381Z","logger":"controller.route","caller":"gateway/model_build_lattice_service.go:141","msg":"Added service server-apps to the stack (ID server-apps)"}
{"level":"debug","ts":"2025-04-26T16:03:30.382Z","logger":"controller.route","caller":"gateway/model_build_listener.go:23","msg":"Listener parentRef SectionName is http"}
{"level":"debug","ts":"2025-04-26T16:03:30.382Z","logger":"controller.route","caller":"gateway/model_build_listener.go:26","msg":"Building Listener for Route server-apps"}
{"level":"debug","ts":"2025-04-26T16:03:30.382Z","logger":"controller.route","caller":"gateway/model_build_listener.go:113","msg":"Added listener server-apps to the stack (ID id-30e2286f178f6d12b81339b408a83399dfca872e50a93aa718b1bdc94a4891ae)"}
{"level":"debug","ts":"2025-04-26T16:03:30.382Z","logger":"controller.route","caller":"gateway/model_build_lattice_service.go:84","msg":"Building rules for 1 listeners"}
{"level":"debug","ts":"2025-04-26T16:03:30.382Z","logger":"controller.route","caller":"gateway/model_build_rule.go:35","msg":"Processing 1 rules"}
{"level":"debug","ts":"2025-04-26T16:03:30.382Z","logger":"controller.route","caller":"gateway/model_build_rule.go:47","msg":"Processing rule match"}
{"level":"debug","ts":"2025-04-26T16:03:30.382Z","logger":"controller.route","caller":"gateway/model_build_rule.go:109","msg":"Examining pathmatch type PathPrefix value / for for httproute server-apps "}
{"level":"debug","ts":"2025-04-26T16:03:30.382Z","logger":"controller.route","caller":"gateway/model_build_rule.go:119","msg":"Using PathMatchPathPrefix for httproute server-apps "}
{"level":"debug","ts":"2025-04-26T16:03:30.382Z","logger":"controller.route","caller":"gateway/model_build_rule.go:226","msg":"Processing Service backendRef server-apps"}
{"level":"debug","ts":"2025-04-26T16:03:30.382Z","logger":"controller.route","caller":"gateway/model_build_targetgroup.go:298","msg":"buildTargetGroupSpec, kind Service"}
{"level":"debug","ts":"2025-04-26T16:03:30.382Z","logger":"controller.route","caller":"gateway/model_build_targetgroup.go:264","msg":"Added target group for backendRef server to the stack id-918a728616f181548471cee5147610ef76a7cb6cf2c607bca3dbb8d9126774d9"}
{"level":"debug","ts":"2025-04-26T16:03:30.382Z","logger":"controller.route","caller":"gateway/model_build_targets.go:87","msg":"Processing targets for service server-apps"}
{"level":"debug","ts":"2025-04-26T16:03:30.382Z","logger":"controller.route","caller":"gateway/model_build_rule.go:91","msg":"Added rule 1 to the stack (ID id-a78db65f9775cb7dc8fa73808642d463fa33af400de07c072eee55884268cac5)"}
{"level":"debug","ts":"2025-04-26T16:03:30.382Z","logger":"controller.route","caller":"lattice/target_group_synthesizer.go:321","msg":"Route TargetGroup arn:aws:vpc-lattice:ap-northeast-2:378102432899:targetgroup/tg-0858b1446d1c60a9a (k8s-apps-server-bytaygpvhu) is up to date"}
{"level":"debug","ts":"2025-04-26T16:03:30.382Z","logger":"controller.route.tg-gc","caller":"deploy/stack_deployer.go:178","msg":"gc stats","delete_attempts":0,"delete_success":0,"duration":0.073790243}
{"level":"debug","ts":"2025-04-26T16:04:00.363Z","logger":"cloud","caller":"aws/cloud.go:65","msg":"response","serviceName":"VPC Lattice","operation":"ListTargetGroups","params":"{\n\n}"}
{"level":"debug","ts":"2025-04-26T16:04:00.382Z","logger":"cloud","caller":"aws/cloud.go:65","msg":"response","serviceName":"tagging","operation":"GetResources","params":"{\n  ResourceARNList: [\"arn:aws:vpc-lattice:ap-northeast-2:378102432899:targetgroup/tg-0858b1446d1c60a9a\"]\n}"}
{"level":"debug","ts":"2025-04-26T16:04:00.382Z","logger":"controller.route","caller":"lattice/target_group_synthesizer.go:184","msg":"TargetGroup arn:aws:vpc-lattice:ap-northeast-2:378102432899:targetgroup/tg-0858b1446d1c60a9a (k8s-apps-server-bytaygpvhu) is referenced by lattice service"}
{"level":"debug","ts":"2025-04-26T16:04:00.382Z","logger":"controller.route.tg-gc","caller":"deploy/stack_deployer.go:178","msg":"gc stats","delete_attempts":0,"delete_success":0,"duration":0.073984275}
{"level":"debug","ts":"2025-04-26T16:04:30.371Z","logger":"cloud","caller":"aws/cloud.go:65","msg":"response","serviceName":"VPC Lattice","operation":"ListTargetGroups","params":"{\n\n}"}
{"level":"debug","ts":"2025-04-26T16:04:30.395Z","logger":"cloud","caller":"aws/cloud.go:65","msg":"response","serviceName":"tagging","operation":"GetResources","params":"{\n  ResourceARNList: [\"arn:aws:vpc-lattice:ap-northeast-2:378102432899:targetgroup/tg-0858b1446d1c60a9a\"]\n}"}
{"level":"debug","ts":"2025-04-26T16:04:30.395Z","logger":"controller.route","caller":"lattice/target_group_synthesizer.go:184","msg":"TargetGroup arn:aws:vpc-lattice:ap-northeast-2:378102432899:targetgroup/tg-0858b1446d1c60a9a (k8s-apps-server-bytaygpvhu) is referenced by lattice service"}
{"level":"debug","ts":"2025-04-26T16:04:30.395Z","logger":"controller.route.tg-gc","caller":"deploy/stack_deployer.go:178","msg":"gc stats","delete_attempts":0,"delete_success":0,"duration":0.087691915}
{"level":"debug","ts":"2025-04-26T16:05:00.359Z","logger":"cloud","caller":"aws/cloud.go:65","msg":"response","serviceName":"VPC Lattice","operation":"ListTargetGroups","params":"{\n\n}"}
{"level":"debug","ts":"2025-04-26T16:05:00.384Z","logger":"cloud","caller":"aws/cloud.go:65","msg":"response","serviceName":"tagging","operation":"GetResources","params":"{\n  ResourceARNList: [\"arn:aws:vpc-lattice:ap-northeast-2:378102432899:targetgroup/tg-0858b1446d1c60a9a\"]\n}"}
{"level":"debug","ts":"2025-04-26T16:05:00.384Z","logger":"controller.route","caller":"lattice/target_group_synthesizer.go:184","msg":"TargetGroup arn:aws:vpc-lattice:ap-northeast-2:378102432899:targetgroup/tg-0858b1446d1c60a9a (k8s-apps-server-bytaygpvhu) is referenced by lattice service"}
{"level":"debug","ts":"2025-04-26T16:05:00.384Z","logger":"controller.route.tg-gc","caller":"deploy/stack_deployer.go:178","msg":"gc stats","delete_attempts":0,"delete_success":0,"duration":0.076177087}
{"level":"debug","ts":"2025-04-26T16:05:30.355Z","logger":"cloud","caller":"aws/cloud.go:65","msg":"response","serviceName":"VPC Lattice","operation":"ListTargetGroups","params":"{\n\n}"}
{"level":"debug","ts":"2025-04-26T16:05:30.371Z","logger":"cloud","caller":"aws/cloud.go:65","msg":"response","serviceName":"tagging","operation":"GetResources","params":"{\n  ResourceARNList: [\"arn:aws:vpc-lattice:ap-northeast-2:378102432899:targetgroup/tg-0858b1446d1c60a9a\"]\n}"}
{"level":"debug","ts":"2025-04-26T16:05:30.371Z","logger":"controller.route","caller":"lattice/target_group_synthesizer.go:184","msg":"TargetGroup arn:aws:vpc-lattice:ap-northeast-2:378102432899:targetgroup/tg-0858b1446d1c60a9a (k8s-apps-server-bytaygpvhu) is referenced by lattice service"}
{"level":"debug","ts":"2025-04-26T16:05:30.371Z","logger":"controller.route.tg-gc","caller":"deploy/stack_deployer.go:178","msg":"gc stats","delete_attempts":0,"delete_success":0,"duration":0.062691019}
{"level":"debug","ts":"2025-04-26T16:06:00.370Z","logger":"cloud","caller":"aws/cloud.go:65","msg":"response","serviceName":"VPC Lattice","operation":"ListTargetGroups","params":"{\n\n}"}
{"level":"debug","ts":"2025-04-26T16:06:00.392Z","logger":"cloud","caller":"aws/cloud.go:65","msg":"response","serviceName":"tagging","operation":"GetResources","params":"{\n  ResourceARNList: [\"arn:aws:vpc-lattice:ap-northeast-2:378102432899:targetgroup/tg-0858b1446d1c60a9a\"]\n}"}
{"level":"debug","ts":"2025-04-26T16:06:00.392Z","logger":"controller.route","caller":"lattice/target_group_synthesizer.go:184","msg":"TargetGroup arn:aws:vpc-lattice:ap-northeast-2:378102432899:targetgroup/tg-0858b1446d1c60a9a (k8s-apps-server-bytaygpvhu) is referenced by lattice service"}
{"level":"debug","ts":"2025-04-26T16:06:00.393Z","logger":"controller.route.tg-gc","caller":"deploy/stack_deployer.go:178","msg":"gc stats","delete_attempts":0,"delete_success":0,"duration":0.085102621}
{"level":"debug","ts":"2025-04-26T16:06:30.351Z","logger":"cloud","caller":"aws/cloud.go:65","msg":"response","serviceName":"VPC Lattice","operation":"ListTargetGroups","params":"{\n\n}"}
{"level":"debug","ts":"2025-04-26T16:06:30.369Z","logger":"cloud","caller":"aws/cloud.go:65","msg":"response","serviceName":"tagging","operation":"GetResources","params":"{\n  ResourceARNList: [\"arn:aws:vpc-lattice:ap-northeast-2:378102432899:targetgroup/tg-0858b1446d1c60a9a\"]\n}"}
{"level":"debug","ts":"2025-04-26T16:06:30.369Z","logger":"controller.route","caller":"lattice/target_group_synthesizer.go:184","msg":"TargetGroup arn:aws:vpc-lattice:ap-northeast-2:378102432899:targetgroup/tg-0858b1446d1c60a9a (k8s-apps-server-bytaygpvhu) is referenced by lattice service"}
{"level":"debug","ts":"2025-04-26T16:06:30.369Z","logger":"controller.route.tg-gc","caller":"deploy/stack_deployer.go:178","msg":"gc stats","delete_attempts":0,"delete_success":0,"duration":0.061314786}
{"level":"debug","ts":"2025-04-26T16:07:00.354Z","logger":"cloud","caller":"aws/cloud.go:65","msg":"response","serviceName":"VPC Lattice","operation":"ListTargetGroups","params":"{\n\n}"}
{"level":"debug","ts":"2025-04-26T16:07:00.377Z","logger":"cloud","caller":"aws/cloud.go:65","msg":"response","serviceName":"tagging","operation":"GetResources","params":"{\n  ResourceARNList: [\"arn:aws:vpc-lattice:ap-northeast-2:378102432899:targetgroup/tg-0858b1446d1c60a9a\"]\n}"}
{"level":"debug","ts":"2025-04-26T16:07:00.377Z","logger":"controller.route","caller":"lattice/target_group_synthesizer.go:184","msg":"TargetGroup arn:aws:vpc-lattice:ap-northeast-2:378102432899:targetgroup/tg-0858b1446d1c60a9a (k8s-apps-server-bytaygpvhu) is referenced by lattice service"}
{"level":"debug","ts":"2025-04-26T16:07:00.377Z","logger":"controller.route.tg-gc","caller":"deploy/stack_deployer.go:178","msg":"gc stats","delete_attempts":0,"delete_success":0,"duration":0.069906855}
{"level":"debug","ts":"2025-04-26T16:07:30.365Z","logger":"cloud","caller":"aws/cloud.go:65","msg":"response","serviceName":"VPC Lattice","operation":"ListTargetGroups","params":"{\n\n}"}
{"level":"debug","ts":"2025-04-26T16:07:30.388Z","logger":"cloud","caller":"aws/cloud.go:65","msg":"response","serviceName":"tagging","operation":"GetResources","params":"{\n  ResourceARNList: [\"arn:aws:vpc-lattice:ap-northeast-2:378102432899:targetgroup/tg-0858b1446d1c60a9a\"]\n}"}
{"level":"debug","ts":"2025-04-26T16:07:30.388Z","logger":"controller.route","caller":"lattice/target_group_synthesizer.go:184","msg":"TargetGroup arn:aws:vpc-lattice:ap-northeast-2:378102432899:targetgroup/tg-0858b1446d1c60a9a (k8s-apps-server-bytaygpvhu) is referenced by lattice service"}
{"level":"debug","ts":"2025-04-26T16:07:30.388Z","logger":"controller.route.tg-gc","caller":"deploy/stack_deployer.go:178","msg":"gc stats","delete_attempts":0,"delete_success":0,"duration":0.080493519}
{"level":"debug","ts":"2025-04-26T16:08:00.357Z","logger":"cloud","caller":"aws/cloud.go:65","msg":"response","serviceName":"VPC Lattice","operation":"ListTargetGroups","params":"{\n\n}"}
{"level":"debug","ts":"2025-04-26T16:08:00.378Z","logger":"cloud","caller":"aws/cloud.go:65","msg":"response","serviceName":"tagging","operation":"GetResources","params":"{\n  ResourceARNList: [\"arn:aws:vpc-lattice:ap-northeast-2:378102432899:targetgroup/tg-0858b1446d1c60a9a\"]\n}"}
{"level":"debug","ts":"2025-04-26T16:08:00.378Z","logger":"controller.route","caller":"lattice/target_group_synthesizer.go:184","msg":"TargetGroup arn:aws:vpc-lattice:ap-northeast-2:378102432899:targetgroup/tg-0858b1446d1c60a9a (k8s-apps-server-bytaygpvhu) is referenced by lattice service"}
{"level":"debug","ts":"2025-04-26T16:08:00.378Z","logger":"controller.route.tg-gc","caller":"deploy/stack_deployer.go:178","msg":"gc stats","delete_attempts":0,"delete_success":0,"duration":0.070793292}
{"level":"debug","ts":"2025-04-26T16:08:30.365Z","logger":"cloud","caller":"aws/cloud.go:65","msg":"response","serviceName":"VPC Lattice","operation":"ListTargetGroups","params":"{\n\n}"}
{"level":"debug","ts":"2025-04-26T16:08:30.386Z","logger":"cloud","caller":"aws/cloud.go:65","msg":"response","serviceName":"tagging","operation":"GetResources","params":"{\n  ResourceARNList: [\"arn:aws:vpc-lattice:ap-northeast-2:378102432899:targetgroup/tg-0858b1446d1c60a9a\"]\n}"}
{"level":"debug","ts":"2025-04-26T16:08:30.386Z","logger":"controller.route","caller":"lattice/target_group_synthesizer.go:184","msg":"TargetGroup arn:aws:vpc-lattice:ap-northeast-2:378102432899:targetgroup/tg-0858b1446d1c60a9a (k8s-apps-server-bytaygpvhu) is referenced by lattice service"}
{"level":"debug","ts":"2025-04-26T16:08:30.386Z","logger":"controller.route.tg-gc","caller":"deploy/stack_deployer.go:178","msg":"gc stats","delete_attempts":0,"delete_success":0,"duration":0.079021571}
{"level":"debug","ts":"2025-04-26T16:09:00.354Z","logger":"cloud","caller":"aws/cloud.go:65","msg":"response","serviceName":"VPC Lattice","operation":"ListTargetGroups","params":"{\n\n}"}
{"level":"debug","ts":"2025-04-26T16:09:00.378Z","logger":"cloud","caller":"aws/cloud.go:65","msg":"response","serviceName":"tagging","operation":"GetResources","params":"{\n  ResourceARNList: [\"arn:aws:vpc-lattice:ap-northeast-2:378102432899:targetgroup/tg-0858b1446d1c60a9a\"]\n}"}
{"level":"debug","ts":"2025-04-26T16:09:00.378Z","logger":"controller.route","caller":"lattice/target_group_synthesizer.go:184","msg":"TargetGroup arn:aws:vpc-lattice:ap-northeast-2:378102432899:targetgroup/tg-0858b1446d1c60a9a (k8s-apps-server-bytaygpvhu) is referenced by lattice service"}
{"level":"debug","ts":"2025-04-26T16:09:00.378Z","logger":"controller.route.tg-gc","caller":"deploy/stack_deployer.go:178","msg":"gc stats","delete_attempts":0,"delete_success":0,"duration":0.071219754}
{"level":"debug","ts":"2025-04-26T16:09:30.349Z","logger":"cloud","caller":"aws/cloud.go:65","msg":"response","serviceName":"VPC Lattice","operation":"ListTargetGroups","params":"{\n\n}"}
{"level":"debug","ts":"2025-04-26T16:09:30.371Z","logger":"cloud","caller":"aws/cloud.go:65","msg":"response","serviceName":"tagging","operation":"GetResources","params":"{\n  ResourceARNList: [\"arn:aws:vpc-lattice:ap-northeast-2:378102432899:targetgroup/tg-0858b1446d1c60a9a\"]\n}"}
{"level":"debug","ts":"2025-04-26T16:09:30.371Z","logger":"controller.route","caller":"lattice/target_group_synthesizer.go:184","msg":"TargetGroup arn:aws:vpc-lattice:ap-northeast-2:378102432899:targetgroup/tg-0858b1446d1c60a9a (k8s-apps-server-bytaygpvhu) is referenced by lattice service"}
{"level":"debug","ts":"2025-04-26T16:09:30.371Z","logger":"controller.route.tg-gc","caller":"deploy/stack_deployer.go:178","msg":"gc stats","delete_attempts":0,"delete_success":0,"duration":0.06362976}
{"level":"debug","ts":"2025-04-26T16:10:00.354Z","logger":"cloud","caller":"aws/cloud.go:65","msg":"response","serviceName":"VPC Lattice","operation":"ListTargetGroups","params":"{\n\n}"}
{"level":"debug","ts":"2025-04-26T16:10:00.375Z","logger":"cloud","caller":"aws/cloud.go:65","msg":"response","serviceName":"tagging","operation":"GetResources","params":"{\n  ResourceARNList: [\"arn:aws:vpc-lattice:ap-northeast-2:378102432899:targetgroup/tg-0858b1446d1c60a9a\"]\n}"}
{"level":"debug","ts":"2025-04-26T16:10:00.375Z","logger":"controller.route","caller":"lattice/target_group_synthesizer.go:184","msg":"TargetGroup arn:aws:vpc-lattice:ap-northeast-2:378102432899:targetgroup/tg-0858b1446d1c60a9a (k8s-apps-server-bytaygpvhu) is referenced by lattice service"}
{"level":"debug","ts":"2025-04-26T16:10:00.375Z","logger":"controller.route.tg-gc","caller":"deploy/stack_deployer.go:178","msg":"gc stats","delete_attempts":0,"delete_success":0,"duration":0.068111398}
{"level":"debug","ts":"2025-04-26T16:10:30.358Z","logger":"cloud","caller":"aws/cloud.go:65","msg":"response","serviceName":"VPC Lattice","operation":"ListTargetGroups","params":"{\n\n}"}
{"level":"debug","ts":"2025-04-26T16:10:30.375Z","logger":"cloud","caller":"aws/cloud.go:65","msg":"response","serviceName":"tagging","operation":"GetResources","params":"{\n  ResourceARNList: [\"arn:aws:vpc-lattice:ap-northeast-2:378102432899:targetgroup/tg-0858b1446d1c60a9a\"]\n}"}
{"level":"debug","ts":"2025-04-26T16:10:30.375Z","logger":"controller.route","caller":"lattice/target_group_synthesizer.go:184","msg":"TargetGroup arn:aws:vpc-lattice:ap-northeast-2:378102432899:targetgroup/tg-0858b1446d1c60a9a (k8s-apps-server-bytaygpvhu) is referenced by lattice service"}
{"level":"debug","ts":"2025-04-26T16:10:30.375Z","logger":"controller.route.tg-gc","caller":"deploy/stack_deployer.go:178","msg":"gc stats","delete_attempts":0,"delete_success":0,"duration":0.067431472}
{"level":"debug","ts":"2025-04-26T16:11:00.360Z","logger":"cloud","caller":"aws/cloud.go:65","msg":"response","serviceName":"VPC Lattice","operation":"ListTargetGroups","params":"{\n\n}"}
{"level":"debug","ts":"2025-04-26T16:11:00.377Z","logger":"cloud","caller":"aws/cloud.go:65","msg":"response","serviceName":"tagging","operation":"GetResources","params":"{\n  ResourceARNList: [\"arn:aws:vpc-lattice:ap-northeast-2:378102432899:targetgroup/tg-0858b1446d1c60a9a\"]\n}"}
{"level":"debug","ts":"2025-04-26T16:11:00.377Z","logger":"controller.route","caller":"lattice/target_group_synthesizer.go:184","msg":"TargetGroup arn:aws:vpc-lattice:ap-northeast-2:378102432899:targetgroup/tg-0858b1446d1c60a9a (k8s-apps-server-bytaygpvhu) is referenced by lattice service"}
{"level":"debug","ts":"2025-04-26T16:11:00.377Z","logger":"controller.route.tg-gc","caller":"deploy/stack_deployer.go:178","msg":"gc stats","delete_attempts":0,"delete_success":0,"duration":0.070150803}
{"level":"debug","ts":"2025-04-26T16:11:30.352Z","logger":"cloud","caller":"aws/cloud.go:65","msg":"response","serviceName":"VPC Lattice","operation":"ListTargetGroups","params":"{\n\n}"}
{"level":"debug","ts":"2025-04-26T16:11:30.373Z","logger":"cloud","caller":"aws/cloud.go:65","msg":"response","serviceName":"tagging","operation":"GetResources","params":"{\n  ResourceARNList: [\"arn:aws:vpc-lattice:ap-northeast-2:378102432899:targetgroup/tg-0858b1446d1c60a9a\"]\n}"}
{"level":"debug","ts":"2025-04-26T16:11:30.373Z","logger":"controller.route","caller":"lattice/target_group_synthesizer.go:184","msg":"TargetGroup arn:aws:vpc-lattice:ap-northeast-2:378102432899:targetgroup/tg-0858b1446d1c60a9a (k8s-apps-server-bytaygpvhu) is referenced by lattice service"}
{"level":"debug","ts":"2025-04-26T16:11:30.373Z","logger":"controller.route.tg-gc","caller":"deploy/stack_deployer.go:178","msg":"gc stats","delete_attempts":0,"delete_success":0,"duration":0.065527826}
{"level":"debug","ts":"2025-04-26T16:12:00.356Z","logger":"cloud","caller":"aws/cloud.go:65","msg":"response","serviceName":"VPC Lattice","operation":"ListTargetGroups","params":"{\n\n}"}
{"level":"debug","ts":"2025-04-26T16:12:00.377Z","logger":"cloud","caller":"aws/cloud.go:65","msg":"response","serviceName":"tagging","operation":"GetResources","params":"{\n  ResourceARNList: [\"arn:aws:vpc-lattice:ap-northeast-2:378102432899:targetgroup/tg-0858b1446d1c60a9a\"]\n}"}
{"level":"debug","ts":"2025-04-26T16:12:00.377Z","logger":"controller.route","caller":"lattice/target_group_synthesizer.go:184","msg":"TargetGroup arn:aws:vpc-lattice:ap-northeast-2:378102432899:targetgroup/tg-0858b1446d1c60a9a (k8s-apps-server-bytaygpvhu) is referenced by lattice service"}
{"level":"debug","ts":"2025-04-26T16:12:00.377Z","logger":"controller.route.tg-gc","caller":"deploy/stack_deployer.go:178","msg":"gc stats","delete_attempts":0,"delete_success":0,"duration":0.069280145}
{"level":"debug","ts":"2025-04-26T16:12:30.355Z","logger":"cloud","caller":"aws/cloud.go:65","msg":"response","serviceName":"VPC Lattice","operation":"ListTargetGroups","params":"{\n\n}"}
{"level":"debug","ts":"2025-04-26T16:12:30.381Z","logger":"cloud","caller":"aws/cloud.go:65","msg":"response","serviceName":"tagging","operation":"GetResources","params":"{\n  ResourceARNList: [\"arn:aws:vpc-lattice:ap-northeast-2:378102432899:targetgroup/tg-0858b1446d1c60a9a\"]\n}"}
{"level":"debug","ts":"2025-04-26T16:12:30.381Z","logger":"controller.route","caller":"lattice/target_group_synthesizer.go:184","msg":"TargetGroup arn:aws:vpc-lattice:ap-northeast-2:378102432899:targetgroup/tg-0858b1446d1c60a9a (k8s-apps-server-bytaygpvhu) is referenced by lattice service"}
{"level":"debug","ts":"2025-04-26T16:12:30.381Z","logger":"controller.route.tg-gc","caller":"deploy/stack_deployer.go:178","msg":"gc stats","delete_attempts":0,"delete_success":0,"duration":0.073713078}
{"level":"debug","ts":"2025-04-26T16:13:00.367Z","logger":"cloud","caller":"aws/cloud.go:65","msg":"response","serviceName":"VPC Lattice","operation":"ListTargetGroups","params":"{\n\n}"}
{"level":"debug","ts":"2025-04-26T16:13:00.390Z","logger":"cloud","caller":"aws/cloud.go:65","msg":"response","serviceName":"tagging","operation":"GetResources","params":"{\n  ResourceARNList: [\"arn:aws:vpc-lattice:ap-northeast-2:378102432899:targetgroup/tg-0858b1446d1c60a9a\"]\n}"}
{"level":"debug","ts":"2025-04-26T16:13:00.390Z","logger":"controller.route","caller":"lattice/target_group_synthesizer.go:184","msg":"TargetGroup arn:aws:vpc-lattice:ap-northeast-2:378102432899:targetgroup/tg-0858b1446d1c60a9a (k8s-apps-server-bytaygpvhu) is referenced by lattice service"}
{"level":"debug","ts":"2025-04-26T16:13:00.390Z","logger":"controller.route.tg-gc","caller":"deploy/stack_deployer.go:178","msg":"gc stats","delete_attempts":0,"delete_success":0,"duration":0.082478873}
{"level":"debug","ts":"2025-04-26T16:13:30.366Z","logger":"cloud","caller":"aws/cloud.go:65","msg":"response","serviceName":"VPC Lattice","operation":"ListTargetGroups","params":"{\n\n}"}
{"level":"debug","ts":"2025-04-26T16:13:30.391Z","logger":"cloud","caller":"aws/cloud.go:65","msg":"response","serviceName":"tagging","operation":"GetResources","params":"{\n  ResourceARNList: [\"arn:aws:vpc-lattice:ap-northeast-2:378102432899:targetgroup/tg-0858b1446d1c60a9a\"]\n}"}
{"level":"debug","ts":"2025-04-26T16:13:30.391Z","logger":"controller.route","caller":"lattice/target_group_synthesizer.go:184","msg":"TargetGroup arn:aws:vpc-lattice:ap-northeast-2:378102432899:targetgroup/tg-0858b1446d1c60a9a (k8s-apps-server-bytaygpvhu) is referenced by lattice service"}
{"level":"debug","ts":"2025-04-26T16:13:30.391Z","logger":"controller.route.tg-gc","caller":"deploy/stack_deployer.go:178","msg":"gc stats","delete_attempts":0,"delete_success":0,"duration":0.083265847}
{"level":"debug","ts":"2025-04-26T16:14:00.352Z","logger":"cloud","caller":"aws/cloud.go:65","msg":"response","serviceName":"VPC Lattice","operation":"ListTargetGroups","params":"{\n\n}"}
{"level":"debug","ts":"2025-04-26T16:14:00.374Z","logger":"cloud","caller":"aws/cloud.go:65","msg":"response","serviceName":"tagging","operation":"GetResources","params":"{\n  ResourceARNList: [\"arn:aws:vpc-lattice:ap-northeast-2:378102432899:targetgroup/tg-0858b1446d1c60a9a\"]\n}"}
{"level":"debug","ts":"2025-04-26T16:14:00.374Z","logger":"controller.route","caller":"lattice/target_group_synthesizer.go:184","msg":"TargetGroup arn:aws:vpc-lattice:ap-northeast-2:378102432899:targetgroup/tg-0858b1446d1c60a9a (k8s-apps-server-bytaygpvhu) is referenced by lattice service"}
{"level":"debug","ts":"2025-04-26T16:14:00.374Z","logger":"controller.route.tg-gc","caller":"deploy/stack_deployer.go:178","msg":"gc stats","delete_attempts":0,"delete_success":0,"duration":0.066375036}
{"level":"debug","ts":"2025-04-26T16:14:30.367Z","logger":"cloud","caller":"aws/cloud.go:65","msg":"response","serviceName":"VPC Lattice","operation":"ListTargetGroups","params":"{\n\n}"}
{"level":"debug","ts":"2025-04-26T16:14:30.382Z","logger":"cloud","caller":"aws/cloud.go:65","msg":"response","serviceName":"tagging","operation":"GetResources","params":"{\n  ResourceARNList: [\"arn:aws:vpc-lattice:ap-northeast-2:378102432899:targetgroup/tg-0858b1446d1c60a9a\"]\n}"}
{"level":"debug","ts":"2025-04-26T16:14:30.382Z","logger":"controller.route","caller":"lattice/target_group_synthesizer.go:184","msg":"TargetGroup arn:aws:vpc-lattice:ap-northeast-2:378102432899:targetgroup/tg-0858b1446d1c60a9a (k8s-apps-server-bytaygpvhu) is referenced by lattice service"}
{"level":"debug","ts":"2025-04-26T16:14:30.382Z","logger":"controller.route.tg-gc","caller":"deploy/stack_deployer.go:178","msg":"gc stats","delete_attempts":0,"delete_success":0,"duration":0.074266469}
{"level":"debug","ts":"2025-04-26T16:15:00.352Z","logger":"cloud","caller":"aws/cloud.go:65","msg":"response","serviceName":"VPC Lattice","operation":"ListTargetGroups","params":"{\n\n}"}
{"level":"debug","ts":"2025-04-26T16:15:00.373Z","logger":"cloud","caller":"aws/cloud.go:65","msg":"response","serviceName":"tagging","operation":"GetResources","params":"{\n  ResourceARNList: [\"arn:aws:vpc-lattice:ap-northeast-2:378102432899:targetgroup/tg-0858b1446d1c60a9a\"]\n}"}
{"level":"debug","ts":"2025-04-26T16:15:00.373Z","logger":"controller.route","caller":"lattice/target_group_synthesizer.go:184","msg":"TargetGroup arn:aws:vpc-lattice:ap-northeast-2:378102432899:targetgroup/tg-0858b1446d1c60a9a (k8s-apps-server-bytaygpvhu) is referenced by lattice service"}
{"level":"debug","ts":"2025-04-26T16:15:00.373Z","logger":"controller.route.tg-gc","caller":"deploy/stack_deployer.go:178","msg":"gc stats","delete_attempts":0,"delete_success":0,"duration":0.065129722}
{"level":"debug","ts":"2025-04-26T16:15:30.350Z","logger":"cloud","caller":"aws/cloud.go:65","msg":"response","serviceName":"VPC Lattice","operation":"ListTargetGroups","params":"{\n\n}"}
{"level":"debug","ts":"2025-04-26T16:15:30.373Z","logger":"cloud","caller":"aws/cloud.go:65","msg":"response","serviceName":"tagging","operation":"GetResources","params":"{\n  ResourceARNList: [\"arn:aws:vpc-lattice:ap-northeast-2:378102432899:targetgroup/tg-0858b1446d1c60a9a\"]\n}"}
{"level":"debug","ts":"2025-04-26T16:15:30.373Z","logger":"controller.route","caller":"lattice/target_group_synthesizer.go:184","msg":"TargetGroup arn:aws:vpc-lattice:ap-northeast-2:378102432899:targetgroup/tg-0858b1446d1c60a9a (k8s-apps-server-bytaygpvhu) is referenced by lattice service"}
{"level":"debug","ts":"2025-04-26T16:15:30.373Z","logger":"controller.route.tg-gc","caller":"deploy/stack_deployer.go:178","msg":"gc stats","delete_attempts":0,"delete_success":0,"duration":0.065587581}
{"level":"debug","ts":"2025-04-26T16:16:00.355Z","logger":"cloud","caller":"aws/cloud.go:65","msg":"response","serviceName":"VPC Lattice","operation":"ListTargetGroups","params":"{\n\n}"}
{"level":"debug","ts":"2025-04-26T16:16:00.379Z","logger":"cloud","caller":"aws/cloud.go:65","msg":"response","serviceName":"tagging","operation":"GetResources","params":"{\n  ResourceARNList: [\"arn:aws:vpc-lattice:ap-northeast-2:378102432899:targetgroup/tg-0858b1446d1c60a9a\"]\n}"}
{"level":"debug","ts":"2025-04-26T16:16:00.380Z","logger":"controller.route","caller":"lattice/target_group_synthesizer.go:184","msg":"TargetGroup arn:aws:vpc-lattice:ap-northeast-2:378102432899:targetgroup/tg-0858b1446d1c60a9a (k8s-apps-server-bytaygpvhu) is referenced by lattice service"}
{"level":"debug","ts":"2025-04-26T16:16:00.380Z","logger":"controller.route.tg-gc","caller":"deploy/stack_deployer.go:178","msg":"gc stats","delete_attempts":0,"delete_success":0,"duration":0.072554688}
  • server Service์™€ my-services Gateway ์ƒ์„ฑ ๊ฐ์ง€ ๋ฐ reconcile ์ž‘์—… ์ˆ˜ํ–‰
  • server-apps Route ๋Œ€์ƒ์œผ๋กœ server.example.com ๋„๋ฉ”์ธ๊ณผ VPC Lattice Service ๊ตฌ์„ฑ
  • Listener rule ์ƒ์„ฑ, PathPrefix ์„ค์ •, backendRefs ๋Œ€์ƒ ๊ทธ๋ฃน ๊ตฌ์„ฑ
  • ๋Œ€์ƒ ๊ทธ๋ฃน์— ๋ผ์šฐํŒ… ๋Œ€์ƒ Pod์˜ IP ์ฃผ์†Œ ๋ฐ Port ๋ฒˆํ˜ธ ์„ธํŒ…

๐Ÿ—‘๏ธ ์‹ค์Šต ๋ฆฌ์†Œ์Šค ์ •๋ฆฌ

1
2
3
4
5
6
7
8
9
10
11
12
13
14

terraform destroy -target="module.client_vpc" -auto-approve
terraform destroy -target="module.cluster_vpc" -auto-approve
terraform destroy -target=aws_route53_zone.primary -auto-approve

terraform destroy -target="module.client_sg" -auto-approve
terraform destroy -target="module.endpoint_sg" -auto-approve

terraform destroy -target="module.client" -auto-approve
terraform destroy -target="module.vpc_endpoints" -auto-approve

terraform destroy -target="module.eks" -auto-approve
terraform destroy -target="module.addons" -auto-approve

terraform destroy -auto-approve

๐Ÿ›ก๏ธ [์‹ค์Šต 2] Multi Cluster secure communication

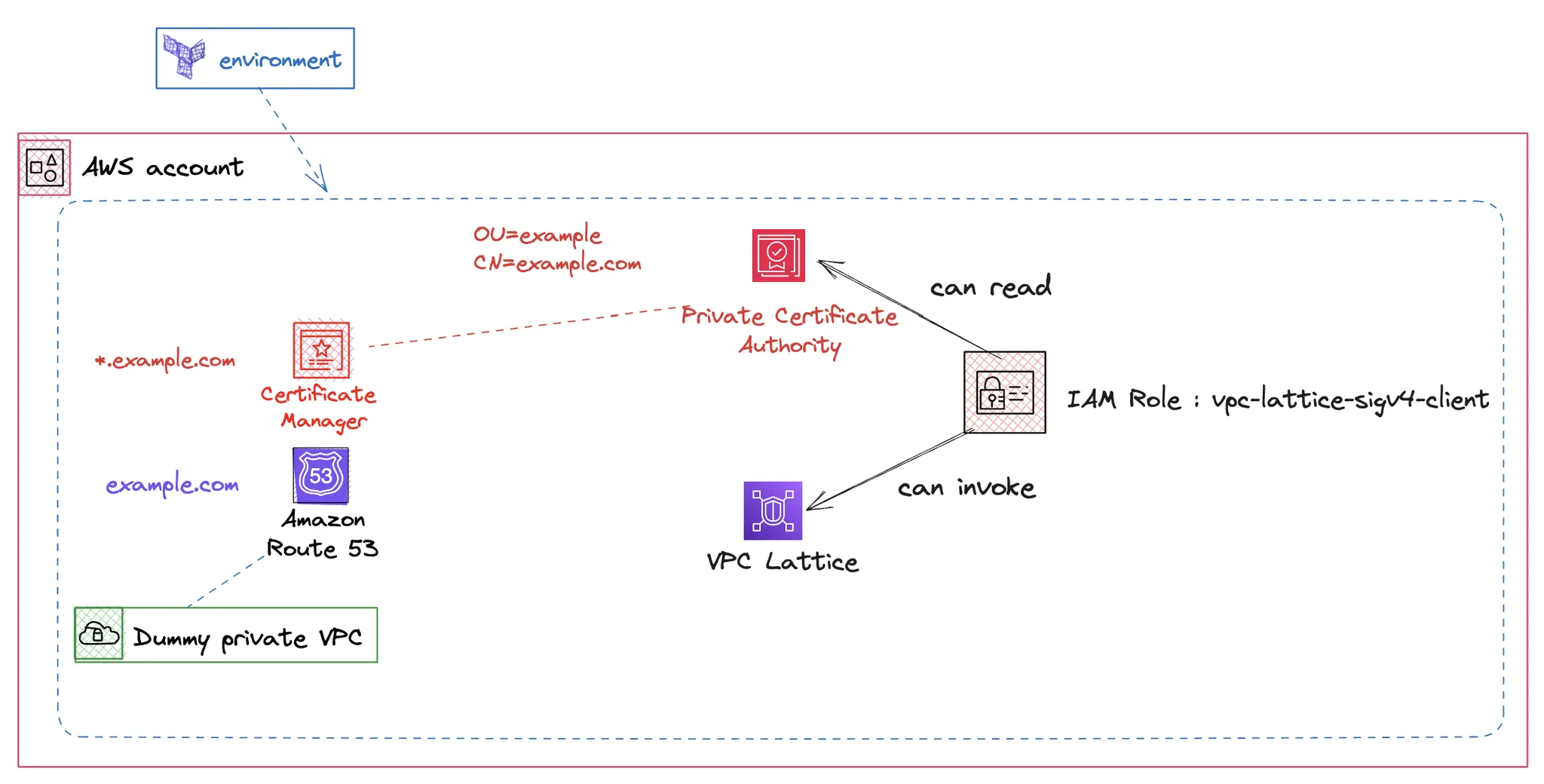

๐ŸŒŽ environment ํ”„๋กœ๋น„์ €๋‹

1. ์‹ค์Šต ๋””๋ ‰ํ„ฐ๋ฆฌ ์ด๋™

1

cd terraform-aws-eks-blueprints/patterns/vpc-lattice/cross-cluster-pod-communication/environment/

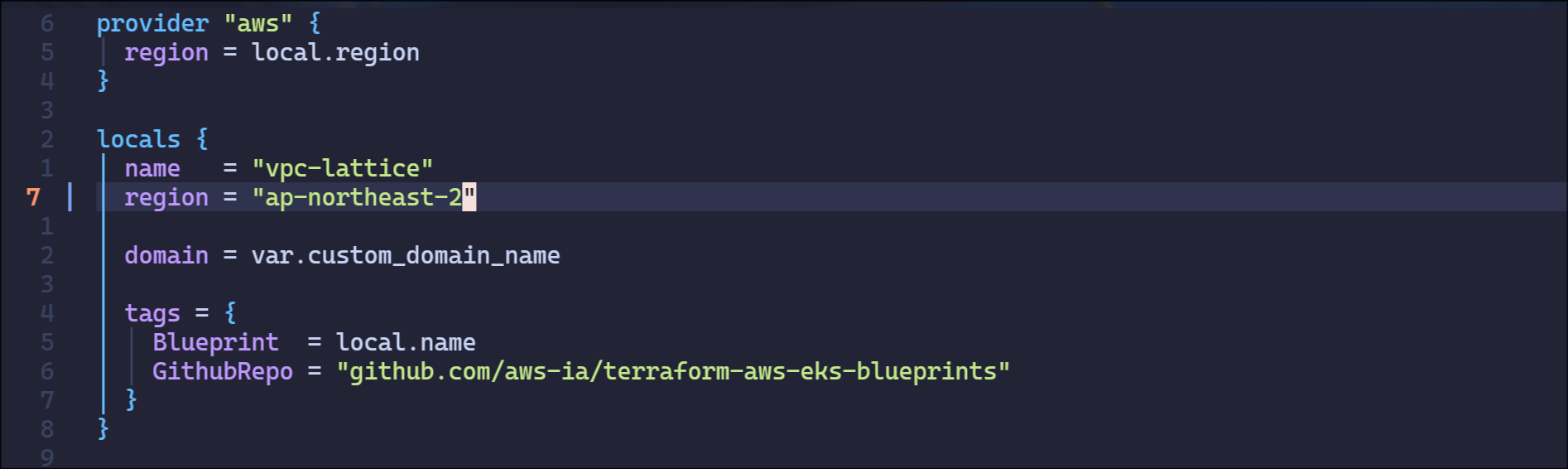

2. main.tf ์ˆ˜์ •

7๋ฒˆ์งธ ๋ผ์ธ region ap-northeast-2๋กœ ์ˆ˜์ •

3. environment ์ธํ”„๋ผ ํ”„๋กœ๋น„์ €๋‹

1
2

terraform init
terraform apply --auto-approve

โœ…ย ์ถœ๋ ฅ

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30

Initializing the backend...

Initializing provider plugins...
- Finding hashicorp/aws versions matching ">= 5.34.0"...
- Installing hashicorp/aws v5.96.0...
- Installed hashicorp/aws v5.96.0 (signed by HashiCorp)

Terraform has created a lock file .terraform.lock.hcl to record the provider
selections it made above. Include this file in your version control repository
so that Terraform can guarantee to make the same selections by default when
you run "terraform init" in the future.

Terraform has been successfully initialized!

You may now begin working with Terraform. Try running "terraform plan" to see
any changes that are required for your infrastructure. All Terraform commands
should now work.

If you ever set or change modules or backend configuration for Terraform,
rerun this command to reinitialize your working directory. If you forget, other
commands will detect it and remind you to do so if necessary.

data.aws_iam_policy_document.eks_assume: Reading...
data.aws_iam_policy_document.eks_assume: Read complete after 0s [id=819195744]

Terraform used the selected providers to generate the following execution plan. Resource actions are indicated with the following symbols:
  + create

Terraform will perform the following actions:
...

๐Ÿ—„๏ธ cluster ํ”„๋กœ๋น„์ €๋‹

1. cross-cluster-pod-communication/cluster/ ๋””๋ ‰ํ„ฐ๋ฆฌ๋กœ ์ด๋™

1

cd ../cluster/

2. main.tf ํŒŒ์ผ ์ˆ˜์ •

31๋ฒˆ์งธ ๋ผ์ธ์˜ region ap-northeast-2๋กœ ์ˆ˜์ •

3. ์ฒซ๋ฒˆ์งธ EKS ํด๋Ÿฌ์Šคํ„ฐ ๋ฐฐํฌ

1

./deploy.sh cluster1

โœ…ย ์ถœ๋ ฅ

1
2
3
4
5
6
7
8
9
10
11

...
helm_release.demo_application: Still creating... [10s elapsed]
helm_release.demo_application: Still creating... [20s elapsed]
helm_release.demo_application: Still creating... [30s elapsed]
helm_release.demo_application: Creation complete after 35s [id=demo-cluster1]

Apply complete! Resources: 81 added, 0 changed, 0 destroyed.

Outputs:

configure_kubectl = "aws eks update-kubeconfig --name eks-cluster1 --alias eks-cluster1 --region ap-northeast-2"

๋ฐฐํฌ ์™„๋ฃŒ ํ›„ ์•„๋ž˜ ๋ช…๋ น์–ด๋กœ kubectl config ์„ค์ •

1
2
3
4

eval `terraform output -raw configure_kubectl`

# ๊ฒฐ๊ณผ
Added new context eks-cluster1 to /home/devshin/.kube/config

4. ๋‘๋ฒˆ์งธ EKS ํด๋Ÿฌ์Šคํ„ฐ ๋ฐฐํฌ

1

./deploy.sh cluster2

โœ…ย ์ถœ๋ ฅ

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15

...
module.eks_blueprints_addons.aws_eks_addon.this["coredns"]: Creation complete after 15m26s [id=eks-cluster2:coredns]
helm_release.platform_application: Creating...
helm_release.platform_application: Creation complete after 1s [id=platform-cluster2]
helm_release.demo_application: Creating...
helm_release.demo_application: Still creating... [10s elapsed]
helm_release.demo_application: Still creating... [20s elapsed]
helm_release.demo_application: Still creating... [30s elapsed]
helm_release.demo_application: Creation complete after 33s [id=demo-cluster2]

Apply complete! Resources: 81 added, 0 changed, 0 destroyed.

Outputs:

configure_kubectl = "aws eks update-kubeconfig --name eks-cluster2 --alias eks-cluster2 --region ap-northeast-2"

๋ฐฐํฌ ์™„๋ฃŒ ํ›„ ์•„๋ž˜ ๋ช…๋ น์–ด๋กœ kubectl config ์„ค์ •

1
2
3
4

eval `terraform output -raw configure_kubectl`

# ๊ฒฐ๊ณผ
Added new context eks-cluster2 to /home/devshin/.kube/config

๐Ÿ“ฆ ํ”„๋กœ๋น„์ €๋‹ ๋œ ์ธํ”„๋ผ ๋ฐ ์• ํ”Œ๋ฆฌ์ผ€์ด์…˜ ํ™•์ธ

1. Amazon EKS ํด๋Ÿฌ์Šคํ„ฐ

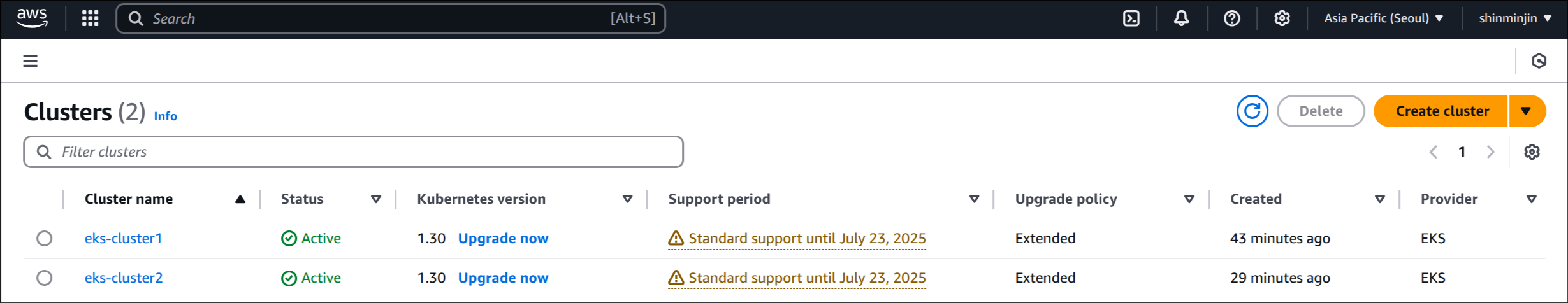

(1) Amazon EKS ์ฝ˜์†” ์ ‘์† ํ›„, ๋‘ ๊ฐœ์˜ EKS ํด๋Ÿฌ์Šคํ„ฐ ์ƒ์„ฑ ํ™•์ธ

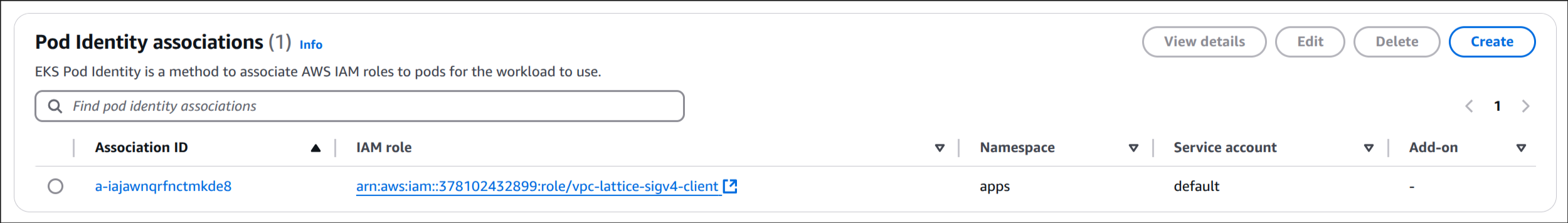

(2) eks-cluster1 ํด๋Ÿฌ์Šคํ„ฐ ์ง„์ž… ํ›„ Access > Pod Identity associations ์ด๋™

vpc-lattice-sig4-client IAM role์ด apps ๋„ค์ž„์ŠคํŽ˜์ด์Šค์˜ default Service account์— associate ๋จ

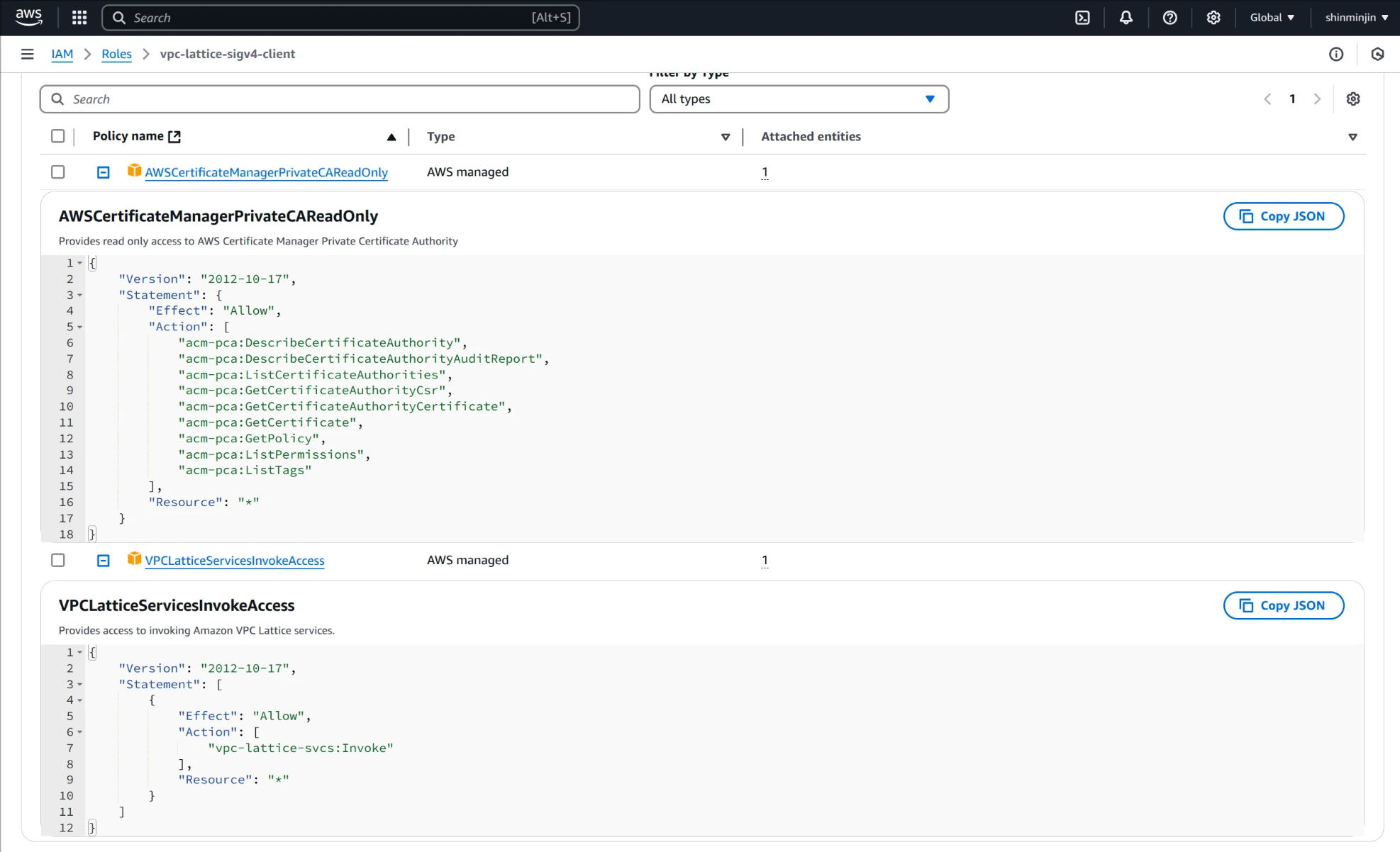

(3) IAM role ํด๋ฆญ ์‹œ ACM PCA ์•ก์„ธ์Šค ๊ถŒํ•œ ๋ฐ VPC Lattice Service invoke ๊ถŒํ•œ ํ™•์ธ ๊ฐ€๋Šฅ

2. VPC Lattice

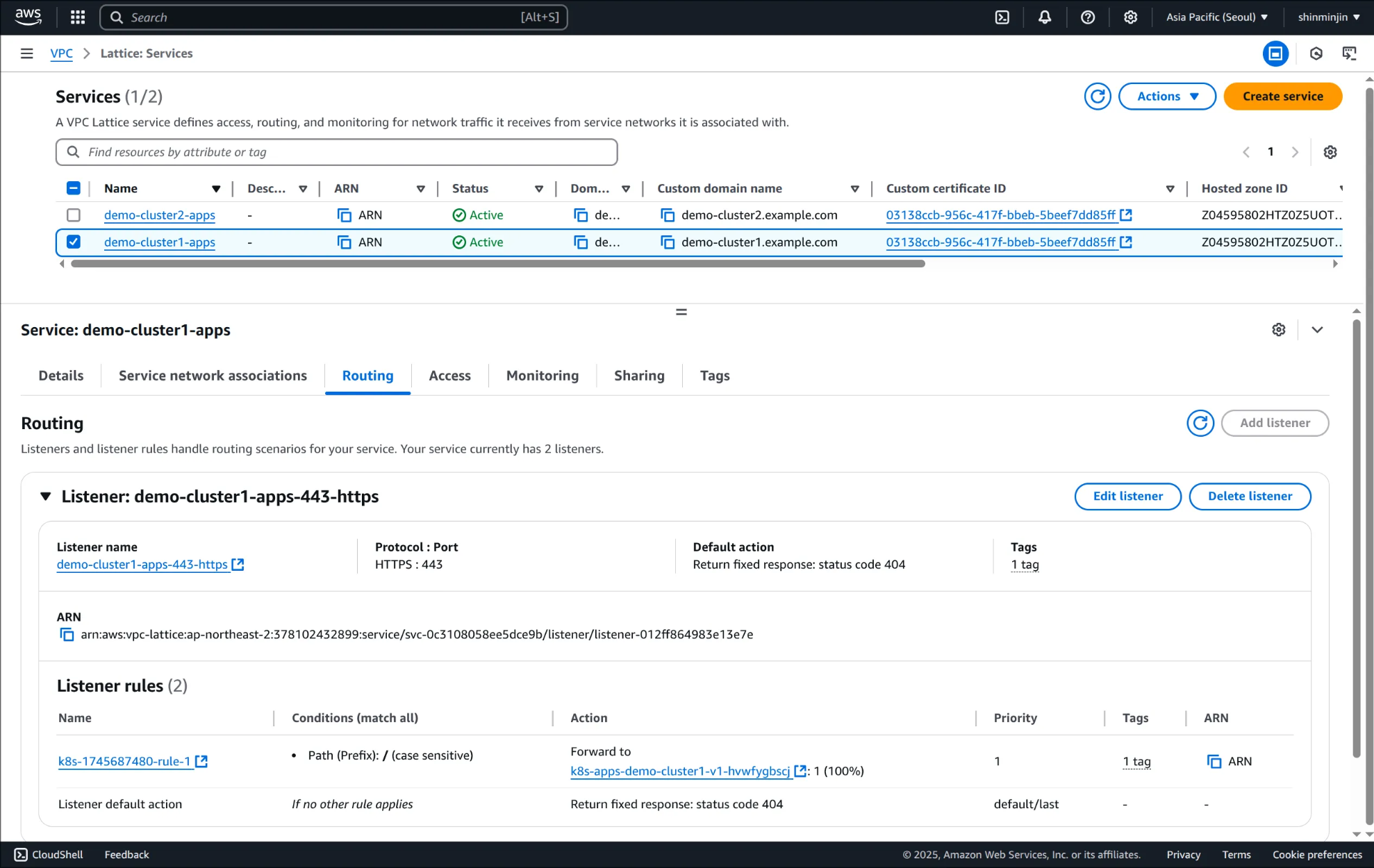

(1) VPC ์ฝ˜์†” > PrivateLink and Lattice > Lattice services ๊ฒฝ๋กœ๋กœ ์ด๋™ํ•˜์—ฌ VPC Lattice Service ๋ชฉ๋ก ํ™•์ธ

(2) ๊ฐ Service๊ฐ€ ์ปค์Šคํ…€ ๋„๋ฉ”์ธ ๋ช…์— ๋งคํ•‘๋œ ์ƒํƒœ ํ™•์ธ

(3) ๊ฐ Service๊ฐ€ Private Hosted Zone์— associate๋˜์–ด ์žˆ๊ณ  PCA ์ธ์ฆ์„œ ์‚ฌ์šฉ ์ค‘

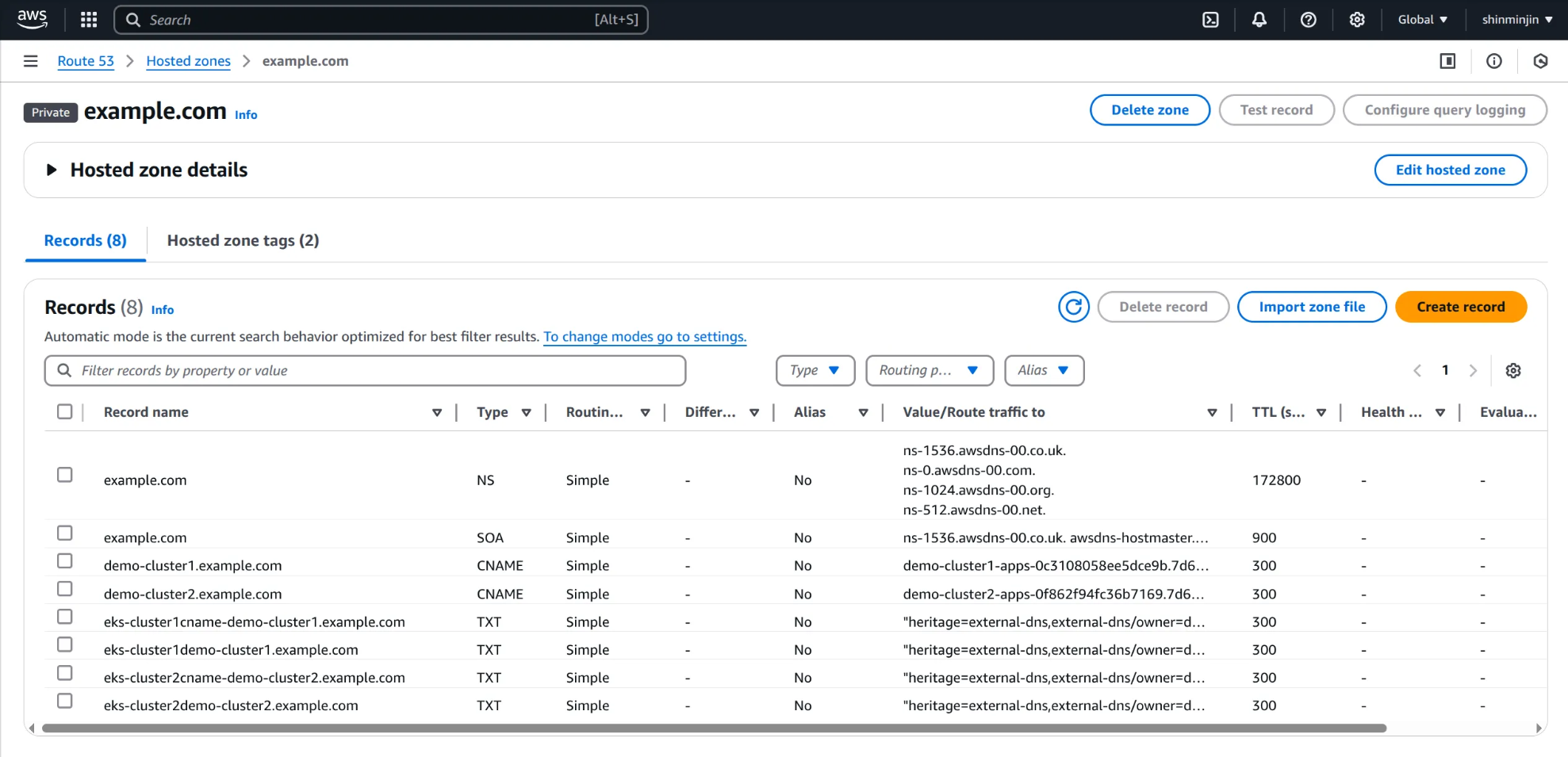

3. Route53 Private Hosted Zone

4. EKS ํด๋Ÿฌ์Šคํ„ฐ๋ณ„ ์• ํ”Œ๋ฆฌ์ผ€์ด์…˜ ํ™•์ธ

(1) eks-cluster1์œผ๋กœ context ์Šค์œ„์นญ

1
2
3
4

kubectl config use-context eks-cluster1

# ๊ฒฐ๊ณผ
Switched to context "eks-cluster1".

(2) eks-cluster1์˜ ๋ชจ๋“  Pod ๋ชฉ๋ก ์กฐํšŒ

1

kubectl get po -A

โœ…ย ์ถœ๋ ฅ

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22

NAMESPACE                           NAME                                                              READY   STATUS      RESTARTS   AGE
apps                                demo-cluster1-v1-77d97c96d9-dmczp                                 2/2     Running     0          56m
aws-application-networking-system   aws-gateway-api-controller-aws-gateway-controller-chart-6c5l5xr   1/1     Running     0          59m
aws-application-networking-system   aws-gateway-api-controller-aws-gateway-controller-chart-6cfj2m2   1/1     Running     0          59m
external-dns                        external-dns-5c6f9b9b87-gcpkk                                     1/1     Running     0          59m
kube-system                         aws-node-jjxgl                                                    2/2     Running     0          57m
kube-system                         aws-node-qtlfc                                                    2/2     Running     0          57m
kube-system                         aws-node-sqc94                                                    2/2     Running     0          57m
kube-system                         coredns-5fc547d667-gnjbh                                          1/1     Running     0          57m
kube-system                         coredns-5fc547d667-nct4t                                          1/1     Running     0          57m
kube-system                         eks-pod-identity-agent-ckkq5                                      1/1     Running     0          57m
kube-system                         eks-pod-identity-agent-vgw2g                                      1/1     Running     0          57m
kube-system                         eks-pod-identity-agent-zqfw5                                      1/1     Running     0          57m
kube-system                         kube-proxy-bpglm                                                  1/1     Running     0          57m
kube-system                         kube-proxy-c8wxp                                                  1/1     Running     0          57m
kube-system                         kube-proxy-mrdpw                                                  1/1     Running     0          57m
kyverno                             kyverno-admission-controller-54b8bdb86f-pflfw                     1/1     Running     0          59m
kyverno                             kyverno-background-controller-64fcf87c7b-z7vlc                    1/1     Running     0          59m
kyverno                             kyverno-cleanup-admission-reports-29094840-5kvqt                  0/1     Completed   0          7m24s
kyverno                             kyverno-cleanup-cluster-admission-reports-29094840-f82qb          0/1     Completed   0          7m24s
kyverno                             kyverno-cleanup-controller-5b4b8f645b-twrwq                       1/1     Running     0          59m
kyverno                             kyverno-reports-controller-55b9787f78-5pxvb                       1/1     Running     0          59m

(3) ๋ฐ๋ชจ ์• ํ”Œ๋ฆฌ์ผ€์ด์…˜ Pod (demo-cluster1-v1) ์ƒ์„ธ ์ •๋ณด ํ™•์ธ

1

kubectl describe po demo-cluster1-v1-77d97c96d9-dmczp -n apps

โœ…ย ์ถœ๋ ฅ

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124

Name:             demo-cluster1-v1-77d97c96d9-dmczp
Namespace:        apps
Priority:         0
Service Account:  default
Node:             ip-10-0-26-111.ap-northeast-2.compute.internal/10.0.26.111
Start Time:       Sun, 27 Apr 2025 02:10:39 +0900
Labels:           app=demo-cluster1-v1
                  pod-template-hash=77d97c96d9
Annotations:      vpc-lattices-svcs.amazonaws.com/agent-inject: true
Status:           Running
IP:               10.0.17.132
IPs:
  IP:           10.0.17.132
Controlled By:  ReplicaSet/demo-cluster1-v1-77d97c96d9
Init Containers:
  iptables-init:
    Container ID:  containerd://8d2a220d4a10c405a2d1c4595a9c0d18861f1c375ef0cc79af1d509433f6490b
    Image:         public.ecr.aws/seb-demo/iptables:v1
    Image ID:      public.ecr.aws/seb-demo/iptables@sha256:32f68e35a3c5925c7ee4cc664411063579418975e99754e0b9a53b1405b49e03
    Port:          <none>
    Host Port:     <none>
    Command:
      /bin/sh
      -c
      iptables -t nat -N EGRESS_PROXY; iptables -t nat -A OUTPUT -p tcp -d 169.254.171.0/24 -j EGRESS_PROXY; iptables -t nat -A EGRESS_PROXY -m owner --gid-owner 0 -j RETURN; iptables -t nat -A EGRESS_PROXY -p tcp -j REDIRECT --to-ports 8080; iptables -t nat -L -n -v;

    State:          Terminated
      Reason:       Completed
      Exit Code:    0
      Started:      Sun, 27 Apr 2025 02:10:44 +0900
      Finished:     Sun, 27 Apr 2025 02:10:44 +0900
    Ready:          True
    Restart Count:  0
    Environment:
      AWS_STS_REGIONAL_ENDPOINTS:              regional
      AWS_DEFAULT_REGION:                      ap-northeast-2
      AWS_REGION:                              ap-northeast-2
      AWS_CONTAINER_CREDENTIALS_FULL_URI:      http://169.254.170.23/v1/credentials
      AWS_CONTAINER_AUTHORIZATION_TOKEN_FILE:  /var/run/secrets/pods.eks.amazonaws.com/serviceaccount/eks-pod-identity-token
    Mounts:
      /var/run/secrets/kubernetes.io/serviceaccount from kube-api-access-f9xwp (ro)
      /var/run/secrets/pods.eks.amazonaws.com/serviceaccount from eks-pod-identity-token (ro)
Containers:
  envoy-sigv4:
    Container ID:  containerd://16b852a81664917a8f66927ab904a34aa5ac76f87f1da66a0f9bca9a128095c9
    Image:         public.ecr.aws/seb-demo/envoy-sigv4:v0.5
    Image ID:      public.ecr.aws/seb-demo/envoy-sigv4@sha256:097a68853c38c9cc2cf44d1de31e10538dd5b312cbc9092b12d2e49f7f92fdee
    Port:          8080/TCP
    Host Port:     0/TCP
    Args:
      -l
      info
    State:          Running
      Started:      Sun, 27 Apr 2025 02:10:58 +0900
    Ready:          True
    Restart Count:  0
    Environment:
      APP_DOMAIN:                              example.com
      CA_ARN:                                  arn:aws:acm-pca:ap-northeast-2:378102432899:certificate-authority/f9ec5283-69d8-4f98-ad5e-0f2f9cc02eb1
      AWS_STS_REGIONAL_ENDPOINTS:              regional
      AWS_DEFAULT_REGION:                      ap-northeast-2
      AWS_REGION:                              ap-northeast-2
      AWS_CONTAINER_CREDENTIALS_FULL_URI:      http://169.254.170.23/v1/credentials
      AWS_CONTAINER_AUTHORIZATION_TOKEN_FILE:  /var/run/secrets/pods.eks.amazonaws.com/serviceaccount/eks-pod-identity-token
    Mounts:
      /var/run/secrets/kubernetes.io/serviceaccount from kube-api-access-f9xwp (ro)
      /var/run/secrets/pods.eks.amazonaws.com/serviceaccount from eks-pod-identity-token (ro)
  demo-cluster1-v1:
    Container ID:   containerd://fca32be9c5cb17059ad6f885e472213073bccbd15802db28ec6c0ce7bb186344
    Image:          public.ecr.aws/seb-demo/http-server:latest
    Image ID:       public.ecr.aws/seb-demo/http-server@sha256:05b913f6c411303f8967ed556b12c80ca49c63a9a37005bc8651c18df54266a6
    Port:           <none>
    Host Port:      <none>
    State:          Running
      Started:      Sun, 27 Apr 2025 02:11:11 +0900
    Ready:          True
    Restart Count:  0
    Environment:
      PodName:                                 Hello from demo-cluster1-v1
      AWS_STS_REGIONAL_ENDPOINTS:              regional
      AWS_DEFAULT_REGION:                      ap-northeast-2
      AWS_REGION:                              ap-northeast-2
      AWS_CONTAINER_CREDENTIALS_FULL_URI:      http://169.254.170.23/v1/credentials
      AWS_CONTAINER_AUTHORIZATION_TOKEN_FILE:  /var/run/secrets/pods.eks.amazonaws.com/serviceaccount/eks-pod-identity-token
    Mounts:
      /var/run/secrets/kubernetes.io/serviceaccount from kube-api-access-f9xwp (ro)
      /var/run/secrets/pods.eks.amazonaws.com/serviceaccount from eks-pod-identity-token (ro)
Conditions:
  Type                        Status
  PodReadyToStartContainers   True
  Initialized                 True
  Ready                       True
  ContainersReady             True
  PodScheduled                True
Volumes:
  eks-pod-identity-token:
    Type:                    Projected (a volume that contains injected data from multiple sources)
    TokenExpirationSeconds:  86000
  kube-api-access-f9xwp:
    Type:                    Projected (a volume that contains injected data from multiple sources)
    TokenExpirationSeconds:  3607
    ConfigMapName:           kube-root-ca.crt
    ConfigMapOptional:       <nil>
    DownwardAPI:             true
QoS Class:                   BestEffort
Node-Selectors:              <none>
Tolerations:                 node.kubernetes.io/not-ready:NoExecute op=Exists for 300s
                             node.kubernetes.io/unreachable:NoExecute op=Exists for 300s
Events:
  Type    Reason     Age   From               Message
  ----    ------     ----  ----               -------
  Normal  Scheduled  58m   default-scheduler  Successfully assigned apps/demo-cluster1-v1-77d97c96d9-dmczp to ip-10-0-26-111.ap-northeast-2.compute.internal
  Normal  Pulling    58m   kubelet            Pulling image "public.ecr.aws/seb-demo/iptables:v1"
  Normal  Pulled     58m   kubelet            Successfully pulled image "public.ecr.aws/seb-demo/iptables:v1" in 4.882s (4.882s including waiting). Image size: 55339336 bytes.
  Normal  Created    58m   kubelet            Created container iptables-init
  Normal  Started    58m   kubelet            Started container iptables-init
  Normal  Pulling    58m   kubelet            Pulling image "public.ecr.aws/seb-demo/envoy-sigv4:v0.5"
  Normal  Pulled     58m   kubelet            Successfully pulled image "public.ecr.aws/seb-demo/envoy-sigv4:v0.5" in 10.436s (10.436s including waiting). Image size: 318174943 bytes.
  Normal  Created    58m   kubelet            Created container envoy-sigv4
  Normal  Started    58m   kubelet            Started container envoy-sigv4
  Normal  Pulling    58m   kubelet            Pulling image "public.ecr.aws/seb-demo/http-server:latest"
  Normal  Pulled     58m   kubelet            Successfully pulled image "public.ecr.aws/seb-demo/http-server:latest" in 13.377s (13.377s including waiting). Image size: 229544141 bytes.
  Normal  Created    58m   kubelet            Created container demo-cluster1-v1
  Normal  Started    58m   kubelet            Started container demo-cluster1-v1
  • Init Containers: iptables-init
    • envoy-sigv4 ์ปจํ…Œ์ด๋„ˆ๋ฅผ ์œ„ํ•œ IPTables ๊ทœ์น™ ์„ธํŒ…
    • ์†Œ์Šค ํ”„๋กœ์„ธ์Šค gid๊ฐ€ 0์ด ์•„๋‹Œ ๊ฒฝ์šฐ ํŠธ๋ž˜ํ”ฝ์„ envoy๋กœ ๋ฆฌ๋””๋ ‰์…˜
  • Containers
    • envoy-sigv4 (์‚ฌ์ด๋“œ์นด ํ”„๋ก์‹œ ์—ญํ• , Private CA ์ธ์ฆ์„œ๋ฅผ ํ†ตํ•ด VPC Lattice ํ†ต์‹ )
    • demo-cluster1-v1 (์• ํ”Œ๋ฆฌ์ผ€์ด์…˜ ์„œ๋ฒ„)

(4) eks-cluster2 ํด๋Ÿฌ์Šคํ„ฐ๋กœ ์ „ํ™˜ ํ›„, ํŒŒ๋“œ ๋ชฉ๋ก ์กฐํšŒ

1
2
3
4

kubectl config use-context eks-cluster2

# ๊ฒฐ๊ณผ
Switched to context "eks-cluster2".

1

kubectl get po -A

โœ…ย ์ถœ๋ ฅ

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22

NAMESPACE                           NAME                                                              READY   STATUS      RESTARTS   AGE
apps                                demo-cluster2-v1-75cb9cd4bb-jjmcx                                 2/2     Running     0          34m
aws-application-networking-system   aws-gateway-api-controller-aws-gateway-controller-chart-6flh5zb   1/1     Running     0          49m
aws-application-networking-system   aws-gateway-api-controller-aws-gateway-controller-chart-6flrrpn   1/1     Running     0          49m
external-dns                        external-dns-594fd4bffb-zmsgt                                     1/1     Running     0          49m
kube-system                         aws-node-gb5r8                                                    2/2     Running     0          48m
kube-system                         aws-node-rl79m                                                    2/2     Running     0          48m
kube-system                         aws-node-s6pkj                                                    2/2     Running     0          48m
kube-system                         coredns-5fc547d667-k5zks                                          1/1     Running     0          49m
kube-system                         coredns-5fc547d667-sjpxd                                          1/1     Running     0          49m
kube-system                         eks-pod-identity-agent-5n5cc                                      1/1     Running     0          48m
kube-system                         eks-pod-identity-agent-87lz2                                      1/1     Running     0          48m
kube-system                         eks-pod-identity-agent-w2wsz                                      1/1     Running     0          48m
kube-system                         kube-proxy-7mfkd                                                  1/1     Running     0          48m
kube-system                         kube-proxy-bsqs9                                                  1/1     Running     0          48m
kube-system                         kube-proxy-zrpq8                                                  1/1     Running     0          48m
kyverno                             kyverno-admission-controller-54b8bdb86f-27x2r                     1/1     Running     0          50m
kyverno                             kyverno-background-controller-64fcf87c7b-wlz5h                    1/1     Running     0          50m
kyverno                             kyverno-cleanup-admission-reports-29094850-wd76l                  0/1     Completed   0          112s
kyverno                             kyverno-cleanup-cluster-admission-reports-29094850-ptwd8          0/1     Completed   0          112s
kyverno                             kyverno-cleanup-controller-5b4b8f645b-7z62j                       1/1     Running     0          50m
kyverno                             kyverno-reports-controller-55b9787f78-h2v9k                       1/1     Running     0          50m

๐Ÿ“ก ํ†ต์‹  ํ…Œ์ŠคํŠธ ๋ฐ ๋™์ž‘๋ฐฉ์‹ ํ™•์ธ

1. ํด๋Ÿฌ์Šคํ„ฐ ๊ฐ„ ํ†ต์‹  ํ…Œ์ŠคํŠธ

(1) eks-cluster1์—์„œ eks-cluster2์˜ ๋ฐ๋ชจ ์• ํ”Œ๋ฆฌ์ผ€์ด์…˜์œผ๋กœ ์š”์ฒญ ์ „์†ก

1
2
3

kubectl --context eks-cluster1 \
  exec -ti -n apps deployments/demo-cluster1-v1 -c demo-cluster1-v1 \
  -- curl demo-cluster2.example.com

โœ…ย ์ถœ๋ ฅ

1

Requsting to Pod(demo-cluster2-v1-75cb9cd4bb-jjmcx): Hello from demo-cluster2-v1

(2) eks-cluster1์—์„œ ์ž์ฒด ๋ฐ๋ชจ ์• ํ”Œ๋ฆฌ์ผ€์ด์…˜์œผ๋กœ ์š”์ฒญ ์ „์†ก

1
2
3

kubectl --context eks-cluster1 \
  exec -ti -n apps deployments/demo-cluster1-v1 -c demo-cluster1-v1 \
        -- curl demo-cluster1.example.com

โœ…ย ์ถœ๋ ฅ

1

AccessDeniedException: User: arn:aws:sts::xxxxxxxxxxxxx:assumed-role/vpc-lattice-sigv4-client/eks-eks-cluste-demo-clust-f05537fc-1af2-4d43-8128-6caf61ce29e0 is not authorized to perform: vpc-lattice-svcs:Invoke on resource: arn:aws:vpc-lattice:ap-northeast-2:378102432899:service/svc-0c3108058ee5dce9b/ because no service-based policy allows the vpc-lattice-svcs:Invoke action
  • eks-cluster1์˜ IAMAuthPolicy๊ฐ€ eks-cluster2๋กœ์˜ ํ˜ธ์ถœ๋งŒ ํ—ˆ์šฉํ•˜๋„๋ก ์„ค์ •๋˜์–ด ๋ฐœ์ƒ

2. IAMAuthPolicy ์„ค์ • ํ™•์ธ

IAMAuthPolicy ์„ธ๋ถ€ ์ •์ฑ… ์กฐํšŒ

1
2
3

kubectl --context eks-cluster1 \
  get IAMAuthPolicy -n apps demo-cluster1-iam-auth-policy  \
  -o json | jq ".spec.policy | fromjson"

โœ…ย ์ถœ๋ ฅ

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19

{
  "Version": "2012-10-17",
  "Statement": [
    {
      "Effect": "Allow",
      "Principal": {
        "AWS": "arn:aws:iam::378102432899:root"
      },
      "Action": "vpc-lattice-svcs:Invoke",
      "Resource": "*",
      "Condition": {
        "StringEquals": {
          "aws:PrincipalTag/eks-cluster-name": "eks-cluster2",
          "aws:PrincipalTag/kubernetes-namespace": "apps"
        }
      }
    }
  ]
}
  • eks-cluster-name์ด eks-cluster2์ด๊ณ  kubernetes-namespace๊ฐ€ apps์ผ ๋•Œ๋งŒ vpc-lattice-svcs:Invoke ์•ก์…˜ ํ—ˆ์šฉ

3. ๋ฆฌ์†Œ์Šค ๋งคํ•‘ ๊ตฌ์กฐ ํ™•์ธ

(1) IAMAuthPolicy ์ƒ์„ธ ์กฐํšŒ

1

kubectl describe IAMAuthPolicy demo-cluster1-iam-auth-policy -n apps

โœ…ย ์ถœ๋ ฅ

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51

Name:         demo-cluster1-iam-auth-policy
Namespace:    apps
Labels:       app.kubernetes.io/managed-by=Helm
Annotations:  application-networking.k8s.aws/iam-auth-policy-resource-id: svc-0c3108058ee5dce9b
              application-networking.k8s.aws/iam-auth-policy-resource-type: Service
              meta.helm.sh/release-name: demo-cluster1
              meta.helm.sh/release-namespace: apps
API Version:  application-networking.k8s.aws/v1alpha1
Kind:         IAMAuthPolicy
Metadata:
  Creation Timestamp:  2025-04-26T17:10:39Z
  Finalizers:
    application-networking.k8s.aws/iam-auth-policy
  Generation:        1
  Resource Version:  2795
  UID:               74a20504-1385-473e-b50d-b305fadff85a
Spec:
  Policy:  {
    "Version": "2012-10-17",
    "Statement": [
        {
            "Effect": "Allow",
            "Principal": {
              "AWS": "arn:aws:iam::378102432899:root"
            },
            "Action": "vpc-lattice-svcs:Invoke",
            "Resource": "*",
            "Condition": {
                "StringEquals": {
                    "aws:PrincipalTag/eks-cluster-name": "eks-cluster2",
                    "aws:PrincipalTag/kubernetes-namespace": "apps"
                }
            }
        }
    ]
}

  Target Ref:
    Group:      gateway.networking.k8s.io
    Kind:       HTTPRoute
    Name:       demo-cluster1
    Namespace:  apps
Status:
  Conditions:
    Last Transition Time:  2025-04-26T17:10:39Z
    Message:
    Observed Generation:   1
    Reason:                Accepted
    Status:                True
    Type:                  Accepted
Events:                    <none>
  • ์ ์šฉ ๋Œ€์ƒ(Target Ref)์ด apps ๋„ค์ž„์ŠคํŽ˜์ด์Šค์˜ demo-cluster1 HTTPRoute ๋ฆฌ์†Œ์Šค์ž„์„ ํ™•์ธ

(2) HTTPRoute ๋ฆฌ์†Œ์Šค ์ƒ์„ธ ์กฐํšŒ

1

kubectl describe HTTPRoute demo-cluster1 -n apps

โœ…ย ์ถœ๋ ฅ

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84

Name:         demo-cluster1
Namespace:    apps
Labels:       app.kubernetes.io/managed-by=Helm
Annotations:  application-networking.k8s.aws/lattice-assigned-domain-name:
                demo-cluster1-apps-0c3108058ee5dce9b.7d67968.vpc-lattice-svcs.ap-northeast-2.on.aws
              meta.helm.sh/release-name: demo-cluster1
              meta.helm.sh/release-namespace: apps
API Version:  gateway.networking.k8s.io/v1beta1
Kind:         HTTPRoute
Metadata:
  Creation Timestamp:  2025-04-26T17:10:39Z
  Finalizers:
    httproute.k8s.aws/resources
  Generation:        1
  Resource Version:  3222
  UID:               5fc6c887-e2e7-48fd-bb5b-2a9f350b1076
Spec:
  Hostnames:
    demo-cluster1.example.com
  Parent Refs:
    Group:         gateway.networking.k8s.io
    Kind:          Gateway
    Name:          lattice-gateway
    Namespace:     lattice-gateway
    Section Name:  http-listener
    Group:         gateway.networking.k8s.io
    Kind:          Gateway
    Name:          lattice-gateway
    Namespace:     lattice-gateway
    Section Name:  https-listener-with-custom-domain
  Rules:
    Backend Refs:
      Group:
      Kind:    Service
      Name:    demo-cluster1-v1
      Port:    80
      Weight:  1
    Matches:
      Path:
        Type:   PathPrefix
        Value:  /
Status:
  Parents:
    Conditions:
      Last Transition Time:  2025-04-26T17:12:03Z
      Message:
      Observed Generation:   1
      Reason:                Accepted
      Status:                True
      Type:                  Accepted
      Last Transition Time:  2025-04-26T17:12:03Z
      Message:
      Observed Generation:   1
      Reason:                ResolvedRefs
      Status:                True
      Type:                  ResolvedRefs
    Controller Name:         application-networking.k8s.aws/gateway-api-controller
    Parent Ref:
      Group:         gateway.networking.k8s.io
      Kind:          Gateway
      Name:          lattice-gateway
      Namespace:     lattice-gateway
      Section Name:  http-listener
    Conditions:
      Last Transition Time:  2025-04-26T17:12:03Z
      Message:
      Observed Generation:   1
      Reason:                Accepted
      Status:                True
      Type:                  Accepted
      Last Transition Time:  2025-04-26T17:12:03Z
      Message:
      Observed Generation:   1
      Reason:                ResolvedRefs
      Status:                True
      Type:                  ResolvedRefs
    Controller Name:         application-networking.k8s.aws/gateway-api-controller
    Parent Ref:
      Group:         gateway.networking.k8s.io
      Kind:          Gateway
      Name:          lattice-gateway
      Namespace:     lattice-gateway
      Section Name:  https-listener-with-custom-domain
Events:              <none>
  • HTTPRoute๊ฐ€ demo-cluster1-v1 Service๋กœ ๋ผ์šฐํŒ…๋จ

(3) Service ๋ฆฌ์†Œ์Šค ์ƒ์„ธ ์กฐํšŒ

1

kubectl describe svc demo-cluster1-v1 -n apps

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17

Name:                     demo-cluster1-v1
Namespace:                apps
Labels:                   app.kubernetes.io/managed-by=Helm
Annotations:              meta.helm.sh/release-name: demo-cluster1
                          meta.helm.sh/release-namespace: apps
Selector:                 app=demo-cluster1-v1
Type:                     ClusterIP
IP Family Policy:         SingleStack
IP Families:              IPv4
IP:                       172.20.97.205
IPs:                      172.20.97.205
Port:                     <unset>  80/TCP
TargetPort:               8090/TCP
Endpoints:                10.0.17.132:8090
Session Affinity:         None
Internal Traffic Policy:  Cluster
Events:                   <none>
  • Service๊ฐ€ 10.0.17.132:8090 Pod๋กœ ๋ผ์šฐํŒ…๋จ

(4) Lattice service > demo-cluster1-apps Routing ํƒญ์—์„œ ๋Œ€์ƒ ๊ทธ๋ฃน ๋งคํ•‘ ์ •๋ณด ํ™•์ธ

(5) ๋ผ์šฐํŒ… ๋Œ€์ƒ 10.0.17.132:8090 (demo-cluster1-v1 Pod)

  • ํ•ด๋‹น ๋ฐ๋ชจ ์• ํ”Œ๋ฆฌ์ผ€์ด์…˜ Pod๊ฐ€ IAMAuthPolicy ๊ทœ์น™์— ๋”ฐ๋ผ ์•ก์„ธ์Šค ์ œ์–ด ์ ์šฉ ์ค‘
  • IAMAuthPolicy๋ฅผ ํ†ตํ•ด ๋ฉ€ํ‹ฐ ํด๋Ÿฌ์Šคํ„ฐ ๊ฐ„ ์• ํ”Œ๋ฆฌ์ผ€์ด์…˜ ๋ณ„ ์„ธ๋ฐ€ํ•œ ์ ‘๊ทผ ์ œ์–ด ๊ตฌ์„ฑ ๊ฐ€๋Šฅ!

๐Ÿ—‘๏ธ ์‹ค์Šต ๋ฆฌ์†Œ์Šค ์ •๋ฆฌ

ํด๋Ÿฌ์Šคํ„ฐ ์ •๋ฆฌ

1
2
3
4

cd /terraform-aws-eks-blueprints/patterns/vpc-lattice/cross-cluster-pod-communication/cluster/

./destroy.sh cluster2
./destroy.sh cluster1

environment ํ™˜๊ฒฝ ์ •๋ฆฌ

1
2
3
4
5
6
7
8

SN=$(aws vpc-lattice list-service-networks --query 'items[?name==`lattice-gateway`].id' --output text)
if [ -n "$SN" ]; then
    aws vpc-lattice delete-service-network --service-network-id "$SN"
fi

cd /terraform-aws-eks-blueprints/patterns/vpc-lattice/cross-cluster-pod-communication/environment/

terraform destroy -auto-approve
EKS
AEWS
This post is licensed under CC BY 4.0 by the author.
